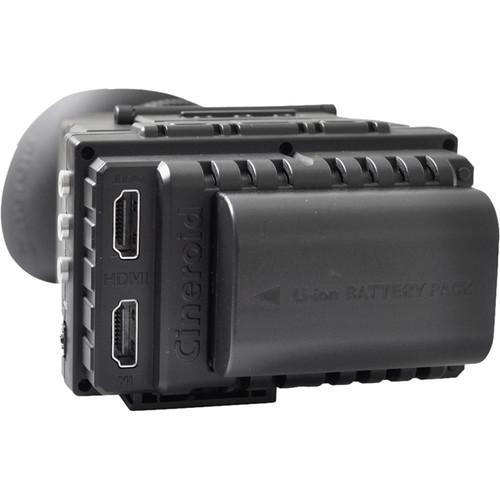

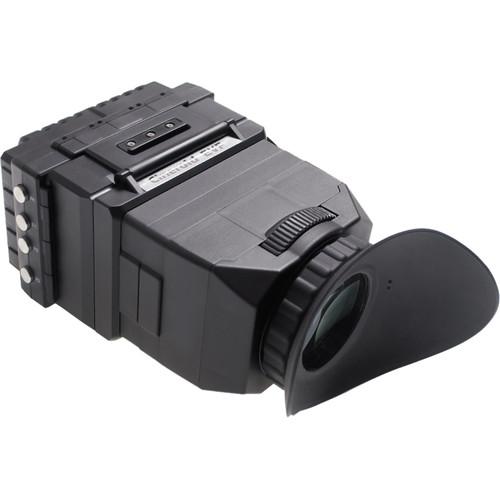

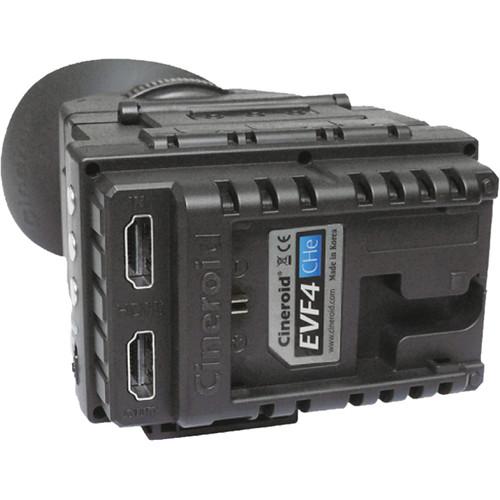

Product description The Cineroid EVF4CHE Electronic Viewfinder with HDMI Input / Loop-Through Output offers an eyepiece view or an LCD view. The eyepiece/optical loupe can be flipped up out of the way much like a traditional ENG viewfinder, or detached completely to reveal a 3.2" LCD with an 800 x 480 resolution. A built-in adjustable diopter and removable extension frame allows you to use the EVF even without having perfect eyesight.
The HDMI input and loop-through HDMI output allows you to feed the EVF, and send the unmodified signal downstream to an optional director's viewfinder, video village, or other display / recorder. The EVF supports a variety of focus and exposure tools, including two forms of peaking, false color, crop guide, pixel-to-pixel mapping, and image flip. A headphone jack and built-in speaker allow you to monitor audio, and a 1/4"-20 threaded mounting hole allows you to mount the EVF to your camera using optional articulating arms. The EVF4CHE is powered by optional Cannon LP-E6 batteries, or from an optional external power supply, that provides 6 to 17 VDC. The USB port is for firmware updates. - Peaking
- Peaking highlights the sharpest (most in focus) areas of the image with a color outline. The EVF4CHE features two modes. Red mode highlights the in focus areas in red, while the sharpness mode outlines in white.
- Clip Guide
- There are three clip guide modes, color, zebra and both in combination. Color mode provides a colored wash to overexposed areas, while zebra can be set to fixed or moving lines and can display at 3, 5, 8, 11% above or below the trigger point.
- False Color
- The False Color feature provides under/over luminance warning by presenting the image as a series of color values representing exposure.
- Crop Guide
- Darkens portions of the viewing area to help frame a shot in accordance with what it will look like when later cropped to be viewed in different aspect ratios.
- Pixel to Pixel Mapping
- 1:1 pixel-to-pixel mapping allows you to look at sections of your image without any scaling, so you can see the actual detail and not be fooled by scaling artifacts.
- Monochrome (Black and White)
- Displays an image in grayscale.
- Audio Level
- Displays on screen the audio levels captured. (A speaker and headphone jack are available for monitoring captured audio.)
- Screen Flip
- Rotates an image in various ways to support different vertical and horizontal mounting options.
- Custom Keys
- The EVF4CHE has quick-access buttons that the above features can be programmed into.
UPC: 884980001703 In the Box Cineroid EVF4CHE Electronic Viewfinder with HDMI Input / Loop-Through Output Optical Loupe Extension Tube Mini Ball Head 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cineroid EVF4CHE Electronic Viewfinder with HDMI Input Loop-Through Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCineroid EVF4CHE Specs | Format | 1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98
1920 x 1080i: 60/59.94/50
1920 x 1080PsF: 30/29.97
720p: 60/59.94/50
720 x 576p: 50
720 x 576i: 50
720 x 480p: 59.94
720 x 480i: 59.94 | | Input | HDMI: 1 x HDMI Type A | | Output | HDMI: 1 x HDMI Type A | | LCD Size | 3.2" / 8.1 cm | | Resolution | 800 x 480 | | Colors | 16.7M | | Viewing Angle | 140 x 140° | | Display Area | 2.75 x 1.65" (7 x 4.2 cm) | | Audio Output | Headphone Jack: 1 x 3.5 mm analog stereo jack
Internal Speaker: Mono output | | Mount Type | 1/4" - 20 screw hole | | Power | Battery: Canon LP-E6 type
External: DC 6 - 17V | | Operating Temperature | 14 to 158°F / -10 to 70°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Power Consumption | 3.5W / 3 hours with LP-E6 battery | | Dimensions | 175 x 90 x 57" / 444.5 x 228.6 x 144.8 cm | | Weight | .5 lbs / 240 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 6.7 x 5.4 x 3.2" |
