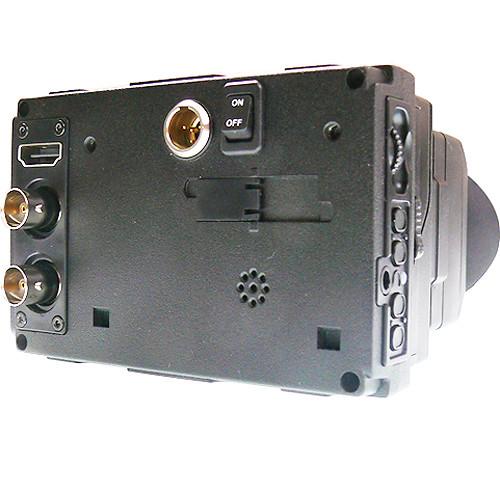

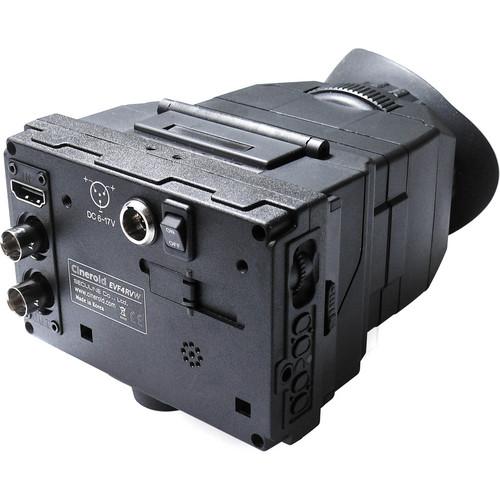

User Manual for Cineroid EVF4RVW with Retina Display Click to enlarge the picture
Contents of the user manual for the Cineroid EVF4RVW with Retina Display
- Product category: Viewfinders Cineroid
- Brand: Cineroid
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cineroid Viewfinders
 |
User manual for the Cineroid EVF4RVW with Retina Display contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cineroid product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cineroid user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cineroid product will considerably shorten its lifespan!
|

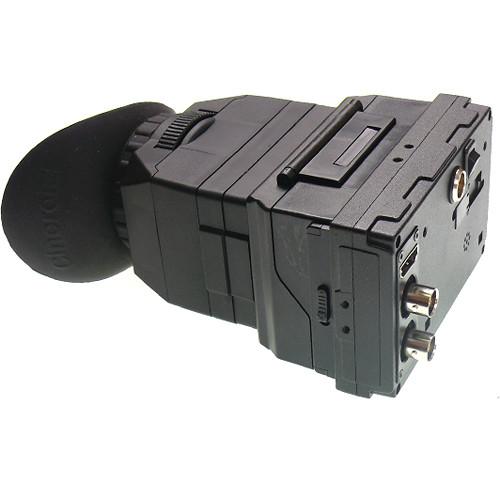

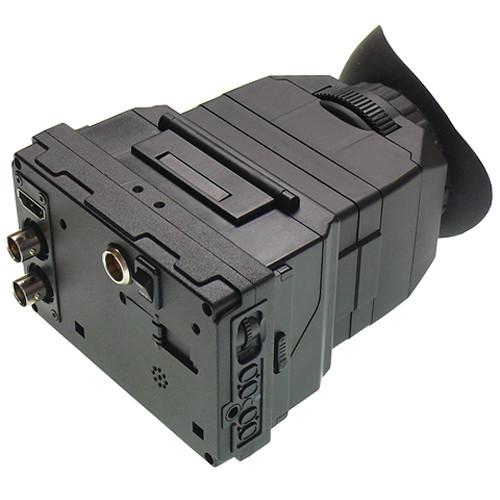

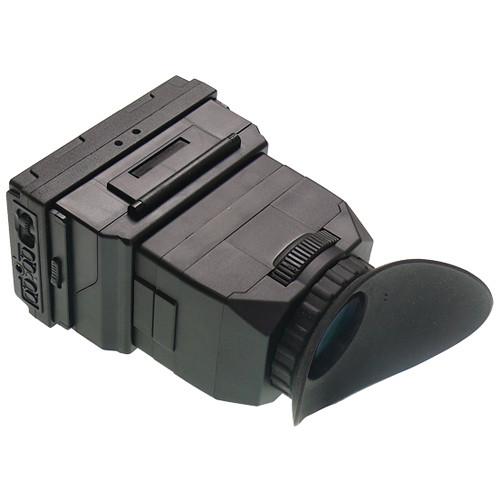

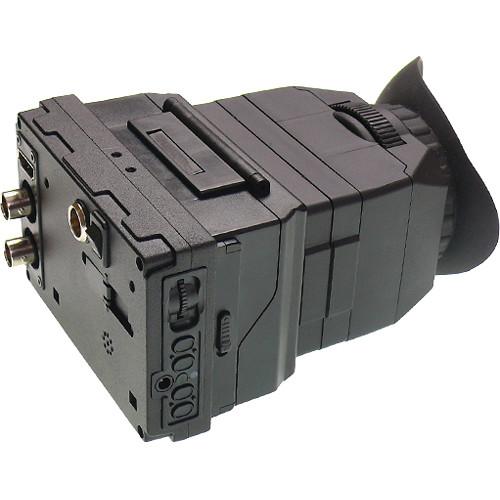

Product description The Cineroid EVF4RVW with Retina Display features a 3.5" Retina LCD display with 960x640 resolution and a metal housing. The EVF has 3G/HD/SD-SDI and HDMI inputs, and a 3G/HD/SD-SDI output enables loop through. The optical loupe has an adjustable diopter and can be detached completely or flipped open to view the display as a monitor.
The EVF4RVW has a comprehensive set of confidence features, including multiple waveform and vectorscope display options. Peaking is available in red or white, and various clip guides include color and a range of zebra patterns. Two types of false color displays translate exposure values into 6 different colors. Crop guide superimposes darkened bars on the screen to aide in framing shots that will be cropped in post, and the screen size can be changed for use with anamorphic lenses. Other features include pixel-to-pixel, screen flip and monochrome mode.
The EVF4RVW has a mini XLR power input and includes a mini XLR to D-Tap (P-Tap) cable for connecting to an external battery. Interchangeable battery plates for Canon LP-E6, Sony NPF and Canon BP911 batteries are also included. - Retina Display

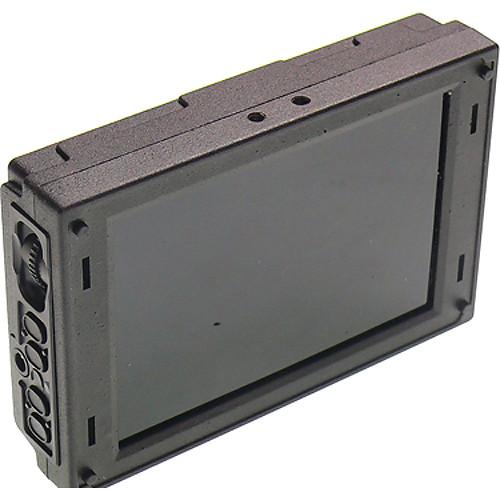

- The centerpiece of Cineroid's EVF4RVW is the 3.5" Retina LCD with 960x640 resolution and metal housing. The screen supports 16.7 million colors and viewing angles ranging 140° HxV.
- 3G/HD/SD-SDI and HDMI

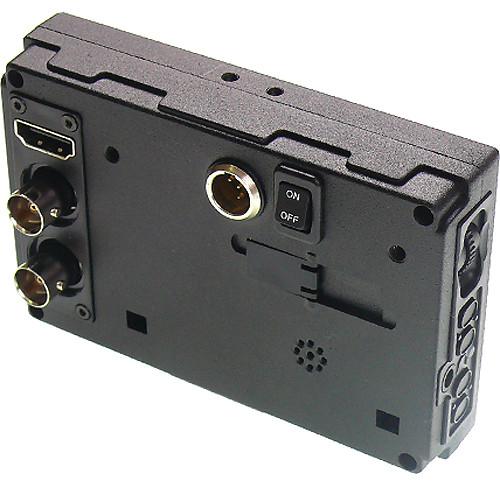

- The EVF's 3G/HD/SD-SDI (BNC) and HDMI input connectors support Full HD 1080p, and the 3G/HD/SD-SDI output connector enables loop through.

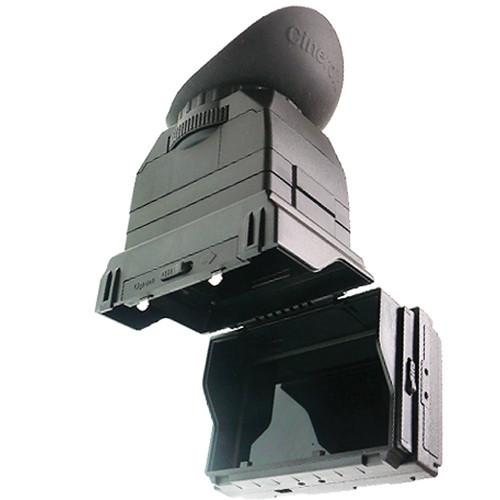

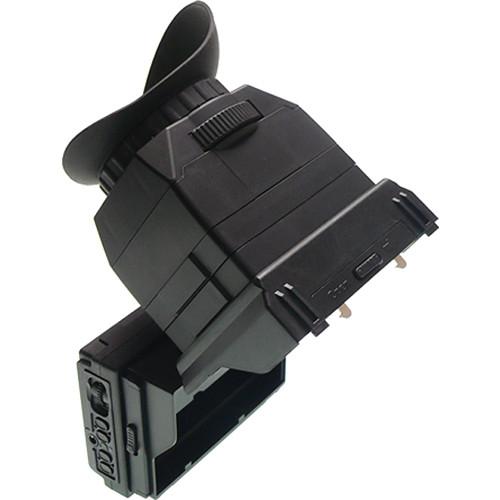

- Detachable Loupe with Adjustable Diopter
- The optical loupe has an adjustable diopter and can be detached completely or flipped open to view the display as a monitor.
- Waveform and Vectorscope
- There are three waveform and vectorscope display options. Style 1 superimposes a semitransparent, horizontal waveform at the bottom of the screen. Style 2 superimposes a semitransparent, horizontal and vertical waveform and a small vectorscope. Style 3 minimizes the video image and displays a large horizontal and vertical waveform and vectorscope.
- Peaking, Clip Guides and False Color
- Peaking outlines the edges of objects that are in focus with red or white highlights. Clip guides can be displayed as color, zebra or both. The zebra pattern can be moving or fixed, and the range is selectable among 3, 5, 8, and 11%. Two types of false color displays translate exposure values into 6 different colors.
- Crop Guide and Anamorphic Conversion
- Crop guide superimposes darkened bars on the screen to aide in framing shots that will be cropped in post, and the screen size can be changed for use with anamorphic lenses.
- Pixel-to-Pixel, Flip and Monochrome
- Pixel-to-Pixel mode displays the center of the image at its native resolution. Screen Flip can rotate and/or mirror the image. Monochrome mode displays the image in black & white or isolates the blue channel, red channel, or green channel.
- Multi Vendor Battery Support
- A mini XLR power input provides an interface for the D-Tap (P-Tap) power cable. Interchangeable battery plates for Canon LP-E6, Sony NPF and Canon BP911 batteries are also included.
UPC: 884980001215 In the Box Cineroid EVF4RVW with Retina Display 1.6x Optical Loupe Mini Ball Head D-Tap to Mini XLR Cable Battery Holder Mount Canon LP-E6 Battery Holder Sony NPF Battery Holder Canon BP911 Battery Holder Extension Tube Carrying Bag User Manual 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cineroid EVF4RVW with Retina Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCineroid EVF4RVW Specs | | | Display Type | 3.5" Retina LCD | | Display Resolution | 960 x 640 | | Display Colors | 16.7 million | | Viewing Angles | 140° (H) x 140° (V) | | Display Area | 2.74 x 1.64" (69.6 x 41.76 mm) | | | | Inputs | HDMI (x1)
3G/HD/SD-SDI (x1) | | Output | 3G/HD/SD-SDI (x1)
3.5mm Stereo Headphone Jack (x1) | | Input/Output Resolutions | HDMI: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
3G/HD/SD-SDI: 480i, 576i, 720p, 1080i, 1080p | | Power Input | Mini XLR (x1, DC 6~17 V)
Multi vendor battery support | | | | Speaker | x1, mono | | Power Consumption | 3.5 W (3 hours with 2200 mA battery) | | Operating Temperature | 14 ~ 158° F (-10 ~ 70° C) | | Storage Temperature | -4 ~ 158° F (-20 ~ 70° C) | | Dimensions | 4.02 x 2.64 x 6.18" (10.2 x 6.7 x 15.7 cm) | | Weight | 14.11 oz (400 g) | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 7.5 x 7.0 x 5.8" |
