User Manual for Cineroid FL800S Flexible Bi-Color LED Panel Click to enlarge the picture
Contents of the user manual for the Cineroid FL800S Flexible Bi-Color LED Panel
- Product category: LED Lights Cineroid
- Brand: Cineroid
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cineroid LED Lights
 |
User manual for the Cineroid FL800S Flexible Bi-Color LED Panel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cineroid product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cineroid user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cineroid product will considerably shorten its lifespan!
|

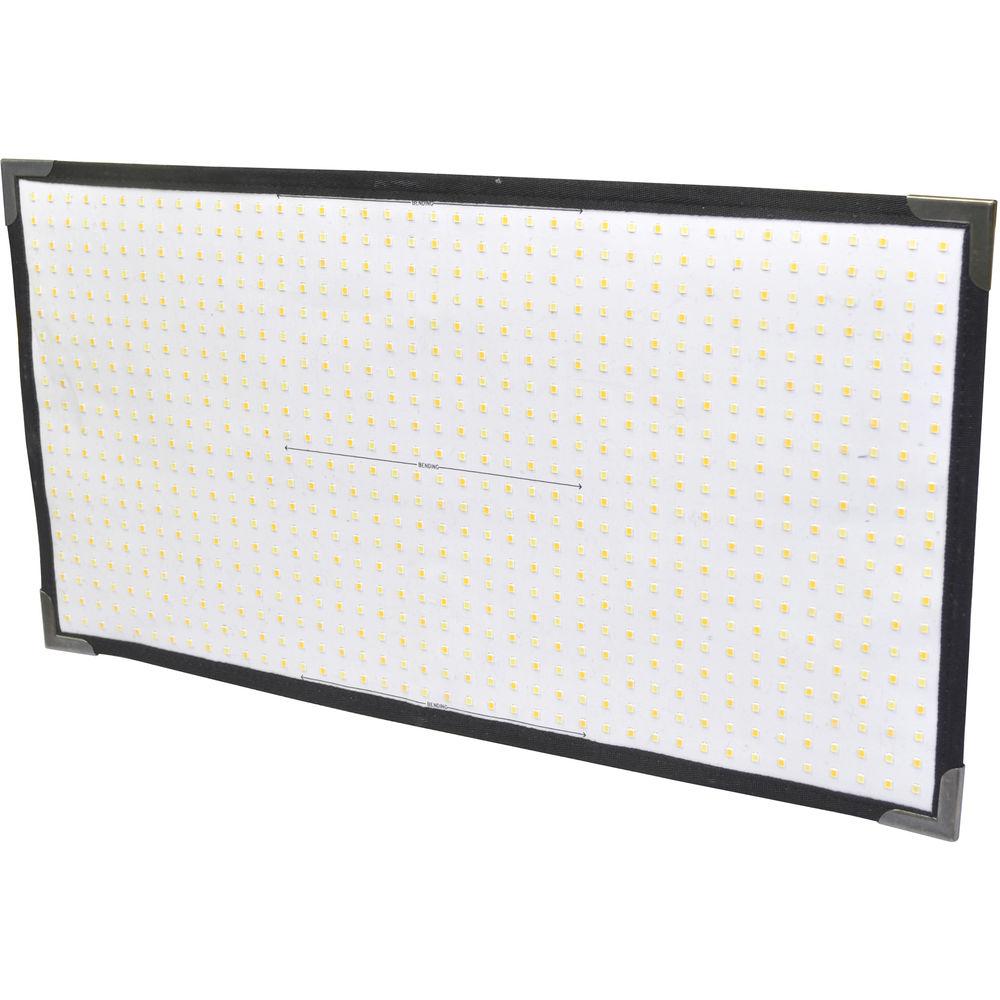

Product description With the ability to be bent, shaped, or contoured to suit the shape of your subject and lighting requirements, the FL800S Flexible Bi-Color LED Panel from Cineroid is a unique light source with color, light intensity and power options. The FL800S package comes in three basic parts - the flexible LED mat, FL Controller, and the AC800 Power Supply. The 9.8 x 18" light source employs 800 LEDs to output 3400 lux while maintaining a high CRI of 94 indicating a precise and accurate rendition of color. The lightweight (10.6 oz) FL800S is waterproof (except for the Controller) and is impervious to rain, snow, or humid conditions. In fact, you can wash it with water! The light is provided with an X-Bracket with a 5/8" receiver to hold the light in a rectangular shape and allow it to be easily mounted on a stand with a 5/8" stud. A diffuser is also included to take the edge off the bright LEDs. It attaches and detaches quickly and easily with the provided touch-fastener strips. The separate FL Controller is the "brain" or the adjustment component of the system. Color temperature is adjusted with a simple dial from a warm 2700K to an icy blue 6500K to match other fixtures, deal with almost any ambient light situation, or just to provide creative freedom. Light intensity is adjustable too, from 0-100% without flicker, saving you from pulling the light back and forth to achieve the right level of illumination. Both color and dimming can be controlled locally on the unit or remotely from a console with the purchase of a DMX encoder. Settings appear on the Controller's LCD screen. The Controller is powered by the third part of the package - the AC adapter - but with separate purchase of the appropriate battery plate, it can also run on V-mount or Gold mount batteries when AC power is unavailable. The AC800 Power Supply accepts 100-240 VAC current making the FL800S ready for worldwide use. A carrying bag is included for storage and transport. - Flexible LED Panel

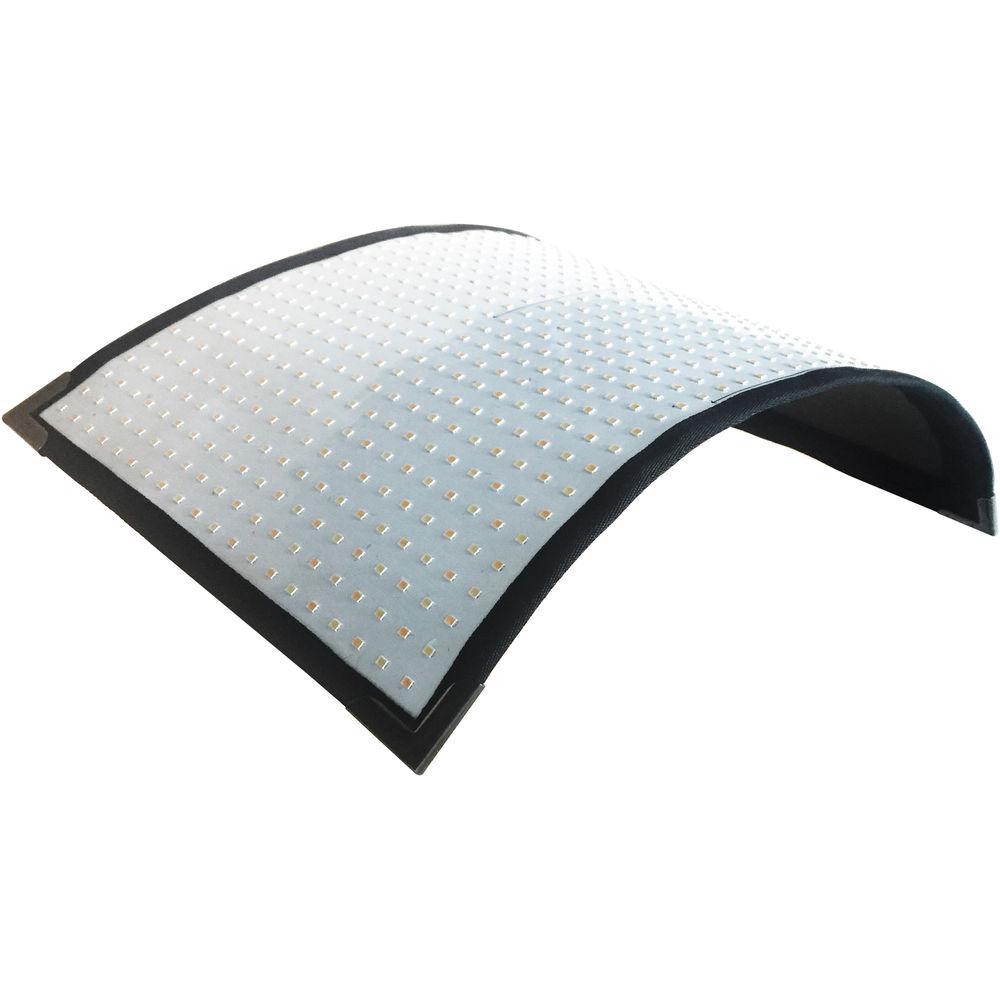

- The panel can be bent into any shape that suits your subject and lighting requirements.
- Waterproof Panel
- The panel (but not the Controller) is waterproof and impervious to rain or humidity. In fact, the panel's surface can be washed with water.

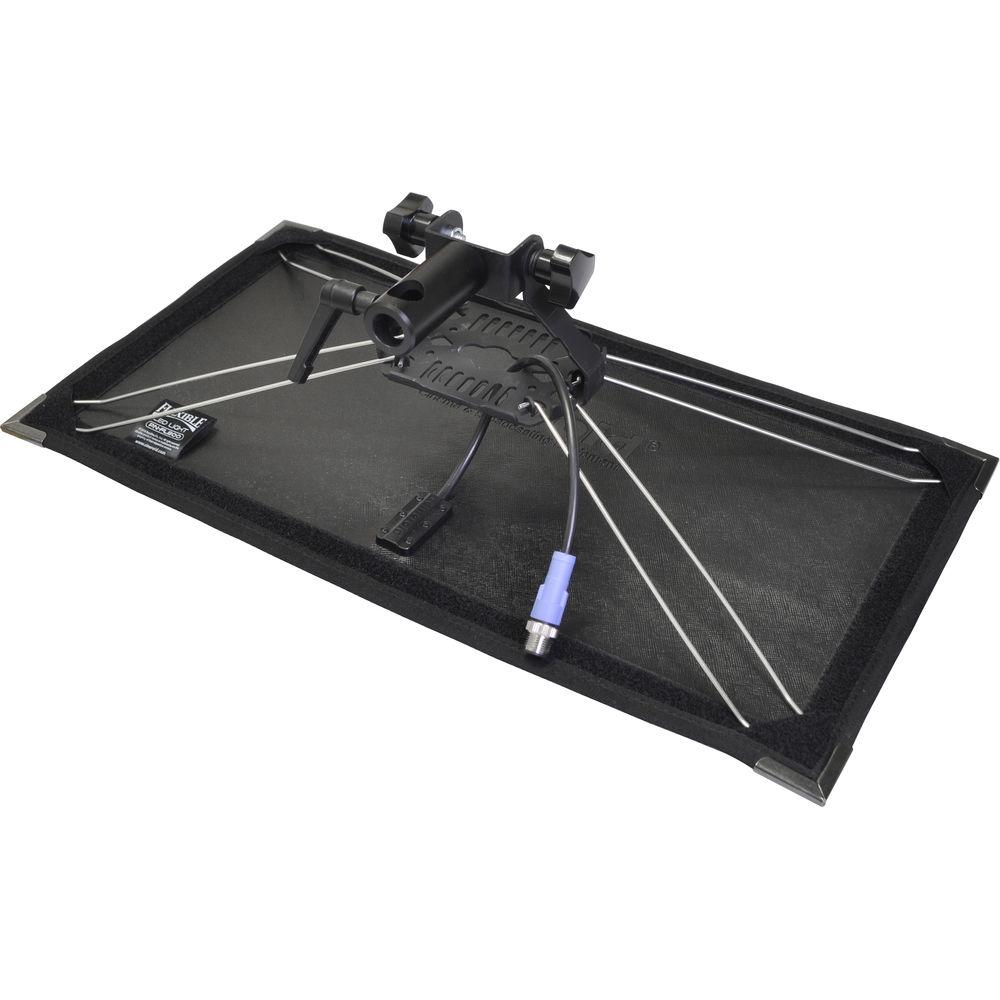

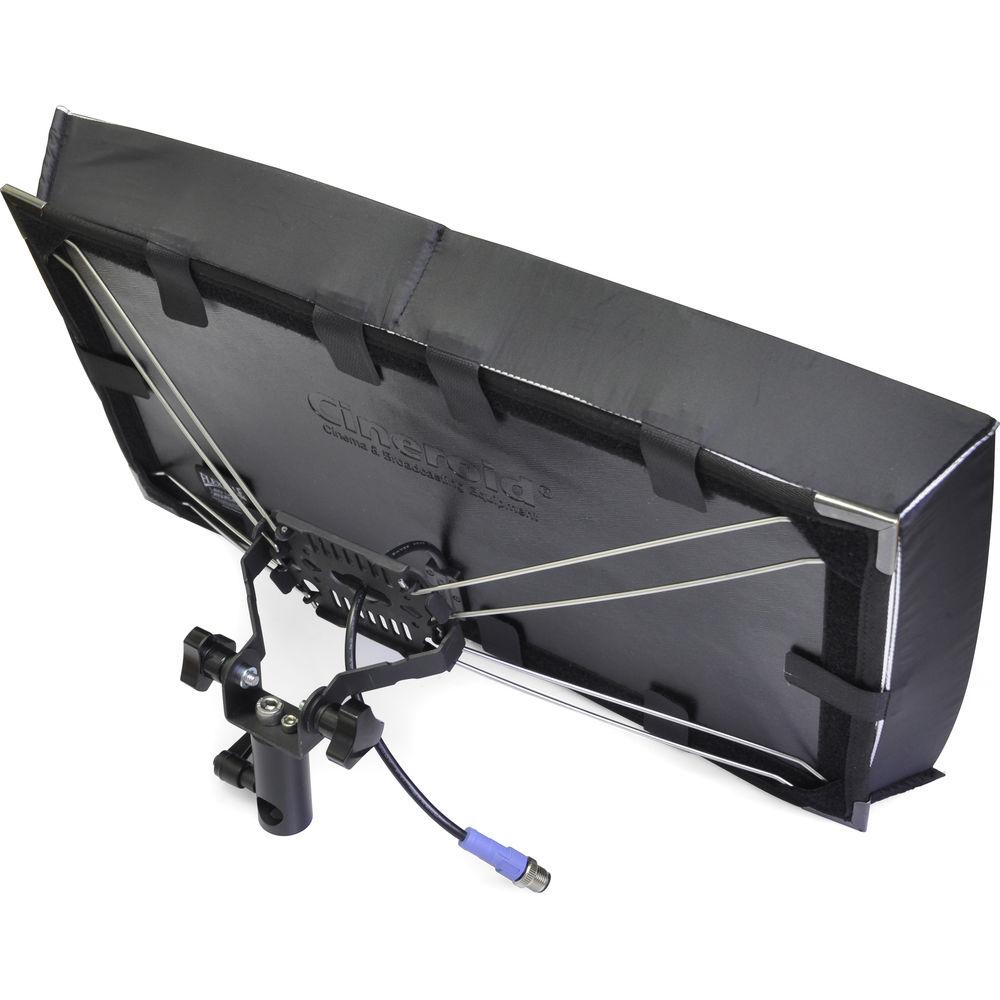

- X-Mount Bracket and Diffuser

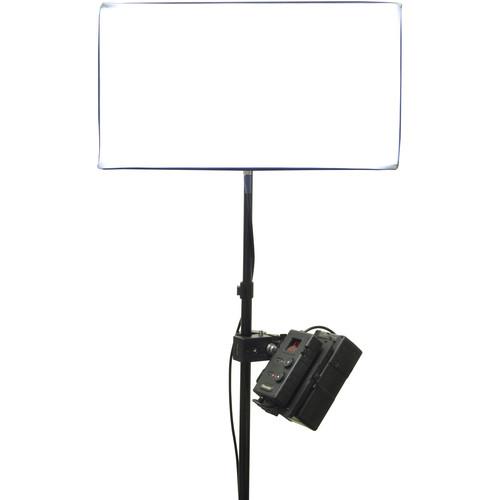

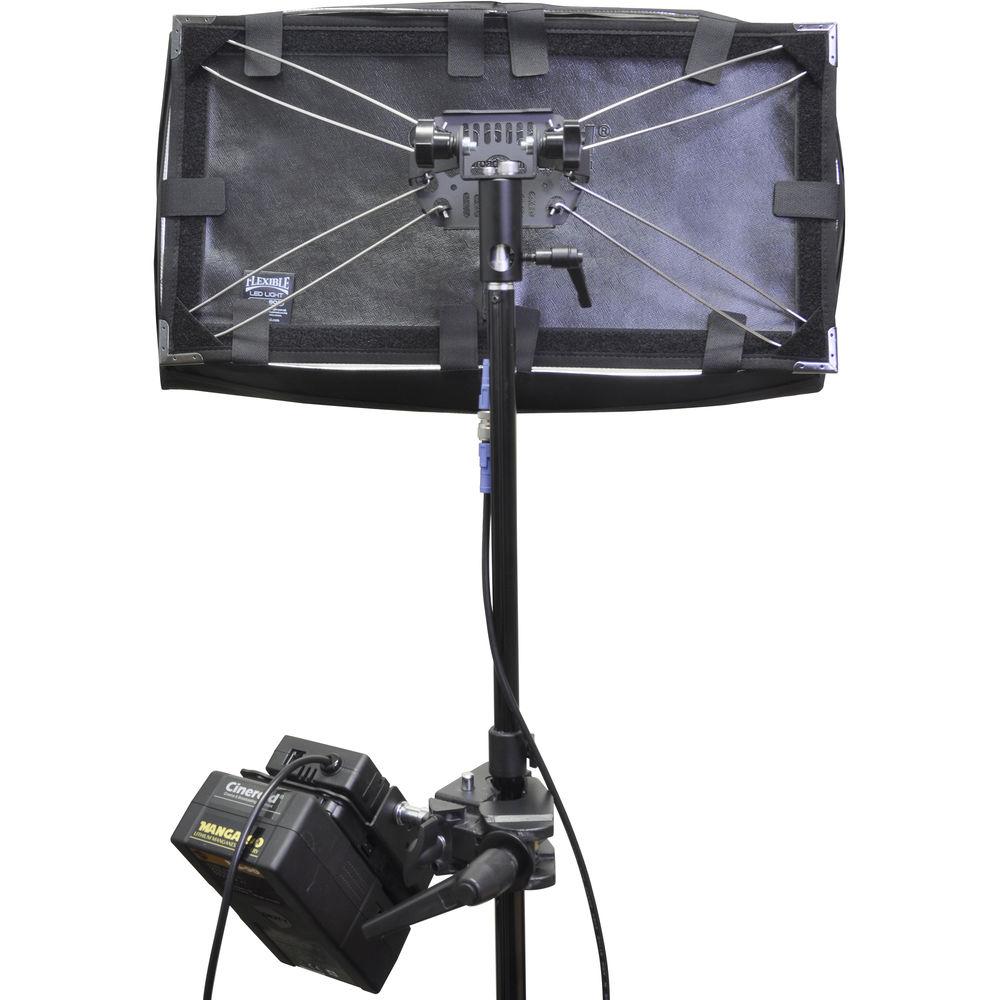

- The X-Bracket supports the FL800S in a rectangular shape and makes it easy to mount on a light stand. The diffuser takes the edge off the bright LEDs. It is easily attached to the bracket with the provided touch-fasteners.
- Controller FL
- The separate Controller allows adjustment of color from 2700-6500K and light intensity from 0-100%. The AC/DC unit accepts an optional DMX encoder for remote adjustments. It can also run on external batteries when AC power is unavailable.
- High Power
- The FL800S outputs a flicker-free 3400 lux while maintaining a high CRI of 94, indicating an accurate and faithful rendition of color.

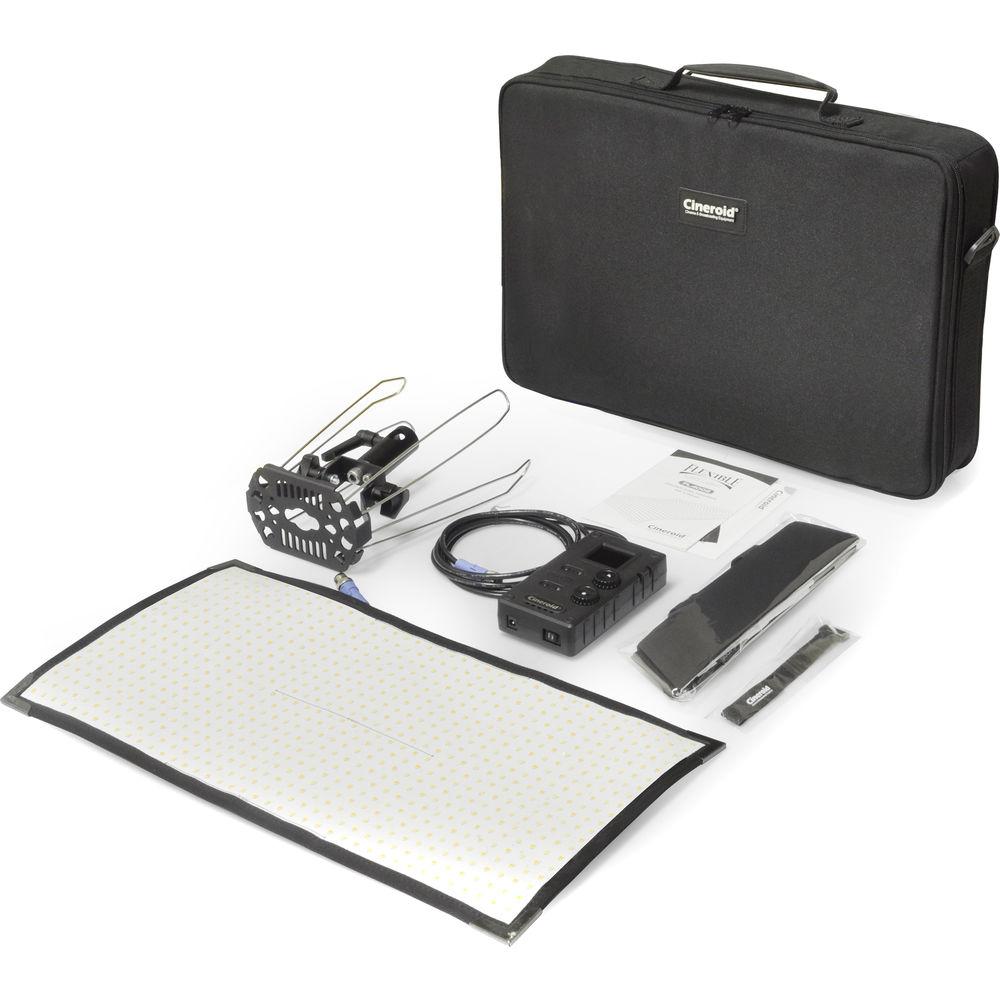

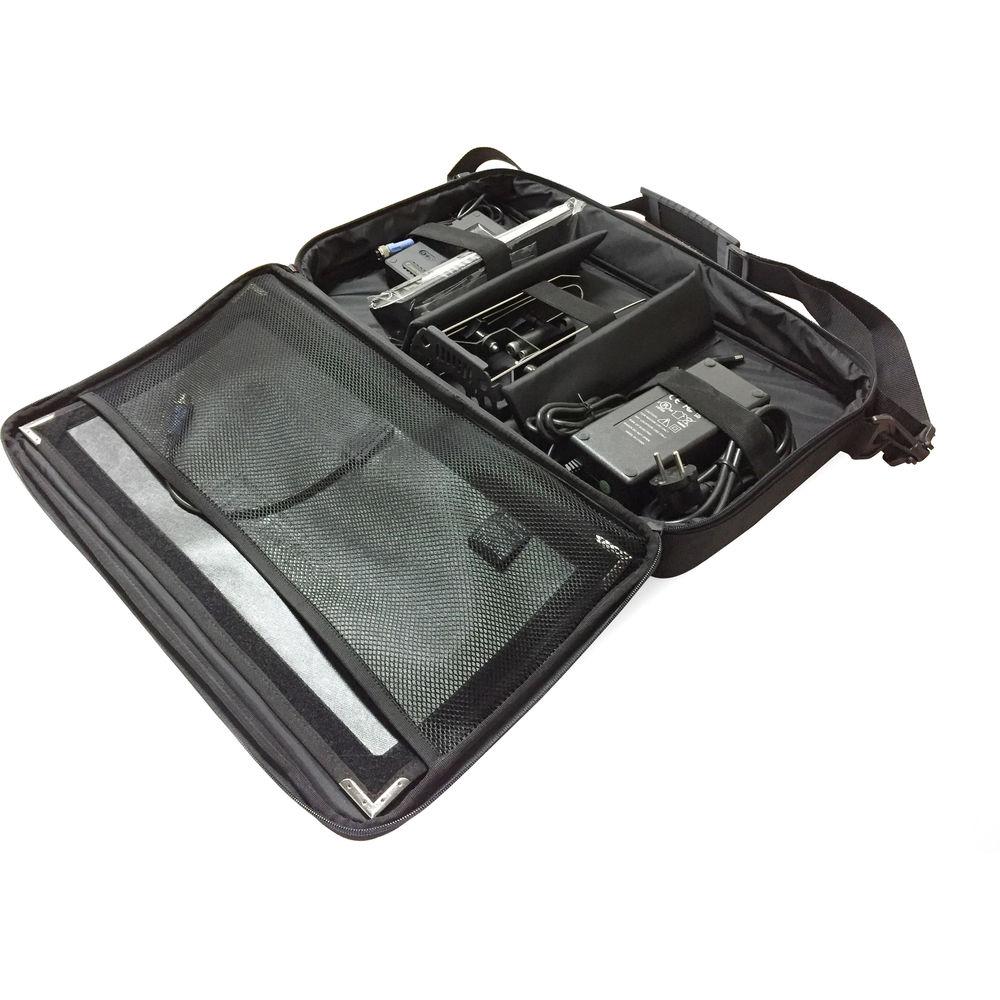

UPC: 884980002229 In the Box Cineroid FL800S Flexible Bi-Color LED Panel LED Panel X-Bracket with Spigot Soft Diffuser Controller AC Adapter AC Cord Set of Touch Fastener Strips Carrying Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cineroid FL800S Flexible Bi-Color LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCineroid FL800S Specs | | | Color Temperature | 2700 to 6500K | | Color Accuracy Standard | CRI 94 | | Dimming | Yes, 0 to 100% | | Display | LCD | | Number of LEDs | 800 | | Expected Lamp Life | 50000 Hours | | Rectangular Panel Size | 18 x 9.8" / 457.20 x 248.92 mm | | Fixture Weight | 10.58 oz / 300 g | | | | Battery Plate | None | | DMX Connector | None | | | | Yoke Mount | None | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 120 W | | | | Power Supply Dimensions | 2.8 x 1.4 x 5.1" / 72.0 x 35.0 x 130.0 mm | | Power Supply Weight | 7.58 oz / 215 g | | | | Certifications | CE, as per Manufacturer |
