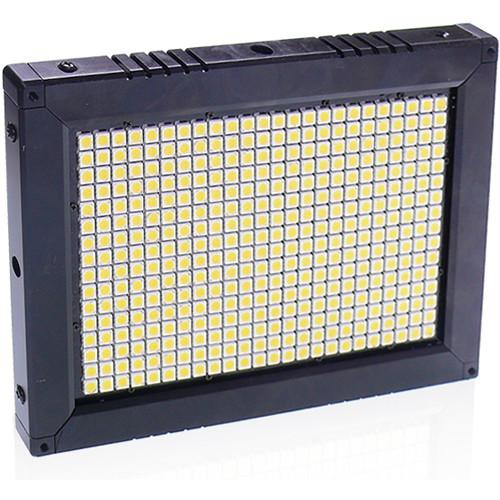

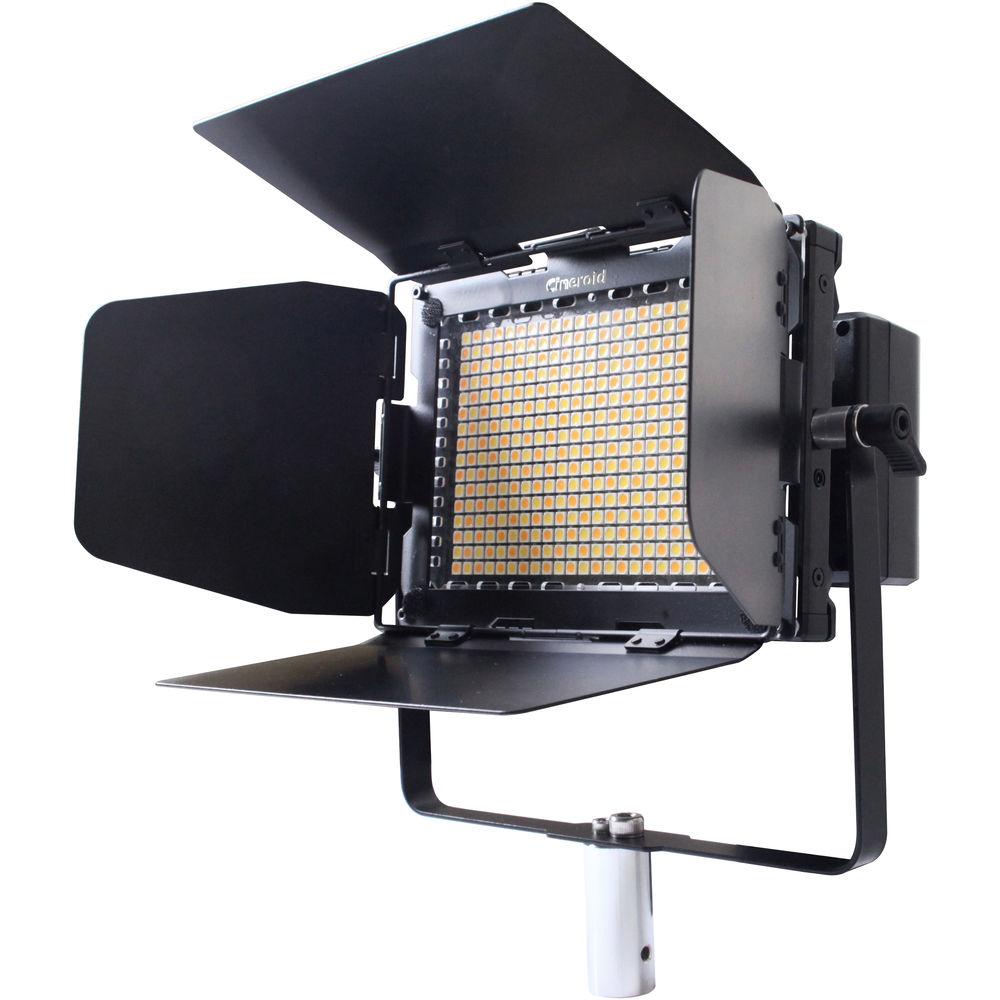

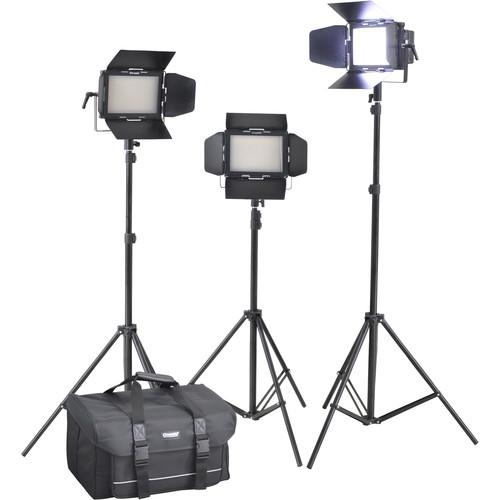

Product description The Cineroid LM400-3setV Professional LED 3-Light Kit bundles three LM400 fixtures each with a barndoor set, mounting yoke, diffuser, and V-mount battery plate; all of which fit into the included soft case. Each unit is a variable color temperature light with a range from 3000 to 5400K and a wide beam spread of 120°. They feature 30 steps of dimming, with a readout of the dimming level on the back of the unit. A built-in DMX port allows you to control the units with an optional DMX controller.
Each LM400 incorporates four 1/4"-20 threaded mounting holes, one on each side and on the top and bottom of the unit. This allows you to orient the lights on a camera either horizontally or vertically using optional adapters. The included yokes attach to the sides of the light and allow you to mount the lights to an optional stand with a baby 5/8" pin. - Variable Color Temperature
-
- The unit's color temperature is adjustable from 3000 to 5400K.

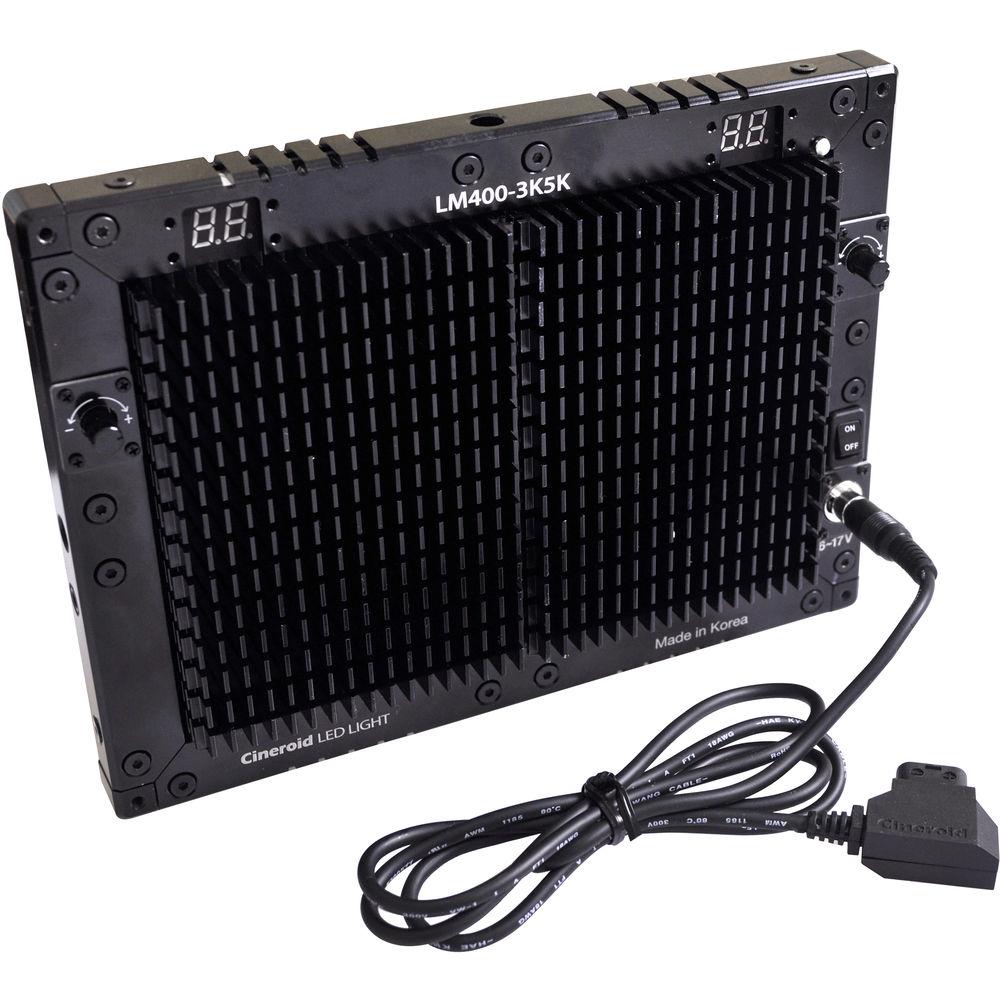

- Color temperature adjustments are made via a knob on the back of the light unit.
- Temperature can also be adjusted via an optional remote control.
- Variable Brightness
-

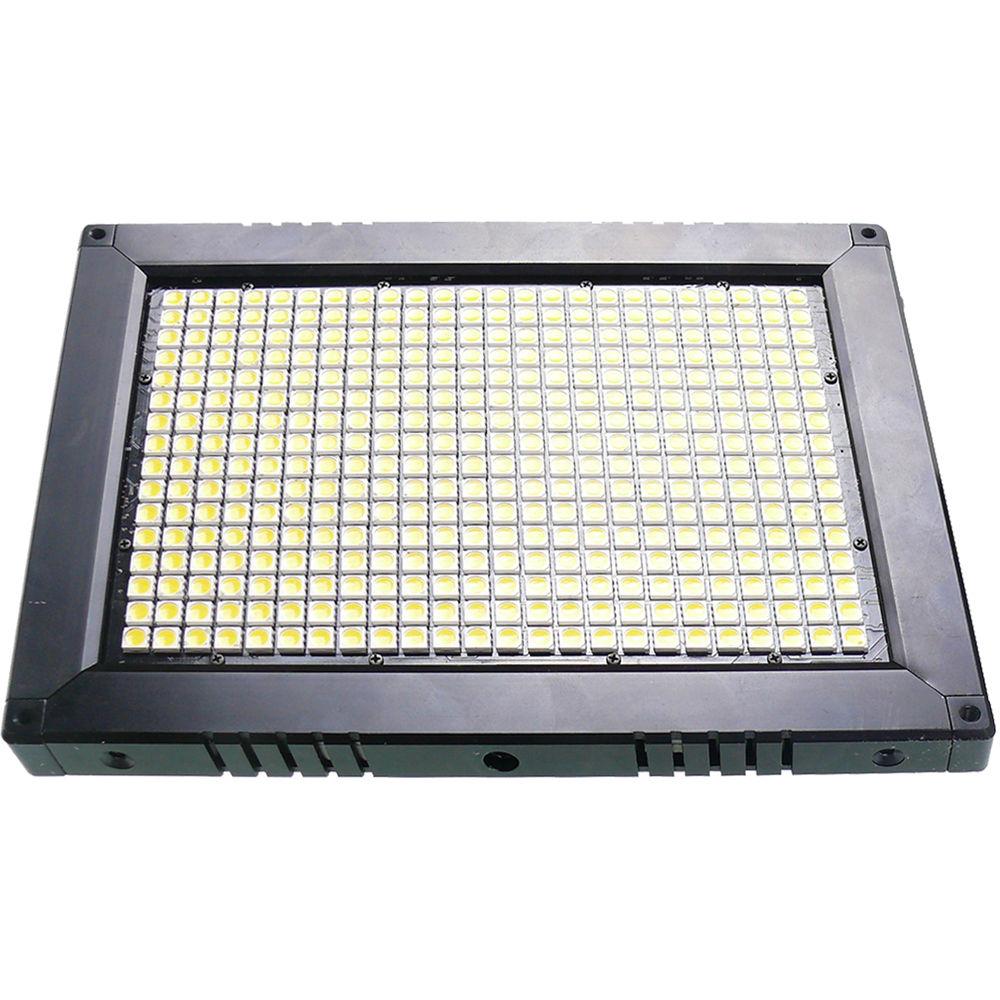

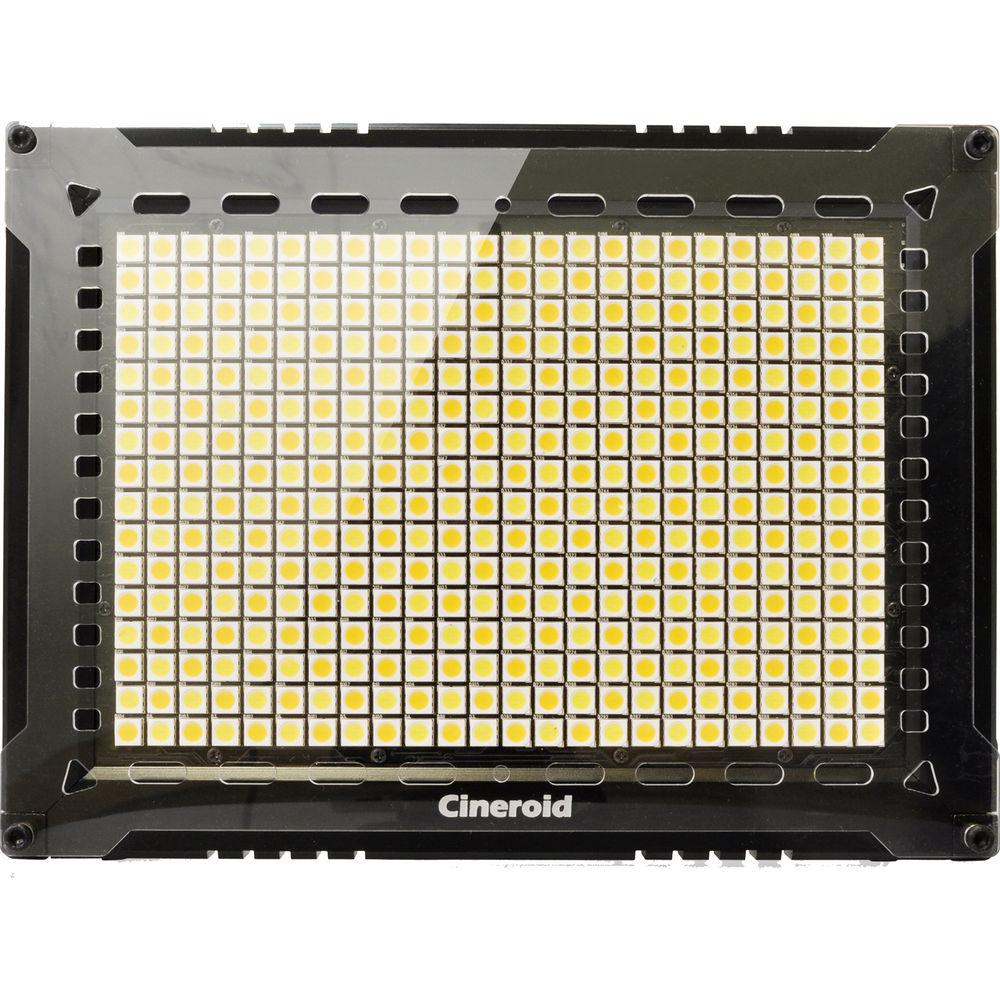

- The panel features a total of 1152 LEDs, which are organized in a 24 x 16 chip array with three LEDs per chip.
- The unit's brightness level is adjustable in 30 steps.
- Dimming adjustments are made via a knob on the back of the light unit
- The brightness adjustment reads in 30 steps on the back of the unit.
- DMX
- A built-in DMX port allows you to use optional DMX controllers for brightness adjustment.
- Power

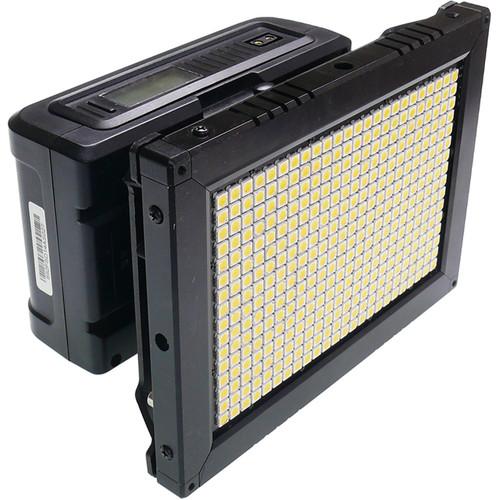

- The unit powers from the included AC adapter or optionally available battery plates.

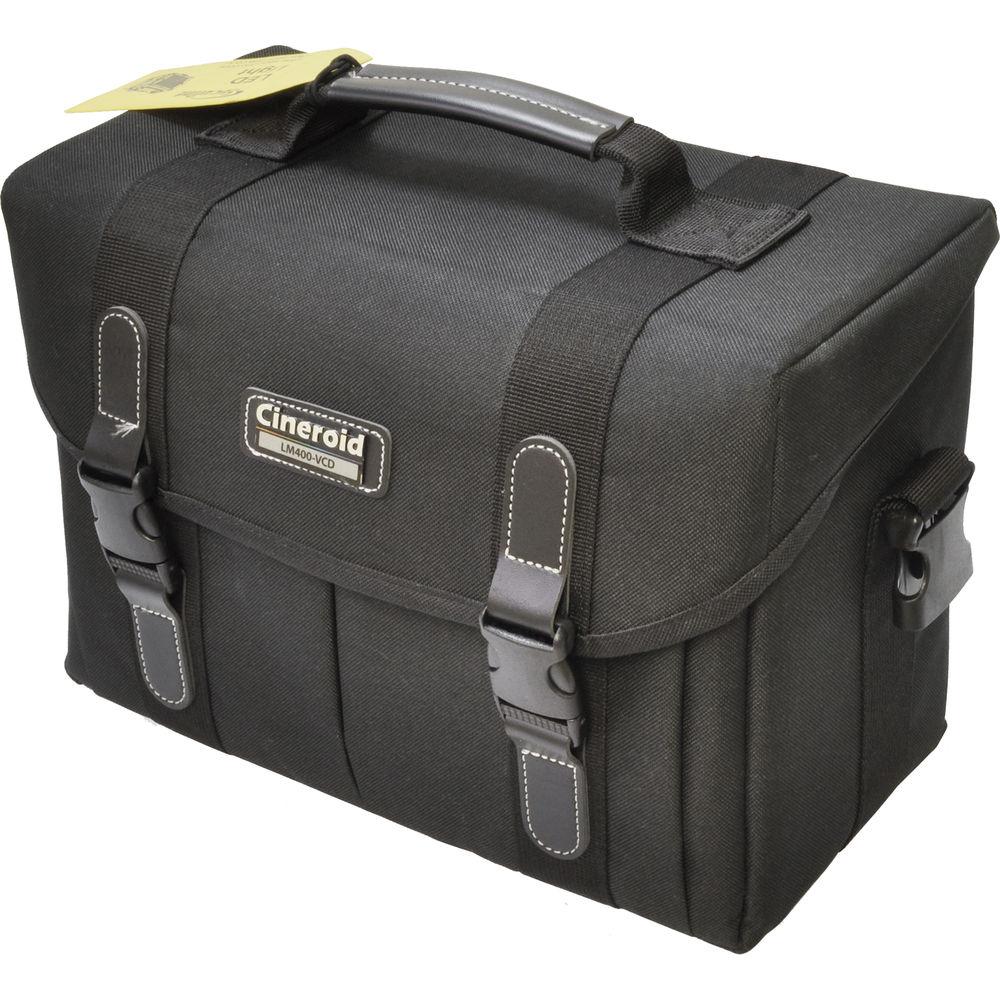

UPC: 884980001901 In the Box Cineroid LM400-3setV Professional LED 3-Light Kit 3 x LM400-VCeS Professional Bi-Color LED Light Kit Carrying Bag Limited 1-Year Warranty User Manual PDF 1.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Cineroid LM400-3setV Professional LED 3-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCineroid LM400 Specs | | | Beam Angle | 120° | | Color Temperature | 3000 to 5400K ± 200K | | Cooling System | None | | Display | None | | Fixture Dimensions | 7.5 x 5.6 x 1.0" / 191.0 x 141.0 x 25.0 mm | | Fixture Weight | 1.2 lb / 562 g | | | | Battery Plate | 1 x V-Mount | | | | Fixture Mount | 1/4"-20 Female Thread | | Mount via Included Adapter | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | DC Input Power | 10 to 17 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 60 W | | | | Package Weight | 19.6 lb | | Box Dimensions (LxWxH) | 19.5 x 14.5 x 12.6" |
