Product description The Cineroid LM400-VCeS Professional Bi-Color LED Light Kit bundles the versatile LM400 with a barndoor set, mounting yoke, diffuser, and soft case. The unit is a variable color temperature light with a range of 3000 to 5400K and a wide beam spread of 120°. It features 30 steps of dimming, with a readout of the dimming level on the back of the unit. A built-in DMX port allows you to control the unit with an optional DMX controller.

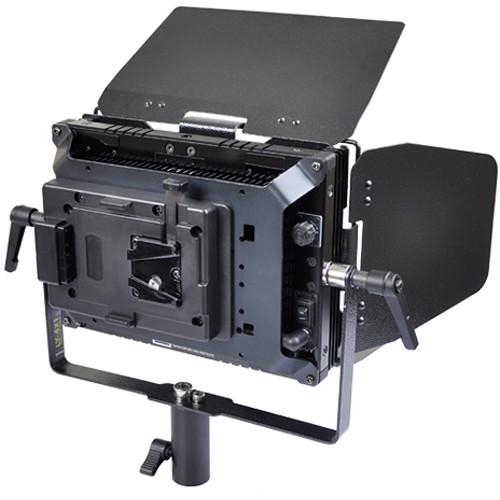

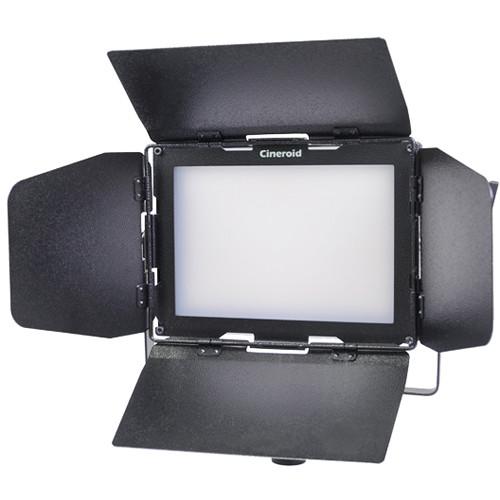

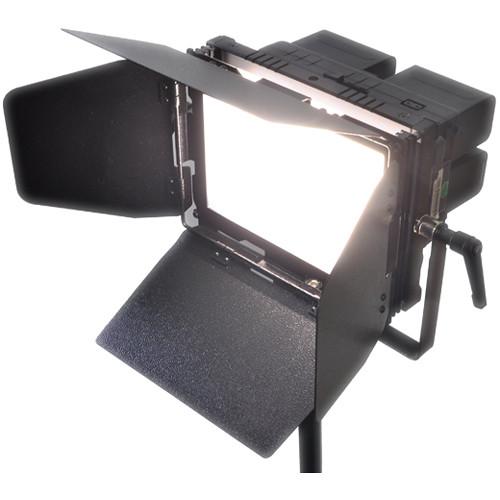

The LM400 incorporates four 1/4"-20 threaded mounting holes, one on each side and on the top and bottom of the unit. This allows you to orient the light on a camera either horizontally or vertically using optional adapters. The included yoke attaches to the sides of the light and allows you to mount the light to an optional light stand with a baby 5/8" stud. In addition to the yoke, the kit includes a set of barndoors to help control light spill, a diffusion panel, and a soft case for transport for storage. - Variable Color Temperature
-
- The unit's color temperature is adjustable from 3000 to 5400K.
- Color temperature adjustments are made via a knob on the back of the light unit.
- Temperature can also be adjusted via an optional remote control.
- Variable Brightness
-

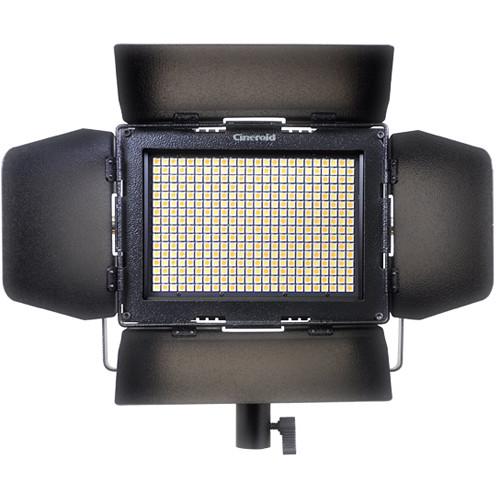

- The panel features a total of 1152 LEDs, which are organized in a 24 x 16 chip array with three LEDs per chip.
- The unit's brightness level is adjustable in 30 steps.
- Dimming adjustments are made via a knob on the back of the light unit
- The brightness adjustment reads in 30 steps on the back of the unit.
- DMX
- A built-in DMX port allows you to use optional DMX controllers for brightness adjustment.
- Power

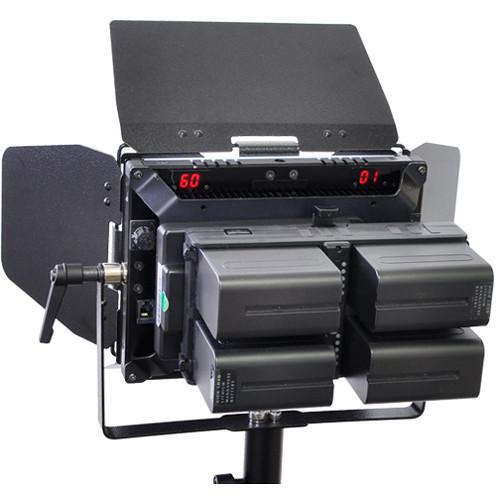

- The unit powers from the included AC adapter or optionally available battery plates though a D-Tap power input.

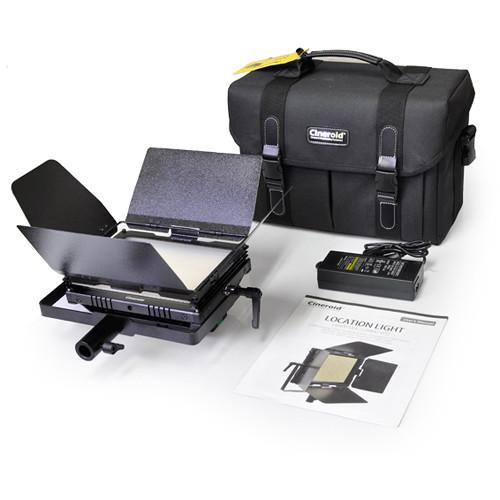

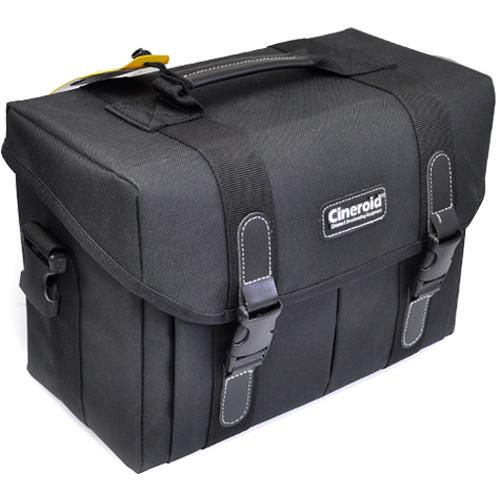

UPC: 884980001871 In the Box Cineroid LM400-VCeS Professional Bi-Color LED Light Kit AC Adapter Power Cord LY-4X1 Yoke Mount with 18mm Spigot for LM400 LED Light Barndoors for LM400 LED Light Diffuser Panel Soft Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cineroid LM400-VCeS Professional Bi-Color LED Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCineroid LM400 Specs | | | Beam Angle | 120° | | Color Temperature | 3000 to 5400K ± 200K | | Cooling System | None | | Display | None | | Fixture Dimensions | 7.5 x 5.6 x 1.4" / 191.0 x 141.0 x 35.0 mm | | Fixture Weight | 1.2 lb / 562 g | | | | Fixture Mount | 1/4"-20 Female Thread | | Mount via Included Adapter | 5/8" Receiver | | Accessory Mount | None | | | | DC Input Power | 10 to 17 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 60 W | | | | Package Weight | 6.25 lb | | Box Dimensions (LxWxH) | 13.5 x 10.0 x 7.8" |
