User Manual for Cineroid LS800 Studio LED Light Click to enlarge the picture
Contents of the user manual for the Cineroid LS800 Studio LED Light
- Product category: LED Lights Cineroid
- Brand: Cineroid
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cineroid LED Lights
 |
User manual for the Cineroid LS800 Studio LED Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cineroid product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cineroid user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cineroid product will considerably shorten its lifespan!
|

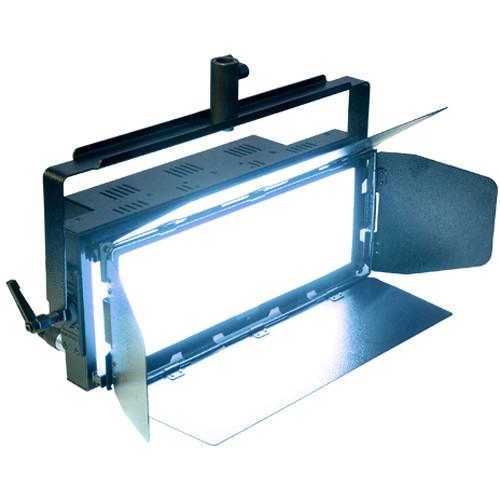

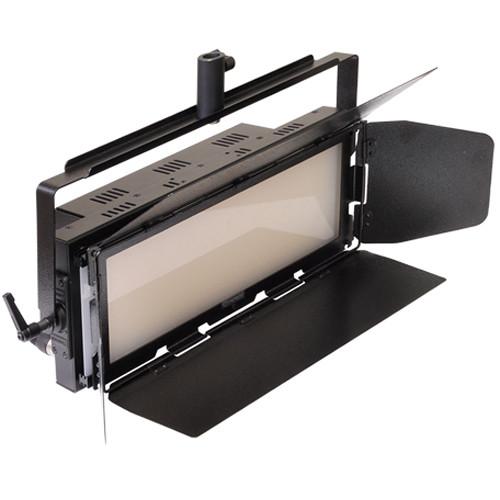

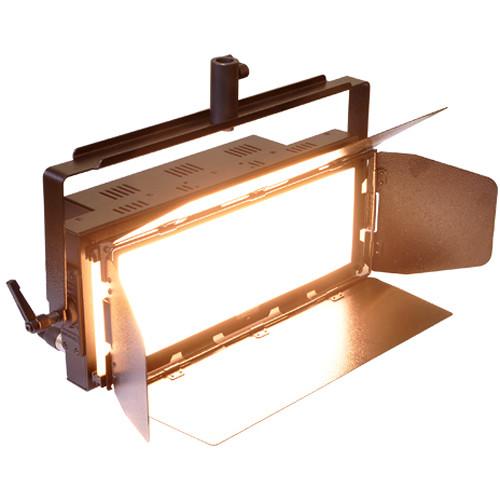

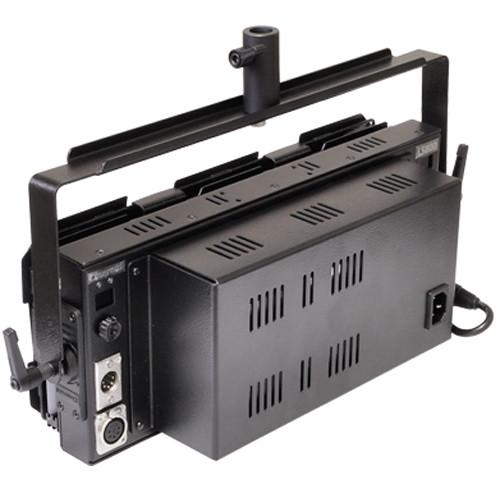

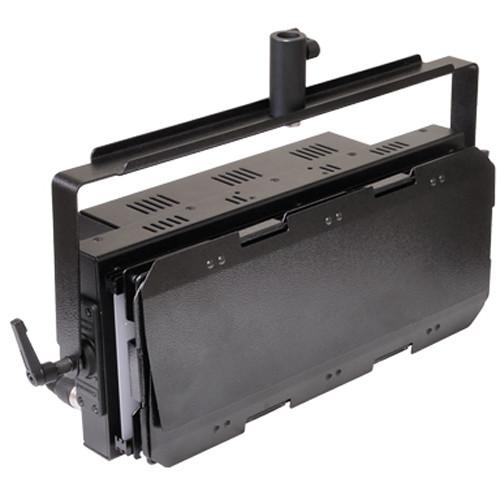

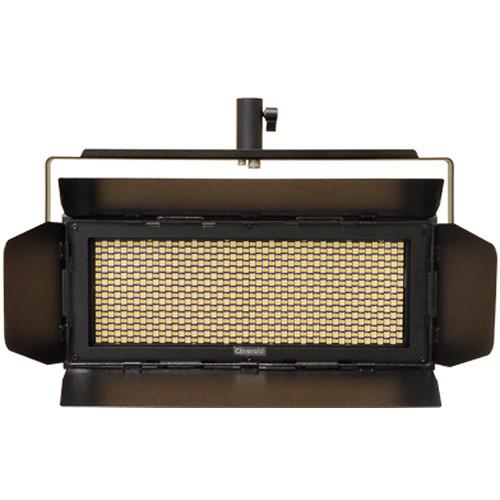

Product description As the name implies, the LS800 Studio LED Light from Cineroid is a natural on set, but it also has DC capability that allows you to enjoy the same quality of light on location. Variable color temperature from 3,000 to 5,600K or anywhere in between means that you can quickly match the ambient or artificial light balance with a simple adjustment on the light's back panel, instead of time-consuming gel filtration. The LS800 is also flicker-free and fully dimmable in 30 steps, eliminating the need for neutral density filters or pulling the unit farther away from the subject to reduce light intensity. Settings are displayed on the light's bright digital display, and it's dead quiet on set thanks to a passive heat sink cooling system. Since the LS800 has a built-in DMX decoder, adjustments can also be made remotely using a control console. Built-in 4-way barndoors add directional control of the unit's wide 120-degree beam angle.While the high-output panel generates 4,400 lux, you won't have to be concerned about the talent's comfort - the LS800 runs barely warm to the touch. And with power consumption of only 120W, you'll worry less about the bottom line while benefiting from a rapid return on your investment. A long lamp life of approximately 50,000 hours removes the need for a duty cycle and makes the LS800 virtually maintenance-free.The LS800's durable aluminum frame is supported by a sturdy, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. A diffuser is included to soften the light output. The light can be used worldwide, powered by the included multi-voltage power adapter or by pro battery sources when mains power is unavailable. Just add an optional Gold Mount or V-Mount battery plate or a D-Tap cable. - Studio Light
- Cineroid LS series lights are designed to use in the studio. They are the most powerful in all Cineroid's LED line
- Durable Metal Body
- Housed in a durable aluminum body, the LS800 is designed to be used in all professional shooting environments
- Control by DMX Console
- A built-in DMX encoder allows remote console control of brightness and color temperature and daisy-chaining of multiple lights
- Compatible with Gold or V-Mount Batteries
- Purchase of an optional adapter allows the LS800 to use Gold Mount or V-Mount batteries
- High Powered LED Light
- The LEDs used in Cineroid lights are rated for 50,000 hours use and have high CRI (Color Rendering Index) values. They provide a uniformly soft light for natural tones in both photo and video use
- 30 Step Dimming
- The brightness can be adjusted in a range of 0-30 steps using the dial on the unit
- Flicker-Free
- The light remains flicker-free throughout all 30 steps of brightness
- Variable Color Temperature
- Color temperature is variable between 3,000 to 5,600K (tungsten/daylight) with a single knob or via DMX
- Digital Display
- The intuitive on-board digital control panel with its bright and clear digital display makes operating the LS800 quick and easy
- Silent Cooling System
- Cineroid LED lights incorporate a high-performance aluminum heat sink instead of a traditional cooling fan. This ensures noiseless operation while dissipating heat
- Wide Range of Accessories
- A range of accessories including diffusers, barndoors, yokes, battery mounts and DMX controllers is available
UPC: 884980001734 In the Box Cineroid LS800 Studio LED Light Yoke AC Adapter Barndoors (4-way) Diffuser User Manual Limited 1-Year Warranty Specification PDF 2.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Cineroid LS800 Studio LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCineroid LS800 Specs | Light Source | LED | | Beam Angle | 120° | | Photometrics | 4,400 lux @ 3.28' (1.0 m) | | Color Range | 3000 - 5600K, ±200K | | Dimming | Full dimming in 30 steps | | Operating Voltage | System: 10 - 17 V (via optional D-Tap cable, AB or V-Mount battery plates
Multi-voltage AC (via included adapter) | | Power Consumption | 120 W | | Mount | Yoke with 5/8" (16 mm) receiver
1/4"-20 Tap | | Dimensions | 14 x 6.0 x 1.25" (360 x 150 x 32 mm) | | Weight | 3.5 lb (1.61 kg) |
