Product description Get Your Camera Moving: the Cinetics Lynx Slider and Motion Control Read More - LYNX - Camera Motion Control
- Review: Cinetics Lynx Example Footage
- How to Shoot a Gorgeous Time-Lapse with a Motorized Slider

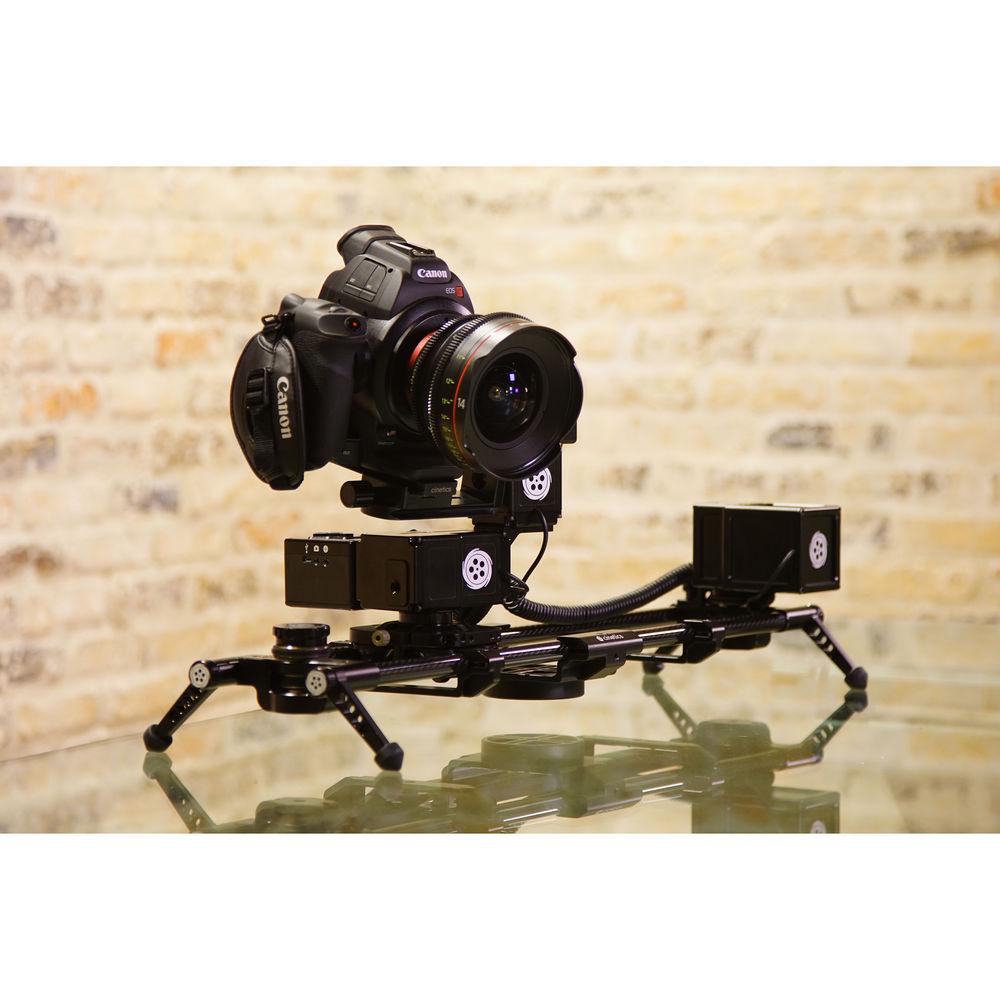

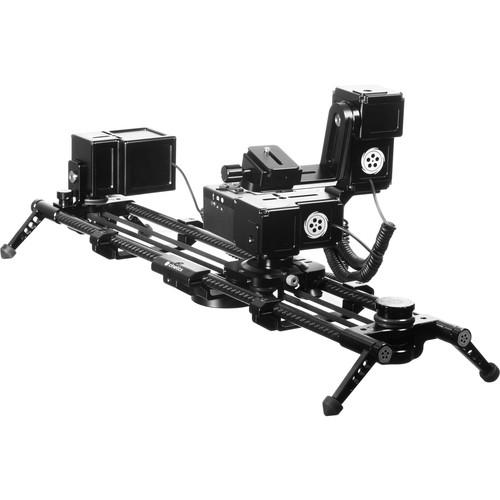

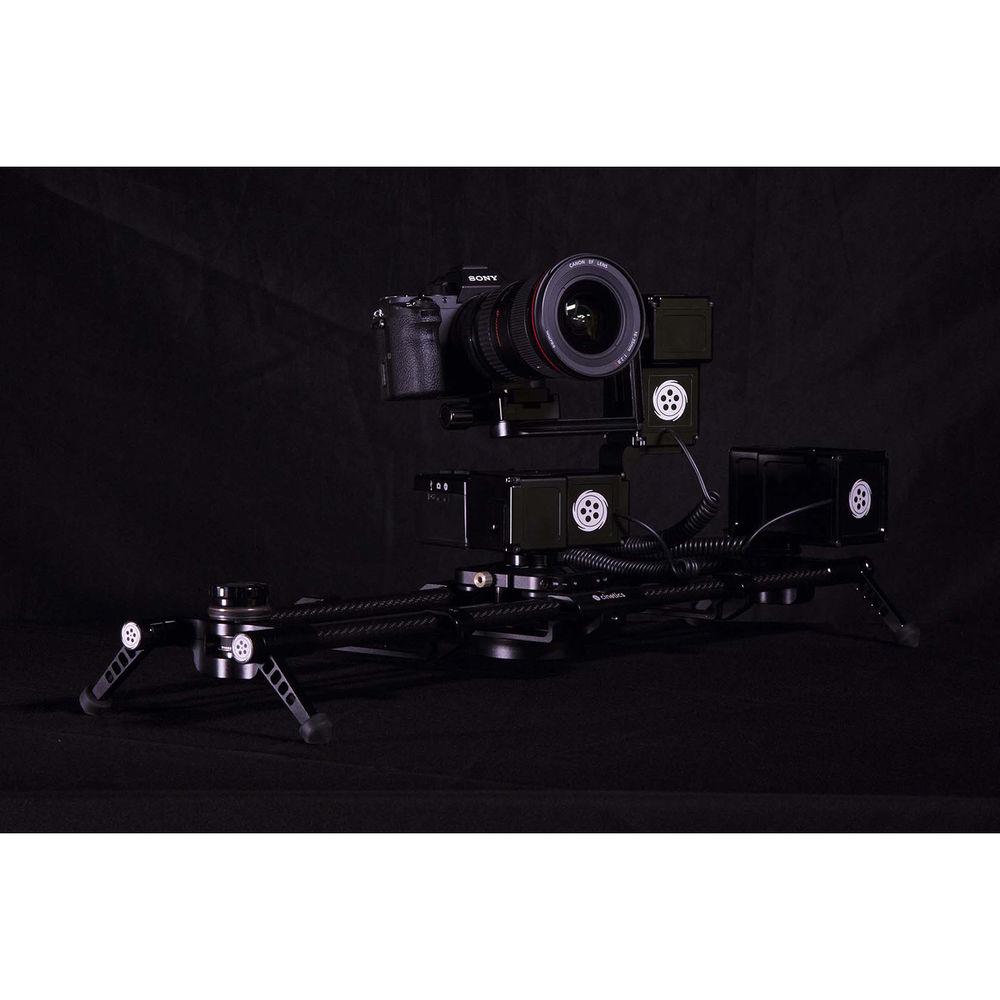

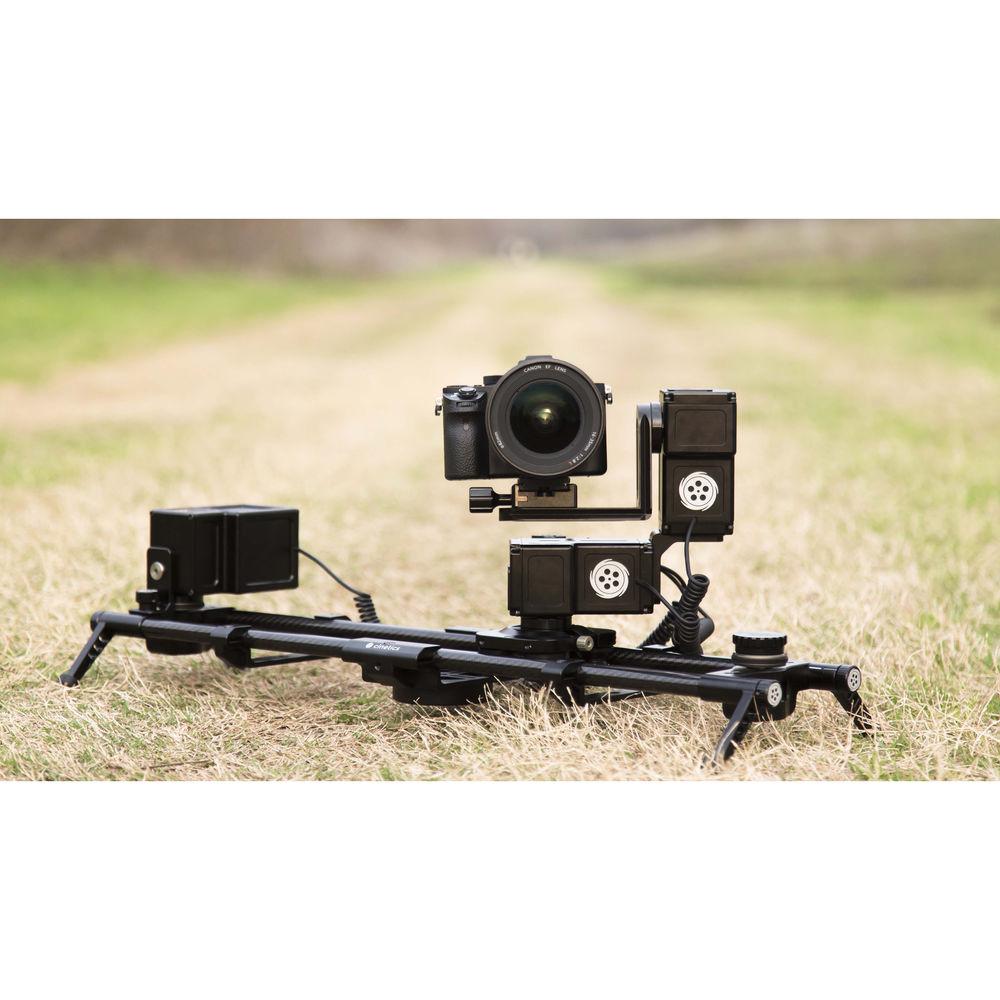

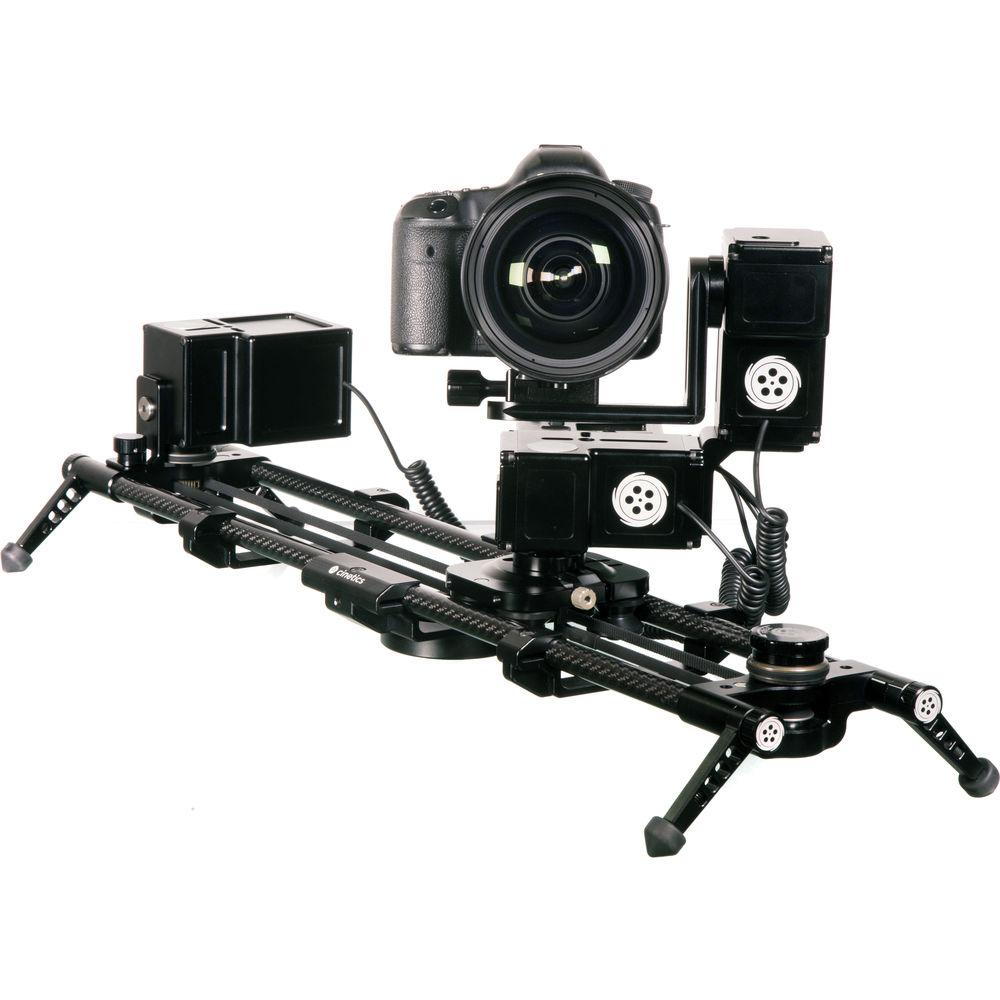

The Cinetics Lynx 3-Axis Motorized Slider lets you create dynamic video and time-lapse photography sequences with fluid and precise motorized slides, pans, and tilts. It supports cameras and lenses up to five pounds during vertical lifts, and it features three modes: video, time-lapse, and stop motion. Riding on the rugged yet lightweight carbon fiber rails, you can set it up as a 24' slider, or use the included extensions to create a 48" slider with a sliding range of up to 42.8". The 24" length is ideal for video and time-lapse photography usage. The extended 48" length excels at time-lapse, but can also be used for video work with careful attention to the seam between rails. The extension rails are conveniently stored in the back of the slider case.
The pan and tilt motors permit 360° rotation, though tilt will be dependent on the size of lens you have mounted on your camera. The powerful motors can drive the slider at up to 2"/second along the carbon fiber rails, and move pan and tilt functions at up to 20°/second. The system can be controlled by an optional controller, or using an available app. The slider fits into a padded carry case for storage and transportation. - Components
- This version of the Lynx consists of four main components: the slider, slider motor, controller, and pan and tilt motors.
- Control
- You can control the slider by using the included controller, or an available app.
- Slider Motor
- The Lynx Slider Motor attaches to the Lynx Slider in seconds. It is a powerful motor that can lift up to 11 pounds vertically. Additionally, the Slider Motor's sound isolation design enables whisper quiet operation.
- Pan/Tilt Motor
- The Lynx Pan & Tilt Motors provide a full 360° range of motion in both pan and tilt directions. Sound isolation keeps the motor running quietly. The motors can move cameras up to 5 pounds, and Cinetics recommends staying below this weight for the smoothest motion. Heavier cameras can be used with accurate balancing.
- Materials
-
- Carbon Fiber, Aircraft Aluminum, and Stainless Steel.
- Range of Motion
-
- 18.8" of sliding range with 24" base rails.
- 42.8" of sliding range at full 48" length.
- 360° pan and tilt.
- Digital Stepper Motors
-
- Moves up to 2"/s slide and 20°/s pan and tilt.
- 0.001" and 0.001° move resolution.
- Low 25 dB sound levels.
UPC: 784672117883 In the Box Cinetics Lynx 3-Axis Motorized Slider 2 x Sets of Carbon Fiber Rails (24") Carry Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cinetics Lynx 3-Axis Motorized Slider in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCinetics L3A Specs | | | Load Capacity | 11 lb / 5 kg (Horizontal)
5 lb / 2.3 kg (Vertical) | | Travel Distance | 18.8" / 47.8 cm
42.8" / 108.7 cm, Including Extension | | | | Camera Mounting Screw | 1/4"-20 Male | | Tripod Mounting | 3/8"-16 Female Thread | | | | Motor Sliding Speed | 2.0 in/s / 5.1 cm/s | | Pan & Tilt Range | 360° | | Pan & Tilt Speed | 20°/s | | | | Body Material | Aluminum, Stainless Steel | | Track Length | 24" / 61.0 cm
48.0" / 121.9 cm, Including Extension | | | | Package Weight | 18.5 lb | | Box Dimensions (LxWxH) | 31.5 x 11.5 x 10.5" |
