User manual

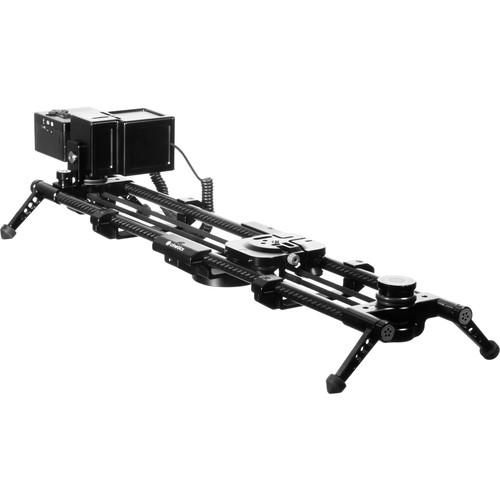

Cinetics Lynx Motorized Slider Kit

User Manual for Cinetics Lynx Motorized Slider Kit

• Product category: Camera Sliders Cinetics
• Brand: Cinetics
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Cinetics Camera Sliders

Product description

• Cinetics Lynx Slider
  • LYNX - Camera Motion Control
  • Review: Cinetics Lynx Example Footage
  • How to Shoot a Gorgeous Time-Lapse with a Motorized Slider
  The Cinetics Lynx Slider includes two sets of 24" carbon fiber rails and can be used in a 24" or 48" setup. The rails seamlessly screw into one another. The payload is 11 lb at either length.

  The Lynx is a belt-driven system and features precision ball bearing wheels that provide for smooth motion. It has integrated folding legs with index marks that let you balance the two sides of the slider more easily, and the feet are cone-shaped at the ends to allow for all-terrain use.

  The slider carriage offers a 3/8"-16 screw for attaching your camera via a ball head or tripod head, and there are five 3/8"-16 threaded mounting holes along the bottom for mounting the slider onto a tripod or two tripods.

  The Lynx is also upgradeable with the optional Lynx slider motor, controller, and pan and tilt motors for motion-controlled operation.
  Key Features
  • • Belt-driven system with precision ball bearings
    • Includes two sets of 24" carbon fiber rails
    • Can be used in a 24" or 48" setup
    • 11 lb payload
    • Folding legs with index marks and all-terrain feet
    • 3/8"-16 screw for camera attachment
    • Five 3/8"-16 threaded mounting holes along the bottom for mounting onto a tripod/two tripods
    • Upgradeable with the optional Lynx slider motor, controller, and pan and tilt motors
  UPC: 784672117838
• Cinetics Lynx Controller
  • LYNX - Camera Motion Control
  • Review: Cinetics Lynx Example Footage
  • How to Shoot a Gorgeous Time-Lapse with a Motorized Slider
  The Cinetics Lynx Controller is a three-axis motion controller that drives the Lynx Slider Motor and Pan & Tilt Motors.

  It allows you to set up and trigger simple point A to point B motion, or movements with multiple keyframes, letting you achieve different runtimes, intervals, shutter speeds, and even bulb ramping. The user interface is easy to use, and you can also access it via the included Lynx iOS and Android app, allowing you to remotely control the slider.

  The optional Lynx slider can be used for video capture, time-lapse photography, panoramas, and stop-motion animation, and the controller can be used to set up for all these scenarios.

  The Lynx Controller features micro-controller and precision motor drivers as its backbone, and operates on a built-in lithium-ion battery that runs up to three hours in continuous use, or up to 24 hours in Power Save mode.
  Key Features
  • • Drives the Lynx Slider Motor and Pan & Tilt Motors
    • Set up and trigger point A to B motion, or movements with multiple keyframes
    • Includes Lynx iOS/Android remote app
    • Micro-controller and precision motor drivers
    • Built-in battery runs three hours in continuous use; up to 24 hours in Power Save mode
  UPC: 784672117852
• Cinetics Lynx Slider Motor
  • LYNX - Camera Motion Control
  • Review: Cinetics Lynx Example Footage
  • How to Shoot a Gorgeous Time-Lapse with a Motorized Slider
  The Lynx Slider Motor from Cinetics attaches to the Lynx Slider in just seconds and converts it into a motorized one. The Lynx Controller is also required for programming and operating the motor. Via the controller, you can set up the motor to achieve standard video and time-lapse photography capture with different runtimes, intervals, shutter speeds, and even bulb ramping. The slider and controller are both sold separately.

  The Slider Motor provides precision movement for up to 10 lb cameras, and is even capable of driving this weight vertically. Operation is whisper-quiet thanks to a sound isolation design, ensuring you can capture your shots without the motor noise. Note: The Lynx Slider and Lynx Controller, sold separately, are required. UPC: 784672117845

• Lynx Slider yabtuesquravbz
• 2 x Sets of Carbon Fiber Rails (24")
• Carry Case
• Hex Key
• Limited 1-Year Warranty

• Lynx Controller yabtuesquravbz

• Lynx Slider Motor

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Cinetics Lynx Slider

  Load Capacity	11 lb / 5 kg
  Travel Distance	18.8" / 48 cm 42.8" / 109 cm, Including Extension

  Camera Mounting Screw	3/8"-16 Male
  Tripod Mounting	5 x 3/8"-16 Female Thread

  Material	Carbon Fiber

  Body Material	Aluminum, Stainless Steel
  Track Length	24.0" / 61 cm 48" / 122 cm, Including Extension
  Weight	4.1 lb / 1.85 kg

  Box Dimensions (LxWxH)	29.75 x 8.0 x 4.5"

• Cinetics Lynx Controller

  Included App	iOS and Android compatible
  Battery	3 hours in continuous use, 24 hours in Power Save mode
  Weight	1 lb (0.45 kg)

  Box Dimensions (LxWxH)	13.5 x 8.2 x 4.8"

• Cinetics Lynx Slider Motor

  Weight Capacity	10 lb (4.5 kg)
  Speed	Up to 2" (5 cm) per second
  Weight	2.9 lb (1.3 kg)

  Box Dimensions (LxWxH)	10.1 x 9.5 x 5.9"
