Product description

• Duzi 4 Camera Slider (32") With an onboard flywheel added and stability increased, the Duzi 4 is the result of Cinevate's pursuit to perfect its most lightweight and compact slider. The Duzi 4 supports up to 100 lb loads, and offers smooth and consistent slides for even lighter cameras thanks to the flywheel.

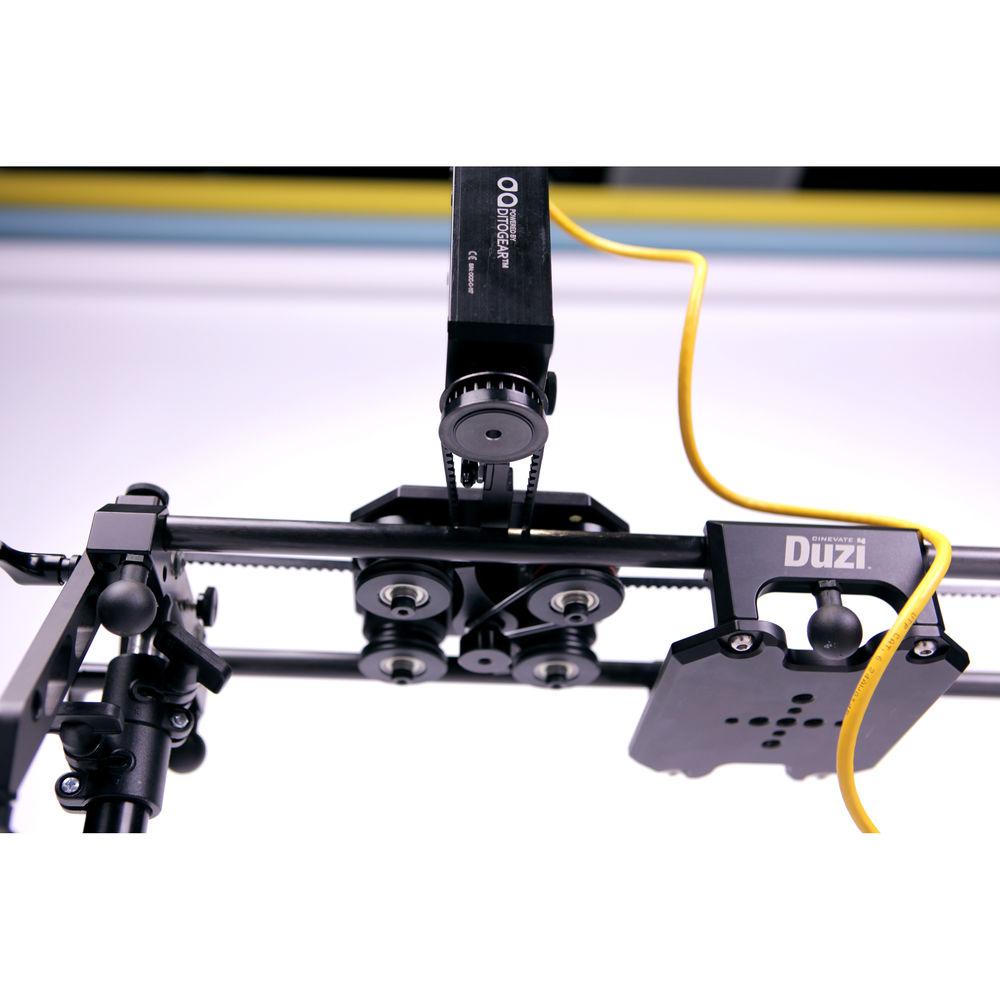

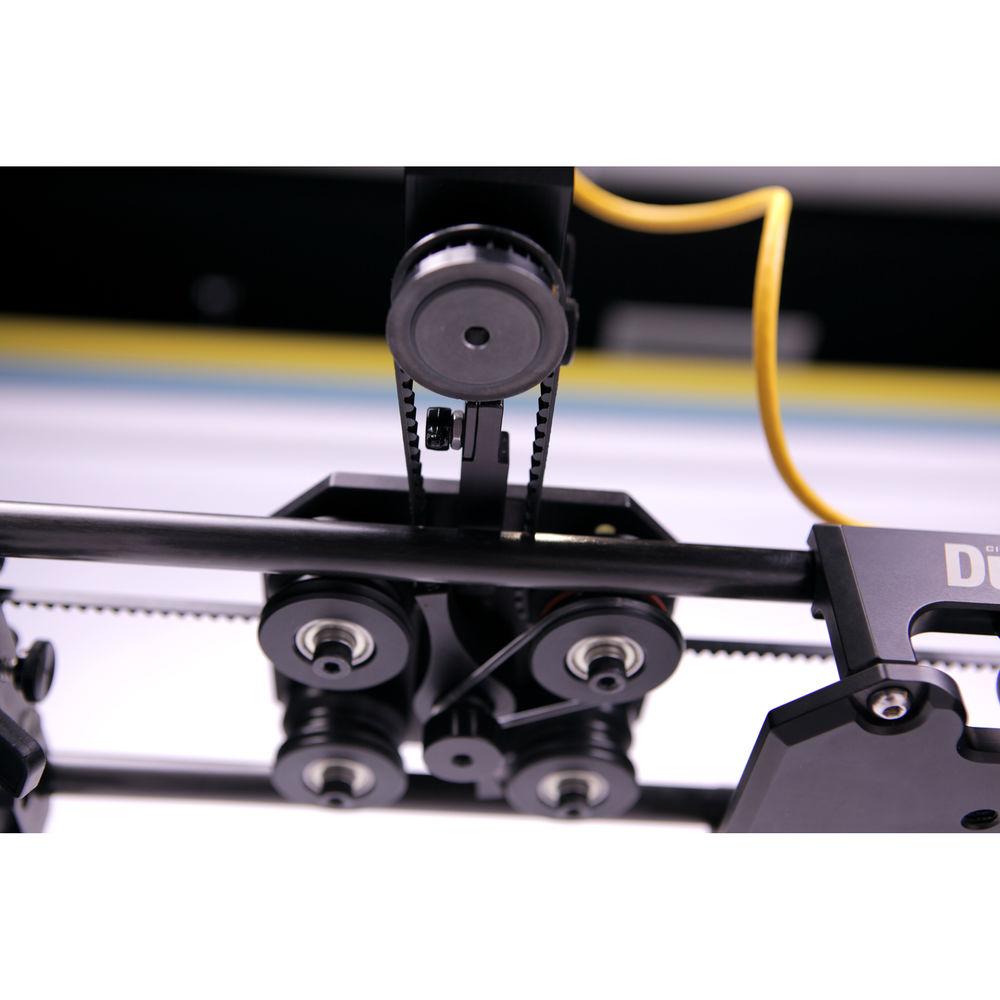

  The flywheel adds inertial dampening, providing a degree of resistance that allows for more control. The flywheel also brings about better stability and precision. It's integrated on the bottom of the slider carriage, with a wider design for a thinner overall profile. Accordingly, the Duzi was also redesigned to be an inch wider, providing for a more stable system.

  The Duzi 4 is a roller-bearing slider made of hardened aluminum and stainless steel, and featuring solid carbon fiber rails. It comes with six non-scratch, micro-adjustable urethane ball feet, with two on each end as well as two on the slider carriage. The two on the slider carriage attach slightly to the side, are suspended, and provide additional support for heavier loads. The Duzi 4 also supports the dedicated All Terrain Legs, sold separately, which are designed specifically for it. These legs are highly adjustable and capable of compensating for uneven surfaces.
  Key Features
  • • Onboard flywheel
    • Solid carbon fiber rails
    • 100 lb payload
    • Micro adjusting urethane ball feet, including two for center-mounting
    • Integrated bumpers on end blocks
    • Integrated bubble level

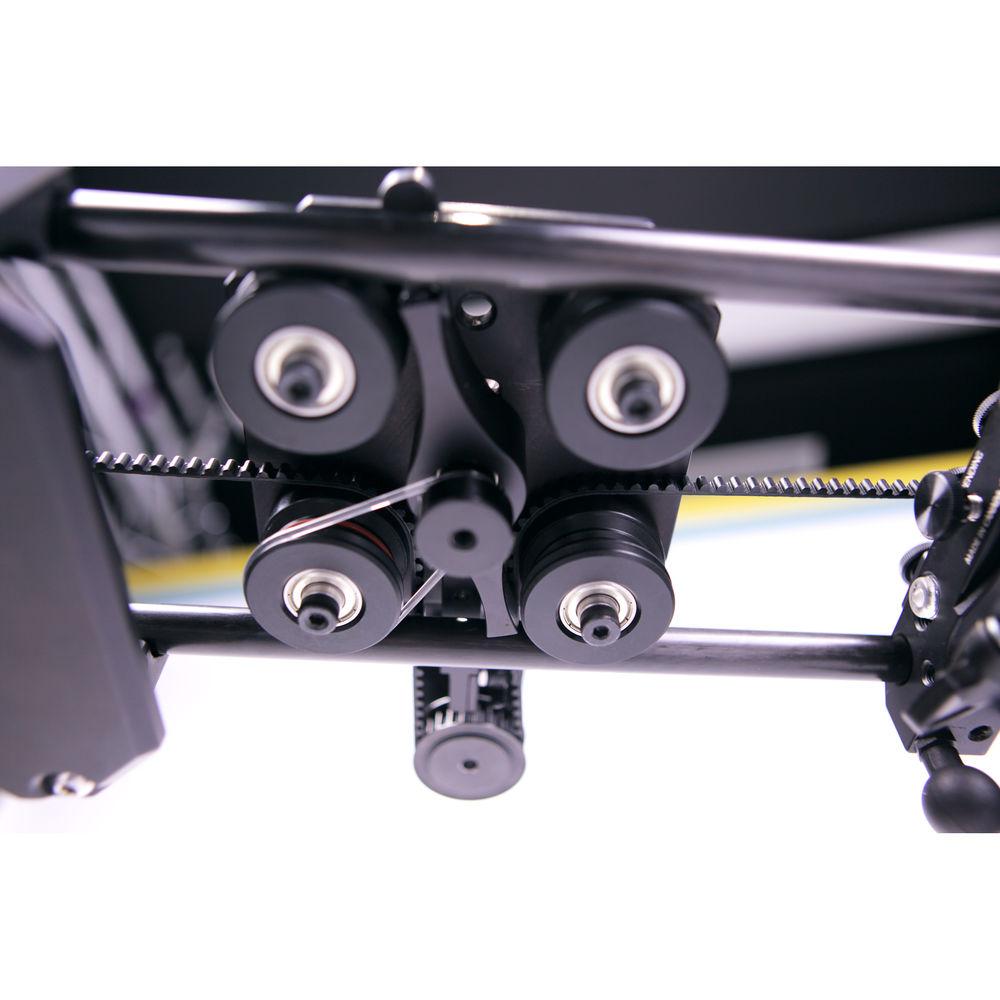

    • Eight precision roller bearings
    • Center and side-mounting tripod options
    • Lock easily secures the camera anywhere on the rails
    • Cheesed-out top and bottom plates

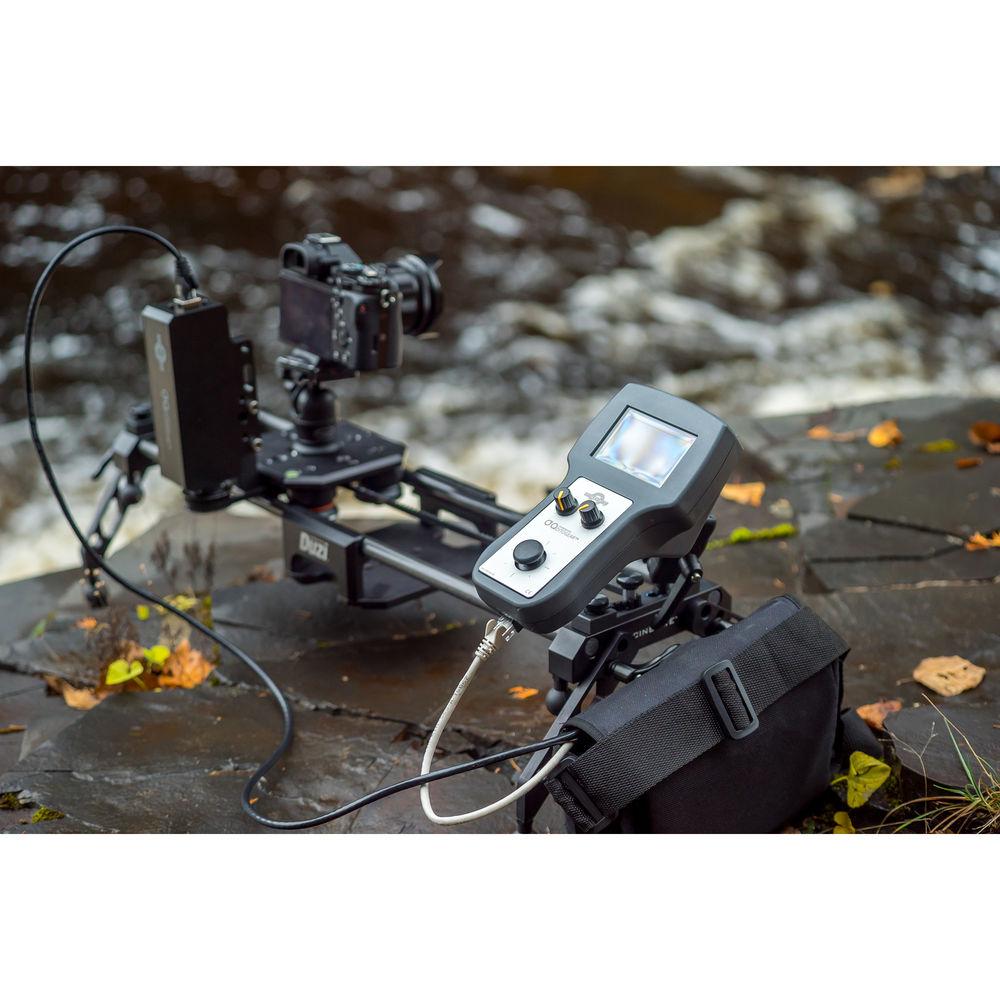

    • Compatible with Modo motion time-lapse system
  UPC: 883641803168

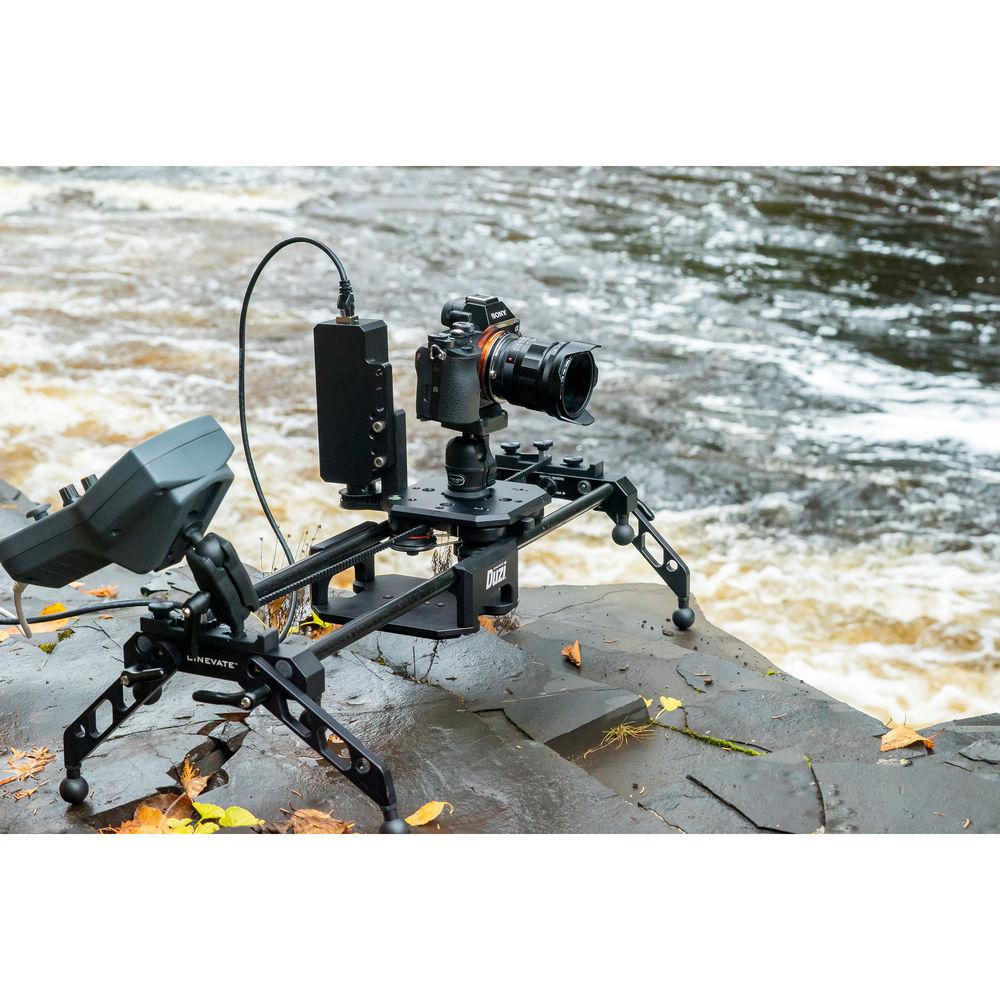

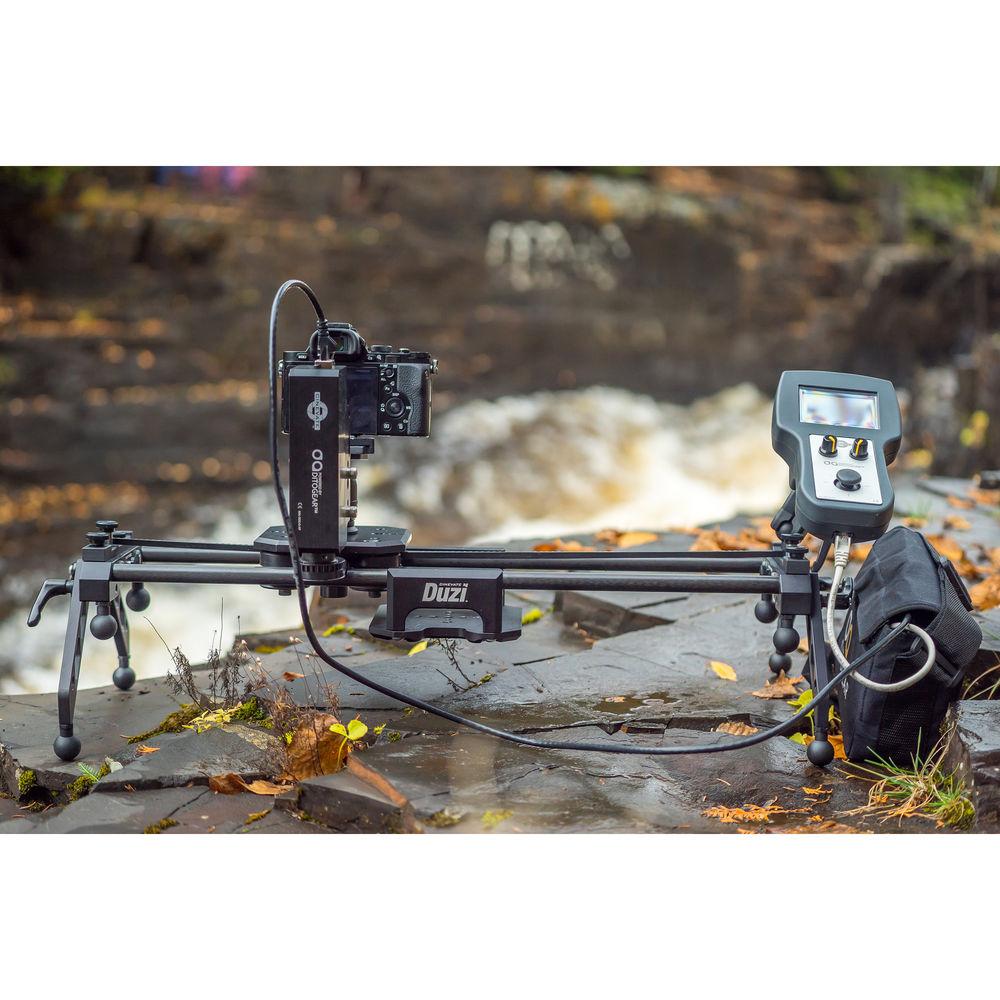

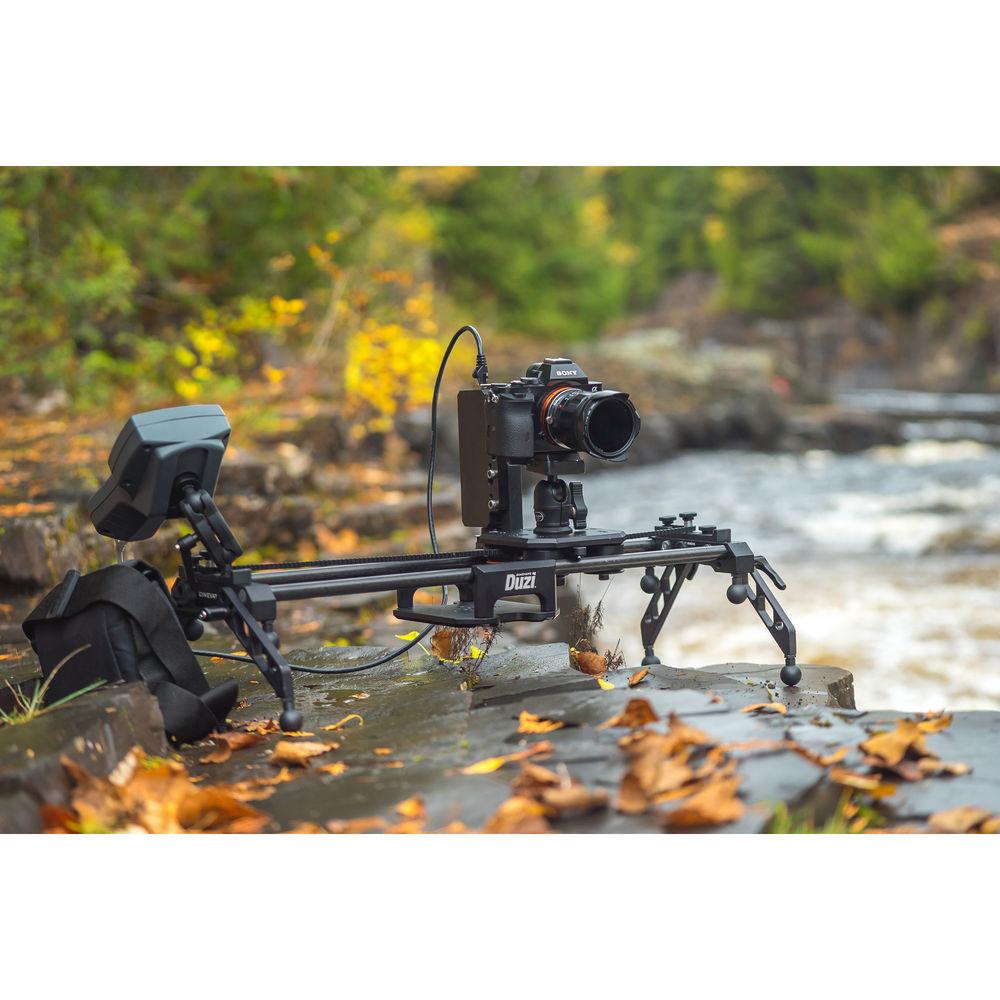

• All Terrain Legs for Duzi 4 The All Terrain Legs for the Duzi 4 from Cinevate highly enhance the Duzi 4 by providing it with the ability to compensate for uneven surfaces. Four legs are included that independently attach to each side of the end blocks and are individually adjustable. They secure to the end blocks with supplied ratcheting kips that allow for quick and simple adjustment. Furthermore, four non-scratch, anti-slip, micro-adjust urethane ball feet are also included and provide for an additional level of adjustment.

• Flywheel

• 6 x Urethane Ball Feet

• 2 x 15mm Carbon Fiber Rails

• 2 x End Blocks

• 3/8"-16 Mounting Stud

• Brake

• Limited 1-Year Warranty

• 4 x Micro-Adjust Urethane Ball Feet

• 4 x Ratcheting Kips

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Duzi 4 Camera Slider (32")

  Load Capacity	100 lb / 45.4 kg
  Travel Distance	24" / 61 cm

  Camera Mounting Screw	3/8"-16 Male
  Tripod Mounting	3 x 1/4"-20 Female Thread 1 x 3/8"-16 Female Thread
  Stand Receiver	2 x 5/8"

  Material	Carbon Fiber

  Body Material	Aluminum, Stainless Steel
  Track Length	32" / 81 cm
  Weight	6.5 lb / 2.95 kg

  Box Dimensions (LxWxH)	38.1 x 7.8 x 6.3"

• All Terrain Legs for Duzi 4

  Box Dimensions (LxWxH)	7.1 x 6.4 x 2.7"
