User Manual for Cinevate Inc All Terrain Legs for Duzi V2 & V3 Camera Slider with End Block Mounting Holes Click to enlarge the picture
Contents of the user manual for the Cinevate Inc All Terrain Legs for
- Product category: Camera Slider Accessories Cinevate Inc
- Brand: Cinevate Inc
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cinevate Inc Camera Slider Accessories
 |
User manual for the Cinevate Inc All Terrain Legs for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cinevate Inc product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cinevate Inc user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cinevate Inc product will considerably shorten its lifespan!
|

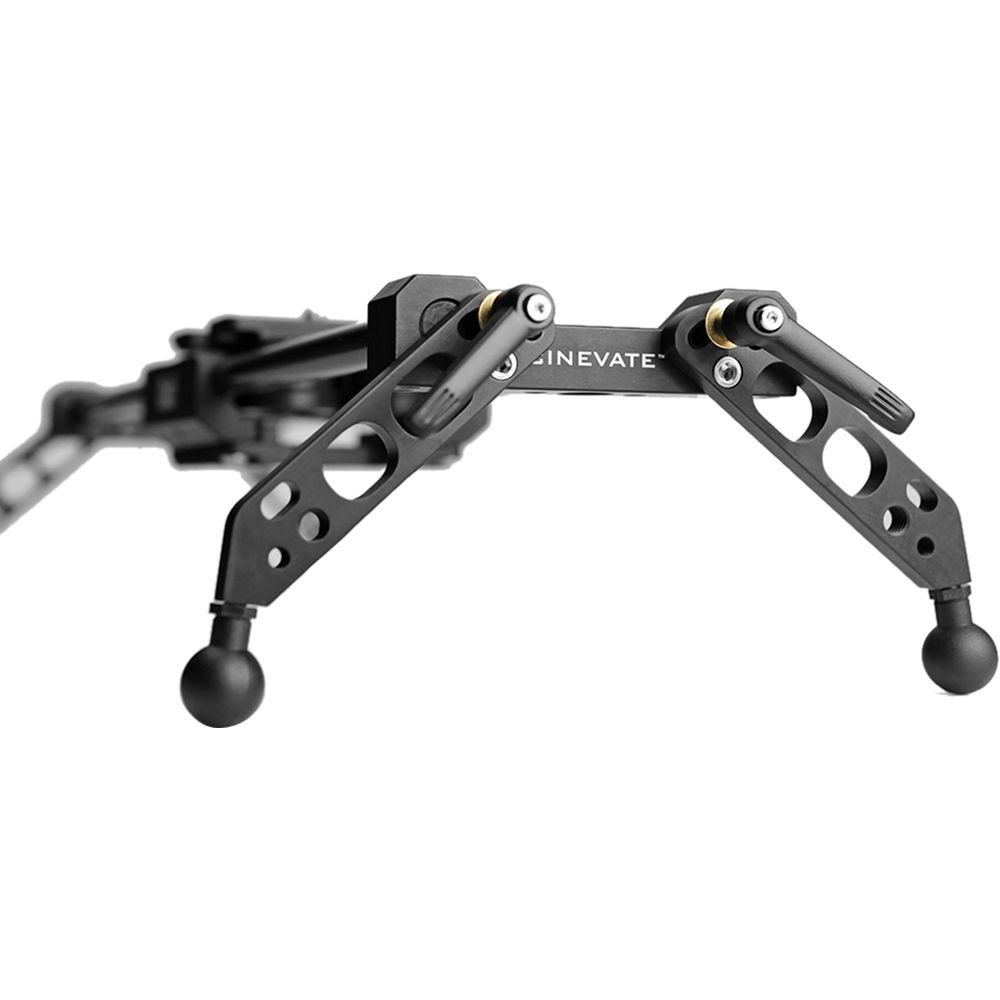

Product description The Cinevate All Terrain Legs for Duzi V2 & V3 Camera Slider with End Block Mounting Holes add less than a pound to the weight of your slider, but expand the leveling capabilities allowing you to use your slider on rough terrain. The legs are made from CNC machined anodized aluminum and support up to 50 pounds. Each leg independently pivots through an inch of arc, and feature spring-loaded locking levers adjacent to the pivot screw for secure leveling. These legs are compatible with available, but not included, V2 and V3 Duzi sliders, which have four 1/4"-20 threaded mounting holes on each of the end blocks.
The legs quickly mount using the included Allen head cap screws, and the included Allen wrench. In addition to the pivoting range of motion, each leg includes anti-slip urethane ball type feet that have half an inch of adjustment. Please note that this item only includes the All Terrain Legs and hardware, and does not include a camera slider. - The all terrain legs allow you to level your compatible Duzi V2 and V3 camera slider on rough terrain.
- The CNC machined aluminum legs are anodized for wear and corrosion resistance, and support up to 50 pounds.
- Each leg features independent pivot and locking functions with spring-loaded locking levers.
- Each leg includes an anti-slip urethane ball type foot with half an inch of adjustment.
- The legs are removable for studio situations.

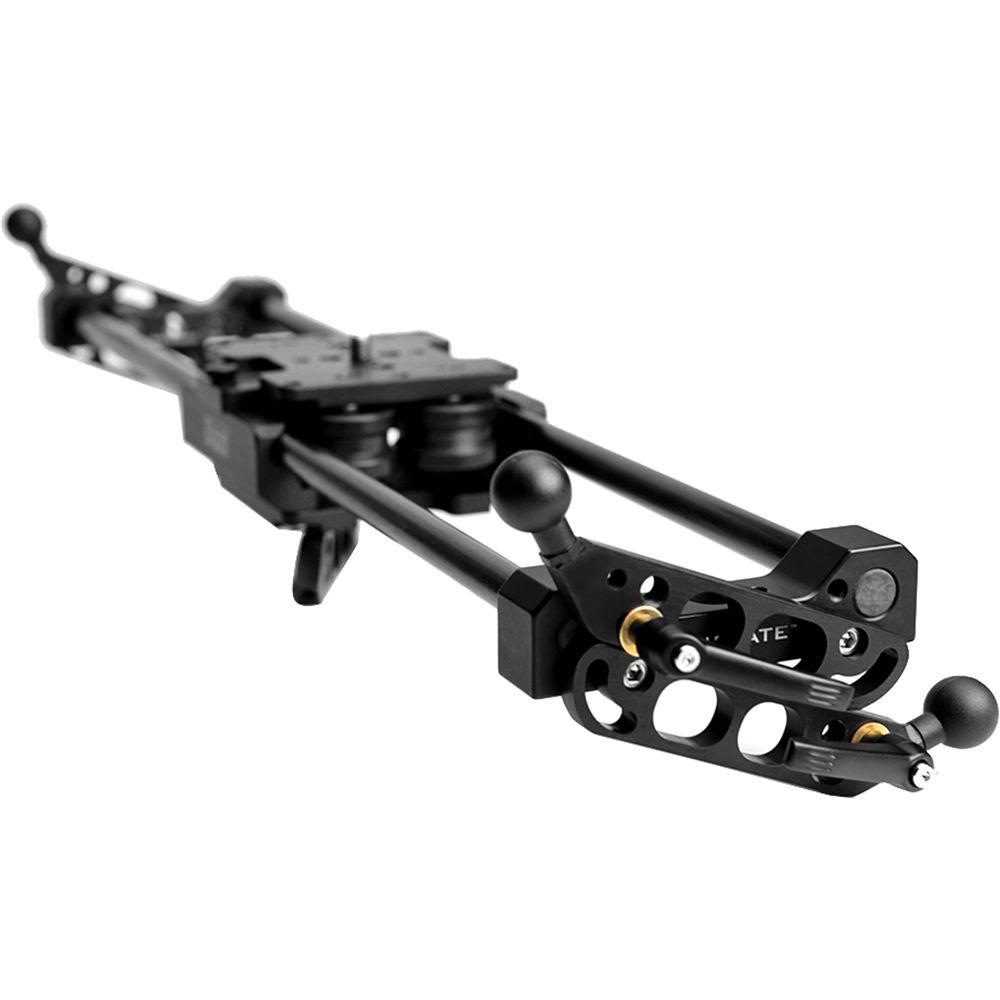

- You can remove the locking levers, fold the legs and re-insert the locking levers to minimize your sliders profile for transport and storage.

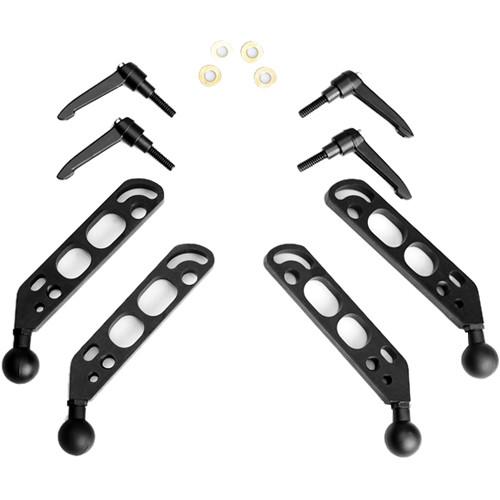

In the Box Cinevate Inc All Terrain Legs for Duzi V2 & V3 Camera Slider with End Block Mounting Holes 3/16" Allen Key 4 x Mounting Screws 4 x Locking Levers 4 x Washers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cinevate Inc All Terrain Legs for Duzi V2 & V3 Camera Slider with End Block Mounting Holes in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCinevate Inc CILTASOOOOD2 Specs | Material of Construction | Anodized CNC Machined Aluminum | | Locking Mechanism | 1/4"-20 spring-loaded locking lever | | Dimensions | Each Leg: 6 x 1" / 15.2 x 2.5 cm | | Weight | Each Leg: 0.2 lb / 90.7 g | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 7.1 x 6.4 x 2.7" |
