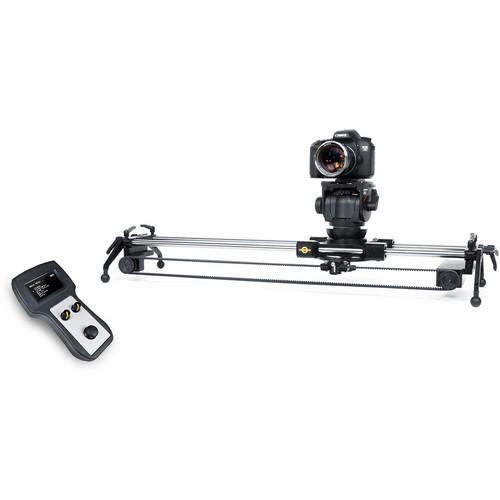

User Manual for Cinevate Inc Atlas 30 Moco: Motion Control Add-On Kit Click to enlarge the picture
Contents of the user manual for the Cinevate Inc Atlas 30 Moco: Motion
- Product category: Tripods, Supports & Rigs Cinevate Inc
- Brand: Cinevate Inc
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cinevate Inc Tripods, Supports & Rigs
|
User manual for the Cinevate Inc Atlas 30 Moco: Motion contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cinevate Inc product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cinevate Inc user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cinevate Inc product will considerably shorten its lifespan!
|
Product description The Cinevate Atlas 30 Moco: Motion Control Add-On Kit consists mainly of a motor, timing belts and a controller that enable shooting timelapse, motion control, and stop motion shots on the Atlas 30 camera slider. The same motor performs all three functions, and the controller is programmable to operate all three automatically, while speed and dampening are also manually adjustable on-the-go.
In Timelapse mode, the slowest that Moco can have the slider travel is approximately 150 days per 1 ft of travel -- you won't even notice that the slider is moving. In Video mode, the fastest that Moco can travel is approximately 1.2 seconds per 1 ft. In Stop Motion mode, Moco achieves precision positioning to 0.1 mm.
The Atlas 30 comes in three different lengths -- 35, 47, and 58" -- and Moco comes with a timing belt for each length. So no matter which Atlas 30 you have, you'll have a belt for it. Additional to the motor, belts and controller, Moco also includes a battery and charger, an AC adapter, supporting cables, and a carry pouch. The battery, a 12V, is capable of 40 hours of operation with a low payload in horizontal operation and 2-3 hours with a maximum payload in vertical operation. The payload for both horizontal and vertical mode is the same as that of the Atlas 30 -- 30 lb. - Key Features
-
- One motor performs timelapse, motion control, and stop motion shots
- Controller is programmable to operate all functions automatically
- Speed and dampening are manually adjustable on-the-go
- 30 lb weight capacity in horizontal or vertical operation
- Three timing belts included -- one for each Atlas 30 length
- Motion Functions
-
- Real time filming
- Macro shots
- Speed matching
- Advanced timelapse operation
- Stop motion
- Working Speeds
-
- In Timelapse mode, the slowest is approximately 150 days per 1 ft
- In Video mode, the fastest is approximately 1.2 seconds per 1 ft
- In Stop Motion mode, Moco achieves precision positioning to 0.1 mm
In the Box Cinevate Inc Atlas 30 Moco: Motion Control Add-On Kit Drive Motor and Drive Wheels Carry Pouch 3 x Steel Reinforced Drive Belts Controller 12V Battery and Charger AC Adapter Connection Cables for Controller, Battery, and Motor Cable Management Ties 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cinevate Inc Atlas 30 Moco: Motion Control Add-On Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCinevate Inc 30 Specs | Working Speeds | In Timelapse mode, the slowest that Moco can have the slider travel is approximately 150 days per 1 ft (per 30.5 cm)
In Video mode, the fastest that Moco can have the slider travel is approximately 1.2 seconds per 1 ft (per 30.5 cm)
In Stop Motion mode, Moco achieves precision positioning to 0.1 mm | | Working Track Lengths | Three timing belts included, one to loop the length of each type of Atlas 30, which comes in 35, 47, and 58" lengths (89, 119, 147 cm) | | Payload | In horizontal or vertical operation mode: 30 lb (13.6 kg), identical to that of the Atlas 30 | | Power Supply | 11.4 - 24 VDC | | Current Draw | 0.3A - 4A (at 12 VDC) | | Battery Operating Time | 40 hours (low payload, horizontal operation)
12 hours (in Mixed mode with average payloads)
2-3 hours (upward vertical operation with maximum payload) | | Operation Temperature | -13 to 113°F (-25 to 45°C) | | | | Package Weight | 14.8 lb | | Box Dimensions (LxWxH) | 19.2 x 12.4 x 6.5" |
