User Manual for Cinevate Inc Axis Jib Click to enlarge the picture
Contents of the user manual for the Cinevate Inc Axis Jib
- Product category: Cranes & Jibs Cinevate Inc
- Brand: Cinevate Inc
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cinevate Inc Cranes & Jibs
 |
User manual for the Cinevate Inc Axis Jib contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cinevate Inc product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cinevate Inc user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cinevate Inc product will considerably shorten its lifespan!
|

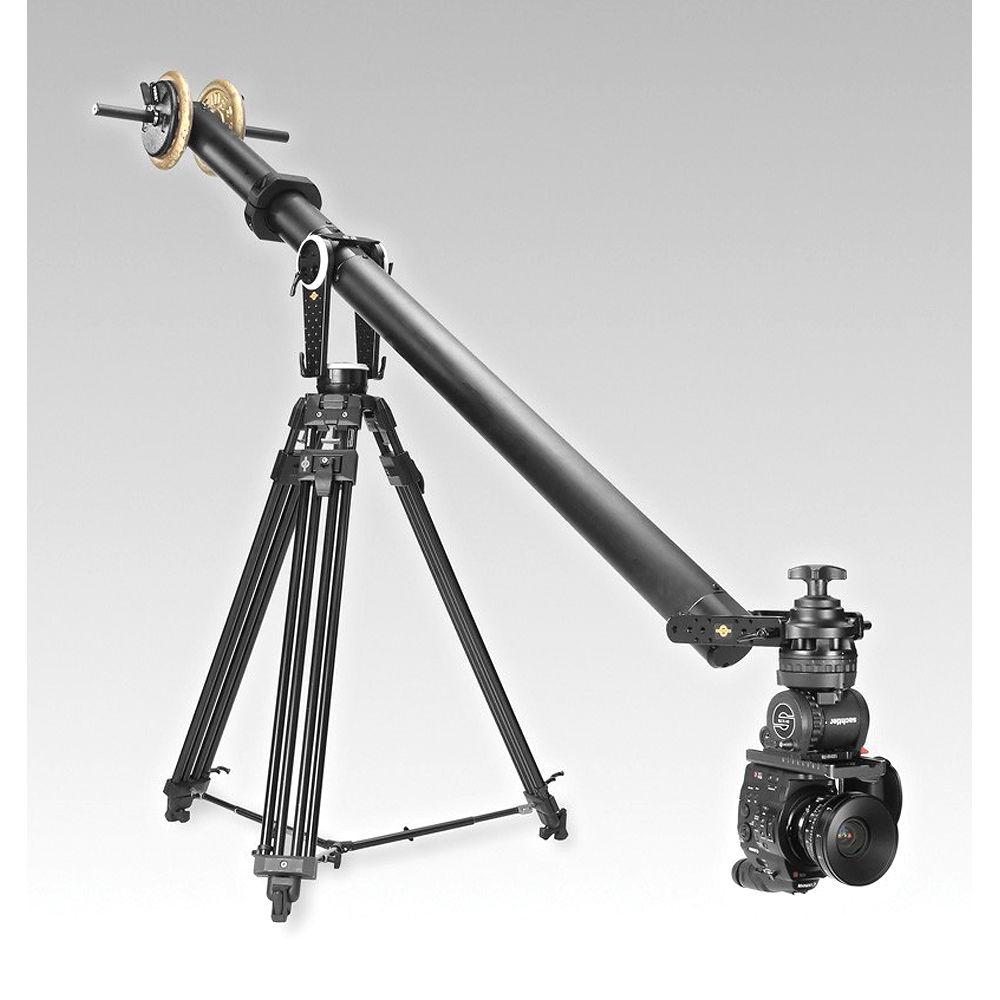

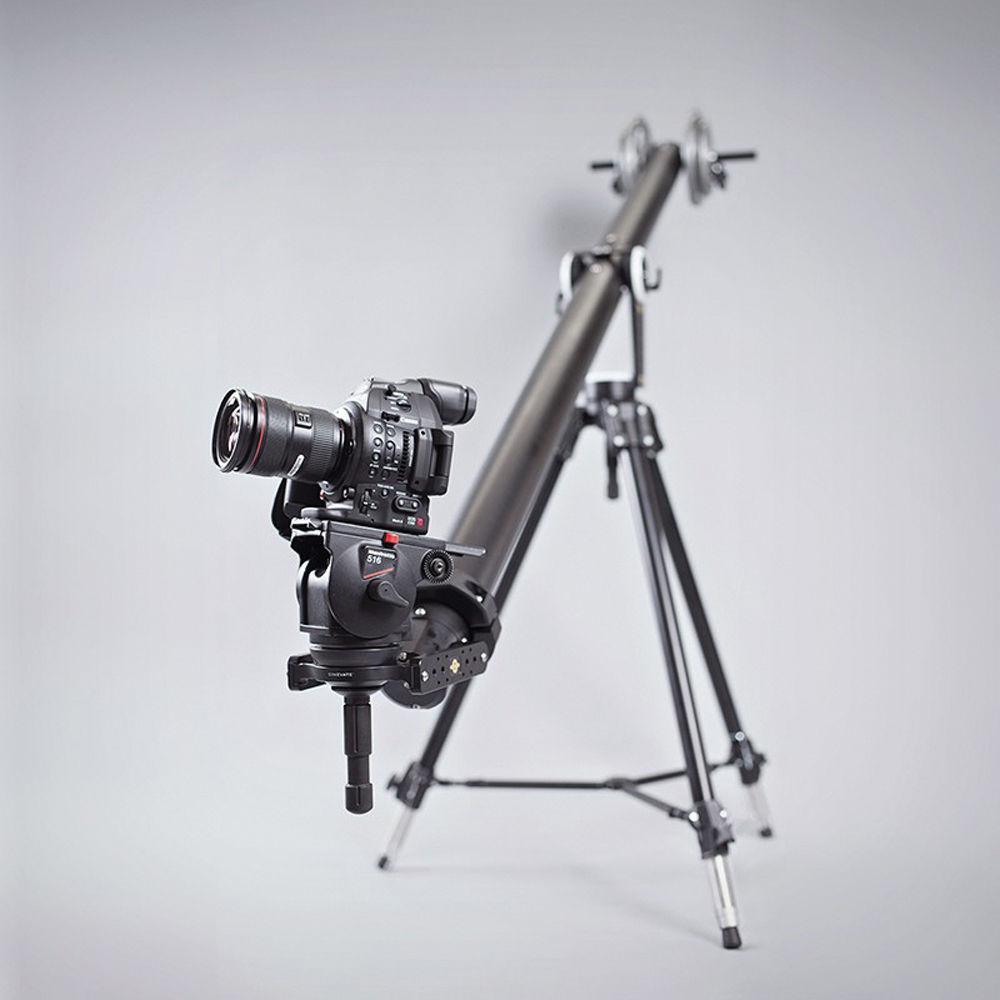

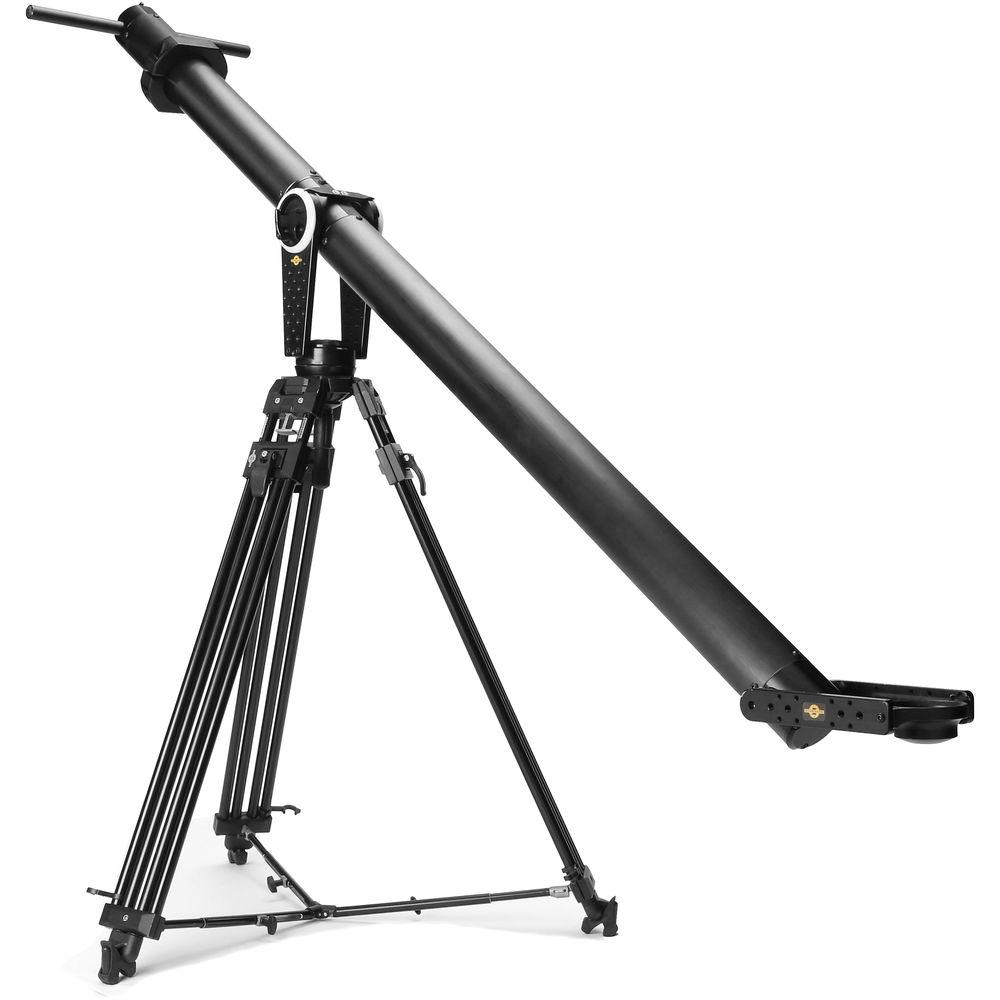

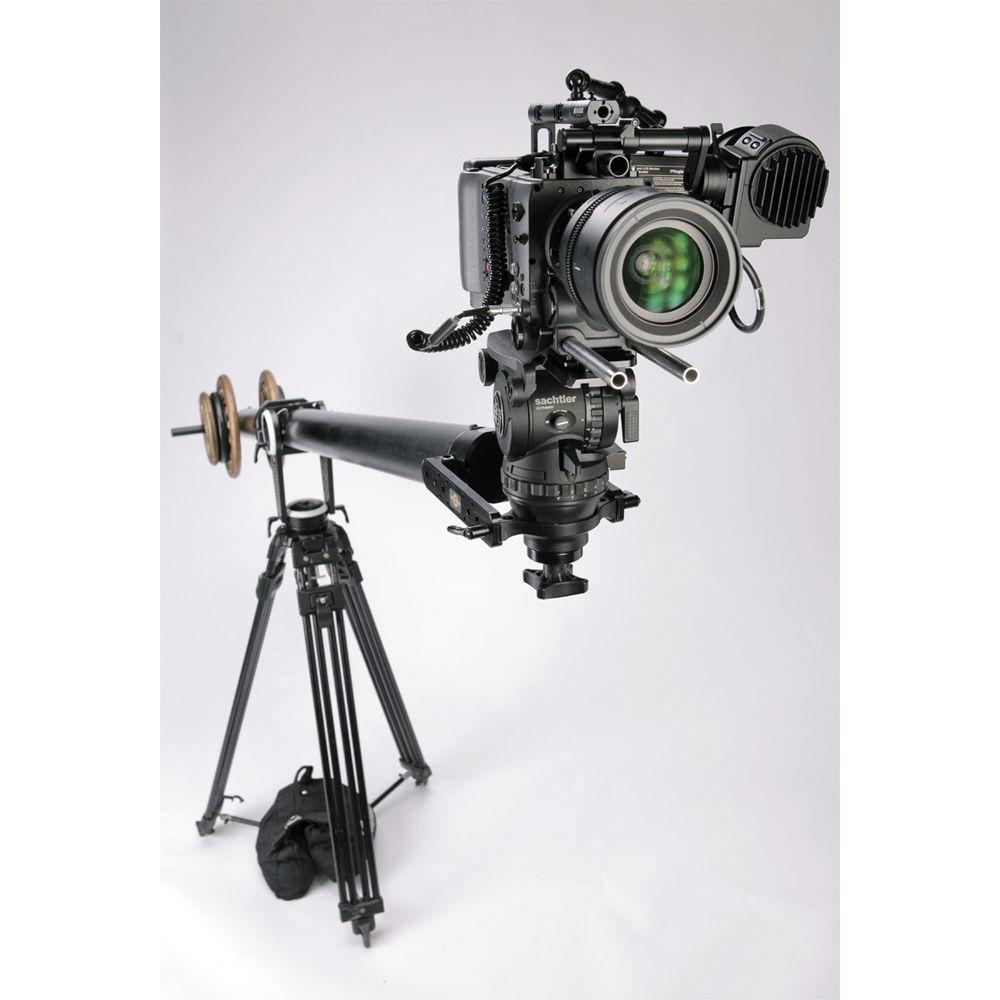

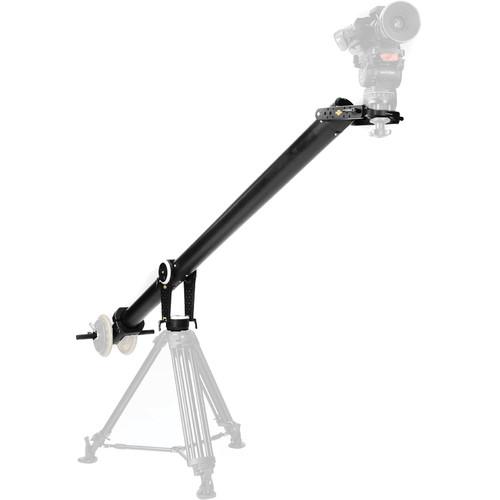

Product description The Cinevate Axis Jib features a 6 ft single-tube aluminum arm with all mechanical components enclosed inside. The arm provides a 4 ft reach from the fixed tripod mount yoke and a 7 ft vertical arc. It was designed stress-tested for maximum stiffness with 3D modeling software and supports a 50 lb payload.

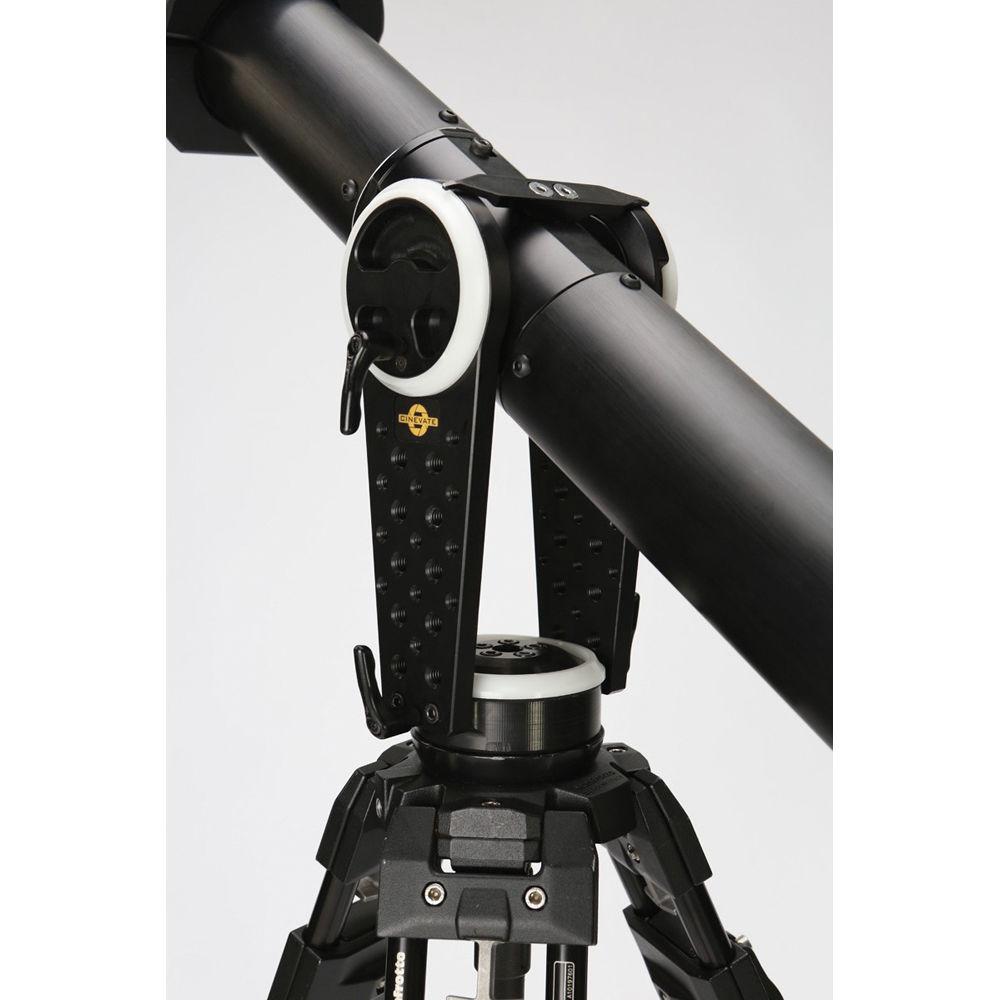

The tripod mount yoke features a 100mm half-ball, pan and tilt locks, a magnetic dry-erase marker ring on each side, and a variety of accessory mounting threads. The marker rings are removable. The fluid head end features a 100mm bowl and is adjustable to three different positions, including under-slung for low angle shots.
The rear handles are 1" in diameter and support all standard dumbbell weights for counterbalance. Weights are not included. A 2 lb trim weight underneath the handles is slide-adjustable to fine-tune balance, and an integrated bubble level will help measure the adjustments. A 63" soft case with wheels is included for transport. - Key Features
-
- Single-tube arm with mechanical components enclosed inside
- 4 ft reach, 7 ft vertical arc, and 50 lb payload
- Integrated 100mm tripod-mount half-ball
- 100mm fluid head bowl
- Pan and tilt locks
- 3-position adjustable head end
- 2 lb slide-adjustable trim weight
- Magnetic dry-erase marker rings on both sides
- Integrated bubble level
- Variety of accessory mounting threads
- 1" diameter handles support standard dumbbell weights
- Stress-tested for maximum stiffness
- 63" soft case with wheels is included
In the Box Cinevate Inc Axis Jib 100mm Bowl Tie-Down Handle 1" Diameter Weight Handle 2 lb Trim Weight 63" Soft Case with Wheels 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cinevate Inc Axis Jib in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCinevate Inc CINJIB01 Specs | Payload | 50 lb (22 kg) | | Arm Reach | Approx. 4 ft (1.2 m) | | Bowl / Ball | 100mm half ball
100mm bowl | | Material | CNC-machined 6061 aluminum alloy, fully anodized in flat black, non-reflective finish | | Trim Weight | 2 lb (.9 kg) | | Counterweight Handle | 1" diameter (2.5 cm) | | Total Weight | 28.8 lb (13 kg) | | | | Package Weight | 46.3 lb | | Box Dimensions (LxWxH) | 63.5 x 11.75 x 9.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 51 owners. Add your rating and experience with the product.
