Product description The Hedron Counterbalance & Dromos Add-On Kit from Cinevate aids in capturing vertical, diagonal, and horizontal camera moves with a Hedron slider. It consists of a belt and pulley system, counterbalance carriage, a Dromos riser mounting system, and all necessary assembly hardware. Once installed, optional Hedron counterbalance weights can be attached to the counterbalance carriage. Counterweights are stackable to offset heaver camera rigs. The add-on also allows you to use a Moco motion control motor for both vertical and horizontal shots.
The counterbalance carriage attaches to Hedron slider using four wheels with adjustable spacing, ensuring a secure fit on the rail. The drive belt is then fed through and connected to the counterbalance and slider carriages using the supplied pulley system and mounting hardware. In order to allow the counterbalance carriage and any attached weights to pass underneath the slider when mounted on a tripod, you must use the Dromos riser mounting system.
The Dromos riser includes two side walls, two adapter blocks, a bottom plate, vertical mounting plate, and the screws required to assemble them to the slider. The pieces can be configured to mount your slider horizontally or vertically on a tripod. A cross handle tie down is included to secure your slider to your tripod.
In vertical shooting mode, any added counterbalance weights are used to take the weight of the camera rig off of your Moco motor, letting you balance loads up to 25 lb. Adding counterbalance weights also lets you perform smooth vertical slides manually, without having to use a motor. Counterweights are also useful for adding stability in horizontal setups, offsetting the weight of your camera rig when it's at the ends of the slider track.
Please note: Counterbalance weights are not included. -
- For use with Hedron sliders
- Consists of belt and pulley system, counterbalance carriage, and Dromos mounting plate system
- Allows attachment of counterbalance weights (not included)
- Lets you balance out vertical, diagonal, and horizontal camera slides
- All assembly hardware included

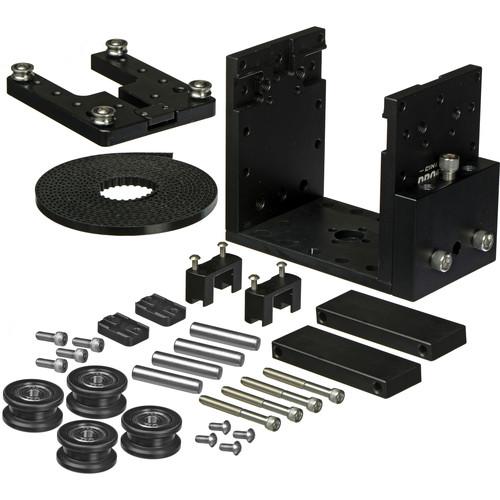

In the Box Cinevate Inc Hedron Counterbalance & Dromos Add-On Kit Counterbalance Carriage 4 x Pulley 4 x Pulley Axel 2 x Pulley Bracket Belt 3 x Belt Clamp 2 x Small Counter Sunk Screw 4 x Small Socket Head Screw 4 x Small Button Head Screw 4 x Large Button Head Screw 2 x Medium Socket Head Screw 2 x Dromos Side Wall 2 x Dromos Adapter Block 2 x Dromos Bottom Plate Dromos Vertical Mount Cross Handle 3 x Medium Socket Head Screw 4 x Medium Button Head Screw 4 x Large Socket Head Screw 4 x Hex Keys Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cinevate Inc Hedron Counterbalance & Dromos Add-On Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCinevate Inc CINHEDCBDR01 Specs | | | Package Weight | 7.4 lb | | Box Dimensions (LxWxH) | 13.0 x 9.7 x 6.2" |
