User Manual for Cinevate Inc Hedron Moco Motion Control Add-On Kit with OmniController Click to enlarge the picture
Contents of the user manual for the Cinevate Inc Hedron Moco Motion Control
- Product category: Tripods, Supports & Rigs Cinevate Inc
- Brand: Cinevate Inc
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cinevate Inc Tripods, Supports & Rigs
 |
User manual for the Cinevate Inc Hedron Moco Motion Control contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cinevate Inc product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cinevate Inc user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cinevate Inc product will considerably shorten its lifespan!
|
Product description The Hedron Moco Motion Control Add-On Kit with OmniController from Cinevate consists mainly of a pulley system with drive belt, a motor, and a controller. Once installed on your Hedron slider, it allows you to capture timelapse videos, stop motion sequences, and real time motorized motion shots. The same motor performs all three functions, and the DitoGear OmniController is programmable to operate all three automatically, with speed and dampening manually adjustable.

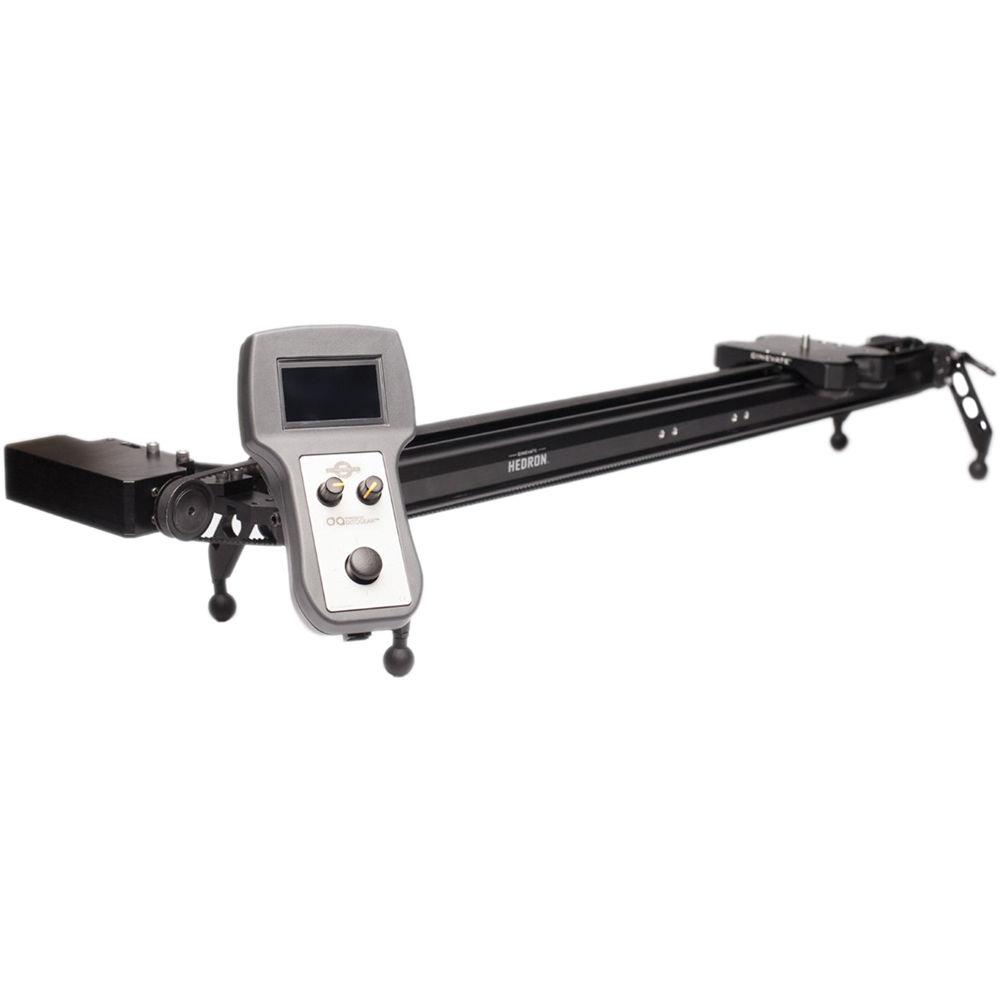

The Moco motor attaches to the end block of your Hedron slider via an included base block and motor bridge. The drive belt is then fed around the pulley system, the drive gear, and through the slider carriage. All necessary mounting hardware comes included. The motor is operated with the OmniController, used to control camera shutter as well as 1-axis motion. It features analog joysticks used to navigate through the menu system and control the device, and offers real time, timelapse, and stop motion operation modes.
In addition to the motor, belt, and controller, the Moco Add-On Kit also includes a power box, 12VDC rechargeable battery, battery charger with AC adapter, and supporting cables. At the center of the power and control system is the Hub, which provides connections for the controller, motor, power box, and an optional shutter release cable. A carry pouch is also included to keep the various components and accessories stored and organized. - Key Features
-
- Compatible with Cinevate Hedron sliders
- Motorized belt and pulley system
- One motor performs timelapse, real time motion control, and stop motion shots
- DitoGear OmniController is programmable to operate all functions
- Speed and dampening are manually adjustable
- Rechargeable 12VDC battery
- Battery charger and AC adapter
- Mounting hardware and supporting cables included
- Carrying pouch included

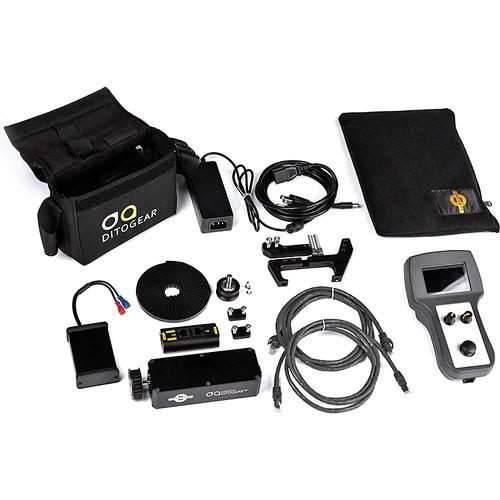

In the Box Cinevate Inc Hedron Moco Motion Control Add-On Kit with OmniController Moco Motor Motor Bridge Base Block Drive Belt 2 x Belt Clamp Pulley Pulley Axel DitoGear OmniController Hub Power Adapter Cable 12V Rechargeable Battery Battery Charger with AC Cord Power Box 2 x Connection Cables (RJ-45/CAT5 Ethernet) 2 x Small Button Head Screw 4 x Small Socket Head Screw 4 x Medium Socket Head Screw 4 x Large Socket Head Screw 3 x Hex Key Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cinevate Inc Hedron Moco Motion Control Add-On Kit with OmniController in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCinevate Inc CINHEDMC0001 Specs | Compatibility | Cinevate Hedron sliders | | Battery | 12 VDC, rechargeable | | Battery Charge Time | Approx. 2 to 3 hours | | | | Package Weight | 11.95 lb | | Box Dimensions (LxWxH) | 13.0 x 9.4 x 6.4" |
