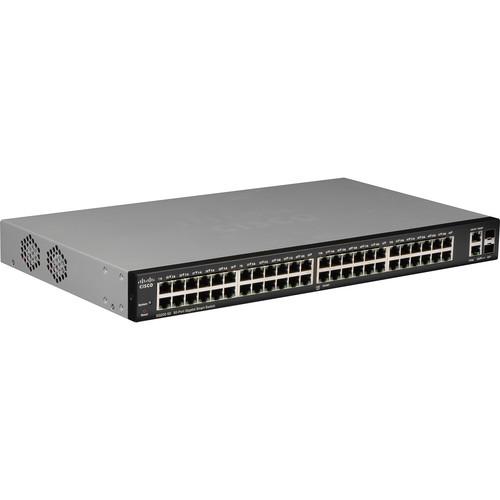

User Manual for Cisco 200 Series Small Business SG200-50 Ethernet Smart Switch Click to enlarge the picture
Contents of the user manual for the Cisco 200 Series Small Business SG200-50
- Product category: Network Switches, Bridges & Hubs Cisco
- Brand: Cisco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cisco Network Switches, Bridges & Hubs
|
User manual for the Cisco 200 Series Small Business SG200-50 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cisco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cisco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cisco product will considerably shorten its lifespan!
|
Product description The 200 Series Small Business SG200-50 Ethernet Smart Switch from Cisco is an Ethernet network switch designed to give you better management, security, and quality of service features than an unmanaged or consumer-grade switch at a lower cost than a managed switch. This particular switch features a total of 50 Gigabit Ethernet ports; however, two of those ports are a combination of RJ-45 Gigabit Ethernet and mini Gigabit Interface Converter (mini-GBIC) expansion slots. With those expansions slots, you have the option to add fiber optic or Gigabit Ethernet uplink connectivity to the switch.
In addition to these ports, the switch includes Quality of Service features that allow you to prioritize latency-sensitive applications, such as IP telephony or video surveillance. The switch also provides native support for both IPv4 and IPv6, which allows you to take advantage of the latter protocol as it becomes more prevalent and widespread in the future. So as to safeguard your network, the switch utilizes IEEE 802.1X port security to control access to your network and reduce the risk of a security breach.
In setting up the switch, it can discover all connected Cisco devices on your network, share info between these devices, and also give you information, such as Serial numbers, IP addresses, and the like for quick deployments. Easy Configuration and Management - This switch is designed to be easy to deploy and use by small businesses or the partners that serve them. Simple-to-use web-based interfaces reduce the time it takes to deploy, manage, and troubleshoot your network
·Cisco Discovery Protocol simplifies setup by discovering all connected Cisco devices and allowing them to share information
·Cisco FindIT Network Discovery Utility works through a simple toolbar on the user's web browser to discover Cisco devices on the network and display basic information, such as serial numbers and IP addresses, to aid in the configuration and speed the deployment of Cisco Small Business products Performance and Reliability - This switch has been tested to deliver the high availability and performance you would expect from a Cisco switch and help you prevent costly downtime. This switch can speed up file transfer times, improve slow and sluggish networks, keep your vital business applications available, and help your employees respond more quickly to customers and each other. With a network based on this or other Cisco 200 Series switches, you can address all of your business communication and connectivity needs and reduce the total cost of ownership of your technology infrastructure
Network Security - This switch provides the basic security and network management features that you need to maintain a level of security for your business, keep unauthorized users off the network, and protect your business data. The switch provides integrated security to reduce the risk of a security breach, with IEEE 802.1X port security to control access to your network
IP Telephony Support - This switch includes Quality of Service (QoS) features to prioritize delay-sensitive services such as voice and video, simplify unified communications deployments, and help ensure consistent network performance for all services. For example, Auto Voice VLAN capabilities let you plug any IP phone (including third-party phones) into your IP telephony network and receive an immediate dial tone. The switch automatically configures the device with the right VLAN and QoS parameters to prioritize voice traffic
IPv6 Support - This and other Cisco 200 Series switches provide native support for IPv6 alongside traditional IPv4. That means you can take full advantage of IPv6-enabled operating systems and applications in the future, without having to upgrade your network equipment
An Energy-Efficient Solution - This switch is designed to be eco-friendly without compromising performance. They help conserve energy by optimizing power use, which helps protect the environment and lowers your energy costs. Power-saving features include the following:
·Automatic power down on Gigabit ports when a link is not active
·Embedded intelligence to adjust power based on cable length Additional Gigabit Ethernet Ports - The switch features a total of 50 Gigabit Ethernet ports, two of which are also mini-Gigabit Interface Converter (mini-GBIC) expansion slots that give you the option to add fiber optic or Gigabit Ethernet uplink connectivity to the switch. With the ability to increase the connectivity range of your switch, you have more flexibility to design your network around your unique business environment, and to easily connect switches on different floors or across the business
Peace of Mind and Investment Protection - Cisco 200 Series Switches offer the reliable performance, investment protection, and peace of mind you expect from a Cisco switch. When you invest in the Cisco 200 Series, you gain the benefit of the following:
·Cisco limited lifetime warranty
·Cisco Small Business Investment Protection Program, which lets you upgrade your Cisco 200 Series switch to another Cisco Small Business or Cisco Catalyst switch in the future and receive credit for the value of the switch (available only in the United States and Canada)
·Rigorous testing to help ensure easy integration and compatibility with other Cisco networking and communications products, including the complete Cisco Small Business portfolio World-Class Service and Support - Cisco 200 Series switches are supported by the Cisco Small Business Support Center, a dedicated resource for small business customers and networks. The Cisco Small Business Support Center connects you directly with a technician who has earned the Cisco CCNA certification, who can give you the expert help you need right away. You also have access to extensive technical and product information through the Cisco Small Business Support Community
- Multiple Language Options
- This switch is available in seven languages: English, French, German, Italian, Spanish, Japanese, and simplified Chinese. All product documentation and most user interfaces are translated, giving you the ability to select your preferred language
UPC: 882658298783 In the Box Cisco 200 Series Small Business SG200-50 Ethernet Smart Switch Power Cord Mounting Hardware CD-ROM with User Documentation (PDF) Included Quick-Start Guide Limited Lifetime Warranty Brochure PDF 604.4kbveewtqtwwacdxywabzqybuybqtxvrctvcbs Table of Contents
|
Upload User Manual
Have you got an user manual for the Cisco 200 Series Small Business SG200-50 Ethernet Smart Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCisco SLM2048T-NA Specs | Ports | 48 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) 2 x 10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP) | | Supported Protocols | Head-of-Line (HOL) Blocking IGMP Snooping IPv6 Link Aggregation | Queuing | Strict Priority, Weighted Round Robin (WRR) | Jumbo Frames Support | 10,000 Bytes | MAC Address Table Size | 8K | Multicast Groups | 256 | VLAN Groups | 128 | VLAN IDs | 4096 | | Security Features | RADIUS Authentication Storm Control | | RFC | RFC 2463 RFC 3513 RFC 4291 RFC 2460 RFC 2461 RFC 2462 RFC 1981 RFC 4007 RFC 3484 RFC 4214 RFC 4293 RFC 3595 | Supported IEEE Standards | 802.1d, 802.1q/p, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3af, 802.3u, 802.3x, 802.3z | | Priority Queues | 4 | Packet Buffer | 8 Mb | | Power Draw | 61.8 W (Active) | DC Input Power | 12 VDC at 8.3 A | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | Operating Temperature | 32 to 104°F / 0 to 40°C | Operating Humidity | 10 to 90% | Storage Temperature | -4 to 158°F / -20 to 70°C | Storage Humidity | 10 to 90% | Noise Level | 41.7 dB | | Cooling System | Fan | Mean Time Between Failures (MTBF) | 237,610 Hours | Indicator Lights | Link/Activity, Speed, System | Rack Form Factor | 1 RU | Dimensions | 17.3 x 10.1 x 1.7" / 44 x 25.7 x 4.4 cm | Weight | 9 lb / 4 kg | | Package Weight | 11.0 lb | Box Dimensions (LxWxH) | 21.5 x 15.25 x 4.15" |
