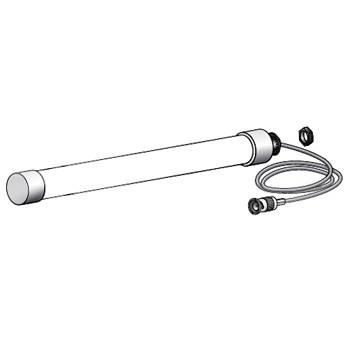

User Manual for Cisco 3G Outdoor Omnidirectional Antenna Click to enlarge the picture
Contents of the user manual for the Cisco 3G Outdoor Omnidirectional Antenna
- Product category: Antennas & Accessories Cisco
- Brand: Cisco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cisco Antennas & Accessories
|
User manual for the Cisco 3G Outdoor Omnidirectional Antenna contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cisco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cisco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cisco product will considerably shorten its lifespan!
|
Product description The 3G Outdoor Omnidirectional Antenna from Cisco is designed for 3G HWIC applications in the 800/850/900/1800/1900/2100 MHz frequency bands. The antenna has a nominal gain of +2 dBi for 800/850/900 MHz bands and +4 dBi for 1800/1900/2100 MHz bands. It is designed for installation on a mast or exterior wall and is compatible with Cisco cellular products utilizing a standard TNC (Threaded Neil Concelman) connector. - The antenna has a nominal gain of +2 dBi for 800/850/900 MHz bands and +4 dBi for 1800/1900/2100 MHz bands
- Designed for installation on a mast or exterior wall
UPC: 882658264948 In the Box Cisco 3G Outdoor Omnidirectional Antenna Mounting Bracket Hose Clamp 90-Day Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cisco 3G Outdoor Omnidirectional Antenna in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCisco 3G-ANTM-OUT-OM Specs | Antenna Type | Outdoor omnidirectional | | Operating frequency bands | 800/850/900/1800/1900/2100 MHz | | Environment | Outdoor | | Impendance | 50 Ohms nominal | | VSWR | Less than 2.5:1 | | Gain | 2 dBi 800/850/900 MHz bands4 dBi 1800/1900/2100 MHz bands nominal | | Polarization | Linear, vertical | | E-Plane (3dB bandwidth) | Omnidirectional | | H-Plane (3dB bandwidth) | 40 degrees for 800/850/900 MHz bands20 degrees for 1800/1900/2100 MHz bands | | Connector Type | Standard TNC male | | Compatibility | Cisco cellular products utilizing a standard TNC (Threaded Neil Concelman) connector. | | Dimensions (HxW) | 16 x 1.3" (40.64 x 3.30 cm) | | Weight | Not specified by the manufacturer | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 19.1 x 6.1 x 2.6" |
