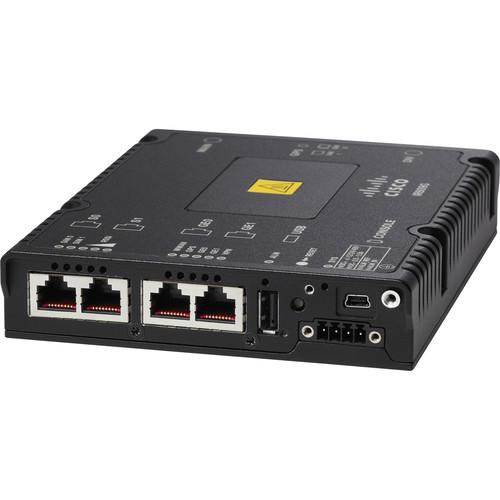

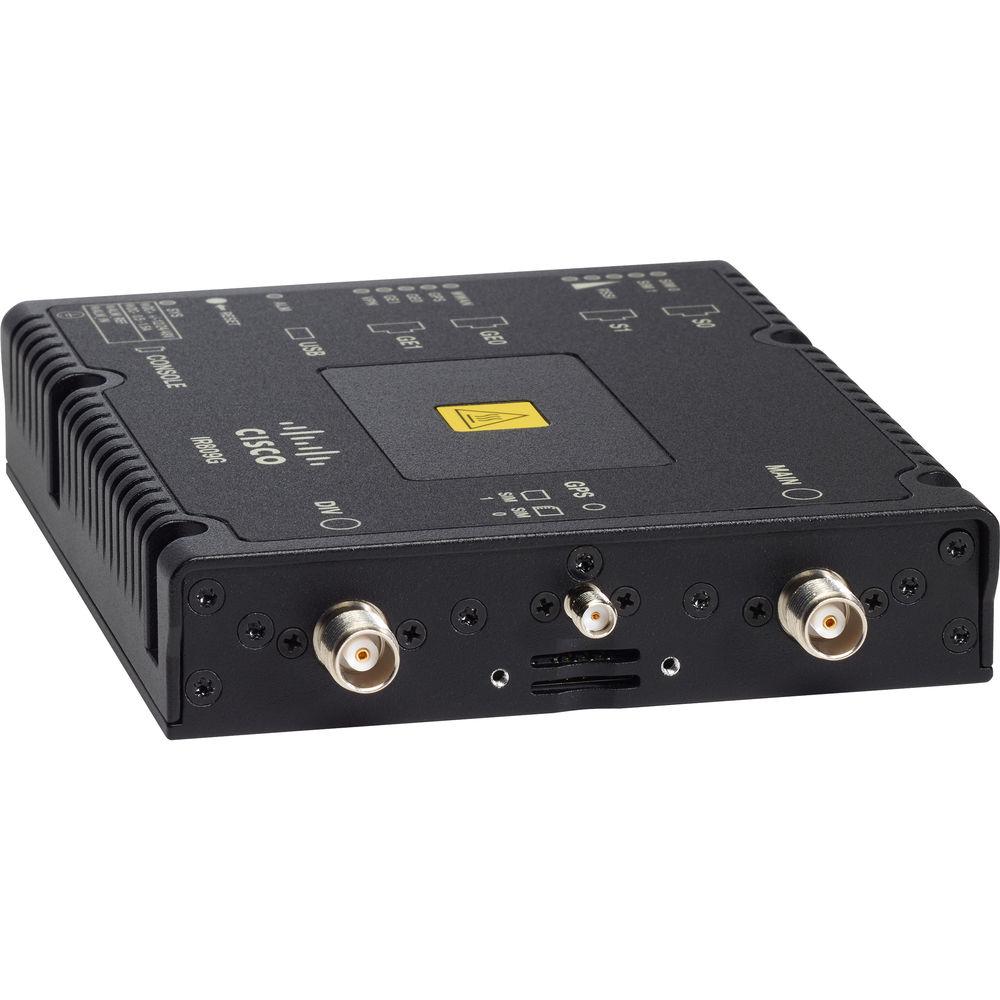

Product description

Accelerometer and Gyroscope
• Monitor speed and angular momentum for automotive applications and detect tampering.

GPS
• Enables real-time location tracking of remote assets and geofencing when used with IOT Field Network Director.

Zero-Touch Provisioning
• This provisioning uses network management tools, such as the IoT Field Network Director, and simplifying deployment of a secure network head-end using a Cisco Industrial Operations Kit.

Security Services
• Services include area firewall, VPN, which requires no additional hardware or client software. This security service can, for example, intelligently redirect web traffic to the cloud to enforce granular security and acceptable use policies over user web traffic. With this solution, businesses can deploy the web security solution quickly and easily to protect assets from web-based threats, such as viruses while saving bandwidth, money, and resources.

4G LTE Wireless WAN Data Services
• With enhanced data rates and improved latency (30 milliseconds or less), WWAN services provide an ideal way to supplement traditional wire-line services. These 4G LTE WWAN data services have average data rates with theoretical limits of 100 Mbps on the downlink and 50 Mbps on the uplink. Actual data speed depends on the service provider's network. With 4G LTE data rates, the 809s offer a primary WAN link capable of running multiple services, including voice and video. The 4G LTE WWAN data services can also be used as a cost-effective alternative in areas where broadband wireline services are either not available or very expensive.

Multiple-PDN (Packet Data Network)
• This feature allows the router to connect to different access point names (APNs) enabling traffic segregation. For example, public internet traffic can be kept separate from corporate traffic.

4G LTE Multiple-Bearer QoS for Cellular
• The 809s support 4G LTE multiple bearers, enabling differentiated treatment of traffic based on QoS policies. The QoS feature depends on the service provider's ability to classify and enforce QoS policies and hence requires the providers to launch this service in their networks.

Multi-VRF
• The 809s support a multi-VRF feature that allows customer to segment and isolate traffic based on their applications requirements.

Compact Ruggedized Form Factor
• Designed for hostile outdoor remote assets monitoring and M2M communications and an integrated 9.6-60 VDC power supply.

Raw Socket Transport and SCADA
• Raw socket can be used to transport SCADA data from remote terminal units (RTUs). This method is an alternative to the Block Serial Tunnel (BSTUN) protocol. The 809 provides DNP3 serial to DNP3/IP translation and IEC 60870 T101 to IEC 60870 T104 protocol translation to serve as a SCADA gateway to do the following:
  ● Receive data from RTUs (T101 or DNP3 serial) and relay configuration commands from the Control Center (T104 or DNP3 IP) SCADA applications.
  ● Receive configuration commands from the Control Center and relay RTU data to the Control Center.
  ● Terminate incoming T104 or DNP3 IP requests from the Control Center when an RTU is offline.

Cisco IOx Application Support
• Provides an open, extensible environment for hosting OS and applications at the network edge.

IoT Field Network Director
• Available as an optional Industrial Operations Kit. This is a software platform that manages a multiservice network and security infrastructure for IoT applications such as transportation, smart grid, services, distribution automation, and substation automation.

Multiple Mounting Options
• Supports a variety of mounting options - floor mount and wall mount - and offers DC power options allowing for deployment flexibility.

Lightweight, Compact Size with Low Power Consumption
• Can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors.

Increased Performance to Run Concurrent Services
• Performance allows customers to take advantage of broadband network speeds while running highly secure, concurrent data, voice, video, wireless and IoT services.

Enhanced Security
• ● An integrated stateful and application inspection firewall provides network perimeter security and hardware assisted high-speed IP Security (IPSec); Triple Data Encryption Standard (3DES) and encryption protocols such as Advanced Encryption Standard (AES) encryption and Secure Hash Algorithm (SHA) offer data privacy over the Internet.● Intrusion prevention enforces security policies in a larger enterprise or service provider network.
  ● Content filtering offers category-based URL classification and blocking, thus providing increased productivity and better use of company resources.
  ● Cisco Cloud Web Security and filtering solution requires no additional hardware or client software. Enables remote locations to intelligently redirect web traffic to the cloud to enforce granular security and acceptable use policies over user web traffic.

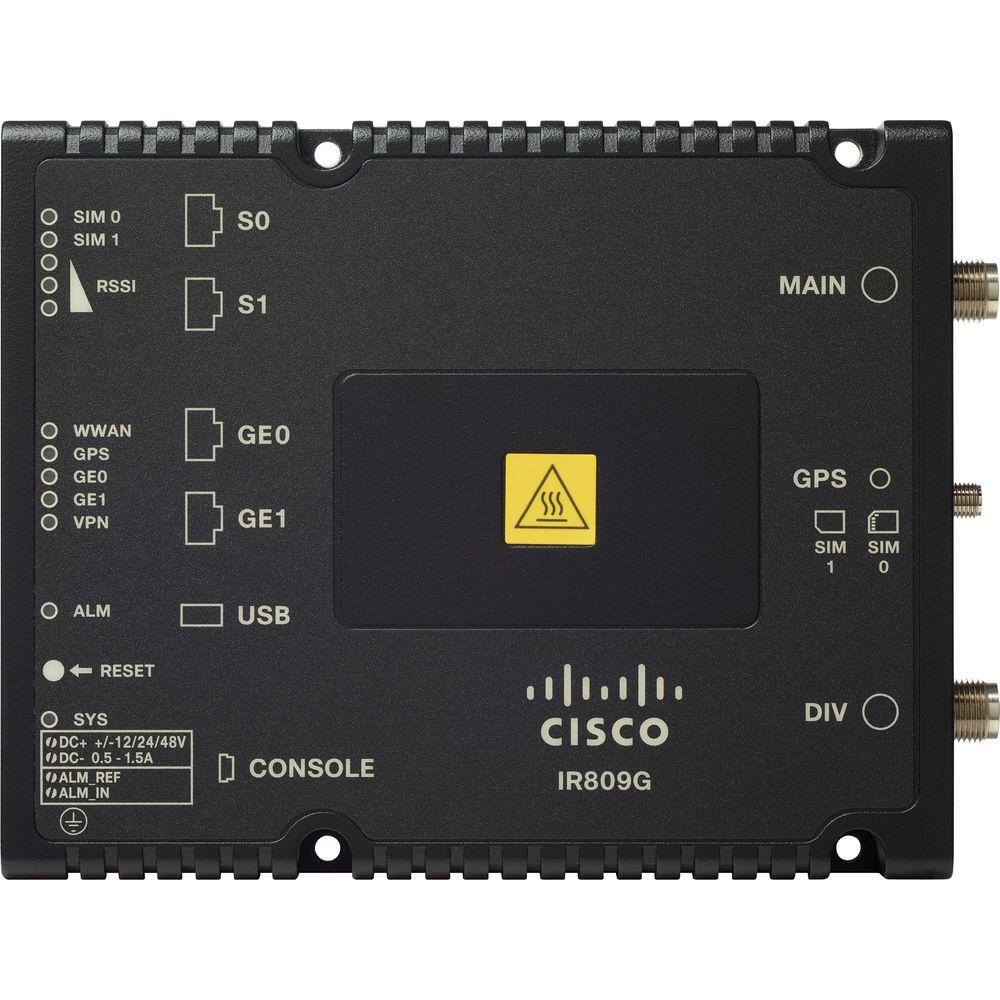

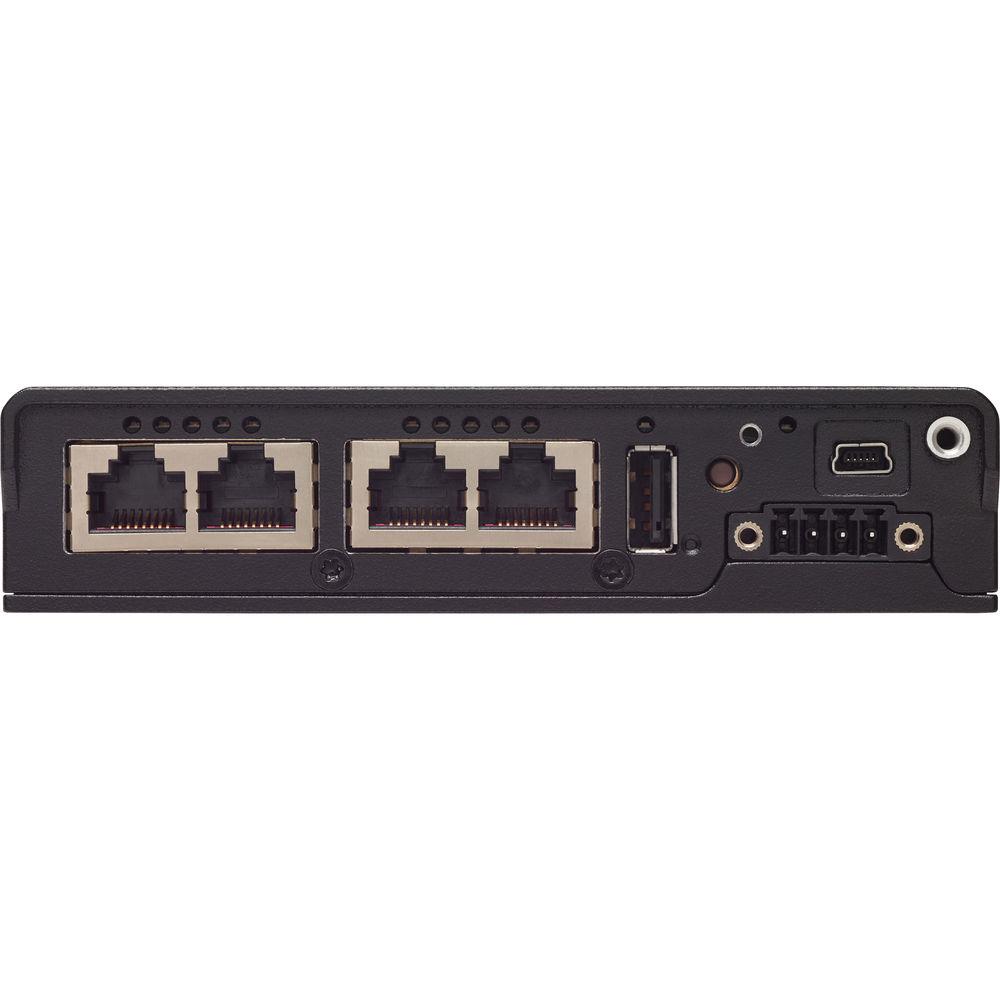

Multiple WAN and LAN Connections
• Two Gigabit Ethernet Interfaces
  ● Allows for multiple Ethernet device connectivity in a small office or other remote location with the ability to designate a port as the network edge.
  ● VLANs for Layer-3 IP sub-interfaces.
  ● Inter-VLAN routing capabilities.
  Two Serial Interfaces
  ● Two serial interfaces (one RS232 port and one RS232/RS485 port) to provide two serial connections to local RTU for SCADA transport and RTU management.

Transparent Roaming Between Wireless Networks

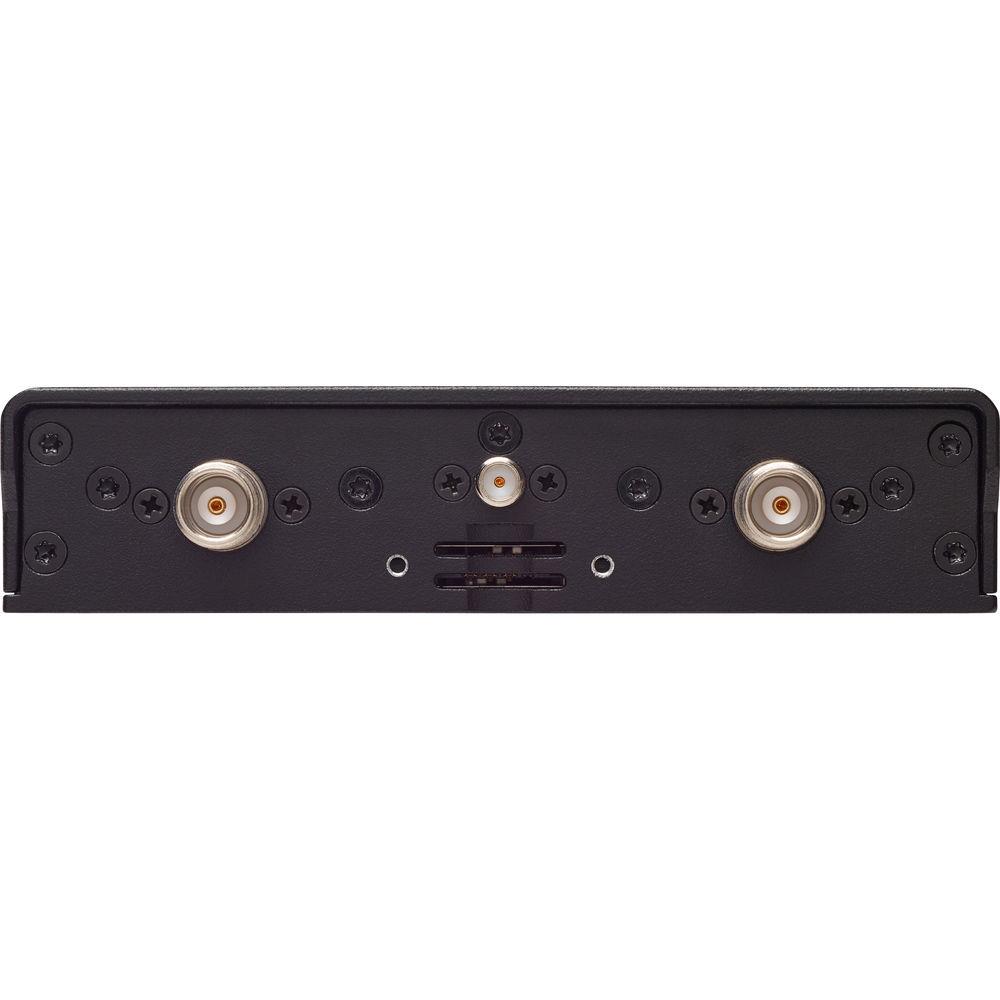

• Dual Subscriber Identity Module (SIM) Support
  ● Dual SIM feature provides reliability and multihoming capabilities over LTE and HSPA-based networks.
  Cisco IOS Mobile IP Features
  ● Mobile IP offers transparent roaming for mobile networks, establishing a transparent Internet connection regardless of location or movement. This enables mission-critical applications to stay connected even when roaming between networks.
  ● Assigned IP addresses to the home network are maintained in private or public networks.
  Cisco IOS Mobile Network Features
  ● Allows an entire subnet or mobile network to maintain connectivity to the home network while roaming.
  Multiple Wireless WAN Technologies
  ● Users can use the best wireless (4G LTE, 3.7G, 3.5G, 3G or 2G) technology or network available.

Advanced IP Services in Standards-Based Cisco IOS Software
• Advanced Security Features
  ● Authorization and authentication determine which individuals and devices have access to the network.
  ● Firewall protection provides perimeter security when using public networks.
  ● 3DES and AES encryption provide for highly secure VPNs when transmitting and receiving data over public networks.
  ● Protocol suites enable users to monitor potential malicious activity on the network.
  QoS Features
  ● Provides traffic precedence to delay-sensitive or prioritized applications.
  ● Facilitates low-latency routing of delay-sensitive industrial applications.
  IP Multicast
  ● Allows broadcast of data or video for increased situational awareness, multiuser communications, or surveillance applications.
  Management and Manageability
  ● Network managers can remotely manage and monitor networks with SNMP, Telnet, or HTTP/HTTPS/SSH, and locally through a console port.
  ● Support for extensive 3G and 4G LTE-based MIBs allows for centralized management of remote devices and gives network managers visibility into and control over the network configuration at the remote site.
  ● Network managers can reset to a predesignated golden image, as well as configure an 809 through Cisco IOS Software or through an external reset button.
  ● Network managers can upgrade 3G, 3.5G, 3.7G, and 4G LTE firmware and router configurations remotely.
  ● The tight integration with Cisco IOS Software enables router to self-monitor the LTE WAN link and automatically recover from a radio link failure.
