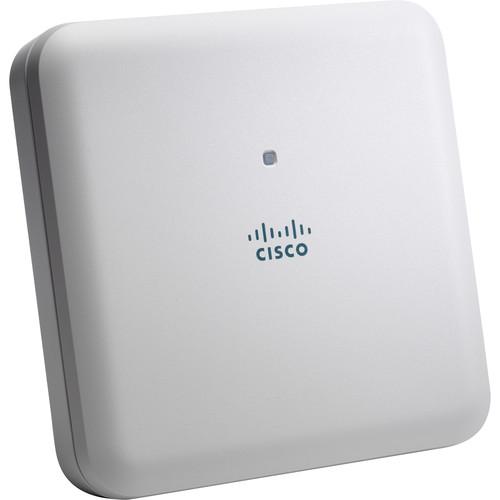

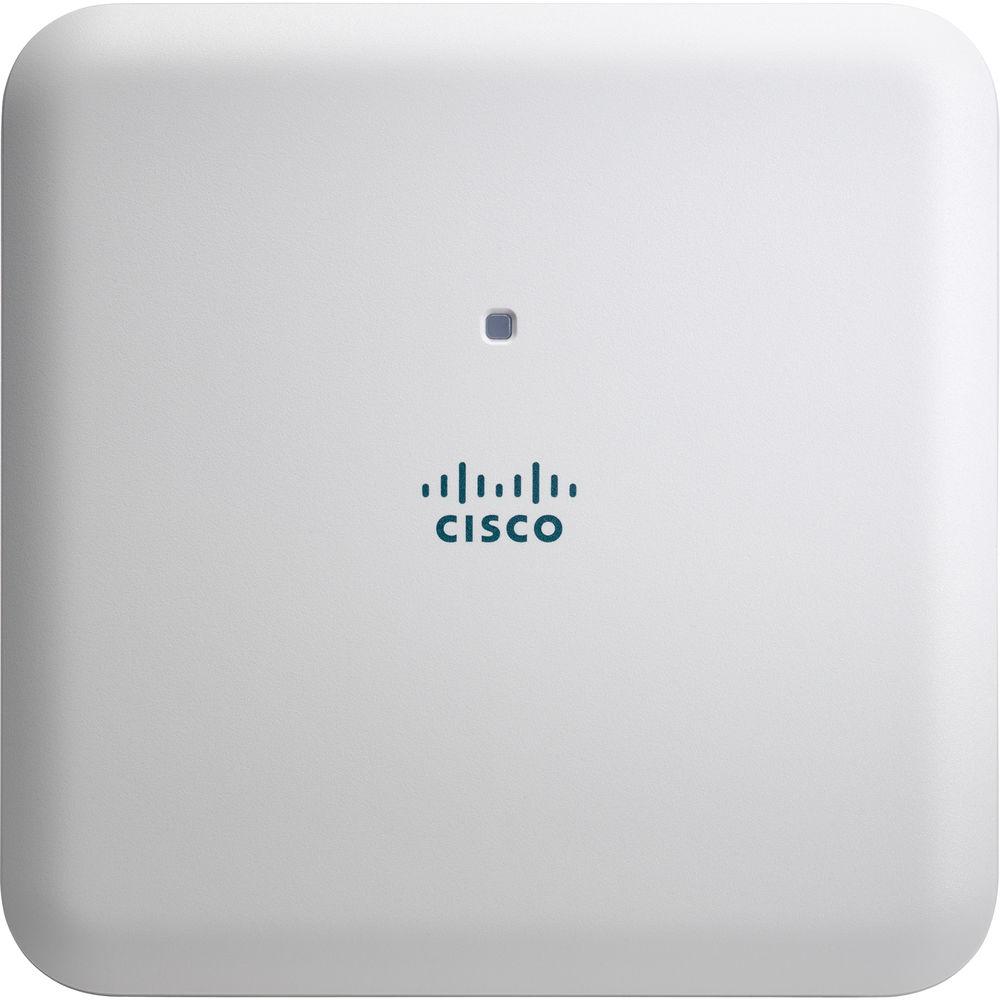

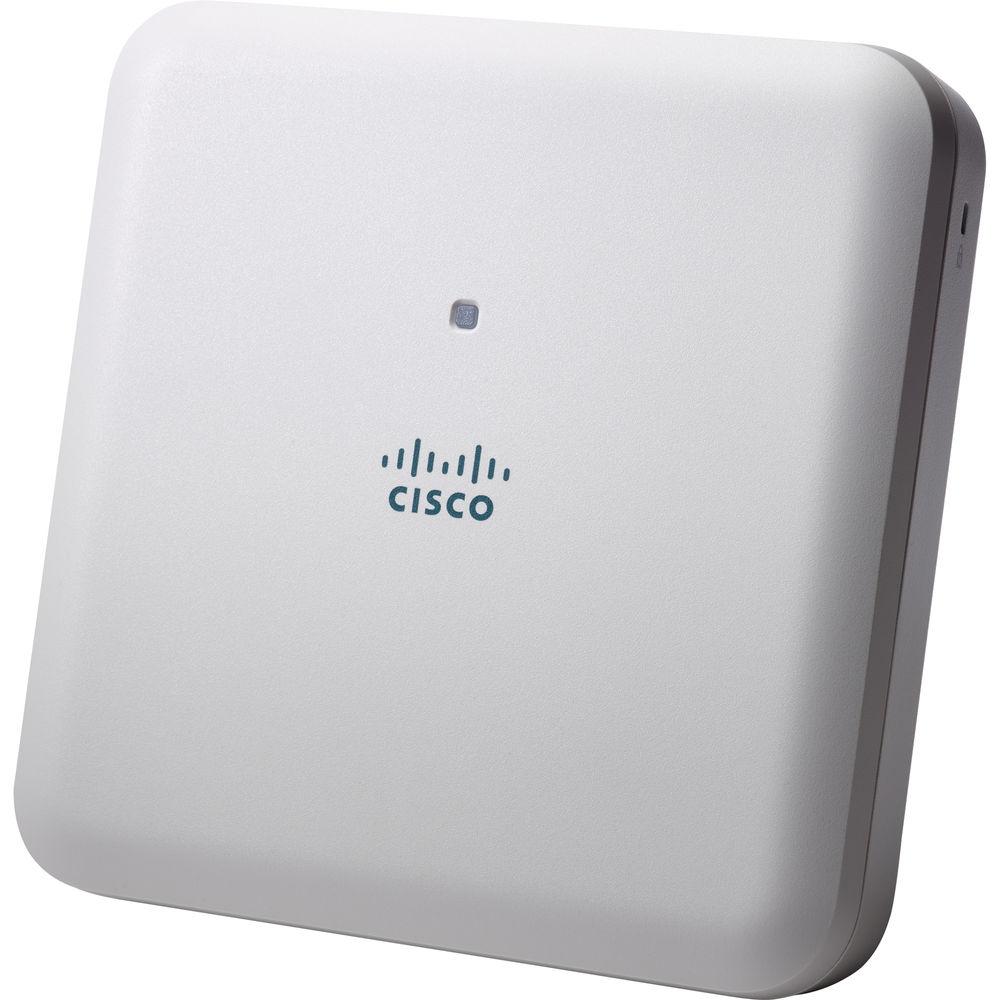

User Manual for Cisco Aironet 1832i Dual-Band Access Point with Cisco Mobility Express Software Click to enlarge the picture
Contents of the user manual for the Cisco Aironet 1832i Dual-Band Access Point
- Product category: Wireless Access Points Cisco
- Brand: Cisco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cisco Wireless Access Points
 |
User manual for the Cisco Aironet 1832i Dual-Band Access Point contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cisco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cisco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cisco product will considerably shorten its lifespan!
|
Product description Give your corporate wireless network a boost with the Aironet 1832i Dual-Band Access Point from Cisco. Capable of a total throughput of up to 1 Gb/s, the dual-band Aironet 1832i is equipped with three internal antennas and a 10/100/1000 Mb/s PoE (Power over Ethernet) port, handy for transmitting data and powering the access point over a single cable. Designed with support for the Wi-Fi 5 (802.11ac) Wave 2 wireless standard, the Aironet 1832i features 3 x 3 multi-user MIMO, which allows for simultaneous data transmissions to multiple phones, tablets, laptops, and other compatible wireless clients. This version of the Aironet 1832i comes bundled with Cisco's Mobility Express software, which offers virtual WLAN controller support. - Cisco Mobility Express Software
- An enterprise-class virtual WLAN controller, Cisco's Mobility Express Solution allows the Aironet 1831i to be deployed on networks without a physical controller, ideal for small to medium-sized deployments that require multiple access points.
- Transmit Beamforming Technology
- Helps to improve downlink performance to mobile devices, including one- and two-spatial-stream devices on 802.11ac, while improving battery life on smartphones, tablets, and other mobile devices.
- Supported Wireless LAN Controllers
- The Aironet 1831i supports the following Cisco wireless LAN controllers: 2500 Series Wireless Controllers, the Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Cisco Catalyst 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco 5520 Series Wireless Controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 8540 Series Wireless Controllers, Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3650 and 3850 Series Switches with integrated controller.
- 802.11n Version 2.0 Capabilities
- 3 x 3 MIMO with two spatial streams
Maximal Ratio Combining (MRC)
20- and 40-MHz channels
PHY data rates up to 300 Mb/s (40 MHz with 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic Shift Diversity (CSD) support - 802.11ac Wave 1 and 2 Capabilities
- 3x3 MIMO with two spatial streams, single-user or multiuser MIMO
MRC
802.11ac beamforming (transmit beamforming)
20-, 40-, and 80-MHz channels
PHY data rates up to 867 Mbps (80 MHz in 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 DFS
CSD support - Deployment Modes
- Centralized
Standalone
Cisco FlexConnect - Status LED Indicators
- Boot loader status
Association status
Operating status
Boot loader warnings
Boot loader errors - Powering Options
- 802.3af
802.3at
Enhanced PoE
Cisco local power supply
Cisco power injector
Note: If 802.3af PoE is the source of power, the USB port is disabled. - Extensible Authentication Protocol (EAP) types:
- EAP-Transport Layer Security (TLS)
EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
Protected EAP (PEAP) v0 or EAP-MSCHAPv2
EAP-Flexible Authentication via Secure Tunneling (FAST)
PEAP v1 or EAP-Generic Token Card (GTC)
EAP-Subscriber Identity Module (SIM) UPC: 882658857409 In the Box Cisco Aironet 1832i Dual-Band Access Point with Cisco Mobility Express Software Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cisco Aironet 1832i Dual-Band Access Point with Cisco Mobility Express Software in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCisco AIR-AP1832I-B-K9C Specs | | | Wireless Frequency Bands | 2.4 GHz, 5 GHz | | Number of Antennas | 3 | | MU-MIMO Support | 3 x 3 | | WLAN Mode | Wi-Fi 5 (802.11ac) | | Sensitivity | -70 to -101 dBm | | Antenna Gain | 3 to 5 dBi | | Transmit Power | 22 to 23 dBm | | Supported Protocols | WMM | | Antenna Placement | Internal | | | | Ports | 1 x 480 Mb/s USB Type-A
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
1 x Ethernet (RJ45) (Console) | | | | Wireless Security | WPA, WPA2, AES | | Lock Slot | Yes, Kensington | | | | Throughput | 2.4 GHz: 300 Mb/s
5 GHz: 867 Mb/s | | | | RAM | 1 GB | | Storage Capacity | 256 MB | | Supported IEEE Standards | 802.11h, 802.11i, 802.1x, 802.3af, 802.3at | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 44 to 57 VDC | | Power Consumption | ≥15.4 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | Operating Humidity | 10 to 90% | | Operating Altitude | 9843' / 3000 m | | Storage Altitude | 15,000' / 4572 m | | | | Certifications | EN 60950-1, FCC, UL, VCCI, as per Manufacturer | | Dimensions | 8.3 x 8.3 x 2" / 21.08 x 21.08 x 5.08 cm | | Weight | 2.1 lb / 1 kg | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 9.5 x 8.9 x 3.8" |
