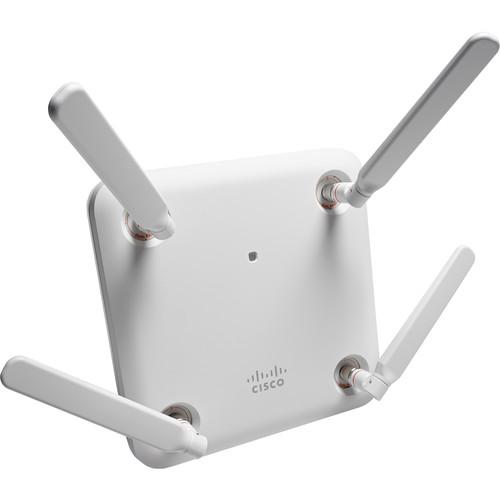

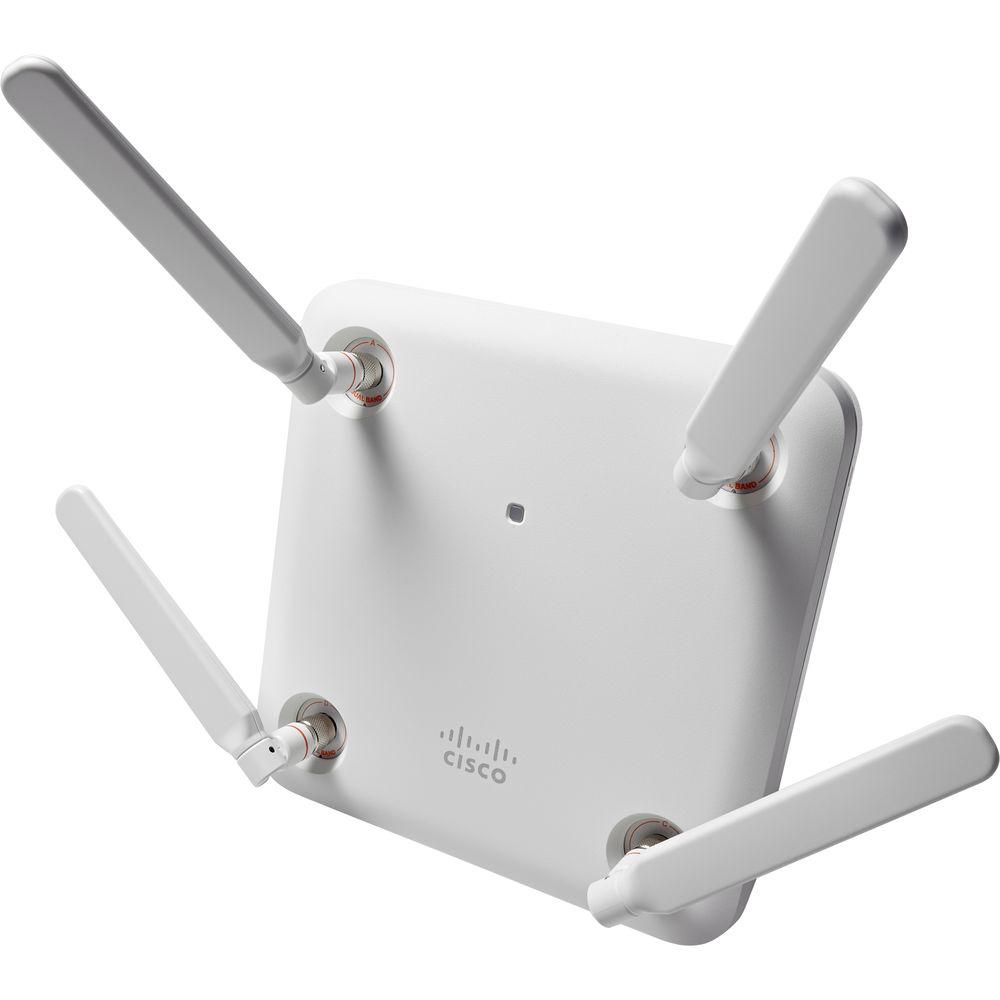

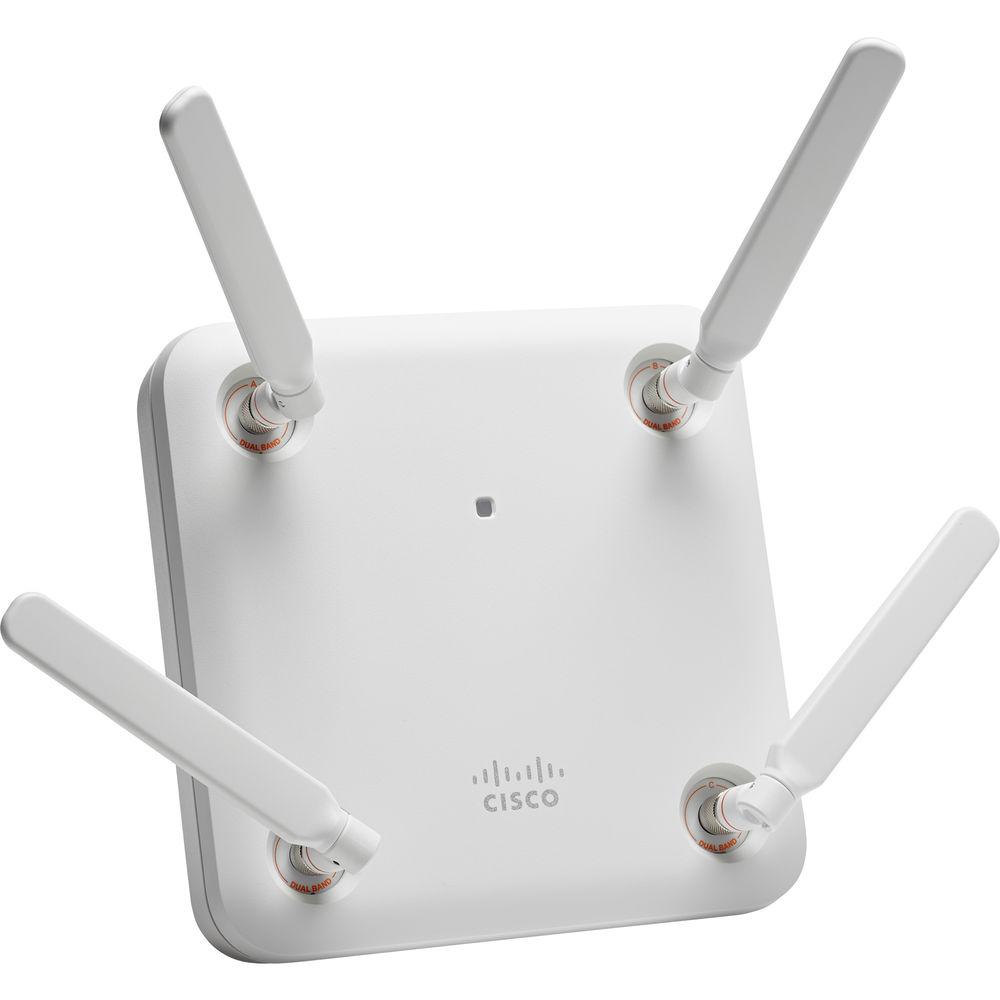

User Manual for Cisco Aironet 1852e Dual-Band 802.11ac Wave 2 Access Point Click to enlarge the picture
Contents of the user manual for the Cisco Aironet 1852e Dual-Band 802.11ac Wave
- Product category: Wireless Access Points Cisco
- Brand: Cisco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cisco Wireless Access Points
 |
User manual for the Cisco Aironet 1852e Dual-Band 802.11ac Wave contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cisco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cisco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cisco product will considerably shorten its lifespan!
|
Product description Boost the wireless capability of your small- or medium-sized corporate network with the Aironet 1852e Dual-Band 802.11ac Wave 2 Access Point from Cisco. Boasting a total aggregate data rate of up to 2 Gb/s, the dual-band Aironet 1852e comes equipped with a Gigabit Ethernet PoE+ (Power over Ethernet) port, which means it can use a single cable for both data and power. An auxiliary Gigabit Ethernet port can be used for link aggregation. The 1852e's multi-user MIMO support lets it transmit data to multiple wireless clients simultaneously. The Aironet 1852e also supports external antennas, which are not included and must be purchased separately. The included Cisco Mobility Express software lets you deploy multiple Cisco access points on a network without a physical controller. - Multi-User MIMO Technology
- The Aironet 1852e access point supports up to four spatial streams when operating in single-user MIMO mode and three spatial streams when operating in multi-user MIMO mode. MU-MIMO allows transmission of data to multiple 802.11ac Wave 2-capable clients simultaneously to improve client experience.
- Transmit Beamforming Technology
- Designed to improves downlink performance to mobile devices, including one-, two-, and three-spatial-stream devices on 802.11ac, while helping improving battery life on smartphones, tablets, and other mobile devices.
- Cisco Mobility Express Solution
- Flexible deployment mode through the Cisco Mobility Express Solution is ideal for small to medium-sized deployments that require multiple access points. Easy setup allows the 1850e to be deployed on networks without a physical controller.
- Supported Wireless LAN Controllers
- Cisco 2500 Series Wireless Controllers
Cisco Wireless Controller Module for ISR G2
Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches
Cisco 5500 Series Wireless Controllers
Cisco Flex 7500 Series Wireless Controllers
Cisco 8500 Series Wireless Controllers
Cisco Virtual Wireless Controller
Cisco 5760 Series Wireless Controllers
Cisco Catalyst 3650/3850 Series Switches with Integrated Controller - Deployment Modes
- Centralized local
Standalone (via Cisco Mobility Express with controller function running on the access point)
Sniffer
Cisco FlexConnect
Monitor
OfficeExtend - 802.11n Version 2.0 Capabilities
- 4 x 4 MIMO with four spatial streams
Maximal Ratio Combining (MRC)
20- and 40-MHz channels
PHY data rates up to 600 Mb/s (40 MHz with 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic Shift Diversity (CSD) support - 802.11ac Wave 1 and 2 Capabilities
- 4 x 4 MIMO with four spatial streams, single-user MIMO
4 x 4 MIMO with three spatial streams, multiuser MIMO
MRC
802.11ac beamforming (transmit beamforming)
20-, 40-, and 80-MHz channels
PHY data rates up to 1.7 Gb/s (80 MHz in 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 DFS
CSD support
Rogue device detection - Integrated Antenna
- 2.4 GHz, gain 3 dBi, internal omnidirectional, horizontal beamwidth 360°
5 GHz, gain 5 dBi, internal omnidirectional, horizontal beamwidth 360° - LED Indicator
- Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors.
- Powering Options
- 802.3at
Enhanced PoE
Cisco power injector, AIR-PWRINJ6=
Cisco local power supply, AIR-PWR-D=
Cisco power injector, AIR-PWRINJ5= (supports 802.3af only)
802.3af
Note: If 802.3af PoE is the source of power, the 1852e 2.4-GHz radio will shift to 2 x 3 from 3 x 4, and the USB port and AUX Ethernet port are disabled. UPC: 882658856655 In the Box Cisco Aironet 1852e Dual-Band 802.11ac Wave 2 Access Point Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cisco Aironet 1852e Dual-Band 802.11ac Wave 2 Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCisco AIR-AP1852E-B-K9C Specs | | | Wireless Frequency Bands | 2.4 GHz, 5 GHz | | MU-MIMO Support | 3 x 3 | | WLAN Mode | Wi-Fi 5 (802.11ac) | | Sensitivity | -57 to -101 dBm | | Antenna Gain | 3 to 5 dBi | | Transmit Power | 1 to 23 dBm | | Supported Protocols | Link Aggregation
WMM | | Antenna Placement | Internal | | | | Ports | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
1 x Ethernet (RJ45) (Console)
1 x 480 Mb/s USB Type-A | | USB Sharing Support | No | | | | Wireless Security | WPA, WPA2, AES | | | | Throughput | 2.4 GHz: 600 Mb/s
5 GHz: 1700 Mb/s | | | | RAM | 1 GB | | Storage Capacity | 256 MB | | Supported IEEE Standards | 802.11d, 802.11h, 802.11i, 802.1x, 802.3at | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 44 to 57 VDC | | Power Consumption | ≥20.9 W | | | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | Operating Humidity | 10 to 90% | | Operating Altitude | 9843' / 3000 m | | Storage Altitude | 15,000' / 4572 m | | | | Certifications | EN 60950-1, FCC, UL, VCCI, as per Manufacturer | | Dimensions | 8.3 x 8.3 x 2" / 210.8 x 210.8 x 50.8 mm | | Weight | 3.1 lb / 1.4 kg | | | | Package Weight | 4.45 lb | | Box Dimensions (LxWxH) | 9.37 x 8.976 x 3.937" |
