User Manual for Cisco Catalyst 2960-48TT-S 48-Port 10 100 Ethernet Switch Click to enlarge the picture
Contents of the user manual for the Cisco Catalyst 2960-48TT-S 48-Port 10 100
- Product category: Network Switches, Bridges & Hubs Cisco
- Brand: Cisco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cisco Network Switches, Bridges & Hubs
 |
User manual for the Cisco Catalyst 2960-48TT-S 48-Port 10 100 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cisco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cisco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cisco product will considerably shorten its lifespan!
|

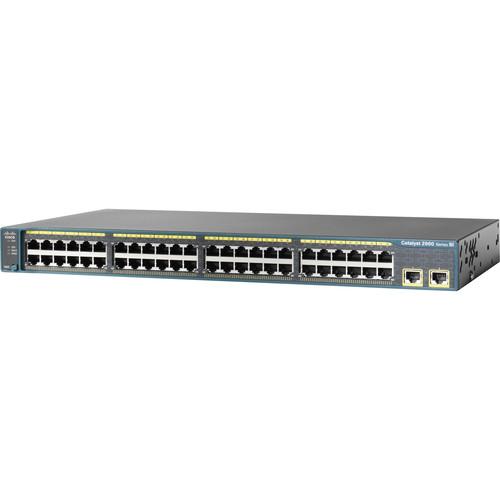

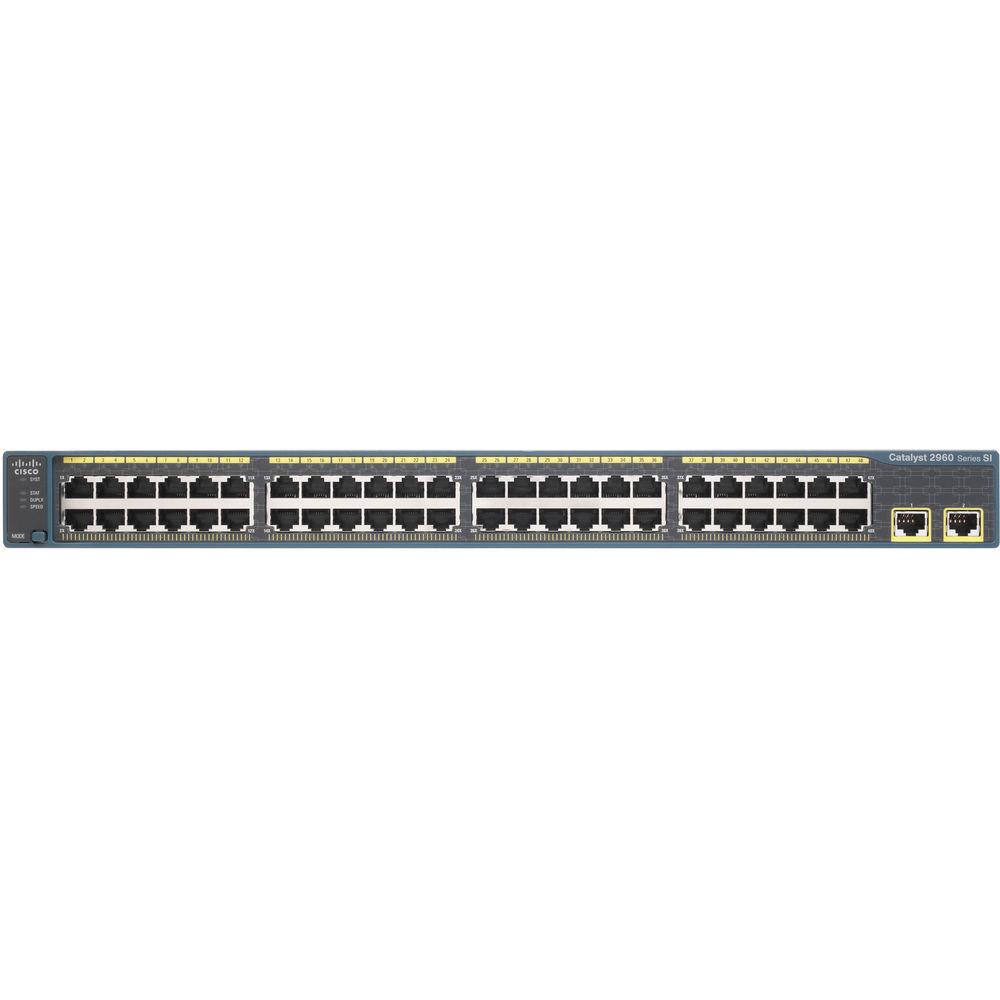

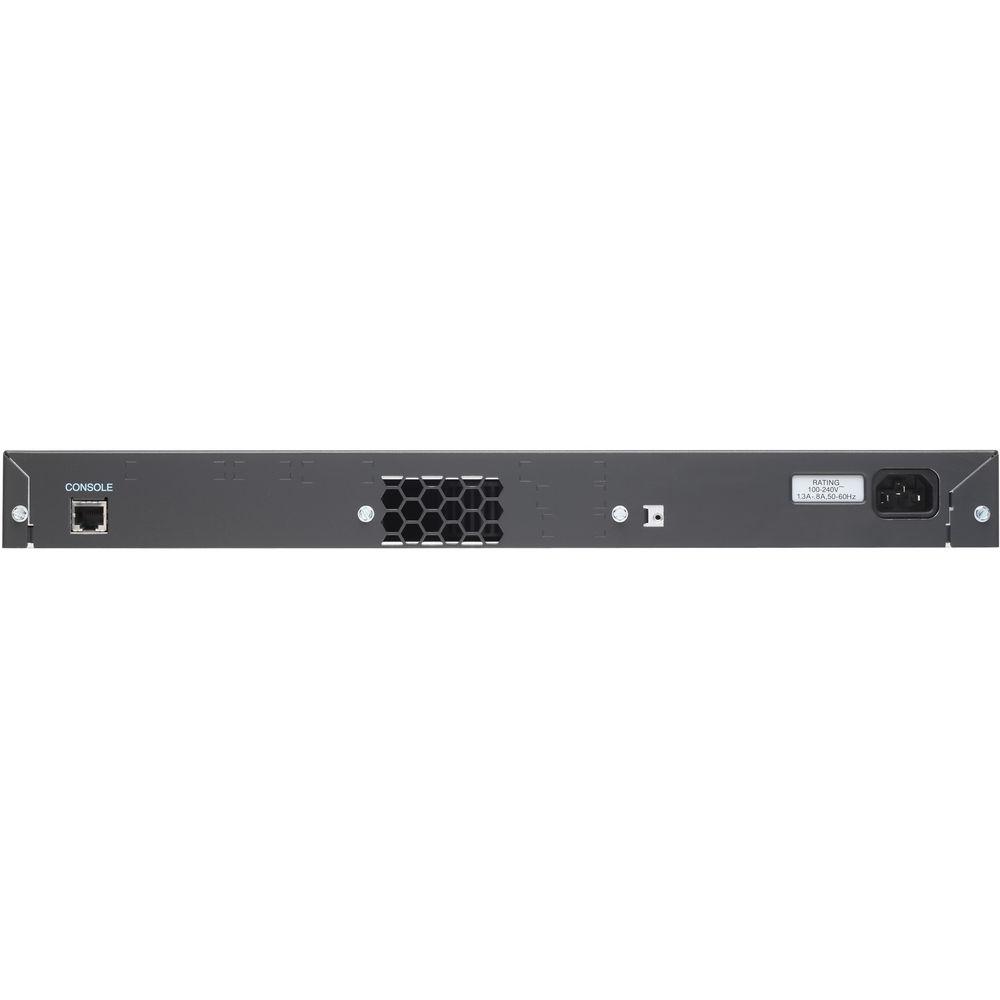

Product description The Catalyst 2960-48TT-S 48-Port 10/100 Ethernet Switch from Cisco is an Ethernet switch with 48 ports for 10/100 Ethernet as well as 2 fixed 10/100/1000 ports. It also comes bundled with LAN Lite software. A limited lifetime hardware warranty helps protect your business from malfunctioning equipment. Your business will be up and running with next business day delivery of replacement parts and 90 days of Cisco Technical Assistance (TAC) support. Note: Please refer to the warranty's policy for more information. - Cisco EnergyWise Technology
- Cisco EnergyWise is an innovative architecture that enables companies to measure the power consumption of their network infrastructure and network-attached devices as well as management options for conserving energy. EnergyWise encompasses a highly intelligent network-based approach by discovering Cisco EnergyWise-supported devices, monitoring their power consumption and taking action based on the settings set by the administrator(s). EnergyWise uses a unique domain-naming system to query and summarize information on network devices, which facilitates energy management. The management interface uses standard Simple Network Management Protocol (SNMP) or TCP to integrate Cisco and third-party management systems
- Cisco Catalyst Smart Operations
- Cisco Catalyst Smart Operations is a comprehensive set of capabilities, such as Cisco Smart Install and Cisco Auto Smartports, which simplifies LAN development, configuration and troubleshooting. Cisco Smart Install features transparent plug-and-play technology that utilizes dynamic IP address allocation and the assistance of other switches to facilitate installation. Cisco Auto Smartports provide automatic configuration as soon as devices connect to the switch port. This gives the device instant detection as well as plug and play capabilities while connected to the network
- Cisco Network Assistant
- Built as a PC-based network management application, Cisco Network Assistant helps small and medium-sized businesses (SMB) set up networks with up to 250 users. Cisco Network Assistant uses Cisco Smartports technology to centralize network management and configuration capabilities. Featuring an intuitive graphical user interface (GUI), Cisco Network Assistant simplifies initial deployment and ongoing maintenance as well as easy access to Cisco switches, routers and access points
- Cisco TrustSec
- The Cisco TrustSec solution provides several security options to protect the network infrastructure. With options for authentication, access control and security policy administration, this Cisco Catalyst Ethernet Switch prevents unauthorized access to the network by users without designated privileges. It also provides the ability to dynamically administer granular levels of network access
UPC: 882658220616 In the Box Cisco Catalyst 2960-48TT-S 48-Port 10/100 Ethernet Switch LAN Lite Software Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cisco Catalyst 2960-48TT-S 48-Port 10 100 Ethernet Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCisco 2960 Specs | | | Ports | 48 x 10/100 Mb/s Ethernet (RJ45)
2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE (Type 1) | | | | Jumbo Frames Support | 9,198 Bytes | | MAC Address Table Size | 8K | | VLAN Groups | 64 | | VLAN IDs | 4000 | | | | Supported IEEE Standards | 802.1ab, 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3ah, 802.3u, 802.3x, 802.3z | | | | Forwarding Rate | 10.1 Mpps | | | | Flash Memory | 32 MB | | Memory | 64 MB | | | | Power Draw | 71.00 W (Active) | | Current | 1 to 1 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 23 to 104°F / -5 to 40°C | | Operating Humidity | 10 to 95% | | Storage Humidity | 10 to 95% | | Operating Altitude | 9,842' / 3,000 m | | Storage Altitude | 13,000' / 4,000 m | | Certifications | RoHS, as per Manufacturer | | | | Mean Time Between Failures (MTBF) | 339,743 Hours | | Dimensions | 17.7 x 9.5 x 1.7" / 45 x 24.2 x 4.3 cm | | Weight | 8 lb / 4 kg |
