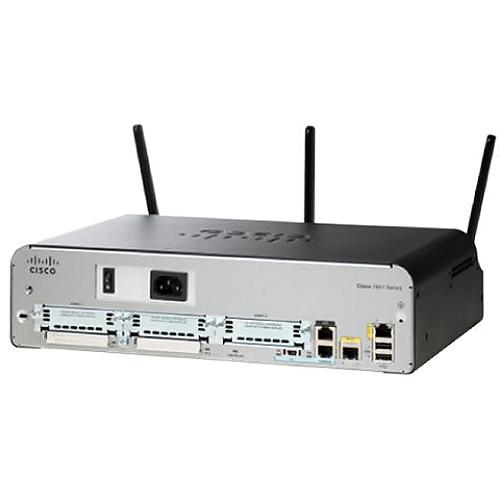

Product description The CISCO1941/K9 1941 Series Integrated Services Routers from Cisco is designed to consolidate the functions of separate devices into a single, compact system that can be remotely managed, and supports a wide range of wireless and wired connectivity options such as T1/E1, xDSL, 3G, 4G LTE, and GE. It offers embedded hardware encryption acceleration, optional firewall, intrusion prevention, and application services. The Integrated Services Routers Generation 2 (ISR G2) routers provide service integration and agility. Designed for scalability, the modular architecture of these platforms enables you to grow and adapt with your business needs. The Cisco 1941 Series is architected to meet the application demands of branch offices with design flexibility for future applications. The modular architecture is designed to support customer requirements, increased bandwidth, and integrated power distribution to modules supporting 802.3af Power over Ethernet (PoE) and Cisco Enhanced PoE (ePoE). The Cisco 1941 provides enhanced modular capabilities offering investment protection for customers. Modules available on previous generations of Cisco routers, such as the Cisco 1841 ISR, are supported on the Cisco 1941. Additionally, modules used on the Cisco 1941 can easily be interchanged with other Cisco routers to provide maximum investment protection. With the help of common interface cards across a network, reduces the complexity of managing inventory requirements, implementing large network rollouts, and maintaining configurations across a variety of branch-office sizes. The Cisco 1941 Series provides the ability to host Cisco, 3rd party, and custom applications on Cisco Services Ready Engine (SRE) module that seamlessly integrates into the router. The module has its own processor, network interface, and memory that operate independently of the host router resources, helping to ensure maximum concurrent routing and application performance while reducing physical space requirements, lowering power consumption, and consolidating management. Business Benefits - Service Integration
- Offers increased levels of service integration with data, security, wireless, and mobility services, enabling cost-efficiency.
- Services on Demand
- A single Cisco IOS Software Universal image is installed on each ISR G2. The universal image contains all of the Cisco IOS technology sets which can be activated with a software license. This allows your business to quickly deploy advanced features without downloading a new IOS image. Additionally, larger default memory is included to support the new capabilities.
The Cisco Services Ready Engine (SRE) enables an operational model which allows you to reduce capital expenditures (CapEx) and deploy a variety of application services as needed on a single integrated computer services module. - High-Performance with Integrated Services
- This series enables deployment in high speed WAN environments with concurrent services enabled up to 25 Mb/s.
Multi-Gigabit Fabric enables high bandwidth module to module communication without compromising routing performance. - Network Agility
- Designed to address customer business requirements, Cisco 1941 Series with the modular architecture, offers performance range of modular interfaces and services as your network needs grow.
Modular interfaces offer increased bandwidth, a diversity of connection options, and network resiliency. - Energy Efficiency
- The Cisco 1941 Series architecture provides energy savings features that include the following :
It offers power management and allows the customer to control power to the modules based on the time of day. Cisco EnergyWise technology will be supported in the future.
Services integration and modularity on a single platform performing multiple functions, optimizes raw materials consumption and energy usage.
Platform flexibility and ongoing development of both hardware and software capabilities lead to a longer product lifecycle, lowering all aspects of the total cost of ownership, including materials and energy use.
High efficiency power supplies are provided with each platform - Investment Protection
- The Cisco 1941 Series maximizes investment protection by supporting:
Reuse of a broad array of existing modules supported on the original Integrated Services Routers provides a lower cost of ownership.
Cisco IOS Software features, carried forward from the original Integrated Services Routers and delivered in the universal image.
Flexibility to grow as your business needs evolve. Architecture and Modularity - Modular Platform
- The Cisco 1941 Series ISR are modular platforms with multiple module slots to provide connectivity and services for varied branch network requirements.
The ISRs offer an industry-leading breadth of LAN and WAN connectivity options through modules to accommodate field upgrades to future technologies without requiring replacement of the platform. - Processors
- The Cisco 1941 Series is powered by high-performance multi-core processors that support growing demands of branch office networks by supporting high throughput WAN requirements.
- MultiGigabit Fabric
- It allows for efficient module-to-module communication, enabling direct services interactions across modules while reducing the overhead on the router processor.
- Embedded IPSec VPN Hardware Acceleration
- Embedded hardware encryption acceleration is enhanced to provide higher scalability, which, combined with an optional Cisco IOS Security license, enables WAN link security and VPN services (IPSec acceleration).
The onboard encryption hardware out-performs the Advanced Integration Modules of previous generations. - Integrated Gigabit Ethernet Ports
- All onboard WAN ports are 10/100/1000 Gigabit Ethernet WAN routed ports.
- Universal-Serial-Bus (USB)-Based Console Access
- A mini-B USB console port supports management connectivity when traditional serial ports are not available.
The traditional console and auxiliary ports are also available. Either the USB-based console or the RJ-45-based console port can be used to configure the router. - Integrated Wireless LAN
- The Cisco 1941 offers a secure integrated access point in a single device.
Integrated access point is based on the IEEE 802.11n draft 2.0 standard that uses MIMO (Multi-Input, Multiple-Output) to improve coverage for existing 802.11a/b/g clients and new 802.11n clients.
The Cisco 1941 supports dual radios - 802.11 b/g/n and 802.11a/n and is capable of operating in both autonomous and unified modes. Modularity Benefits - Enhanced High Speed WAN Interface Card (EHWIC)
- The EHWIC slot replaces the high-speed WAN interface card (HWIC) slot and can natively support HWICs, WAN interface cards (WICs), wireless WAN 3G/4G LTE, voice interface cards (VICs), and voice/WAN interface cards (VWICs).
Two integrated EHWIC slots are available on the Cisco 1941 for flexible configurations for support of two modules: One double wide HWIC-D or single wide EHWIC/HWIC module and a second single wide E-HIC/HWIC module are supported.
Each HWIC Slot offers high data throughput capability.
Up to 1.6 Gb/s aggregate towards the router processor.
Up to 2 Gb/s aggregate to other module slots over MultiGigabit Fabric (MGF). - Internal Services Module (ISM)
- A single ISM Slot provides flexibility to integrate services modules that do not require interface ports.
ISM replaces the Advanced Integration Module (AIM) slot; existing AIM modules are not supported in the ISM slot.
Each ISM Slot offers high data throughput capability.
Up to 4 Gb/s aggregate towards the router processor.
Up to 2 Gb/s aggregate to other module slots over MultiGigabit Fabric (MGF).
Power to ISM slots can be managed by extensions similar to the Cisco EnergyWise framework, allowing organizations to reduce energy consumption in their network infrastructure. EnergyWise support will be available in future software releases. 1 Please Note: Note: The Cisco 1941 cannot have ISM and WLAN on the same chassis. Please refer to ordering information for WLAN SKUs. close - Compact Flash Slots
- It supports two external Compact Flash slots. Each slot can support high-speed storage densities upgradeable to 4GB in density.
- USB 2.0 Ports
- Two high-speed USB 2.0 ports are supported. The USB ports enable another mechanism secure token capabilities and storage.
Software - IOS
- The Cisco 1941 Series Integrated Services Routers deliver technologies running on industry-leading Cisco IOS Software. Developed for wide deployment in demanding enterprise, access, and service provider networks, Cisco IOS Software Release 15 M & T provides support for Cisco technologies, including new functionality and features delivered in Releases 12.4 and 12.4T, and new innovations that span multiple technology areas, including security, voice, high availability, IP Routing and Multicast, quality of service (QoS), IP Mobility, Multiprotocol Label Switching (MPLS), VPNs, and embedded management.
- IOS Software Licensing and Packaging
- You can enable advanced features by activating a software license on the universal image. In previous generations of access routers, these feature sets required you to download a new software image. Technology packages and feature licenses, enabled through the Cisco software licensing infrastructure, simplify software delivery and decrease the operational costs of deploying new features.
Technology licenses are available on the Cisco 1941 Series Integrated Services Routers:
IP Base: This technology package is available as default
Security (SEC) or Security with No Payload Encryption (SEC-NPE)
AppX: This license includes the DATA license feature set, Application Visibility and Control (AVC), and Cisco Wide Area Application Services (WAAS). Branch Office Services - Key Branch Office Services
- The Cisco Integrated Services Routers are routers that offer unprecedented levels of services integration. Designed to meet the requirements of the branch office, these platforms provide a complete solution with voice, security, mobility, and data services. Businesses enjoy the benefit by deploying a single device that meets all their needs and save on capital and operational expenses.
- Integrated Network Security for Data and Mobility
- Security is essential to protect a business' intellectual property while also ensuring business continuity and providing the ability to extend the corporate workplace to employees who need anytime, anywhere access to company resources. The Cisco' SAFE architectural framework that allows organizations to identify, prevent, and adapt to network security threats Integrated Services Routers facilitate secure business transactions and collaboration.
The Cisco IOS Software Security technology package license for the Cisco 1900 Series offers a wide array of common security features such as advanced application inspection and control, threat protection, and encryption architectures for enabling more scalable and manageable VPN networks in one solution set. The Cisco 1941 Series offers native hardware-based encryption acceleration to provide greater IPSec throughput with less overhead for the router processor when compared with software-based encryption solutions.
Cisco Integrated Services Routers offer an adaptable security solution for branch-office routers that include features such as:
Secure connectivity: Secure collaborative communications with Group Encrypted Transport VPN (GETVPN), Dynamic Multipoint VPN (DMVPN), or Enhanced Easy VPN.
Integrated threat control: Respond to sophisticated network attacks and threats using Cisco IOS Firewall, Cisco IOS Zone-Based Firewall, IOS IPS, IOS Content Filtering and Flexible Packet Matching (FPM).
Identity Management: Intelligently protecting endpoints using technologies such as Authentication, Authorization, and Accounting (AAA) and Public Key Infrastructure (PKI). Wireless and Mobility Services - Wireless LAN
- The Cisco Integrated Services Routers supporting the Cisco Unified Wireless Network enable deployment of secure, manageable WLANs optimized for remote sites and branch offices, including fast secure mobility, survivable authentication, and simplified management. The Cisco Unified Wireless Network addresses critical points of potential failure and helps enable resiliency and survivability for WLANs at remote locations and branch offices. This solution protects the WLAN by providing fast recovery from a variety of faults that may occur. With Cisco's high availability for remote WLANs, hardware and software work together to enable rapid recovery from disruptions and help ensure fault transparency to users and network applications.
- Integrated LAN Switching
- The Cisco 1941 Integrated Services Router Series will support the EHWIC LAN modules when they are available. The Cisco 1941 Series support the existing single wide EtherSwitch HWIC and the double wide HWIC-D modules, which greatly expand the router's capabilities by integrating industry leading Layer 2 or Layer 3 switching.
Application Services - Services Ready Engine
- The Cisco Services Ready Engine solution is available in an Internal Service Module (ISM) form factor. The Internal Service Module hardware offers up to a seven times performance improvement over the previous-generation Advanced Integration Modules and provides a x86 processor. The Cisco SRE module enables on-demand provisioning of branch-office applications on the Cisco 1900 Series platforms so that you can deploy the right application, at the right time, in the right place. The hardware and software decoupling provided by the service read y deployment model enables applications to be provisioned on the module at the time of its installation or remotely anytime thereafter. Supported solutions include Cisco Application Extension Platform (AXP), Cisco Wireless LAN Controller (WLC), and other applications under development. The Service Ready Engine enables organizations of various sizes to future-proof their network by allowing them to quickly deploy new branch-office applications without deploying new hardware, reducing the cost of rolling out branch-office services.
- WAAS Express
- It provides employees with constant access to centrally located information, the requirement to continuously back up and replicate mission critical data to centrally managed data centers, the desire to provide experience for IP phone and video communication, and the mandate to control bandwidth costs without sacrificing application availability and performance.
Cisco WAAS Express is designed to help organizations address these challenges. With a small-footprint, cost-effective Cisco IOS Software-based software solution integrated into the ISR G2 to offer bandwidth optimization and application acceleration capabilities. Cisco WAAS Express increases remote user productivity, reduces WAN bandwidth costs, and offers investment protection by interoperating with existing Cisco WAAS infrastructure. Cisco WAAS Express is unique in providing network transparency, improving deployment flexibility with on-demand service enablement, and integrating with native Cisco IOS Software-based services such as security, Netflow, and QoS. Cisco WAAS Express is fully interoperable with WAAS on SM-SRE modules, WAAS appliances and can be managed by a common WAAS Central Manager. - Managing Your Integrated Services Routers
- Network Management applications are instrumental in lowering Operating Expenditures (OPEX) while improving network availability by simplifying and automating many of the day-to-day tasks associated with managing an end-to-end network. "Day-one-device-support" provides immediate manageability support for the Integrated Services Router enabling quick and easy deployment, monitoring, and troubleshooting from Cisco and third party applications.
IOS Software Features - Protocols
- IPv4, IPv6, static routes, Open Shortest Path First (OSPF), Enhanced IGRP (EIGRP), Border Gateway Protocol (BGP), BGP Router Reflector, Intermediate System-to-Intermediate System (IS-IS), Multicast Internet Group Management Protocol (IGMPv3) Protocol Independent Multicast sparse mode (PIM SM), PIM Source Specific Multicast (SSM), Distance Vector Multicast Routing Protocol (DVMRP), IPSec, Generic Routing Encapsulation (GRE), Bi Directional Forwarding Detection (BVD), IPv4-to-IPv6 Multi-cast, MPLS, L2TPv3, 802.1ag, 802.3ah, L2 and L3 VPN.
- Encapsulations
- Ethernet, 802.1q VLAN, Point-to-Point Protocol (PPP), Multilink Point-to-Point Protocol (MLPPP), Frame Relay, Multilink Frame Relay (MLFR) (FR.15 and FR.16), High-Level Data Link Control (HDLC), Serial (RS-232, RS-449, X.21, V.35, and EIA-530), Point-to-Point Protocol over Ethernet (PPPoE), and ATM.
- Traffic Management
- QoS, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Hierarchical QoS, Policy-Based Routing (PBR), Performance Routing (PfR), and Network-Based Advanced Routing (NBAR).
IOS Software Management Capabilities - WSMA
- The Web Services Management Agent (WSMA) defines a mechanism through which you can manage a network device, retrieve configuration data information, and upload and manipulate new configuration data. WSMA uses XML-based data encoding that is transported by the Simple Object Access Protocol (SOAP) for the configuration data and protocol messages.
- EEM
- Cisco IOS Embedded Event Manager (EEM) is a distributed and customized approach to event detection and recovery offered directly in a Cisco IOS Software device. It offers the ability to monitor events and take informational, corrective, or any desired EEM action when the monitored events occur or when a threshold is reached.
- IPSLA
- Cisco IOS IP Service-Level Agreements (SLAs) enable you to assure new business-critical IP applications, as well as IP services that use data, voice, and video, in an IP network.
- SNMP, RMON, Syslog, NetFlow, TR-069
- Cisco 1900 Series Integrated Services Routers also support SNMP, Remote Monitoring (RMON), syslog, NetFlow, and TR-069 in addition to the embedded management features previously mentioned.
Network Management Applications - Cisco Configuration Professional
- Cisco Configuration Professional is a GUI device-management tool for Cisco IOS Software-based access routers. This tool simplifies routing, firewall, IPS, VPN, unified communications, and WAN and LAN configuration through GUI-based easy-to-use wizards.
- CiscoWorks LMS
- CiscoWorks LAN Management Solution (LMS) is a suite of integrated applications for simplifying day-to-day management of a Cisco end-to-end network, lowering Operating Expenditures while increasing network availability. CiscoWorks LMS offers network managers an easy-to-use web-based interface for configuring, administering, and troubleshooting the Cisco integrated services routers, using new instrumentation such as Cisco IOS EEM.
In addition to supporting basic platform services of the integrated services router, CiscoWorks also provides added-value support for the Cisco Service Ready Engine, enabling the management and distribution of software images to the SRE, thereby reducing the time and complexities associated with image management. - CiscoWorks NCM
- CiscoWorks Network Compliance Manager (NCM) tracks and regulates configuration and software changes throughout a multivendor network infrastructure. It provides visibility into network changes and can track compliance with a broad variety of regulatory, IT, corporate governance, and technology requirements.
- Cisco Security Manager
- It is an enterprise-class application for managing security. It delivers provisioning of firewall, VPN, and intrusion-prevention-system (IPS) services across Cisco routers, security appliances, and switch service modules. The suite also includes the Cisco Security Monitoring, Analysis and Response System (Cisco Security MARS) for monitoring and mitigation.
- Unified Provisioning Manager
- Cisco Unified Provisioning Manager provides a reliable and scalable web-based solution for managing a company's next-generation communications services. It manages unified communications services in an integrated IP telephony, voicemail, and messaging environment.
- License Manager
- Easily manage Cisco IOS Software activation and license management for a wide range of Cisco platforms running Cisco IOS Software as well as other operating systems with the secure client-server application Cisco License Manager.
- Configuration Engine
- Cisco Configuration Engine is a secure network management product that provides zero touch image and configuration distribution through centralized, template-based management.
UPC: 882658278174 In the Box Cisco CISCO1941/K9 1941 Series Integrated Services Routers Rackmount EIA Table of Contents
|
Upload User Manual
Have you got an user manual for the Cisco CISCO1941 K9 1941 Series Integrated Services Routers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCisco CISCO1941/K9 Specs | | | USB | 2 x External USB flash memory slots (type A)
1 x USB console port (type B) (up to 115.2 kb/s) | | Memory | DDR2 ECC DRAM Memory: Default 512 MB
DDR2 ECC DRAM Memory: Maximum 2 GB
Compact Flash (External)-Default :
Slot 0: 256 MB
Compact Flash (External)-Maximum :
Slot 0: 4 GB
Slot 1: 4 GB | | Ports | 2 x Total onboard Gigabit Ethernet 10/100/1000 WAN
2 x RJ-45
1 x Serial console (up to 115.2 kb/s)
1 x Serial auxiliary (up to 115.2 kb/s) | | Slots | 2 x EHWIC
1 x Double-wide EHWIC
(Use of a double-wide EHWIC slot will consume two EHWIC slots) 1 x ISM | | Acceleration | Embedded hardware-based crypto acceleration (IPSec): Yes | | | | Power Supply | AC, PoE
Typical Power (No Modules): 35 W | | AC Input | Voltage: 100 to 240 V
Frequency: 47 to 63 Hz
Current Range AC Power Supply (Maximum): 1.5 to 0.6 A
Surge Current:<50 A | | Power Capacity | AC Power Supply: 110 W
PoE Power Supply (Platform Only): 110 W
PoE Device with PoE Power Supply: 80 W | | | | Operating Conditions | Temperature 5906' (1800 m) Maximum Altitude: 32 to 104˚F (0 to 40˚C)
Temperature 9843' (3000 m) Maximum Altitude: 32 to 77˚F (0 to 25˚C)
Altitude: 10000' (3000 m)
Relative Humidity: 10 to 85%
Acoustic: Sound Pressure (Typ/Maximum) 26/46 dBA
Acoustic: Sound Power (Typ/Maximum) 36/55 dBA | | Storage Conditions | Temperature: -40 to +158˚F (-40 to +70˚C)
Relative Humidity: 5 to 95%
Altitude: 15000' (4570 m) | | | | Safety | UL 60950-1
CAN/CSA C22.2 No. 60950-1
EN 60950-1
AS/NZS 60950-1
IEC 60950-1 | | EMC | 47 CFR, Part 15
ICES-003 Class A
EN55022 Class A
CISPR22 Class A
AS/NZS 3548 Class A
VCCI V-3
CNS 13438
EN 300-386
EN 61000 (Immunity)
EN 55024, CISPR 24
EN50082-1 | | Telecom Standards | TIA/EIA/IS-968
CS-03
ANSI T1.101
ITU-T G.823, G.824
IEEE 802.3
RTTE Directive | | | | General | Rack Height: 2 RU
Rackmount EIA: 19" (48.3 cm) included
Wallmount: Yes
Note: refer to installation guide for approved orientation Airflow: Front to side | | Dimensions (W x H x D) | 13.5 x 3.5 x 11.5" (34.2 x 8.8 x 29.2 cm) | | Weight | AC Power Supply (No Modules): 12.0 lb (5.4 kg)
POE Power Supply (No Modules): 12.8 lb (5.8 kg)
Maximum Weight - Fully Configured: 14.0 lb (6.3 kg) | | | | Package Weight | 16.0 lb | | Box Dimensions (LxWxH) | 19.65 x 16.0 x 9.0" |
