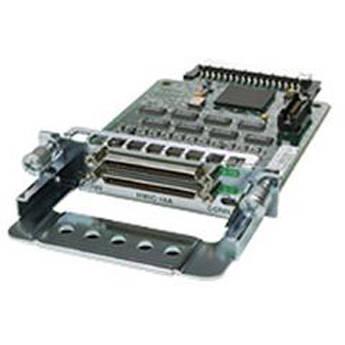

User Manual for Cisco HWIC-16A 16-Port Asynchronous High-Speed WAN Interface Card Click to enlarge the picture
Contents of the user manual for the Cisco HWIC-16A 16-Port Asynchronous High-Speed WAN
- Product category: Networking Accessories Cisco
- Brand: Cisco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cisco Networking Accessories
|
User manual for the Cisco HWIC-16A 16-Port Asynchronous High-Speed WAN contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cisco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cisco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cisco product will considerably shorten its lifespan!
|
Product description Designed for use with Cisco 1800, 1900, 2800, 2900, 3800, and 3900 Series Integrated Services Routers, the HWIC-16A 16-Port Asynchronous High-Speed WAN Interface Card from Cisco supports applications including transport for traditional protocols, console servers, and dial access servers. This WAN Interface Card supports a variety of protocols including Systems Network Architecture (SNA), Synchronous Data Link Control (SDLC), Binary Synchronous Communications (Bisync), and X.25 protocols. Additionally, console server support gives admins the ability to remotely manage a variety of devices from one location. - Transport for Traditional Protocols
- Serial asynchronous ports are well suited for transporting traditional traffic across a TCP/IP network. This capability enables network convergence, eliminating the need for costly separate leased lines for this traffic. Traditional protocols supported by Cisco IOS Software include:
• Systems Network Architecture (SNA) and Synchronous Data Link Control (SDLC) Protocol
• Binary Synchronous Communications (Bisync) Protocol
• X.25 Protocol - Console and Terminal Server
- Asynchronous ports provide highly flexible connections that allow access to EIA-232 devices across a TCP/IP network. This capability allows out-of-band management of console and craft ports, allowing the network operator to manage a network of remote devices from a central location.
- Dial Access Server
- Asynchronous HWICs can connect to external dial modems to provide low-density dial access servers.
UPC: 746320920191 In the Box Cisco HWIC-16A 16-Port Asynchronous High-Speed WAN Interface Card Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cisco HWIC-16A 16-Port Asynchronous High-Speed WAN Interface Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCisco HWIC-16A Specs | Connectors | High-density 8-port connector | | Support | Asynchronous support | | Maximum Speed | Asynchronous Maximum Speed per Port
230.4 kbps | | Protocols | Serial Protocols
EIA-232 | | Agency Approvals | AS/NZS 60950.1.2003 with Amendments A1 thru A3 (Australia/New Zealand)
CAN/CSA 22.2 No. 60950-1-07, Second Edition (Canada)
EN 60950-1: 2006, Second Edition (European Union)
GB4943 (China)
UL 60950-1, Second Edition (United States)
IEC 60950-1: 2005, Second Edition (International) | | Immunity | EN300386
EN55024/CISPR24
EN50082-1 | | Emissions | FCC Part 15 Class A
ICES-003 Class A
EN55022 Class A
CISPR22 Class A
AS/NZS 3548 Class A
VCCI Class A
EN 300386
EN61000-3-3
EN61000-3-2 | | Environmental Specifications | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 149°F / -20 to 65°C
Relative Humidity: 10 to 90% non-condensing | | Dimensions | 0.8 x 3.1 x 5.6" / 2.1 x 7.9 x 14.2 cm | | Weight | Not specified by manufacturer |
