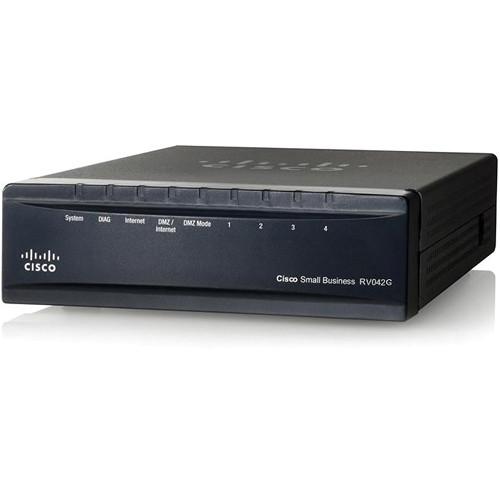

User Manual for Cisco RV042G Dual Gigabit WAN VPN Router Click to enlarge the picture
Contents of the user manual for the Cisco RV042G Dual Gigabit WAN VPN
- Product category: Network Routers Cisco
- Brand: Cisco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cisco Network Routers
|
User manual for the Cisco RV042G Dual Gigabit WAN VPN contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cisco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cisco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cisco product will considerably shorten its lifespan!
|
Product description The RV042G Dual Gigabit WAN VPN Router from Cisco features four Gigabit Ethernet ports, one Internet port and one DMZ Internet port. The four Gigabit Ethernet ports are capable of handling data transfer speeds up to 800 Mbps while the Internet port is an RJ-45 port designed to connect the router to the Internet. The DMZ/Internet port also located on the back of the router is a port designed to add an additional layer of security to a LAN providing an external attacker with restricted access to equipment in the DMZ. - Dual Gigabit Ethernet WAN ports for load balancing and/or business continuity
- Built-in 4-port Gigabit Ethernet switch
- Enhanced security features including Proven stateful packet inspection (SPI) firewall and hardware encryption
- High-capacity, high-performance IP Security (IPsec) VPN capabilities
- Intuitive, browser-based device manager and setup wizards
UPC: 882658485213 In the Box Cisco RV042G Dual Gigabit WAN VPN Router Power Supply Ethernet Cable Quick Start Guide Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cisco RV042G Dual Gigabit WAN VPN Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCisco RV042G-K9-NA Specs | | | Ports | 4 x 10/100/1000 RJ-45 ports
1 x 10/100/1000 RJ-45 Internet port
1 x 10/100/1000 RJ-45 DMZ/Internet port | | Dual WAN | Configurable for Smartlink backup or load balancing | | Standards | 802.3, 802.3u
IPv4 (RFC 791)
IPv6 (RFC 2460) | | Network Protocols | Dynamic Host Configuration Protocol (DHCP) server, DHCP client, DHCP relay agent
Static IP
Point-to-Point Protocol over Ethernet (PPPoE)
Point-to-Point Tunneling Protocol (PPTP)
Transparent bridge
DNS relay, Dynamic DNS (DynDNS, 3322)
IPv6 | | Routing Protocols | Static
Routing Information Protocol (RIP) v1, v2, and RIP for IPv6 (RIPng) | | Network Address Translation (NAT) | Port Address Translation (PAT)
Network Address Port Translation (NAPT), NAT traversal, one-to-one NAT | | Protocol Binding | Protocols can be bound to a specific WAN port for load balancing | | Network Edge (DMZ) | DMZ port, DMZ host | | | | Firewall | SPI, denial of service (DoS), ping of death, SYN flood, land attack, IP spoofing, email alert for hacker attack | | Access Rules | Up to 50 entries | | Port Forwarding | Up to 30 entries | | Port Triggering | Up to 30 entries | | Blocking | Java, cookies, ActiveX, HTTP proxy | | Content Filtering | Static URL blocking or keyword blocking | | Secure Management | HTTPS, username/password, password complexity | | VLAN | Port-based VLANs | | | | IPsec VPN | 50 x IPsec site-to-site tunnels for branch office connectivity | | QuickVPN | 50 x QuickVPN tunnels for remote client access | | PPTP VPN | 5 x PPTP tunnels for remote access | | Encryption | Data Encryption Standard (DES), Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption; AES-128, AES-192, AES-256 | | Authentication | MD5/SHA1 authentication | | IPsec NAT Traversal | Supported for gateway-to-gateway and client-to-gateway tunnels | | VPN Pass-Through | PPTP, Layer 2 Tunneling Protocol (L2TP), IPsec | | Advanced VPN | Dead peer detection (DPD), Internet Key Exchange (IKE), split DNS, VPN backup | | | | Prioritization Types | Application-based priority on WAN port | | Service-based QoS | Supports rate control or priority | | Rate Control | Upstream/downstream bandwidth can be configured per service | | Priority Levels | Each service can be mapped to one of 3 priority levels | | | | NAT Throughput | 800 Mbps | | IPsec VPN Throughput | 75 Mbps | | | | Web User Interface | Simple browser-based device manager (HTTP/HTTPS) | | | | Management Protocols | Web browser, Simple Network Management Protocol (SNMP) v1 and v2c, Bonjour | | Event Logging | Syslog, email alerts, VPN tunnel status monitor | | Upgradability | Firmware upgradable through web browser, imported/exported configuration file | | Migration | Migration utility available to convert the RV042 config file to a RV042G config file | | | | Power Supply | 12V 1A | | Certifications | FCC Class B, CE Class B, UL, cUL, CB | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | 32 to 158°F / 0 to 70°C | | Operating Humidity | 10 to 85% non-condensing | | Storage Humidity | 5 to 90% non-condensing | | Dimensions (WxHxD) | 5.12 x 1.52 x 7.87" / 130 x 38.5 x 200 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 11.2 x 9.5 x 3.3" |
