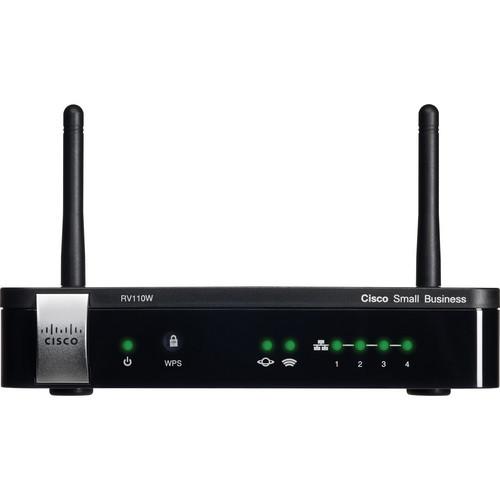

User Manual for Cisco RV110W Wireless-N VPN Firewall Router Click to enlarge the picture
Contents of the user manual for the Cisco RV110W Wireless-N VPN Firewall Router
- Product category: Firewalls & Security Devices Cisco
- Brand: Cisco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cisco Firewalls & Security Devices
|
User manual for the Cisco RV110W Wireless-N VPN Firewall Router contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cisco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cisco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cisco product will considerably shorten its lifespan!
|
Product description Affordable and feature-packed, the RV110W Wireless-N VPN Firewall Router from Cisco is a stellar device for establishing an advanced wired or wireless network at home or in the office. This router supports 802.11n Wi-Fi and is backwards compatible with 802.11b/g Wi-Fi so it can connect to a variety of wireless computers, handheld devices, and more. It has four LAN Fast Ethernet ports for establishing wired connections with computers, printers, IP phones, cameras, and other devices.
Beyond these connectivity options, the router also boasts remote access and guest options. With IP Security Protocol (IPsec) and Point-to-Point Tunneling Protocol (PPTP) VPN support, the router can provide secure remote access to friends, family, colleagues, guests, or employees working on Windows and Mac OS computers in a distant location. The router also supports "virtual" WLAN networks, so that you can tightly control access to sensitive information with wireless users on the network. You can also setup highly secure wireless guest access. For security, the router relies upon a firewall with access rules support and advanced wireless security standards.
In addition to these benefits, the router can prioritize voice, video, and data traffic via its Quality of Service (QoS) function and it supports IPv6 protocol. You can setup the router via an intuitive, browser-based device manager and utilize the Cisco FindIT Network Discovery Utility to discover select Cisco products on your network. That utility also displays information on a device's status, serial number, IP address, and version. With its advanced features and attractive price-point, this router is a definite buy for the business or home. Advanced Router Capabilities - Routing
- • Static routing
• Dynamic routing: Routing Information Protocol (RIP) v1 and v2
• Inter-VLAN routing - Layer 2
- • 802.1Q -based VLANs
• 4 active VLANs (3 to 4094 range) - Network
- • Dynamic Host Configuration Protocol (DHCP) server
• Point-to-Point Protocol over Ethernet (PPPoE)
• Point-to-Point Tunneling Protocol (PPTP)
• Layer 2 Tunneling Protocol (L2TP)
• DNS proxy
• DHCP relay agent
• Internet Group Management Protocol (IGMP) proxy and multicast forwarding
• Rapid Spanning Tree Protocol (RSTP)
• Dynamic DNS (DDNS), TZO.com, DynDNS.com, 3322.org
• Network Address Translation (NAT), Port Address Translation (PAT)
• Port management
• Port Mirroring
• Software-configurable network edge (DMZ) to any LAN IP address - IPv6
- • Dual-stack IPv4 and IPv6
• 6to4 tunneling
• Multicast Listener Discovery (MLD) for IPv6 (RFC 2710)
• Stateless address auto-configuration
• DHCP v6 Server for IPv6 Clients on LAN
• DHCP v6 client for WAN connectivity
• Internet Control Message Protocol (ICMP) v6
• Static IPv6 Routing
• Dynamic IPv6 Routing with RIPng - Security
- • Stateful packet inspection (SPI) firewall
• Port forwarding and triggering
• Firewall Access Control Lists and Content Filtering
• Denial-of-service (DoS) prevention
• MAC-based wireless access control
• Static URL blocking or keyword blocking
• Schedule-based Internet access policy
• HTTPS web access to the device manager
• username/password complexity enforcement
• Self-signed SSL certificate
• Import and export certificate using Privacy-Enhanced Mail (PEM) format - VPN
- • 5 IPsec tunnels using Cisco QuickVPN client
• 5 PPTP tunnels for remote client access
• Triple Data Encryption Standard (3DES) VPN pass-through of PPTP, L2TP, and IPsec - Quality of service (QoS)
- • 802.1p port-based priority on LAN port, application-based priority on WAN port
• 4 queues
• Differentiated Services Code Pointsupport (DSCP)
• Class of Service (CoS)
• Bandwidth Management for service prioritization - Management
- • Simple Network Management Protocol (SNMP) v3
• Event logging: local, syslog, email alerts
• Firmware upgradable through web browser
• Imported/exported configuration in text format
• Simple browser-based configuration (HTTP/HTTPS)
• Bonjour and Universal Plug and Play (UPnP)
• Network diagnostics: Ping, Traceroute, and DNS Lookup - Performance
- • NAT throughput: 90 Mbps
• 5000 concurrent sessions
• VPN throughput: 5Mbps Wireless LAN - WLAN Hardware
- • IEEE 802.11n standard-based access point with 802.11b/g compatibility
• Radio and modulation type:
• 802.11b: direct sequence spread spectrum (DSSS)
• 802.11g/n: orthogonal frequency division multiplexing (OFDM)
• 2 omnidirectional 1.8 dBi gain fixed external antennas
• Operating channels:
• 11 in North America
• 13 in most of Europe
• Automatic channel selection
• Transmit power:
• 802.11b: 17 dBm +/- 1.5 dBm
• 802.11g: 15 dBm +/- 1.5 dBm
• 802.11n: 12.5 dBm +/- 1.5 dBm
• Receiver sensitivity:
• -87 dBm at 11 Mbps
• -71 dBm at 54 Mbps
• -68 dBm at msc15, HT20 / -66dBm at mcs15, HT40 - Wireless Domain Services (WDS)
- Allows wireless signals to be repeated by up to 3 compatible devices
- Wi-Fi Multimedia (WMM)
- WMM with QoS (802.11e), WMM power save (WMM-PS)
- Active WLAN clients
- Up to 32 clients
- Service Set Identifiers (SSIDs)
- Up to 4 separate wireless networks
- Wireless Isolation
- Wireless isolation between clients
- WLAN Security
- • Wireless isolation between clients
• WPS ( Wi-Fi Protected Setup), Wired Equivalent Privacy (WEP), Wi-Fi Protected Access (WPA) personal and enterprise, WPA2 personal and enterprise UPC: 882658354472 In the Box Cisco RV110W Wireless-N VPN Firewall Router AC Adapter Intranet Cable 5-Year Limited Warranty User Manual PDF 2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Cisco RV110W Wireless-N VPN Firewall Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCisco RV110W Specs | | | Network Protocol | TCP/IP | | Operation Distance | Not specified by the manufacturer | | Power Over Ethernet | No | | Ports | 4x 10/100Mbps Fast Ethernet LAN Ports
1x 10/100Mbps Fast Ethernet WAN Port | | LED | Power, WPS, WAN, Wireless, LAN (ports 1-4) | | | | System Requirements | For Configuration:
PC with network adapter and Ethernet cable
Web browser | | Environmental Requirements | Operating Temperature: 32° to 104°F / 0° to 40°C
Storage Temperature: -4° to 158°F / -20° to 70°C
Operating Humidity: 10% to 85% noncondensing
Storage Humidity: 5% to 90% noncondensing | | Certifications | FCC Class B
CE
IC
cUL
Wi-Fi | | Power Requirements | 12V 1A | | Dimensions (WxDxH) | 5.91 x 5.91 x 1.18" / 15 x 15 x 3cm | | Weight | 0.61 lb / 0.3 kg | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 8.9 x 8.5 x 3.3" |
