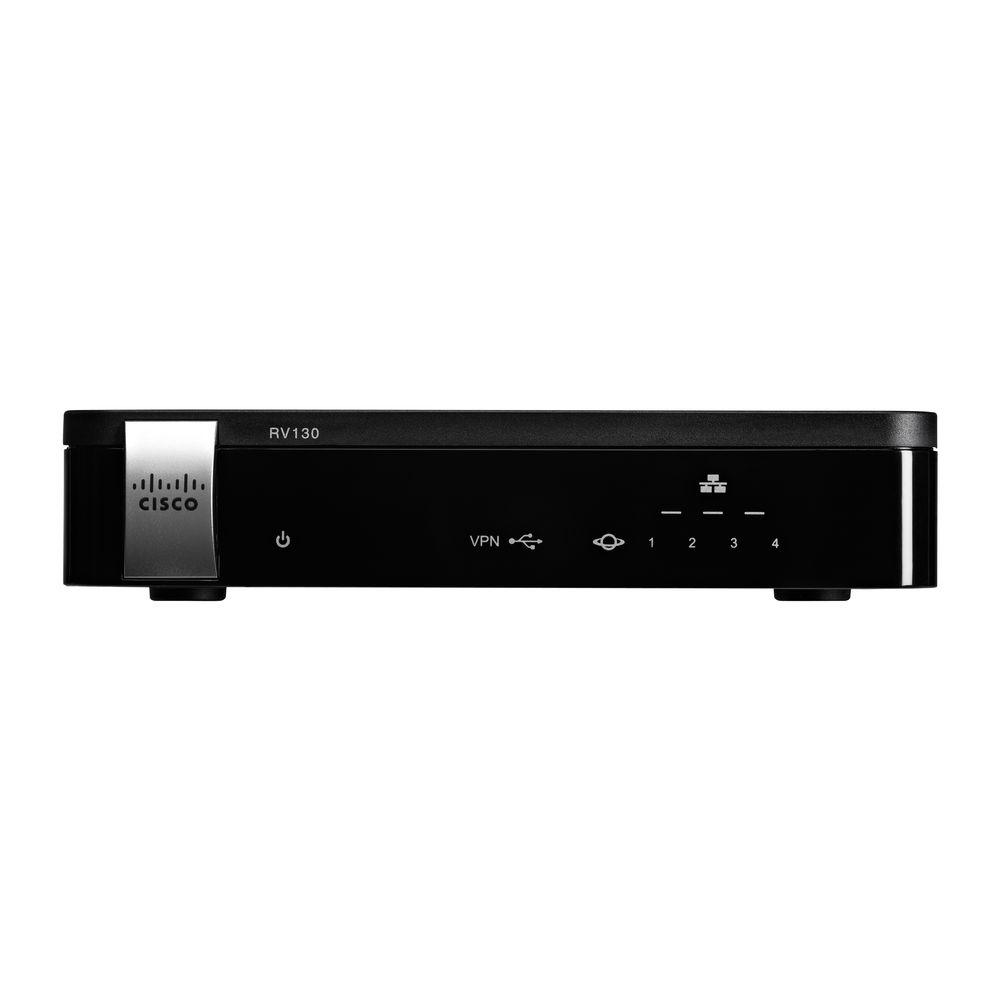

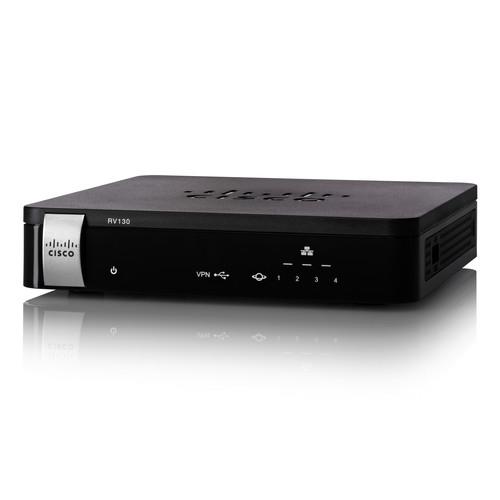

User Manual for Cisco RV130 VPN Router Click to enlarge the picture
Contents of the user manual for the Cisco RV130 VPN Router
- Product category: Network Routers Cisco
- Brand: Cisco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cisco Network Routers
 |
User manual for the Cisco RV130 VPN Router contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cisco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cisco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cisco product will considerably shorten its lifespan!
|
Product description The RV130 VPN Router from Cisco comes equipped with four Gigabit Ethernet ports and one Gigabit WAN port allowing you to take advantage of enhanced data transfer rates. These enhanced data transfer rates ensure you can transfer even large files quickly and efficiently, and with support for up to 5 VLANs this router can support multiple users.
The RV130 is compatible with a large variety of networking standards including IEEE, 802.3, 802.3u, 802.1D, 802.1p, 802.1w (Rapid Spanning Tree), 802.1Q (VLAN),IPv4 (RFC 791), IPv6 (RFC 2460), Routing Information Protocol (RIP) v1 (RFC 1058), RIP v2 (RFC 1723). In addition to network standards compatibility, you can also take advantage of advanced network protocol support including DHCP, PPPoE, PPTP, L2TP, DNS, DHCP, IGMP support, and much more.
This Cisco router features simple, browser-based configuration making for easy setup. Once configured, you can begin taking advantage of a NAT throughput of up to 800 Mbps, support for up to 12,000 concurrent sessions, and an IPsec VPN throughput of up to 50 Mbps. - High-performance Gigabit Ethernet ports, enabling large file transfers and multiple users
- USB port for 3G/4G modem failover or alternative primary connectivity
- IP Security (IPsec) site-to-site VPN helps enables secure connectivity for remote employees and multiple offices
- Strong security: Proven stateful packet inspection (SPI) firewall and hardware encryption
- Wizard-based configuration
UPC: 882658624803 In the Box Cisco RV130 VPN Router Limited 2-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cisco RV130 VPN Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

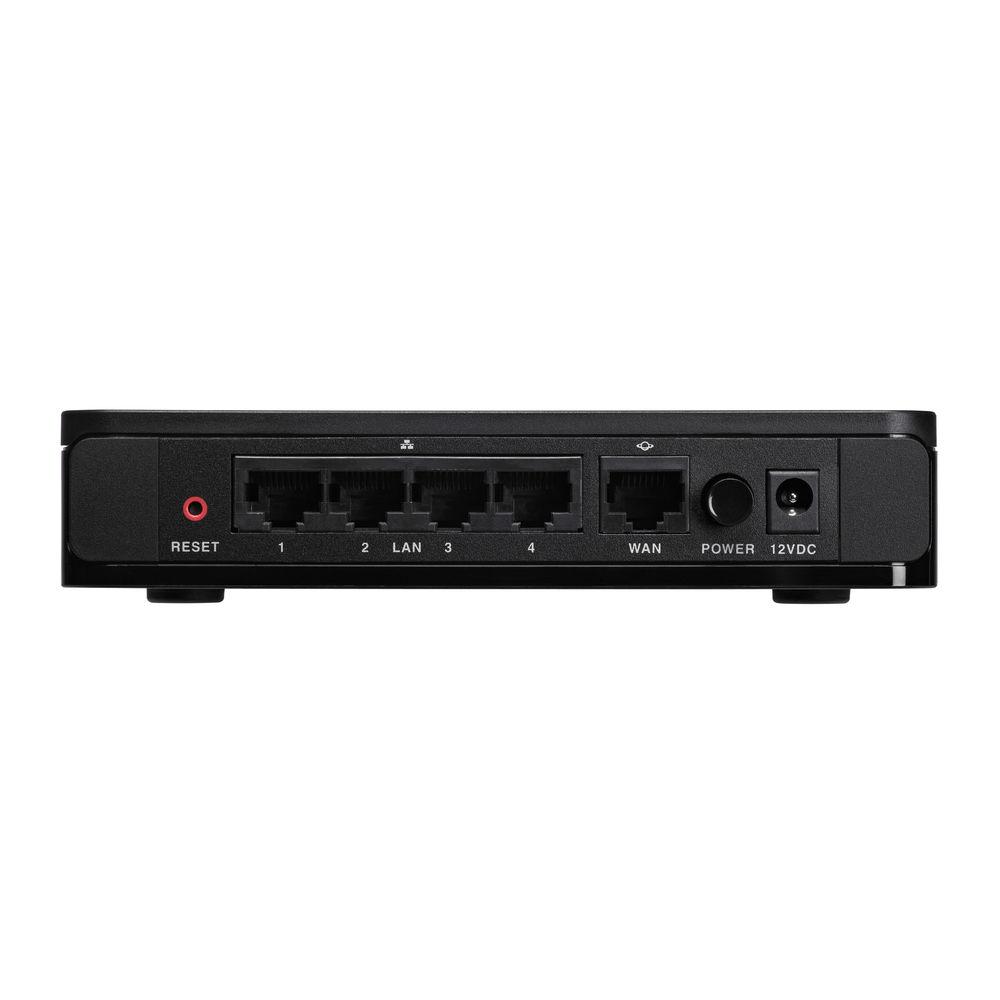

Technical parametersCisco RV130 Specs | Standards | IEEE, 802.3, 802.3u, 802.1D, 802.1p, 802.1w (Rapid Spanning Tree), 802.1Q (VLAN),IPv4 (RFC 791), IPv6 (RFC 2460), Routing Information Protocol (RIP) v1 (RFC 1058), RIP v2 (RFC 1723) | | Ports | LAN, WAN, USB | | Switch | Power button (on/off) | | Buttons | Reset | | Cabling Type | Category 5e or better | | LEDs | Power, VPN, USB, WAN, LAN (ports 1-4) | | Operating System | Linux | | | | Network Protocols | ● Dynamic Host Configuration Protocol (DHCP) server
● Point-to-Point Protocol over Ethernet (PPPoE)
● Point-to-Point Tunneling Protocol (PPTP)
● Layer 2 Tunneling Protocol (L2TP)
● DNS proxy
● DHCP relay agent
● IGMP Proxy and multicast forwarding
● Rapid Spanning Tree Protocol (RSTP)
● Dynamic Domain Name System (TZO, DynDNS, 3322.org, NOIP)
● Network Address Translation (NAT), Port Address Translation (PAT)
● One-to-One NAT
● Port management
● Port mirroring
● Software configurable DMZ to any LAN IP address
● Session Initiation Protocol (SIP) Application Layer Gateways (ALG) | | LAN | 4 x 10/100/1000 Mbps Gigabit LAN ports with managed switch | | WAN | 1 x 10/100/1000 Mbps Gigabit WAN port | | Routing Protocols | ● Static routing
● Dynamic routing
● RIP v1 and v2
● Inter-VLAN routing | | Network Address Translation (NAT) | Port Address Translation (PAT), Network Address Port Translation (NAPT) | | VLAN Support | Port-based and 802.1Q tag-based VLANs | | Number of VLANs | 5 active VLANs (3-4096 range) | | IPv6 | ● Dual-stack IPv4 and IPv6
● 6to4 tunneling
● Stateless address auto-configuration
● DHCPv6 Server for IPv6 Clients on LAN
● DHCP v6 client for WAN connectivity
● Internet Control Message Protocol (ICMP) v6
● Static IPv6 Routing
● Dynamic IPv6 Routing with RIPng | | Network Edge (DMZ) | Software configurable to any LAN IP address | | Layer 2 Features | 802.1Q-based VLANs, 5 active LANs | | | | Firewall | Stateful packet inspection (SPI) firewall, port forwarding and triggering, denial-of-service (DoS) prevention, software-based DMZ
DoS attacks prevented:
● SYN Flood
● Echo Storm
● ICMP Flood
● UDP Flood
● TCP Flood
Block Java, Cookies, ActiveX, HTTP Proxy | | Access Control | IP access control lists | | Content Filtering | Static URL blocking or keyword blocking | | Secure Management | HTTPS, username/password complexity | | User Privileges | 2 levels of access: admin and guest | | | | Gateway | 10 x gateway-to-gateway IPsec tunnels
10 x client-to-gateway IPsec tunnels using TheGreenBow and ShrewSoft VPN client | | PPTP VPN | 10 x PPTP tunnels for remote client access | | Encryption | Triple Data Encryption Standard (3DES), Advanced Encryption Standard (AES) | | Authentication | MD5/SHA1 | | VPN Pass-Through | IPsec/PPTP/Layer 2 Tunneling Protocol (L2TP) pass-through | | | | QoS | ● 802.1p port-based priority on LAN port, application-based priority on WAN port
● 3 queues
● Differentiated Services Code Point support (DSCP)
● Class of Service (CoS)
● Bandwidth Management for service prioritization | | Jumbo Frame | Supports Jumbo Frame on Gigabit ports-at least 1536B | | | | NAT Throughput | 800 Mbps | | Concurrent Sessions | 12,000 | | IPsec VPN Throughput (3DES / AES) | 50 Mbps | | | | Web User Interface | Simple, browser-based configuration (HTTP/HTTPS) | | | | Management Protocols | Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour, Universal Plug and Play (UPnP) | | Event Logging | Local, syslog, email alerts | | Network Diagnostics | Ping, Traceroute, and DNS Lookup | | Upgradability | Firmware upgradable through web browser, imported/exported configuration file | | System Time | Supports NTP, daylight savings, manual entry | | Languages | GUI supports English, French, Italian, German, and Spanish | | | | Power | 12 V, 2 A | | Certifications | FCC class B, CE, IC | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Operating Humidity | 10 to 85% non-condensing | | Storage Humidity | 5 to 90% non-condensing | | | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 8.976 x 8.74 x 3.465" |
