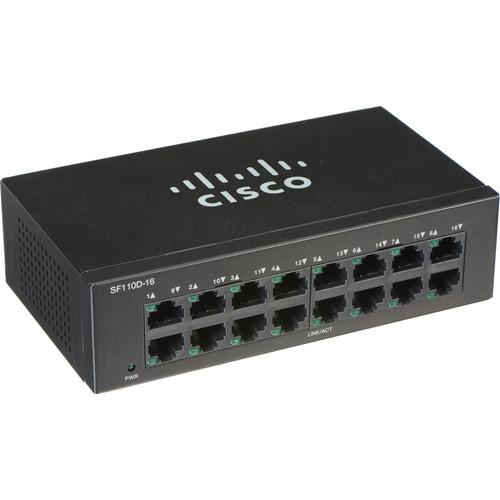

User Manual for Cisco SF110D 110 Series 16-Port Unmanaged Network Switch Click to enlarge the picture
Contents of the user manual for the Cisco SF110D 110 Series 16-Port Unmanaged
- Product category: Network Switches, Bridges & Hubs Cisco
- Brand: Cisco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cisco Network Switches, Bridges & Hubs
|
User manual for the Cisco SF110D 110 Series 16-Port Unmanaged contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cisco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cisco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cisco product will considerably shorten its lifespan!
|
Product description With the SF110D 110 Series 16-Port Unmanaged Network Switch from Cisco you can connect a variety of Ethernet enabled devices such as access points, hubs, computers, and more directly to a larger network and to the Internet. Plug and play configuration allows you to simply take the switch out of the box place it on the desk or into a rack mount configuration and begin expanding your network capacity. This switch comes equipped with 16 Fast Ethernet ports providing a fast, reliable network connection. A switching capacity of 3.2 Gbps and forwarding capacity of 1.4 Mpps ensures users benefit from increased bandwidth and throughput to move packets through the switch faster and more efficiently.
Once installed this Cisco switch helps to reduce energy consumption as it supports the 802.3az networking standard which puts unused links within the switch to sleep. For added piece of mind the SF110D supports automatic cable detection to eliminate the concern over using the wrong cable and comes compatible with a wide variety of equipment from other vendors. - High Performance
- This Cisco 110 Series switch delivers the performance to run business applications, including bandwidth-intensive video services, and avoid slow and sluggish networks. It supports Fast Ethernet speeds, unlocking a new level of capacity and performance in your business network and letting you transfer large files in seconds.
- Reduced Energy Costs
- This Cisco 110 Series switch is designed to help conserve energy by optimizing power use without compromising performance, which protects our environment and reduces your energy costs. In addition, it supports the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods.
- Support for Advanced Technologies
- This switch includes advanced Cisco traffic-handling features to keep your applications running at peak performance. Integrated QoS intelligence on all models automatically prioritizes delay-sensitive services such as voice or video to improve your network's performance. Loop detection helps discover loops in the network that you might have accidentally created, thus avoiding broadcast storms that will bring your network to a stall. Cable diagnostics help to quickly identify and troubleshoot network cabling faults and issues. Fast store-and-forward switching identifies damaged packets and prevents them from being passed on through the network. All of these features run automatically, with no management or configuration required.
UPC: 882658720758 In the Box Cisco SF110D 110 Series 16-Port Unmanaged Network Switch Power Cord / Power Adapter Mounting Hardware Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cisco SF110D 110 Series 16-Port Unmanaged Network Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCisco SF110D-16-NA Specs | | | Ports | 16 x 10/100 Mb/s Ethernet (RJ45) | | | | Supported Protocols | Head-of-Line (HOL) Blocking | | Queuing | Strict Priority, Weighted Round Robin (WRR) | | Jumbo Frames Support | 9,216 Bytes | | | | Security Features | Kensington Lock Support | | | | Supported IEEE Standards | 802.1p, 802.3, 802.3ab, 802.3u, 802.3x, 802.3z | | | | Forwarding Rate | 1.4 Mpps | | Switching Bandwidth | 3.2 Gb/s | | Priority Queues | 4 | | | | Flash Memory | 128 MB | | Memory | 128 MB | | | | DC Input Power | 12 VDC at 1 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Storage Humidity | 5 to 90% | | | | Cooling System | Passive | | Indicator Lights | Diagnostic, Link/Activity, PoE, Power, Speed | | Dimensions | 5.1 x 5.1 x 1.5" / 12.9 x 12.9 x 3.9 cm | | Weight | 1 lb / 0 kg | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 11.5 x 5.7 x 2.2" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 81 owners. Add your rating and experience with the product.
