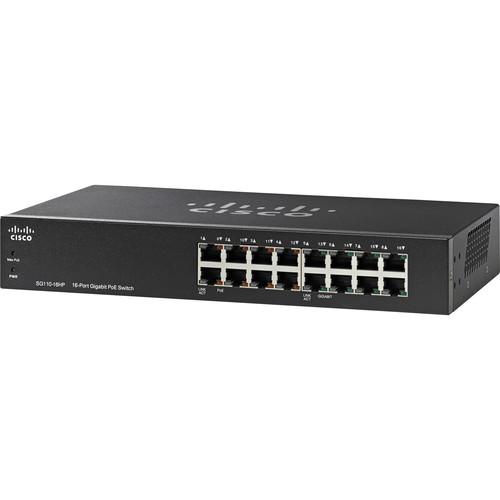

User Manual for Cisco SG110-16HP 110 Series 16-Port Unmanaged PoE Network Switch Click to enlarge the picture
Contents of the user manual for the Cisco SG110-16HP 110 Series 16-Port Unmanaged
- Product category: Network Switches, Bridges & Hubs Cisco
- Brand: Cisco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cisco Network Switches, Bridges & Hubs
|
User manual for the Cisco SG110-16HP 110 Series 16-Port Unmanaged contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cisco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cisco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cisco product will considerably shorten its lifespan!
|
Product description With the SG110-16HP 110 Series 16-Port Unmanaged PoE Network Switch from Cisco, you can connect a variety of Ethernet-enabled devices such as access points, hubs, computers, and more directly to a larger network and to the Internet. Plug-and-play configuration allows you to place it into a rack mount configuration and begin expanding your network capacity right away. This SF110 series switch comes equipped with sixteen Gigabit Ethernet PoE compatible ports that provide a fast, reliable network connection as well as Power over Ethernet to power a variety of compatible network devices. A switching capacity of 32 Gbps and forwarding capacity of 23.8 Mpps ensures users benefit from increased bandwidth and throughput to move packets through the switch faster and more efficiently.
Once installed, this Cisco switch helps to reduce energy consumption as it supports the 802.3az networking standard, which puts unused links within the switch to sleep. For added piece of mind the SF110 switch supports automatic cable detection to eliminate the concern over using the wrong cable and comes compatible with a wide variety of equipment from other vendors. - High Performance
- This Cisco 110 Series switch delivers the performance to run business applications, including bandwidth-intensive video services, and avoid slow and sluggish networks. It supports Fast Ethernet speeds, unlocking a new level of capacity and performance in your business network and letting you transfer large files in seconds.
- Reduced Energy Costs
- This Cisco 110 Series switch is designed to help conserve energy by optimizing power use without compromising performance, which protects our environment and reduces your energy costs. In addition, it supports the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods. Most of the switches have no fans, so they run silently and unobtrusively while lowering energy costs.
- Support for Advanced Technologies
- This switch includes advanced Cisco traffic-handling features to keep your applications running at peak performance. Integrated QoS intelligence on all models automatically prioritizes delay-sensitive services such as voice or video to improve your network's performance. Loop detection helps discover loops in the network that you might have accidentally created, thus avoiding broadcast storms that will bring your network to a stall. Cable diagnostics help to quickly identify and troubleshoot network cabling faults and issues. Fast store-and-forward switching identifies damaged packets and prevents them from being passed on through the network. All of these features run automatically, with no management or configuration required.
UPC: 882658722707 In the Box Cisco SG110-16HP 110 Series 16-Port Unmanaged PoE Network Switch Power Cord / Adapter Mounting Hardware Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cisco SG110-16HP 110 Series 16-Port Unmanaged PoE Network Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCisco SG110-16HP-NA Specs | Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af | | Cabling Type | Category 5e or better | | LED Indicators | System/PWR, link/activity, 100M, cable diagnostics, loop detection, gigabit | | Ports | 16 x RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-TX PoE ports | | Power Over Ethernet (PoE) Support | Power Dedicated to PoE
64 watts
Number of PoE Ports
8 | | Power Supply | 110-240 VAC; 50/60 Hz (internal, universal) | | System Memory | 128-MB RAM
128-MB Flash | | Kensington Lock Support | Yes | | | | Switching Capacity | 32 Gbps | | Forwarding Capacity | 23.8 mpps | | | | Head-of-Line (HOL) Blocking | HOL blocking prevention | | Jumbo Frame | 9216 bytes | | QoS (Quality of Service) | 802.1p priority based, 4 hardware queues, priority queuing and weighted round-robin (WRR) | | Loop Detection | Helps discover loops in the network to avoid broadcast storms | | Cable Diagnostics | Quickly identify and troubleshoot network cable faults and/or shorts | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Operating Humidity | 10 to 90%, relative, noncondensing | | Storage Humidity | 5 to 90%, relative, noncondensing | | | | Mounting Options | Rack-mount | | Compliance and Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A | | Minimum Requirements | Devices supporting 802.3 Ethernet, 802.u Faster Ethernet, or 802.3ab Gigabit Ethernet
Cat5 or better Ethernet cable
Network interface card for each computer | | Dimensions (W x D x H) | 11.00 x 1.75 x 6.70" (279.4 x 44.5 x 170.0 mm) | | Weight | 4.15 lb (1.43 kg) | | | | Package Weight | 5.1 lb | | Box Dimensions (LxWxH) | 14.9 x 12.3 x 3.2" |
