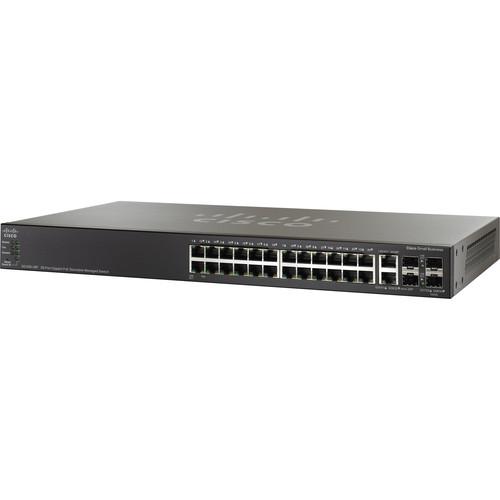

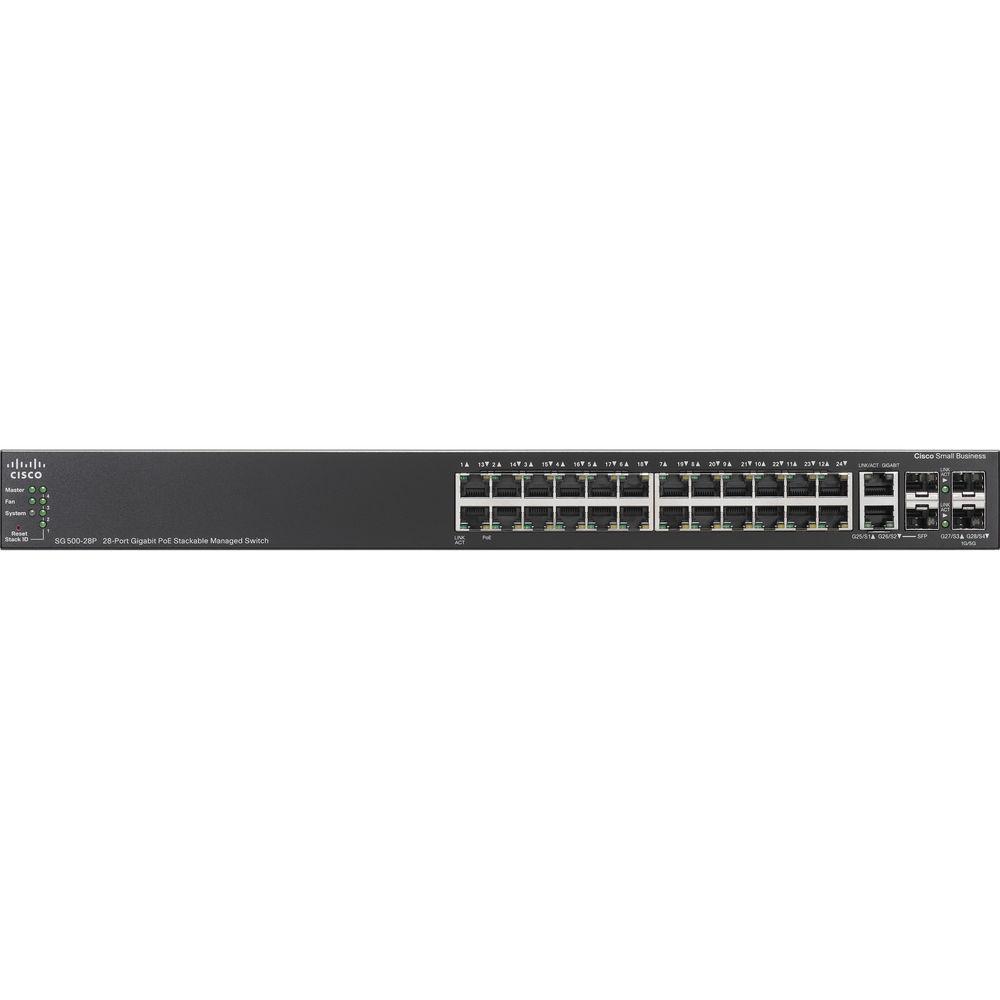

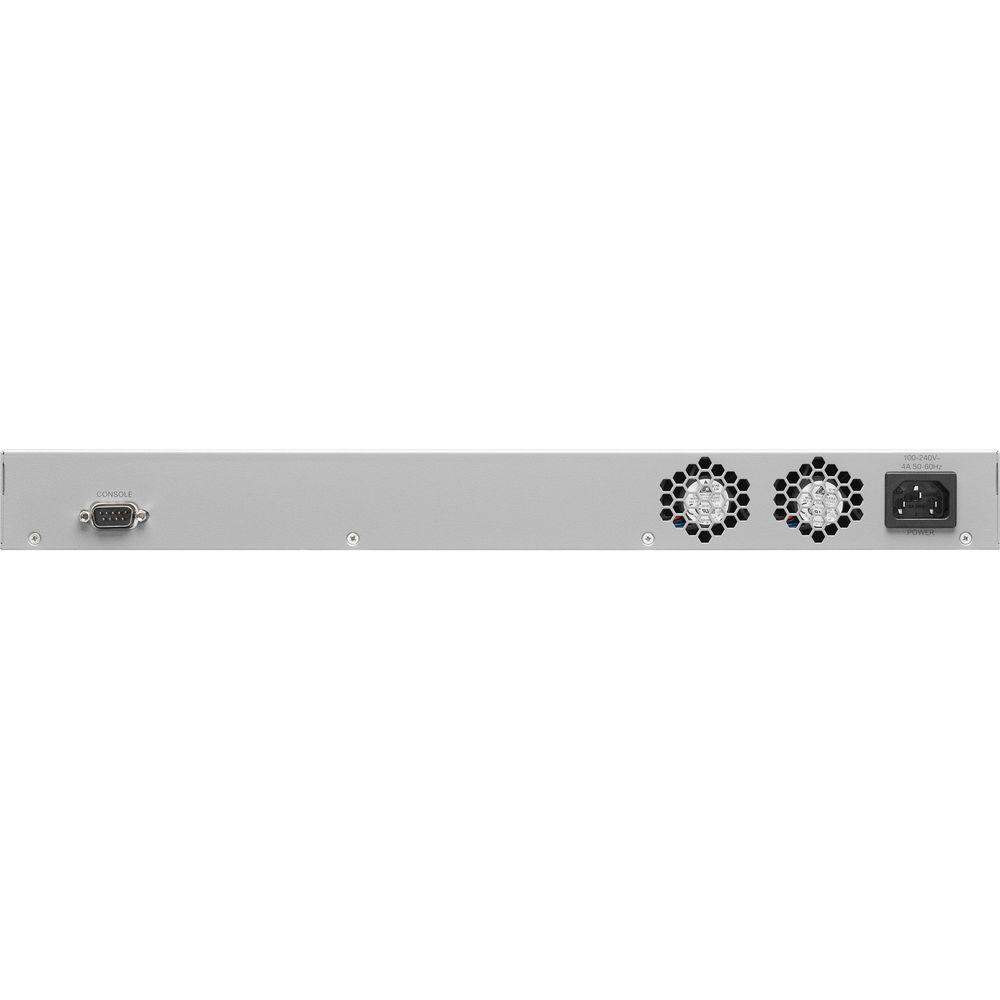

User Manual for Cisco SG500-28P-K9-NA 24-Port Gigabit Ethernet PoE Managed Switch Click to enlarge the picture
Contents of the user manual for the Cisco SG500-28P-K9-NA 24-Port Gigabit Ethernet PoE
- Product category: Network Switches, Bridges & Hubs Cisco
- Brand: Cisco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cisco Network Switches, Bridges & Hubs
 |
User manual for the Cisco SG500-28P-K9-NA 24-Port Gigabit Ethernet PoE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cisco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cisco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cisco product will considerably shorten its lifespan!
|
Product description With Layer 2 switching support, the SG500-28P-K9-NA 24-Port Gigabit Ethernet PoE Managed Switch from Cisco is designed to handle business applications and more. This switch comes equipped with 24 Gigabit Ethernet PoE network ports and 2 SFP expansion slots allowing for multiple connection options. In addition to enhanced network connectivity, this switch supports true stacking functionality along with enhanced security and QoS capabilities making it easy to secure the network and manage bandwidth. Once configured, admins can mange the network using the web-based management utility tool. -
- True stacking
- Advanced security and QoS
- Layer 2 switching
- IPv6 support
- Energy-efficient design and EEE
- Easy-to-use web-based management tool, CDP, Auto Smartports, CCA, and Textview (CLI)
- Cisco FindIT utility
- Simple Network Management Protocol (SNMP) support
- Limited lifetime warranty with next business day (NBD) advance replacement
UPC: 882658425073 In the Box Cisco SG500-28P-K9-NA 24-Port Gigabit Ethernet PoE Managed Switch Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cisco SG500-28P-K9-NA 24-Port Gigabit Ethernet PoE Managed Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCisco SG500-28P-K9-NA Specs | Interfaces/Ports | Total Number of Network Ports
24
Token Ring Port
No
LRE Port
No
Uplink Port
No
Bypass
No
Modular
No
Management Port
Yes
USB
No
Number of PoE (RJ-45) Ports
24
Stack Port
Yes
Number of Network (RJ-45) Ports
24 | | Media and Performance | Media Type Supported
Twisted Pair
Twisted Pair Cable Standard
Category 5
Ethernet Technology
Fast Ethernet
Ethernet Technology
Gigabit Ethernet
Network Technology
10/100/1000Base-T | | I/O Expansion Slots | Number of Total Expansion Slots
4
Number of SFP Slots
4 | | Network and Communication | Layer Supported
2 | | Management Protocols | Manageable
Yes
Management
DHCP
CLI
GUI
VLAN
QoS
SNMP | | Memory | Standard Memory
256 MB
Flash Memory
32 MB | | Power | PoE (RJ-45) Port
Yes
Input Voltage
110 VAC
Input Voltage
220 VAC
Power Source
Power Supply
Redundant Power Supply Supported
No | | Form Factor | Desktop
1U Rack-mountable | | Certifications and Standards | CSA 22.2
FCC Part 15 A
UL 60950
IEEE 802.1D
IEEE 802.1p
IEEE 802.1Qv
IEEE 802.1s
IEEE 802.1w
IEEE 802.1x
IEEE 802.3
IEEE 802.3ab
IEEE 802.3ad (LACP)
IEEE 802.3af
IEEE 802.3at
IEEE 802.3az
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z | | System Requirements | Mozilla Firefox version 8 or later; Microsoft Internet Explorer version 7 or later, Safari, Chrome
Category 5 Ethernet network cable
TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed | | Dimensions | 1.7 x 17.3 x 10.1" / 4.3 x 43.9 x 25.7 cm | | Weight | 8.82 lb / 4.00 kg | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 21.4 x 15.1 x 4.2" |
