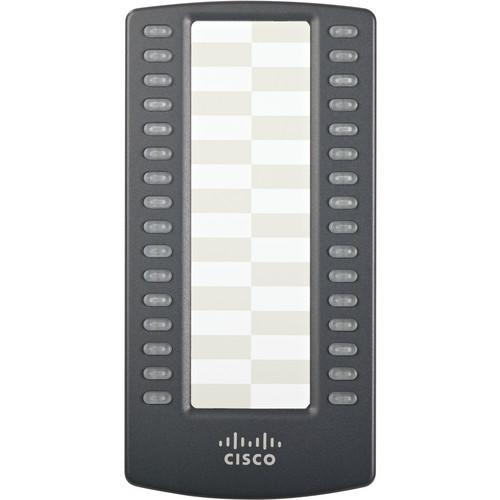

User Manual for Cisco SPA500S 32 Programmable Buttons Expansion Module Click to enlarge the picture
Contents of the user manual for the Cisco SPA500S 32 Programmable Buttons Expansion
- Product category: VoIP Accessories Cisco
- Brand: Cisco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cisco VoIP Accessories
|
User manual for the Cisco SPA500S 32 Programmable Buttons Expansion contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cisco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cisco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cisco product will considerably shorten its lifespan!
|
Product description The Cisco SPA500S 32 Programmable Buttons Expansion Module is an ideal solution for small ventures wanting to simplify incoming call handling by quickly directing calls to the mentioned party and monitor line status from a central location. Designed exclusively for the Cisco SPA500 Series IP Phones, the attendant console easily attaches to a IP Phone, providing 32 programmable speed-dial or direct station select buttons, each illuminating the line's status (idle, ringing, busy, or null) via the BLF. Incoming calls can immediately be transferred to the proper location with the push of a button assigned to the extension. The modular design of the Cisco SPA500S permits up to two attendant consoles to be deployed, for a total of 64 buttons, offering an affordable solution that expands with the growth of your voice network. Installation and setup is just a matter of connecting the supplied bracket and cable to the attendant console, which uses the phone's power supply; no additional power source is required. Based on the Session Initiation Protocol, the Cisco SPA500S has been tested to ensure comprehensive interoperability with equipment from voice over IP infrastructure leaders, enabling service providers to offer competitive, feature-rich services to their customers. - 32 programmable multicolored LED buttons
- Illuminated line status monitoring (green for idle, red for in use, blinking red for ringing, orange for registration error)
UPC: 882658276125 In the Box Cisco SPA500S 32 Programmable Buttons Expansion Module Attachment Arm 2 x Attachment Arm Screws Auxiliary Cable Desktop Stand Quick Installation Guide 1 Year Limited Warranty 90 Day Limited Software Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cisco SPA500S 32 Programmable Buttons Expansion Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCisco SPA 500S Specs | Ports | 2 auxiliary ports | | Buttons | 32 programmable buttons | | LEDs | Multicolored: green, red, orange | | Certifications | FCC, cUL, CE, Canadian Interference-Causing Equipment Standard ICES-003 | | Operating Temperature | 41 to 113ºF (0 to 40ºC) | | Storage Temperature | -13 to 185ºF (-40 to 70ºC) | | Operating Humidity | 5 to 95% non condensing, operating and non operating | | Storage Humidity | 5 to 95% non condensing, operating and non operating | | Dimensions | 4 x 8.5 x 1.5" (10.16 x 21.59 x 3.81 cm) | | Weight | 2 lb (0.9 kg) | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 9.5 x 8.6 x 2.9" |
