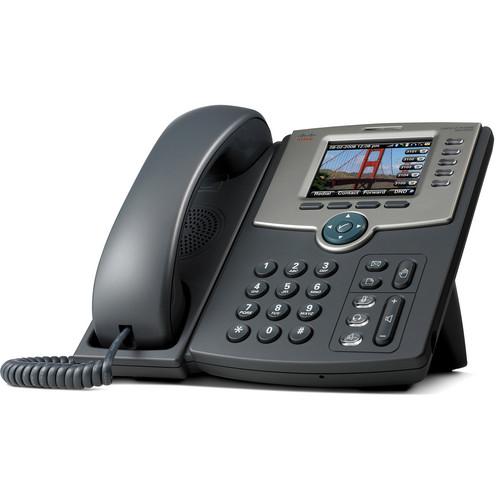

User Manual for Cisco SPA525G2 5-Line IP Phone with Color Display Click to enlarge the picture
Contents of the user manual for the Cisco SPA525G2 5-Line IP Phone with
- Product category: Telephones Cisco
- Brand: Cisco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cisco Telephones
|
User manual for the Cisco SPA525G2 5-Line IP Phone with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cisco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cisco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cisco product will considerably shorten its lifespan!
|
Product description The Cisco SPA525G2 5-Line IP Phone with Color Display is an ideal choice for businesses that require a great user experience with a hosted IP telephony service, an IP private branch exchange, or a large-scale IP Centrex deployment. The SPA525G2 features SPA voice over IP technology with high-quality hardware providing additional connectivity via Bluetooth, PoE (802.3af), or a Wireless-G client (802.11g). Salient Cisco SPA525G2 IP Phone features are five active lines, VLAN-capable dual switched Ethernet ports, 802.3af PoE support, a 3.2” QVGA color display, a full-duplex, high-quality speakerphone, a Bluetooth interface, a Wireless-G (802.11g) client, a 2.5 mm stereo headset port and a USB 2.0 host port. Each line of the phone can be configured independently to use a unique phone number (or extension) or can use a shared number that is assigned to multiple phones. The Cisco SPA525G2 IP Phone further enhances the user experience with VPN and video surveillance applications. The phone has an embedded AnyConnect Secure Sockets Layer VPN client that allows remote users to securely connect to their phone system and make calls over the Internet, without the need for additional hardware. The SPA525G2 IP Phone also provides users the ability to view video feeds from Cisco WVC2300 and PVC2300 Business Internet Video Cameras, allowing them to quickly scan locations around the business in order to improve physical security.
The Cisco SPA525G2 IP Phone further provides encrypted signaling, media and provisioning information, using technologies such as Session Initiation Protocol over Transport Layer Security, Secure Real Time Protocol and HTTPS to secure communications between the phone and service provider. Cisco SPA Secure Remote Provisioning provides a highly secure mechanism for the service provider to remotely manage the phone/user configuration and software upgrades. The Cisco SPA525G2 IP Phone can also be used with productivity-enhancing features such as VoiceView Express and Cisco XML applications when connected to the Cisco Unified Communication 500 Series in SPCP mode. - Full-featured and stylish business IP phone supporting up to two Cisco SPA500S Expansion Modules (32 button attendant consoles)
- Cisco Mobile Link: Bluetooth enhanced integration with mobile phones to make and receive calls, import your personal contacts, and charge your mobile phone
- Enhanced network connectivity with Power over Ethernet (PoE), 802.11g Wi-Fi client with Wi-Fi Protected Setup (WPS), and Bluetooth headset support
- Graphics-rich, high-resolution 3.2" QVGA 320 x 240 color screen
- Cisco AnyConnect VPN Client: Highly secure Internet phone connection for remote users that is simple and easy to set up
- MonitorView for monitoring up to four video surveillance cameras from your phone
- Cisco XML services framework: Support for productivity applications directly on your phone
- Support for multimedia functions, such as playing MP3s, displaying digital photos, and viewing RSS feeds
- Wideband audio for unsurpassed voice clarity and enhanced speaker quality
- Support for both Session Initiation Protocol (SIP) and Smart Phone Control Protocol (SPCP) with the Cisco Unified Communications 500 Series for Small Business
UPC: 882658311086 In the Box Cisco SPA525G2 5-Line IP Phone with Color Display Desk Stand RJ-45 Ethernet Cable Setup CD-ROM Quick Start Guide 1 Year Limited Hardware Warranty 90-Day Limited Software Warranty Guides & Manuals etxuzvcf Table of Contents
|
Upload User Manual
Have you got an user manual for the Cisco SPA525G2 5-Line IP Phone with Color Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Cisco SPA525G2 5-Line IP Phone with Color Display can be downloaded in PDF format at the link stated below.
Technical parametersCisco SPA525G2 Specs | Wi-Fi Security | Wired Equivalent Privacy (WEP), 64 or 128 bit
Wi-Fi Protected Access (WPA), Personal and Enterprise
WPA2, Personal and Enterprise
Wi-Fi Protected Setup (WPS) | | Ethernet | 10/100 PC switch port enables LAN connectivity to a co-located PC. Can designate separate VLANs (802.1Q) for the PC and Cisco IP phones, providing improved security and reliability of voice and data traffic. 802.3af PoE WAN port; disabled when phone is used in Wi-Fi mode | | Volume Control | Volume-control toggle provides easy decibel-level adjustments of the handset, monitor speaker, and ringer | | Applications | Customizable screen saver on phone display (Photo Album)
Music player (MP3)
RSS web services
Cisco MonitorView
SIP third-party call control for server-based applications
Lightweight Directory Access Protocol (LDAP) and Cisco XML- based corporate directory support
Cisco XML services interface (XSI) | | Call Control and Audio Features | Call hold
Music on hold*
Call waiting
Caller ID name and number and outbound caller ID blocking
Caller ID mapping for incoming calls
Outbound caller ID blocking
Call transfer - attended or blind
Call conferencing - hosted (N-party) or local (3-party)
Call forwarding - unconditional, no answer, on busy
Visual voice message waiting indicator (VMWI)
Shared/bridge line appearance*
Call pickup - selective and group*
Call park and unpark*
Call back on busy
Call blocking - anonymous and selective
Do not disturb
Intercom*
Group paging*
Extension mobility*
Configurable dial/numbering plan support with inter-digit timers - per line
URL (IP) dialing support
Distinctive ringing based on calling and called number
Supplementary services feature activation codes
Supplementary services announcements codes
Configurable supplementary services soft keys
Individual volume setting per audio path (headset/handset/speaker) *Requires support by SIP/SPCP client management server | | Signaling Protocol Support | SPCP
SIP version 2 (RFC 3261, RFC 2543, RFC 3263,
RFC 3264, RFC 3275) | | Voice Features | SIP proxy redundancy - dynamic via DNS SRV, A records
Re-registration with primary SIP proxy server
SIP support in Network Address Translation (NAT) networks, including simple traversal of User Datagram Protocol (UDP) through NAT (serial tunnel [STUN])
Codec name assignment
Voice algorithms: G.711 (A-law and µ-law)
G.726 (32 kbps)
G.729 AB
G.722, Wideband Audio
Dynamic payload support
Adjustable audio frames per packet
Dual-tone multi-frequency (DTMF): In-band and out-of-band (RFC 2833), SIP INFO (RFC 2976)
Flexible dial plan support with inter-digit timers
IP address/Uniform Resource Identifier (URI) dialing support
Call progress tone generation
Jitter buffer - adaptive
Frame loss concealment
Voice activity detection (VAD) with silence suppression
Attenuation/gain adjustments
VMWI via NOTIFY, SUBSCRIBE
Caller ID support (name and number) | | Data Features | MAC address (IEEE 802.3)
IPv4 (RFC 791)
Address Resolution Protocol (ARP)
DNS A record (RFC 1706), SRV record (RFC 2782)
Dynamic Host Configuration Protocol (DHCP) client (RFC 2131)
Point-to-Point Protocol over Ethernet (PPoE) client (RFC 2516)
Internet Control Message Protocol (ICMP) (RFC 792)
TCP (RFC 793)
UDP (RFC 768)
Real Time Protocol (RTP) (RFC 1889, 1890)
Real Time Control Protocol (RTCP) (RFC 1889), RTCP-XR (RFC 3611)
Differentiated Services (DiffServ) (RFC 2475), type of service (ToS) (RFC 791, 1349)
VLAN tagging 802.1p/Q
Simple Network Time Protocol (SNTP) (RFC 2030) | | Security Features | Password-protected system reset to factory default
Password-protected administrator and user access authority
HTTPS with factory-installed client certificate
HTTP digest - encrypted authentication via MD5 (RFC 1321)
Up to 256-bit Advanced Encryption Standard (AES) encryption
SIP over TLS for signaling encryption
AnyConnect SSL VPN
SRTP for media encryption | | Additional Features | Lighted line keys: 5 illuminated call appearance line buttons with tricolor LEDs
Hold key: Puts current call on hold
Voicemail key: 1-button access to voicemail
Menu key: Accesses call history, directory, speed dials, MP3 player, web applications, user preferences, network
configuration, device administration, and status
Lighted mute key: Lights up red when the call is on mute and turns off when mute is removed. Also lights red in the event of a network failure
Lighted headset key: Lights up green when pressed and using a Bluetooth or 2.5-mm headset for hands-free calling
Lighted speakerphone key: Activates full-duplex speakerphone; stays lit while speakerphone is on
Lighted message waiting indicator: Lights when there is new voicemail; visible on the phone chassis above the LCD screen; stays lit until the new voicemail has been processed by the user
Graphical display: Color 3.2" QVGA (320 x 240 pixels) backlit LCD graphical display
5-way navigational buttons: Navigating menus and multimedia applications
4 soft-key buttons: Dynamically present calling options to the user
Network features: Cisco Discovery Protocol, IEEE 802.1p/Q
Wi-Fi: 802.11b/g, Wi-Fi Multimedia (WMM) (802.11e) | | Administration and Maintenance | Web browser administration and configuration via integrated web server
Automated provisioning and upgrade via HTTPS, HTTP, or Trivial
File Transfer Protocol (TFTP)
Asynchronous notification of upgrade availability via NOTIFY
Nonintrusive, in-service upgrades
Report generation and event logging
Stats in BYE message
RTP media loopback for quality of service (QoS) monitoring
Syslog and debug server records - per-line configurable | | Regulatory Compliance | FCC, CE, C-Tick, Wi-Fi, hearing aid compatible (HAC), Reduction of Hazardous Substances (RoHS), Bluetooth
Telecom: FCC Part 68 (CFR47) HAC | | Safety | UL 60950 C-UL 60950 EN 60950 IEC 60950 | | Electromagnetic Compatibility | FCC Part 15 (CFR 4) Class B ICES-003 Class B EN 55022 Class B CISPR 22 Class B CISPR 24 EN 55024 EN 50082-1 EN 61000-3-2 EN 61000-3-3 EN 61000-6-1 | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Storage Temperature | -13 to 176°F (-25 to 80°C) | | Relative Humidity | 5 to 95% noncondensing, operating and nonoperating | | Casing | Phone casing composition: Acrylonitrile butadiene styrene (ABS) plastic in textured dark gray with silver-colored bezel | | Dimensions | 8.4 x 8.3 x 1.7" (21.33 x 21.08 x 4.31 cm) | | Weight | 2 lb (0.9 kg) | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 14.5 x 11.4 x 2.4" | Note: Mfr# PA100-NA power adapter is required, which is not included with the product.
