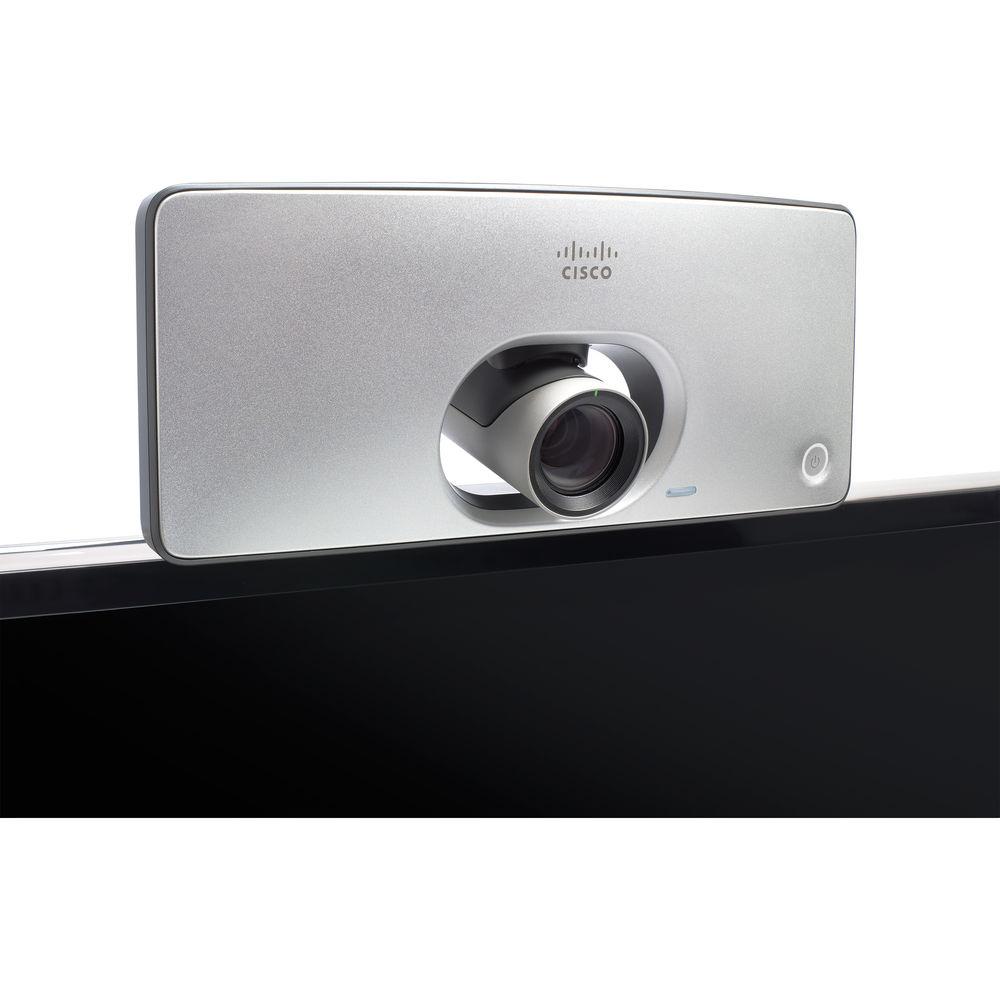

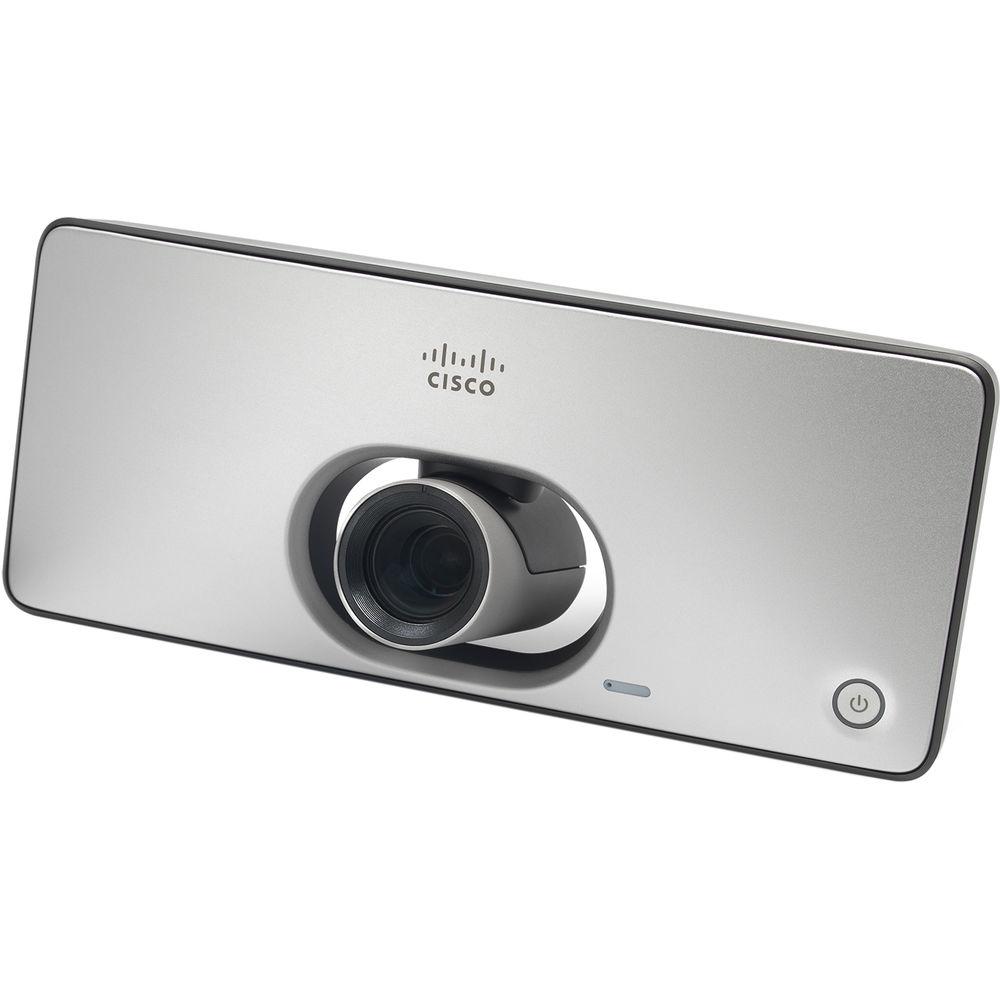

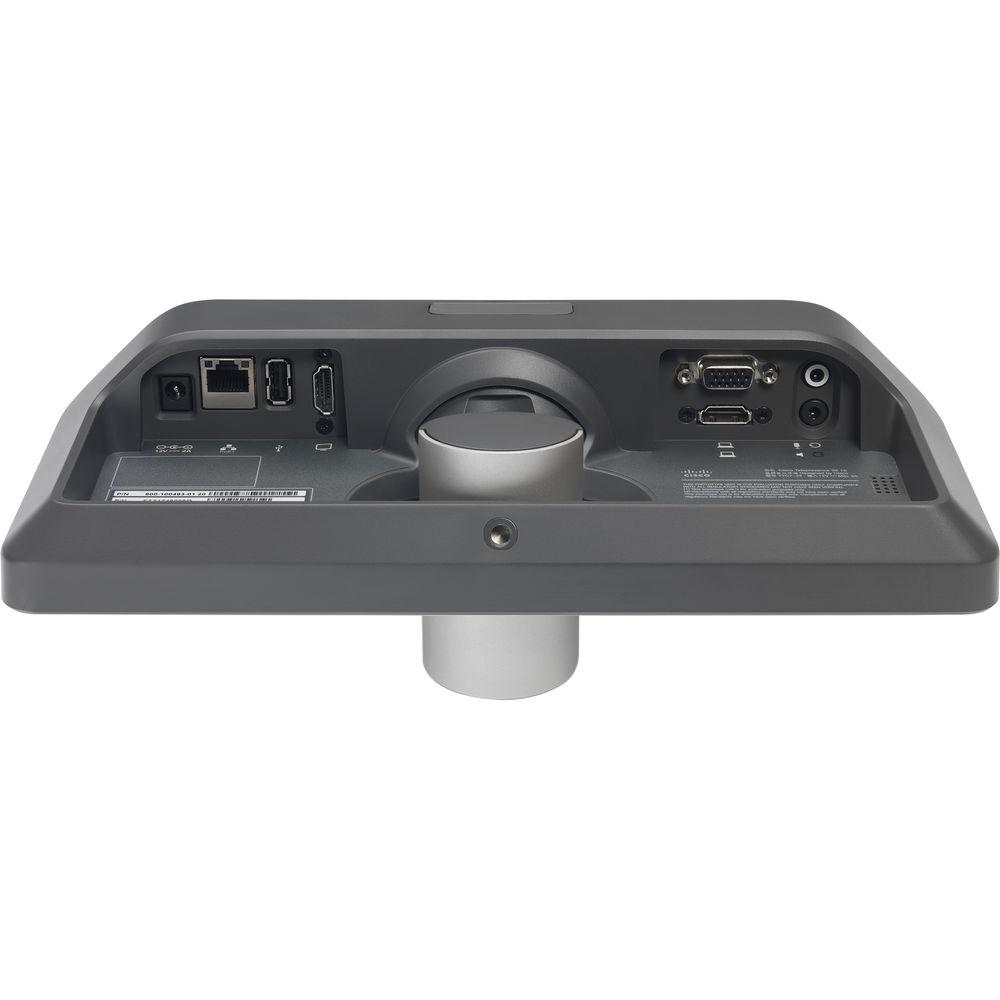

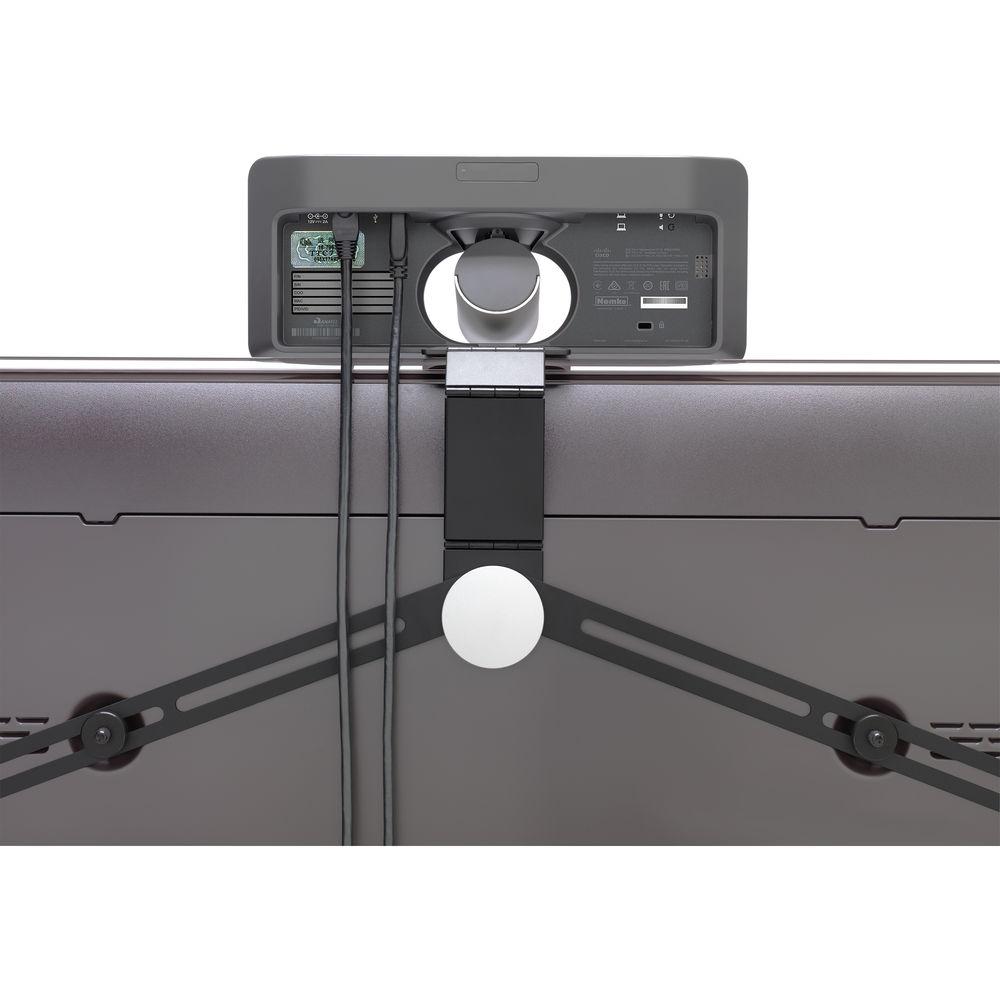

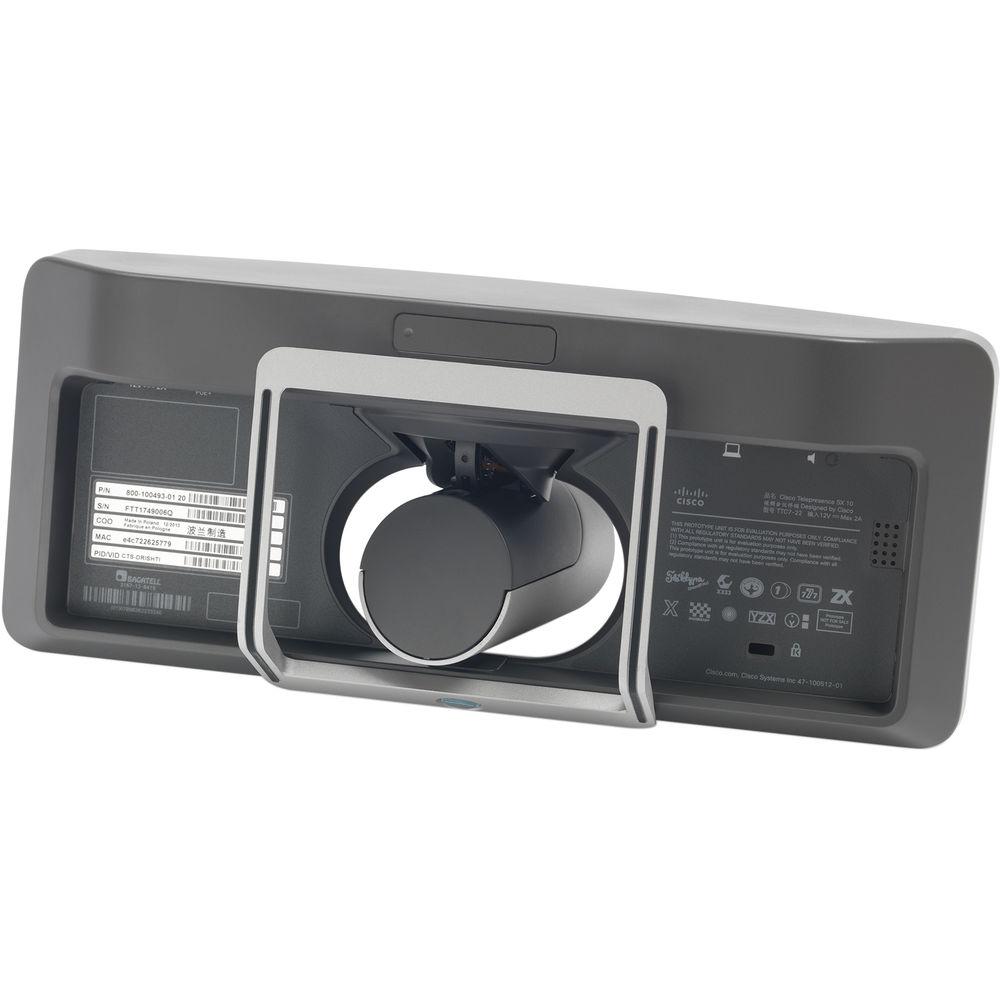

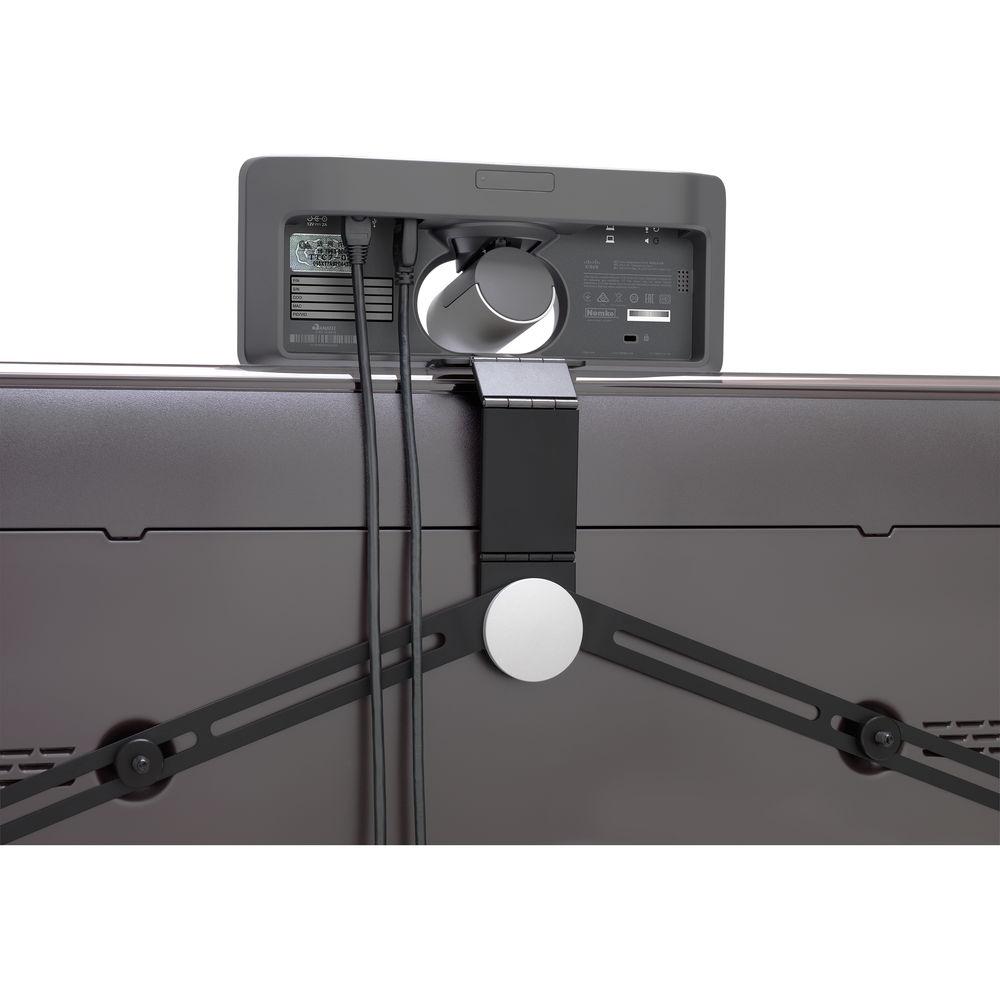

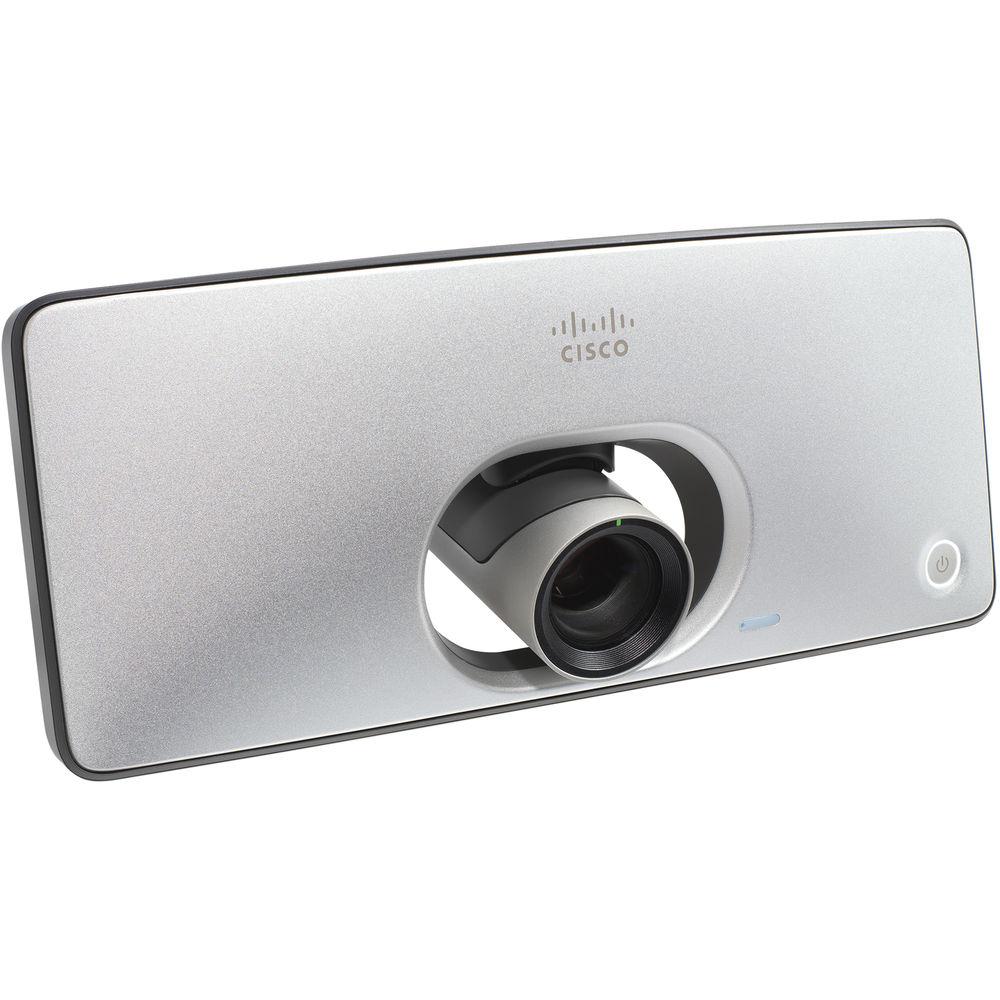

Product description The TelePresence SX10 Quick Set from Cisco is a one-piece camera and codec-streaming device that works with your own flat-panel display to provide a telepresence interface (display not included). The PoE-enabled SX10 Quick Set is Cisco's introductory-level telepresence package, designed for small to medium companies or for multiple-unit use in larger enterprises. Control the set through the on-screen GUI, the included TRC6 remote control, via your iOS or Android device (using the optional Cisco Intelligent Proximity program), or through the optional TelePresence Touch 10 controller. The SX10 Quick Set's video features include dual HDMI and VGA–compatible inputs, multiple live-video resolutions at up to 1080p30, far-end camera control, and automatic/manual focus, iris, and white balance functions. The built-in camera provides an 83° field-of-view, a maximum aperture of f/2.1, and a 5x zoom range. Dual-streaming capability enables you to share content at a resolution of 1080p5. Audio options include an integrated microphone, HDMI audio-in and out, and 4-pin input and output mini-jacks. The SX10 Quick Set is compatible with the Cisco Spark conferencing app and the Cisco Intelligent Proximity mobile content-sharing app. The SX10 Quick Set can also control room peripherals (lights, dividers, curtains, etc.) when used with the optional Cisco TelePresence Touch 10 remote controller. - Compact unit houses both the PTZ camera and the codec streamer
- Plug-and-play setup with PoE compatibility
- Streaming video at up to 1080p30 resolution
- Camera features include an 83° field-of-view and a 5x zoom
- Dual-streaming enables content sharing at 1080p5 resolution

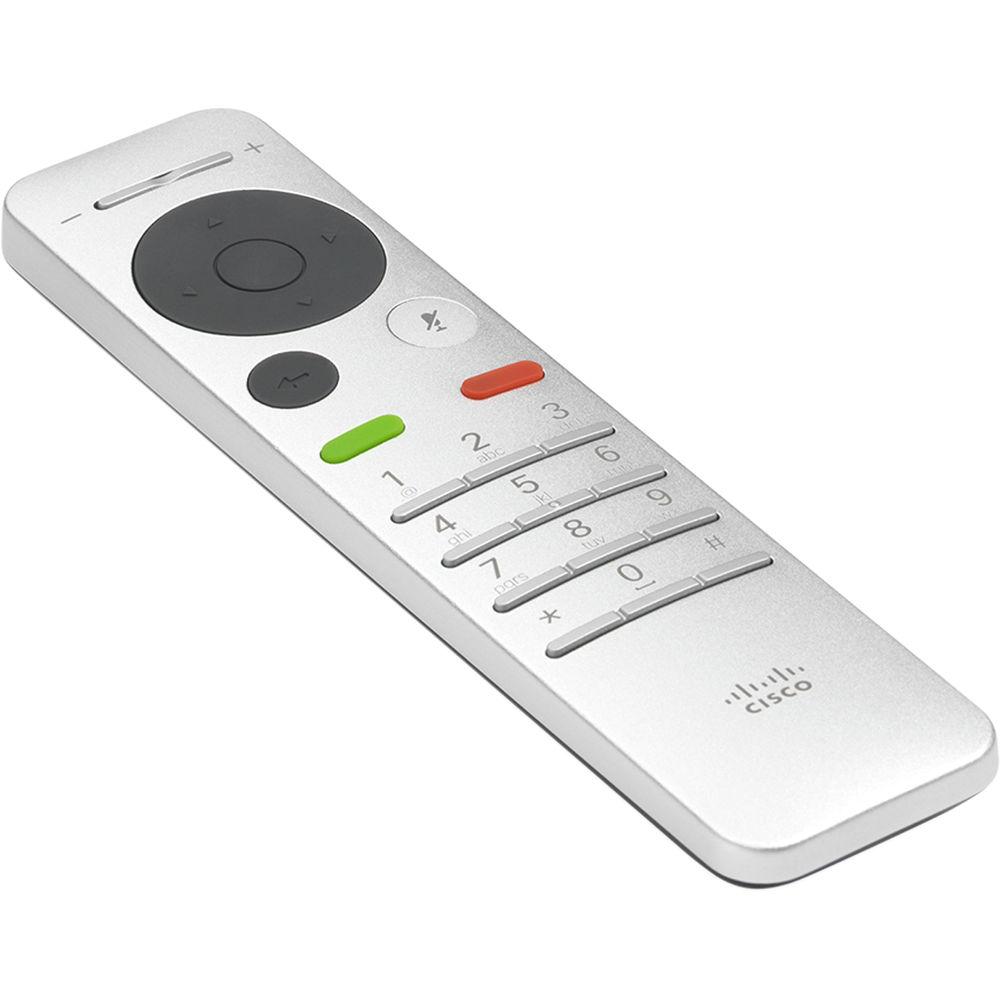

- Includes one TRC6 remote control and is compatible with the optional Touch 10 RC, and iOS/Android RC (requires optional Cisco Intelligent Proximity app)
- Integrated microphone plus 4-pin mini-jack input and HDMI audio-in
- Automatic and manual focus, iris, and white-balance control
UPC: 882658822728 In the Box Cisco TelePresence SX10 Quick Set System TRC6 Remote Control Wall Mount Network & HDMI Cables Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cisco TelePresence SX10 Quick Set System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCisco CTS-SX10N-K9 Specs | Camera Zoom | 5x zoom (2.65 optical/digital zoom) | | Pan & Tilt Range | +5 to -25° tilt
+30 to -30° pan | | Field of View (H x V) | 83 x 51° | | Maximum Lens Aperture | f/2.1 | | Camera Controls | Focus: manual/automatic
Iris: manual/automatic
White Balance: manual/automatic
Image Flipping: automatic when upside-down | | User Interface | TRC6 remote control
On-screen GUI
Cisco Telepresence Touch 10 (optional, not included) iOS and Android devices (using optional Cisco Intelligent Proximity app) | | Maximum Bandwidth | Up to 3 Mbps | | Minimum Bandwidth | 1080p30 from 1472 kbps
720p30 from 768 kbps | | Video Standards | H.263, H.263+, and H.264 | | Video Inputs & Formats | 2 Inputs:
HDMI or VGA (user-selectable)
Supported Formats:
640x480 (VGA)
720x480
704x576 (4CIF)
800x600 (SVGA)
848x480
1024x768 (XGA)
1152x864 (XGA+)
1280x720 (720p)
1280x768 (WXGA)
1920 x 1080@30 (HD1080p)
EDID (Extended Display Identification Data) | | Video Output Formats | 1080p60
VESA Monitor Power Management
Extended Display Identification Data (EDID) | | Resolution-Live Video | (Decode only):
176 x 144@30 (QCIF)
(Encode and Decode):
352 x 288@30 (CIF)
512 x 288@30 (w288p)
576 x 448@30 (448p)
768 x 448@30 (w448p)
704 x 576@30 (4CIF)
1024 x 576@30 (w576p)
640 x 480@30 (VGA)
800 x 600@30 (SVGA)
1024 x 768@30 (XGA)
1280 x 768@30 (WXGA)
1280 x 720@30 (HD720p)
1920 x 1080@30 (HD1080p) | | Audio Standards | 64 kbps MPEG4 AAC-LD
OPUS
G.722, G.722.1, G.711mu, G.711a, G.729ab, and G.729 | | Audio Inputs | Internal microphone
External microphone:4-pin mini-jack
HDMI audio-in | | Audio Outputs | Line Out: 4-pin mini-jack
HDMI (digital main audio) | | Dual Stream | H.239 (H.323) dual stream (CE8.2 or later)
BFCP (SIP) dual stream
Resolution up to 1080p5 (CE8.0 or later) | | Multipoint Technology | Cisco Ad-Hoc Conferencing
(requires Cisco UCM, Cisco TelePresence Server, and Cisco TelePresence Conductor) | | Protocols | H.323, SIP
H.323 (CE8.2 or later) | | Connectivity Interfaces | 1 x PoE-enabled LAN connector (RJ-45) 100 Mb
1 x USB port (for future usage)
1 x Micro-USB port (for debugging) | | PoE | Compatible | | Power Input | 100 - 240 VAC, 50/60 Hz | | Power Consumption (Maximum) | 12 W | | Operating Temperature & Humidity | 32 to 104°F (0 to 40°C) at 10-90% relative humidity (non-condensing) | | Storage Temperature & Humidity | -4 to 140°F (-20 to 60°C) at 10-90% relative humidity (non-condensing) | | Dimensions (WxHxD) | SX10 Unit: 10.8 x 4.6 x 3.6" (27.4 x 11.7 x 9.1 cm) | | Weight | SX10 Unit: 2 lb (0.9 kg) | | | | Package Weight | 6.4 lb | | Box Dimensions (LxWxH) | 18.2 x 13.1 x 7.5" |
