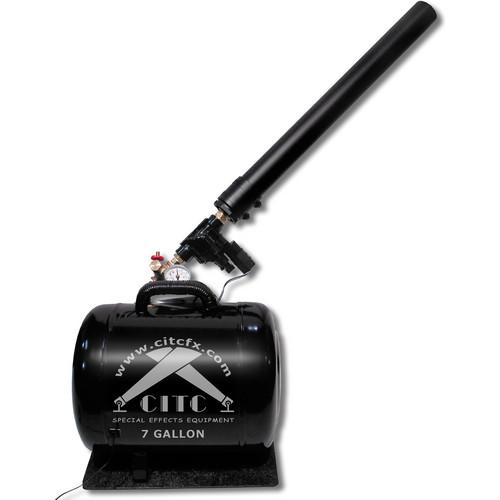

User Manual for CITC A C Air Launcher Click to enlarge the picture
Contents of the user manual for the CITC A C Air Launcher
- Product category: Special Effects Machines CITC
- Brand: CITC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CITC Special Effects Machines
|
User manual for the CITC A C Air Launcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CITC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CITC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CITC product will considerably shorten its lifespan!
|
Product description The 120VAC A/C Air Launcher from CITC gives you the ability to produce a spectacular simulated fireworks display, outdoors, without the risk of fire. When loaded properly, this device will safely propel tissue streamers and/or tissue (not paper) confetti to distances of up to 100’ (30.5m) in the air. The end result resembles a cascading display of daytime firework-like effects.
The included 5-gallon air tank must be filled from an air compressor or be connected into a constant replenishing CO2 air cylinder tank (sold separately), eliminating the need for manual refills. The CO2 air tank makes it economically feasible to do continuous reloads and refills for places like circuses or theme parks.
This device features a built-in safety release, 2 types of filling valves, a pressure gauge, and an electric release solenoid valve (1/2" high-volume type).
The launcher fires as soon as it is plugged in, or if connected to an electrical switchbox, as soon as it is switched on. It comes with a 24VAC solenoid valve and 120VAC / 24V transformer. Note: Due to wind resistance and low weight, confetti will not travel as far as streamers. In the Box CITC A/C Air Launcher (120VAC) Spare 2" (5cm) Barrel Universal DMX 120VAC, 15A Relay Wireless Remote RF 120VAC, 15A 13 Channel Roll of 1.5" (3.8 cm) Black Masking Tape 2" (5 cm) Push Caps and Cups Set Air Compressor Push-Button Switch Plug Switch Corded Switch Extension Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CITC A C Air Launcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCITC A/C Air Launcher Specs | Distance | Streamers: 100.0' (30.5 m)
Confetti: 50-60' (15-18 m) | | Barrel | 2 x 24" (5 x 60 cm) | | Valves | Solenoid: 0.75" (1.9 cm), 24 VAC / 0.7 A with 120 VAC transformer | | Air Fittings | Quick-disconnect, tire valve, pressure relief, pressure gauge | | Pressure Level | Working: 80 to 100 PSI (5.5 to 6.9 bar) | | Actuation Force | Power on (or via switch sold separately) | | DMX | Universal DMX (sold separately) | | Electrical Supply | 120 VAC, 0.2 A, 60 Hz | | Dimensions Assembled | 35 x 34 x 14" (89 x 86 x 36 cm) | | Weight | 20 lb (9 kg) | | | | Package Weight | 29.0 lb | | Box Dimensions (LxWxH) | 24.0 x 20.0 x 17.0" |
