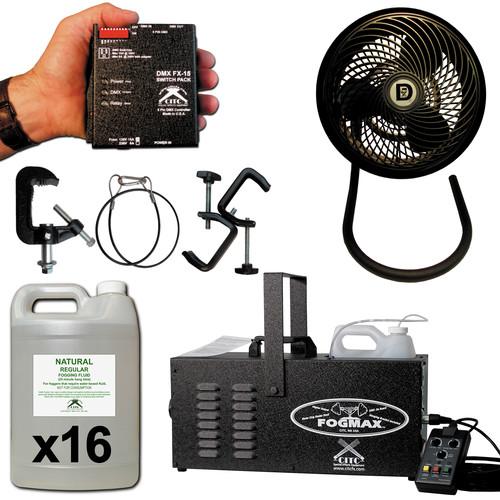

Product description The 120 VAC CITC FogMax Dream Team includes a FogMax with DMX on board, a three-speed Director Fan, 16 gallons of SmartFog 25-minute fog fluid, a DMX FX-15 Switchpack, a C-clamp with safety cable, and a double C-clamp for the Director Fan. Note: Use only CITC's Smart Fog fluids for warranty coverage. Use of other fluids will void the warranty. - FogMax Professional Fog Machine (120 VAC) The CITC 120 VAC FogMax Professional Fog Machine delivers digital control of thick, white fog at outputs up to 30,000 ft3 per minute (0.85 m3 per minute). It boasts a non-clogging head and accurate temperature. It has a quiet pump with a 1,500W heating head, a single channel of DMX control on board, a remote control cycle timer, and a hanging bracket.The FogMax has 3 safety checks, including a circuit breaker reset button. It features an extra-thick, rust-resistant cover. This machine uses water-based CITC regular, long-lasting, or custom quick fog fluid. The FogMax was chosen for movies such as Ladder 49, where dynamic, dependable fog machines were high on the priority list.
- Director Fan (Black, 120 VAC) The black 120 VAC Director Fan from CITC quietly focuses fog, wind, and bubbles, up to 70.0‘ (21.5m) away in a direct line without spreading. This unit pushes liquid snowflakes, petals, confetti, and more from 30 to 40' (10 to 12m). The channeled vortex action allows precise targeting to the subject, making the Director Fans suitable for theater, concerts, video, and photography. The Director can be hung with a double c-clamp.
- SmartFog 25-Minute Fog Fluid (1 Gallon) The 1-gallon CITC SmartFog 25-Minute Fog Fluid comes in a bottle. It is a completely biodegradable fogging fluid that is free from irritating scents and safe to use in all water-based fog machines. Also, high-quality chemicals are used to prepare this fluid. It is hypoallergenic and lasts for 25 minutes.
- Does not undergo hazardous polymerization
- Completely soluble in water
- Means of extinction include alcohol foam, water fog, carbon dioxide, and dry chemical
In the Box Bundle Items FogMax Professional Fog Machine (120 VAC) dytsreauydayxwdds - Remote Cycle-Timer Controller with 5-Pin XLR Connector
Director Fan (Black, 120 VAC) 16 x SmartFog 25-Minute Fog Fluid (1 Gallon)
Also Includes - DMX FX-15 Switchpack
- C-Clamp with Safety Cable
- Double C-Clamp
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the CITC FogMax Dream Team in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - FogMax Professional Fog Machine (120 VAC)
| Type | Type of Fog: Thick, white, dry | | Power | 1500 W | | Output | 30,000 ft3 per minute (850 m3 per minute) | | Warm-Up Time | 5 to 10 minutes | | Continuous Usage | Up to 30 minutes at a time | | DMX Channel Modes | 1 channel | | DMX Connectors | Input: XLR 5-pin
Output: XLR 5-pin | | Compatible Fluid | Water-Based CITC Fogging Fluids:
Long-Lasting Fog Fluid (P/N 150450)
Regular Fog Fluid (P/N 150410)
Low-Ground Fog Fluid (P/N 150490) | | Electrical Supply | 120 VAC, 15 A, 60 Hz
Breaker: 15 A | | Dimensions | 20 x 9 x 9" (51 x 23 x 23 cm) | | Weight | 26.0 lb (11.8 kg) | | | | Box Dimensions (LxWxH) | 26.0 x 16.0 x 13.0" | - Director Fan (Black, 120 VAC)
| Tilt | Head: 100° | | Size | Blade: 11" (28 cm) | | Speed | Wind Speed: 6.0, 9.0, or 12.0 mph (9.7, 14.5 or 19.3 km/h) | | Distance | 15.0 to 70.0' (4.5 to 21.5 m) | | Cubic Feet Per Minute | 345 / 475 / 615 | | Fan RPM | 650 / 950 / 1,250 | | Voltage | 120 VAC, 1.2 A, 60 Hz | | Color | Black | | Dimensions | 16 x 17 x 21" (41 x 43 x 53 cm) | | Weight | 11.0 lb (5.0 kg) | | | | Box Dimensions (LxWxH) | 25.0 x 18.7 x 18.3" | - SmartFog 25-Minute Fog Fluid (1 Gallon)
| Boiling Point | Starts at 468°F (242°C) at 760 mmHg | | Pressure Level | Vapor: <0.010 mmHg at 68.00°F (20°C) | | Density | Vapor: 3.660 at air = 1 | | Specific Gravity | H2O = 1: 1.114 to 1.117, 77°F (25°C) | | Volatile | 100% VOC (Wt. %) | | Evaporation | Rate: Water = 1: <1.00 | | Viscosity | 28.9 cps at 77°F (25°C) | | Flash | Point (TCC, °C): Not combustible at 400°F (204°C) | | Temperature | Auto-Ignition: 440°F (227°C) | | Threshold | Limit Value: Acute oral toxicity, LD50 5 g/kg | | | | Box Dimensions (LxWxH) | 13.0 x 8.0 x 6.0" |
