User Manual for CITC Haze-Max with DMX Click to enlarge the picture
Contents of the user manual for the CITC Haze-Max with DMX
- Product category: Fog & Haze Machines CITC
- Brand: CITC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CITC Fog & Haze Machines
 |
User manual for the CITC Haze-Max with DMX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CITC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CITC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CITC product will considerably shorten its lifespan!
|
Product description The CITC 230 VAC Haze-Max with DMX is a professional, easy-to-use, reliable haze machine that produces a long-lasting, 30-minute, even haze from a water-based fluid without using any glycols or oils. 1 gallon of fluid can last up to 2 hours, depending on the timing and output selected.The Haze-Max delivers a thick, white output of 15,000 ft3/minute of digitally controlled haze. It features a quiet pump with a 1500W heating head, a 25' (7.62m) remote control, and a single channel of DMX via 5-pin XLR.
With no condensation or residue, this Haze-Max machine works on professional stages without clogging. This machine requires no programming or special care, only a 5 minute warm-up, and there is no need to change the heads. This Haze-Max with DMX continues to do its job for 10 years and continues to function. It comes with a hanging bracket, so you can hang it and use it right away. Note: Use only CITC's Water-Vapor Haze or Organic fluids for warranty coverage. Use of other fluids will void the warranty. In the Box CITC Haze-Max with DMX (230 VAC) Remote Cycle-Timer Controller with 5-Pin XLR In/Out (P/N 600381) Hanging Bracket (P/N 600258) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CITC Haze-Max with DMX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

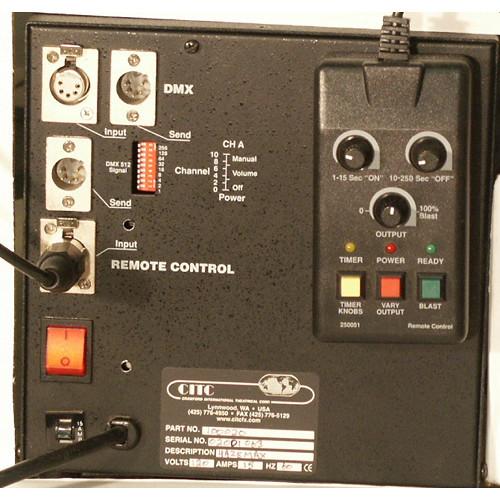

Technical parametersCITC Haze-Max Specs | Wattage | 1500 W | | Output | 15,000 ft3/minute | | Warm-Up Time | 5 minutes | | Fluid Consumption Rate | 30 to 51 oz (1 to 1.5 liters) per hour at 50 to 100% output | | Compatible Fluid | Water vapor haze (#150570) or organic haze (#150580) | | DMX Channel Modes | 1 channel | | DMX Connectors | Input: XLR 5-pin
Output: XLR 5-pin | | Remote Control | Continuous: 0 to 100%
Cycle-Timer: 0 to 100%; 1 to 11 sec on, 0.2 to 5 minutes off
Manual Momentary: 100% | | Electrical Requirements | 230 VAC, 8 A | | Fuse | 7 A | | Dimensions | 22 x 9 x 11" (56 x 23 x 28 cm) | | Weight | 27 lb (13 kg) | | | | Package Weight | 32.9 lb | | Box Dimensions (LxWxH) | 25.0 x 15.0 x 12.0" |
