User Manual for CITC Maniac II RGBA Moving Head Fog Machine with Remote Click to enlarge the picture
Contents of the user manual for the CITC Maniac II RGBA Moving Head
- Product category: Fog & Haze Machines CITC
- Brand: CITC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CITC Fog & Haze Machines
 |
User manual for the CITC Maniac II RGBA Moving Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CITC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CITC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CITC product will considerably shorten its lifespan!
|
Product description - Maniac II 2017 Product Demo

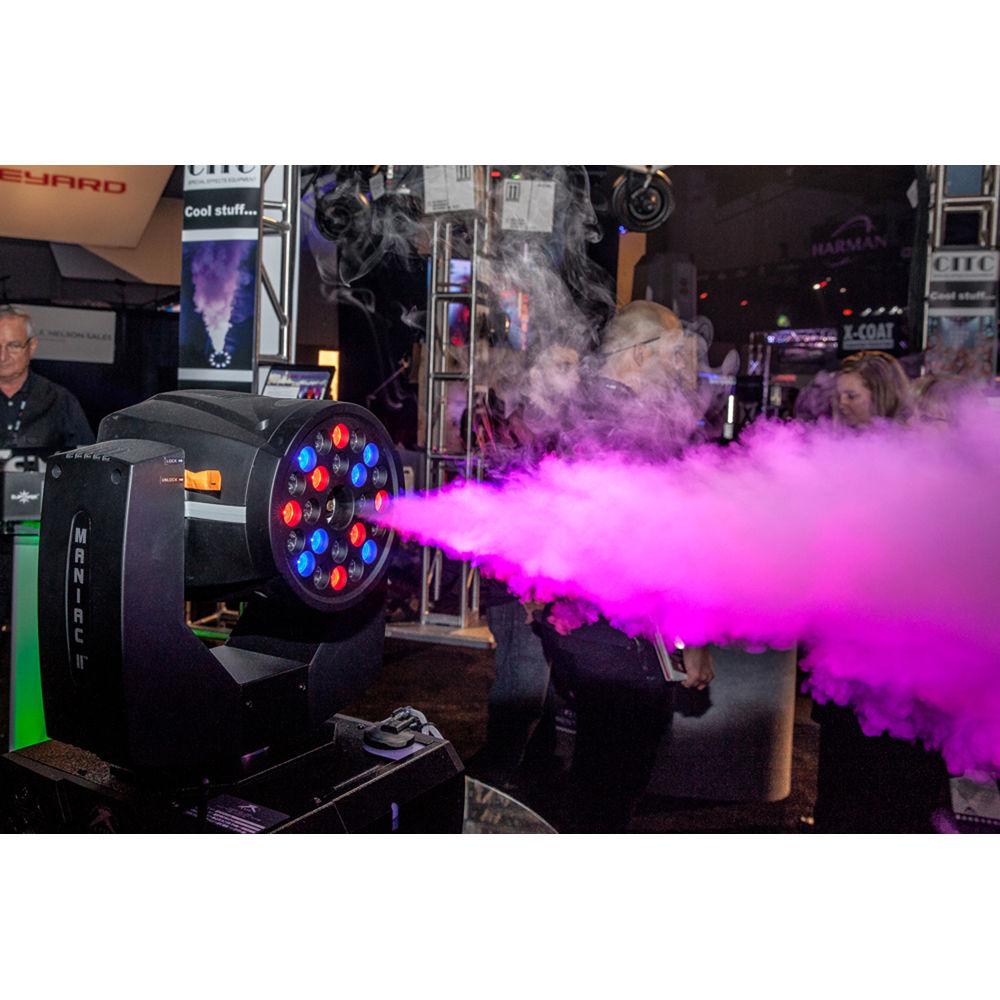

The CITC Maniac II is a 1600W moving-head fog machine with 24 RGBA LEDs, well suited for clubs, theaters, bars, mobile events production, touring companies, and more. The Maniac II features a 15-second SmartFog for the creation of cryogenic and fire effects. The fixture can be controlled via DMX (10 channels) or via the optional multifunction controller, which further expands the functionality with automatic sound and run modes with speed adjustment. The CITC Maniac ships with a power cord, two mounting brackets, and extra tubing for using optional large capacity tanks. Also included is a wireless remote control, which triggers the fog machine only. -

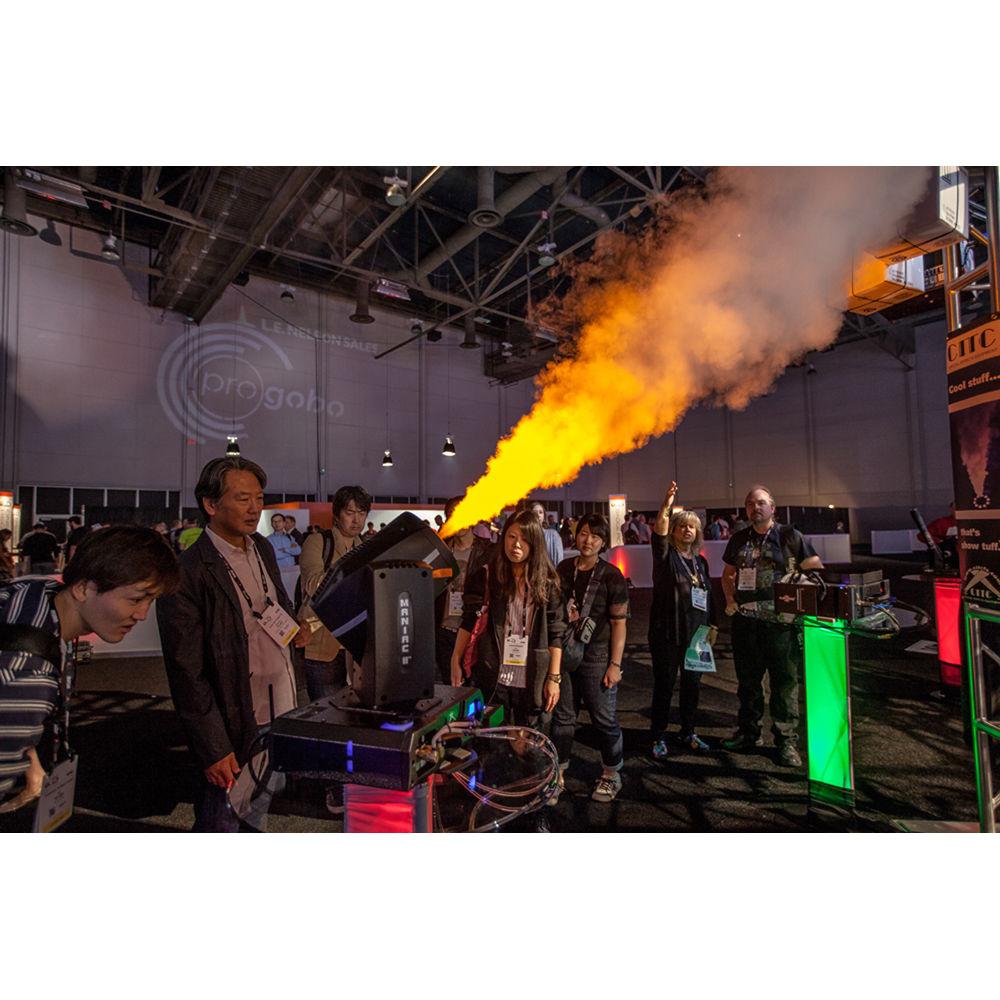

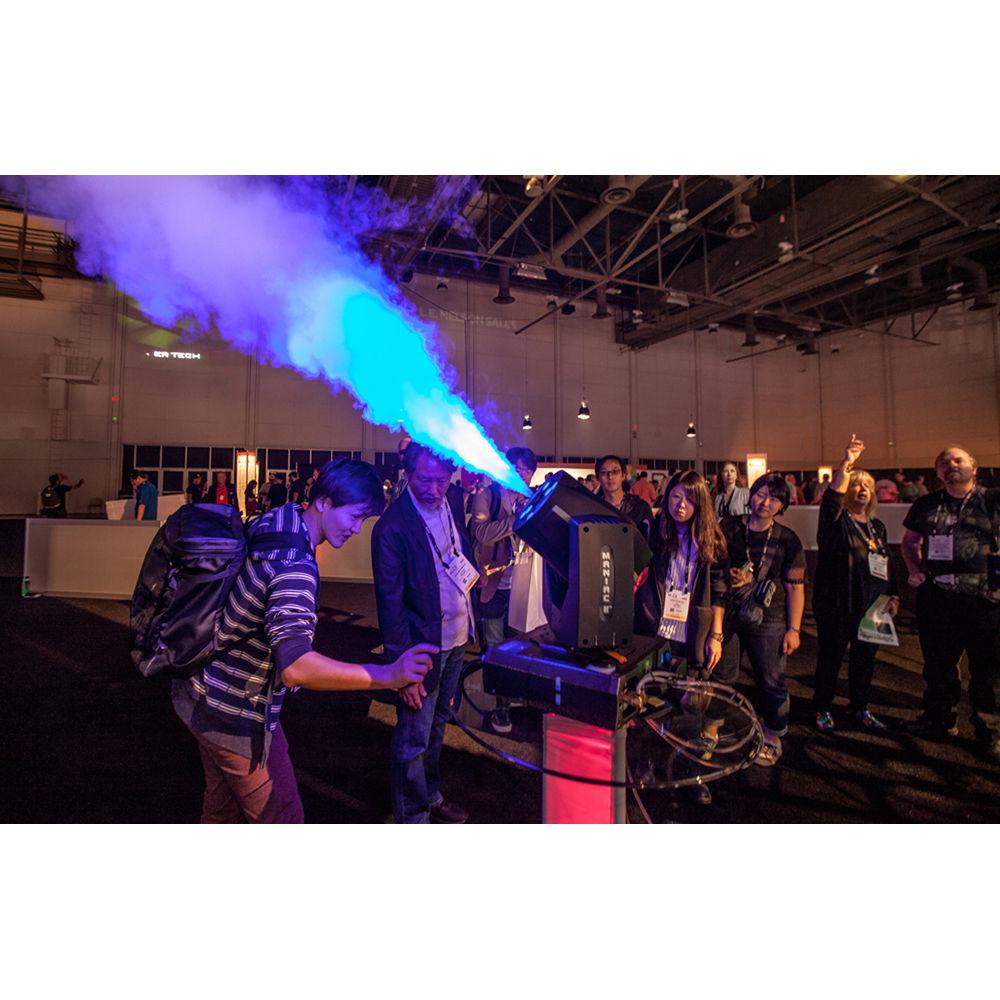

- 15-second SmartFog creates cryogenic or fire effects
- Fully automated moving head
- 24 LEDs (6 x RGBA)
- 10 DMX channels
- Adjustable output and speed
- Instant stop technology
- Strobe, dim, mix colors
- Mount upright or upside down
- Sound activation (with optional controller)

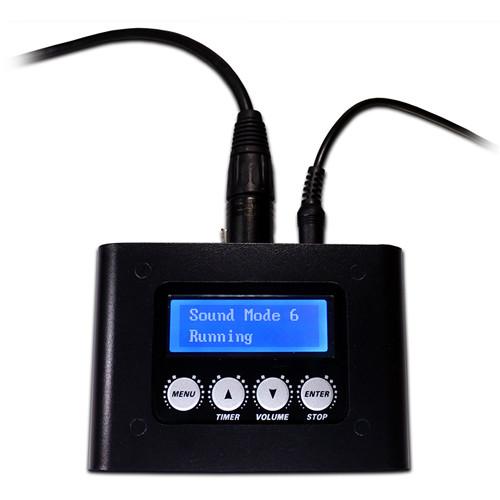

- Optional multifunction controller allows use without DMX
- Includes mounting brackets
- Includes wireless remote
- Includes additional tubing for use with large fluid tanks and bottles
In the Box CITC Maniac II RGBA Moving Head Fog Machine with Remote Power Cord Wireless Remote Additional Tubing for Large Fluid Tank 2 x Hanging Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CITC Maniac II RGBA Moving Head Fog Machine with Remote in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCITC Maniac II Specs | Fog Output | 20,000 ft³/min / 566.3 m³/min | | Warm-Up Time | 5 minutes | | DMX Channels | 1. Fog volume
2. Red
3. Green
4. Blue
5. Amber
6. Color mixing
7. Strobe
8. Master dimmer
9. Pan
10. Tilt | | Light Source | 24 x 5 W RGBA (6 of each color) | | Fluid | Fluid Type: CITC SmartFog fluid
Fluid Capacity: 1.31 qt. / 1.2 L | | Pan & Tilt | Pan 540°: Full rotation in approximately 2 seconds
Tilt 270°: Complete tilt range in about ¾ seconds | | Power | 100 to 120 VAC 15 A 50/60 Hz
Power Consumption: 1600 W | | Dimensions (W x D x H) | 19.0 x 18.0 x 22.0" / 48.3 x 45.7 x 55.9 cm | | Weight | 39.0 lb / 17.7 kg |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 49 owners. Add your rating and experience with the product.
