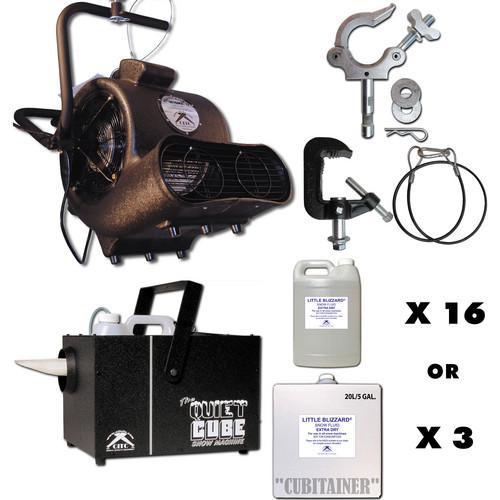

Product description The 120 VAC CITC Quiet Cube Dream Team is a kit including a Quiet Cube Snow Machine, a Hurricane II Wind Effect Generator with 3-Speed DMX, 16 gallons or three 5-gallon Cubitainers of Little Blizzard Extra Dry Fluid, a C-Clamp with Safety Cable, and a Custom Cheeseborough Clamp with a 5/8" baby stud for the Hurricane II. Note: Use only CITC's Snow Fluid for warranty coverage. Use of other fluids will void the warranty. - Quiet Cube Snow Machine (120 VAC) The 120 VAC CITC Quiet Cube Snow Machine is designed to provide quiet snow production. With DMX on board and a variable speed remote control included, the Quiet Cube is suitable for venues needing a remote-controlled quiet snow machine. The Quiet Cube has a throw distance of 15 to 20'. Use "Super Extra Dry" fluid for quickly evaporating snow and "Extra Dry" fluid when flying over 45'. A hanging bracket with hardware, a power cord, and an extra fuse are all included. Note: Use only CITC's Little Blizzard Snow Fluid for warranty coverage. Use of other fluids will void the warranty.
- Quiet snow production – please note that flakes are not dry
- No duty cycle – runs continuously
- Included remote for control of volume – adjusts pump output and flake size
- DMX on board – one channel of DMX for volume control
- Fluid: LB Extra Dry / Super X Dry
- Hurricane II Wind Effect Generator with 3-Speed DMX (Floor Model, 230 VAC) The 230 VAC floor model Hurricane II from CITC is a squirrel-cage type air blower for wind effects. It features a 1 HP motor, DMX control over 3 speed settings, and sturdy steel blades that ensure quiet operation. It can also be tilted to 45° or 90° for angled use.
- Powerful 1 HP motor with quiet operation
- On-board 1-channel, 3-speed DMX control
- Reaches a wide 85 x 50' area
- Sharp, sturdy steel blades for quiet operation
- Runs continuously without overheating
- Custom Cheeseborough Clamp for Hurricane II Fan This Custom Cheeseborough Clamp from CITC is a clamp with a 5/8" Baby stud that is made to hang the Hurricane II Fan. It includes a safety cable.
In the Box Bundle Items Quiet Cube Snow Machine (120 VAC) zwrusdqywayrxx - Hanging Bracket with Hardware
Hurricane II Wind Effect Generator with 3-Speed DMX (Floor Model, 230 VAC) Custom Cheeseborough Clamp for Hurricane II Fan
Also Includes - C-Clamp with Safety Cable for Quiet Cube
- Bracket, Stand and Safety Cable for Fan
- 15 or 16 Gallons of Little Blizzard Extra Dry Fluid
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the CITC Quiet Cube Dream Team in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Quiet Cube Snow Machine (120 VAC)
| Throw Distance | 15 to 20' (4.6 to 6.1 m) | | Sound Level | 63 dB | | Compatible Fluid | LB Extra Dry or Super X Dry | | Remote Control | Input: XLR 5-pin
Output: XLR 5-pin
Cable Length: 25' (7.6 m) | | DMX Connectors | Input: XLR 5-pin
Output: XLR 5-pin | | Duty Cycle | None | | Input Voltage | 120 VAC, 60 Hz, 4 A | | Power Connectors | Input: IEC | | Fuse | 5 A (time-delay) | | Dimensions | 15 x 12 x 10" (38 x 31 x 26 cm) | | Weight | 38 lb (17 kg) | | | | Box Dimensions (LxWxH) | 20.0 x 16.0 x 14.0" | - Hurricane II Wind Effect Generator with 3-Speed DMX (Floor Model, 230 VAC)
| Output | 3000, 4000, or 5000 ft3/minute | | Speeds | 3 speeds up to 58 mph (93 km/h) | | Range | 3 speeds up to 150' (45.7 m) | | Coverage Area | 85 x 50' (26 x 15 m) | | Control Options | Manual or DMX | | DMX Channel Modes | 1 x Mode: 1 channel (3-speed control) | | Voltage | 230 VAC | - Custom Cheeseborough Clamp for Hurricane II Fan
| | | Box Dimensions (LxWxH) | 5.9 x 3.4 x 1.9" |
