User Manual for ClaryIcon Mobile Cart for Up to 70" Display

• Product category: Whiteboard & Easel Display Accessories ClaryIcon
• Brand: ClaryIcon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for ClaryIcon Whiteboard & Easel Display Accessories

Product description

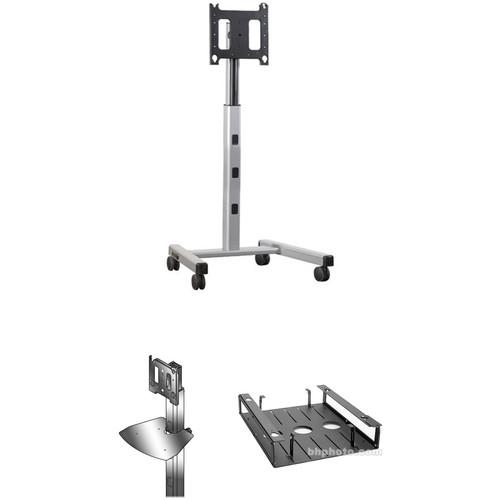

• Chief Large Mobile A/V Cart (Silver)
  • Product Demo
  Chief's Large Flat Panel Mobile A/V Cart, in silver, allows you to mount 42-65" flat screens at heights between 4-6 ft in either portrait or landscape orientation. This is a wheeled cart that lets you conveniently move your display between locations and lock it in place where you need it. It supports up to 200 lb displays and is height-adjustable telescopically without any tools.

  To adjust between portrait and landscape modes, the display does need to be removed first, but an optional Chief PAC400 accessory will enable you to rotate from one mode to another with the screen still attached. If you do add this accessory, please keep in mind that its weight must be accounted for when considering the 200 lb capacity of the cart.

  The cart comes with a universal interface bracket that supports about 95% of displays within the 42-65" range directly without any adapters — and even some displays outside of this range. For the other 5% a different, screen-specific bracket is required to be purchased separately. To check whether your display is supported or which optional bracket you may need, please visit Chief's website and use the "MountFinder" tool to confirm.

  The Large Flat Panel Mobile A/V Cart features four smooth-rolling casters, and two of them lockable. The cart also has a slightly angled design on the bottom that allows for easier placement in corners. It also has integrated cable-management with flexible covers providing for a neat setup.
  Centris Fingertip Tilt
  • Effortlessly adjust the display at the push of a fingertip. The screen angle stays set until you re-adjust it.
  Telescoping Height Adjustment
  • Integrated knob provides tool-less telescoping adjustment from 4 to 6 ft.
  ClickConnect Latching
  • Hear an audible click when the screen engages with the mount. Easy to connect/disconnect without any tools required.
  Portrait/Landscape Capability
  • Mount in either a portrait or landscape position.
  Cable Management
  • Flexible covers hide cables for a clean installation.
  UPC: 841872100593
• Chief Height Adjustable Accessory Shelf, PAC710
  • Product Demo
  The Chief PAC-710 Height-Adjustable Accessory Shelf, PAC 710 is designed specifically for use with the new Chief carts and floor stands. Ships fully assembled, and does not require tools---for lightning-fast installation or adjustment.
  • The PAC-710 is designed to be mounted onto the PF1U, PF2U, MF1U, or MF2U stands, or the PFCU or MFCU carts. The shelf can only be installed below the adjustment knob on the center post.
  • Infinitely height adjustable
  • All steel construction
  • Ships fully assembled - no tools required
  UPC: 841872101750
• Chief CPU/DVD/VCR Universal Adapter - PAC-251
  • Product Demo
  Chief's PAC-251 CPU/DVD/VCR Universal Adapter lets customers integrate a CPU, DVD Player or VCR into installations using most Chief Large Flat Panel Display mounts. This universal adapter easily works with Chief's patented Q-Latch Mounting Pattern and securely hides the device behind the Large Flat Panel Display. This accessory allows access to drives and input/output connections.
  Ability to Add Equipment
  • With the PAC251 you can add a CPU, DVD or a VCR to your large flat panel display mount.
  UPC: 841872003252

• Chief - Large Mobile A/V Cart (Silver) eryytuwbxevfyzbddaswdbzswssdxteqtdrs
• Universal Interface Bracket
• Limited 10-Year Warranty

• Chief - Height Adjustable Accessory Shelf, PAC710 - For Use With PF1U, PF2U, MF1U or MF2U stands or the PFCU or MFCU Carts

• Chief - CPU/DVD/VCR Universal Adapter - PAC-251

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Chief Large Mobile A/V Cart (Silver)

  Supported Screen Sizes	42 - 65" (107 - 165 cm)
  Weight Capacity	200 lb (91 kg)
  Height Adjustment	Center of Display to Floor/Table Range: 48 - 72" (122 - 182 cm)
  Mounting	200 x 200 to 862 x 517 mm
  Tilt	+/-15°
  Dimensions	81.6 x 37 x 32" (200 x 94 x 81 cm)

  Box Dimensions (LxWxH)	48.0 x 19.4 x 8.5"

• Chief Height Adjustable Accessory Shelf, PAC710

  Construction	Steel
  Finish	Black
  Dimensions (HxWxD)	18 x 15.3" (45.7 x 38.9cm) (approx)
  Weight Capacity	Not Specified by Manufacturer
  Weight	25 lbs (9.3 kg)

  Box Dimensions (LxWxH)	19.0 x 17.5 x 2.0"

• Chief CPU/DVD/VCR Universal Adapter - PAC-251

  Dimensions	19.5 x 15.92 x 3.91" (49.53 x 40.44 x 9.93 cm)
  Max Equipment Size	17.63 x 15.5 x 3.25" (44.78 x 39.37 x 8.26 cm)
  Weight	14 lbs (6.35 kg)

  Box Dimensions (LxWxH)	24.0 x 20.0 x 5.9"
