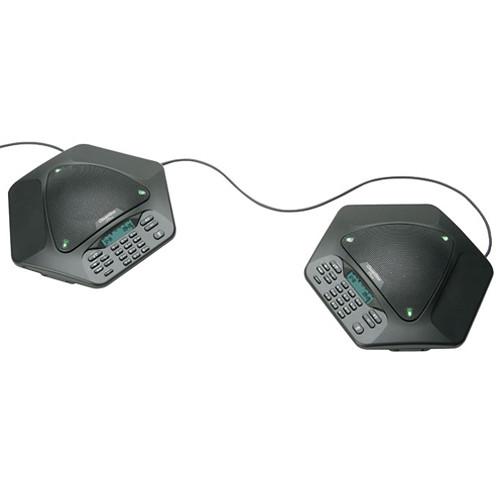

User Manual for ClearOne 910-158-500-00 MAXAttach Expandable Tabletop Conference Phones Click to enlarge the picture
Contents of the user manual for the ClearOne 910-158-500-00 MAXAttach Expandable Tabletop Conference
- Product category: Telephones ClearOne
- Brand: ClearOne
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ClearOne Telephones
|
User manual for the ClearOne 910-158-500-00 MAXAttach Expandable Tabletop Conference contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ClearOne product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ClearOne user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ClearOne product will considerably shorten its lifespan!
|
Product description With the 910-158-500-00 MAXAttach Expandable Tabletop Conference Phones from ClearOne you get two MAX phone units and one MAX base unit. This conference calling solution features enhanced echo and noise cancellation for clear calls complete with support for full duplex audio to speak and listen simultaneously. The integrated microphone provides full 360° audio pickup so you can be heard regardless of your orientation to the unit. These plug-and-play units can be set up in no time as you simply need to plug in the power and phone lines and connect the phone. You can also take advantage of easy to manipulate controls and the ability to save up to 10 speed dials for quick access to important numbers. - Enhanced Audio Performance
- • Distributed Echo Cancellation effectively eliminates echo
• Noise cancellation removes background noises from fans or HVAC systems • Full-duplex sound enables participants to speak and listen at the same time without cutting in and out • Automatic level controls keep participants' audio balanced and consistent • First-mic priority eliminates hollow "tunnel" sound by activating only the microphone closest to the person speaking • Three microphones in each phone unit provide 360° audio pickup - MAXAttach
- • Comes with two phone units and a single base unit for medium conference rooms; also available in 3-phone and 4-phone kits
• Link up to four complete phones, not just microphones, for expanded coverage with MAX EX Expansion Kits • Divide MAXAttach into multiple phone systems for use in separate rooms with MAX EX Expansion Base - Ease of Use
- • Simply plug base unit into power and phone line, connect the phones, then dial and talk
• Features user-friendly telephone style controls • Speed dial stores 10 frequently dialed numbers • Recording output on base unit connects to a recording device to capture both sides of the conversation • Linked MAX phones can be operated using the dial pad of any phone - dialing, mute, volume controls, etc. UPC: 671010500004 In the Box ClearOne 910-158-500-00 MAXAttach Expandable Tabletop Conference Phones 2 x MAX Phone Units MAX Base Unit 12' / 3.7 m Cat. 5 Cable 25' / 7.6 m Cat. 5 Cable Telephone Cable Documentation CD Limited 2-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ClearOne 910-158-500-00 MAXAttach Expandable Tabletop Conference Phones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersClearOne 910-158-500-00 Specs Echo Cancellation | Tail Time: 60 ms x 3 | Noise Cancellation | Dynamic noise cancellation | Telephone Jack | Analog PBX or PSTN line RJ-11C, -12 dBm nominal | Keypad | Alphanumeric standard keypad | Loudspeaker | Volume: 90 dBspl A weighted @ 1 ft Bandwidth: 200 Hz-3.3 kHz | Record Output | Connector: 2.5 mm mono audio jack Impedance: <1000 ohms Bandwidth: 200 Hz-3.3 kHz Dynamic range: 60 dB THD <.01% | Certifications | FCC part 15 Class A FCC part 68 UL Certified | Power | Base unit: Auto-adjusting power module; 100-240 VAC; 50/60 Hz | Temperature & Humidity | Operating Temperature: 32 to 118°F / 0 to 48°C Storage Temperature: 41 to 158°F / 5 to 70°C Operating Humidity: 15 to 80% Storage Humidity: 10 to 90% | Dimensions | Phone Unit: 10.50 x 10.50 x 3.00" / 26.70 x 26.70 x 7.60 cm Base Unit: 4.25 x 5.50 x 2.50" / 10.80 x 14.00 x 6.40 cm | Weight | Phone Unit: 2.70 lb / 1.20 kg Base Unit: 0.60 lb / 0.27 kg |
