User Manual for ClearOne Ceiling Microphone Array Kit for CONVERGE Pro and INTERACT Pro Mixers Click to enlarge the picture
Contents of the user manual for the ClearOne Ceiling Microphone Array Kit for
- Product category: Hanging Microphones ClearOne
- Brand: ClearOne
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ClearOne Hanging Microphones
|
User manual for the ClearOne Ceiling Microphone Array Kit for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ClearOne product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ClearOne user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ClearOne product will considerably shorten its lifespan!
|

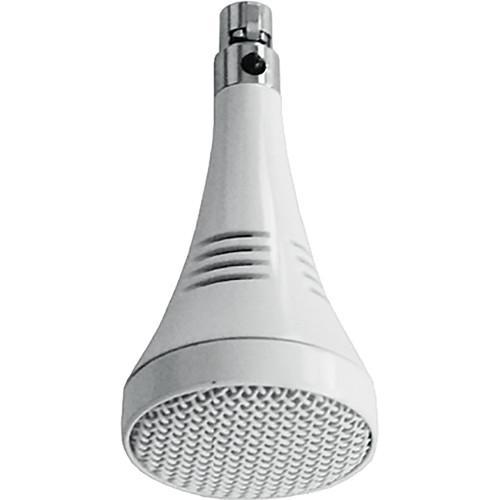

Product description The white Ceiling Microphone Array Kit (Mini-Phoenix Breakout) from ClearOne is an array of three cardioid condenser microphones designed to provide 360-degree coverage of sources in convention and learning centers, meeting rooms, conference rooms, and more. The array features an RJ45 output and includes an RJ45 to mini-Phoenix adapter for connection to ClearOne CONVERGE Pro and INTERACT Pro mixers.The cardioid polar pattern of each mic yields a null point behind the mic, which minimizes noise pickup from the ceiling. The 100 Hz to 12 kHz frequency response reduces low-frequency rumble and high-frequency hiss, and is well-suited for capturing speaking voices. The array is RF hardened and shielded to protect against noise interference.Multiple cables are supplied, including 12" and 24” mini-XLR, 4-pin, drop-down cables, plus a 25’ RJ45 Cat5e cable. Phantom power is required for operation of the Ceiling Microphone Array. -
- Designed for use with ClearOne CONVERGE Pro and INTERACT Pro mixers
- Connect multiple mic arrays to any ClearOne mixer
- For convention and learning centers, and meeting, training, and conference rooms
- Three cardioid condenser microphones in a single array provide 360-degree coverage and minimize noise pickup from ceiling sources
- 100 Hz to 12 kHz frequency response reduces low-frequency rumble and high-frequency hiss
- Run Cat5e Ethernet cable from array output to mixer
- RF hardened and shielded to decrease interface
- Compact and unobtrusive
- Includes 12" and 24" mini-XLR, 4-pin, drop-down cables, 25' RJ45 Cat5e cable, and an RJ45 to mini-Phoenix adapter
- Requires 12 to 52 VDC phantom power
UPC: 671010000191 In the Box ClearOne Ceiling Microphone Array Kit for CONVERGE Pro and INTERACT Pro Mixers (Mini-Phoenix Breakout, White) 12" and 24" 4-Pin, Mini-XLR, Drop-Down Cables 25' RJ45 Male to RJ45 Male Cat5e Cable RJ45 Receptacle to Mini-Phoenix Adapter Mounting Base Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ClearOne Ceiling Microphone Array Kit for CONVERGE Pro and INTERACT Pro Mixers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersClearOne 910-001-013-W Specs | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Response | 100 Hz to 12 kHz | | Dynamic Range (Typical) | 80 dB, 1 kHz at maximum SPL | | Signal-to-Noise Ratio | 60 dBA, 1 kHz at 1Pa | | Output Connector | RJ45 | | Sensitivity | 114 mV/Pa | | Impedance | 200 Ohms | | Power Requirements | 12 to 52 VDC phantom power, 2 mA typical | | Operating Temperature | -4 to 158°F / -20 to 70°C | | Finish | White | | Dimensions (W x H) | 3.3 x 1.5" / 83.8 x 38.1 mm | | Weight | 2.2 lb / 1 kg | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 9.7 x 5.1 x 2.9" |
