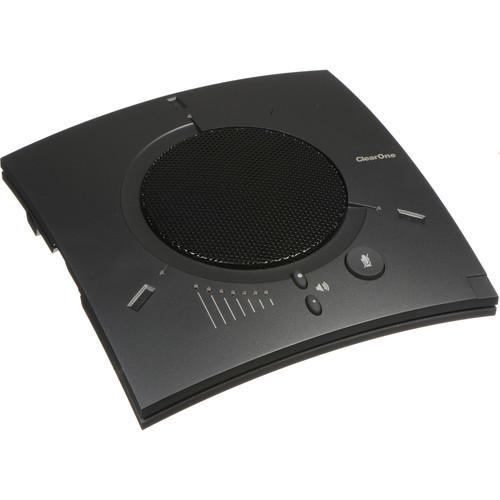

User Manual for ClearOne CHAT 150 USB Speakerphone Click to enlarge the picture
Contents of the user manual for the ClearOne CHAT 150 USB Speakerphone
- Product category: Telephones ClearOne
- Brand: ClearOne
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ClearOne Telephones
|
User manual for the ClearOne CHAT 150 USB Speakerphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ClearOne product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ClearOne user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ClearOne product will considerably shorten its lifespan!
|
Product description Simply plug the CHAT 150 USB Speakerphone from ClearOne into a USB port on your PC or laptop and begin using a variety of web conferencing applications such as IBM Workplace, Microsoft Live Meeting, WebEx, Google Talk, Skype, Vonage, and more. This speakerphone can also be used in conjunction with VoIP softphone applications from Avaya, Cisco, Nortel, and Mirial virtually eliminating the need for a traditional, hard wired telephone. Inside the CHAT 150 you will find full duplex functionality providing a smooth transition between talking and listening, enhanced noise cancellation, and advanced audio level management. Once installed you can take advantage of three built-in microphones covering a distance of up to 8 feet in all directions. Additionally, volume up, volume down, and microphone mute buttons make it easy to adjust call volume while on a call. - Enable Full-Duplex Speaker Phone Capabilities on PCs or Laptops
- Connect the CHAT 150 to laptops & PCs via USB for hands-free audio for:
• VoIP softphones
• Instant Messaging audio chats
• Web conferences - Enjoy Rich Audio Playback
- Advanced ClearOne HDConference audio processing technologies deliver rich, full audio for natural, effortless conversations:
• True full duplex performance allows user to listen and speak at the same time without audio cutting in and out
• Distributed Echo Cancellation
• Noise cancellation
• Advanced automatic level management - Microphones
- Three built-in microphones provide full 360-degree coverage up to 8 feet from device.
- Bridge Audio
- Bridge audio from PC applications with audio on telephone for instant 3-way conference bridge.
- Applications
- Web Conferencing
• IBM Workplace
• Microsoft Live Meeting, WebEx
VoIP Softphones
• Avaya, Cisco, Nortel, Mirial
Internet Telephony
• Google Talk, Skype, Vonage
Instant Messenger
• AOL, Microsoft MSN, Yahoo UPC: 671010003277 In the Box ClearOne CHAT 150 USB Speakerphone Connecting Cable Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ClearOne CHAT 150 USB Speakerphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersClearOne CHAT 150 Specs | Connections | USB connector
Version 2.0 compatible
Type: Mini B female
Keyed connector
Keyed RJ-45 (8 conductor) | | Controls | Volume up
Volume down
Microphone mute | | Operating System Support | Windows XP
Windows Vista
Windows 7 | | Audio | Speaker
Bandwidth: 190 Hz - 20 kHz
Max Output Level: 85 dB SPL @ 3.2 ft / 1 m | | Power | USB-powered
5 VDC @ 500 mA maximum
External Power Supply
100-240 VAC input
9 VDC @ 560 mA output | | Temperature | 41 to 104°F / 5 to 40°C | | Compliance | RoHS
FCC Class A Part 15
FCC Part 15.19 (A) (3)
ICES-003
EU Compliance | | Dimensions | 7.4 x 7.4 x 1.8" / 18.8 x 18.8 x 4.6 cm | | Weight | 1.17 lb / 0.53 kg | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 8.8 x 8.5 x 3.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
