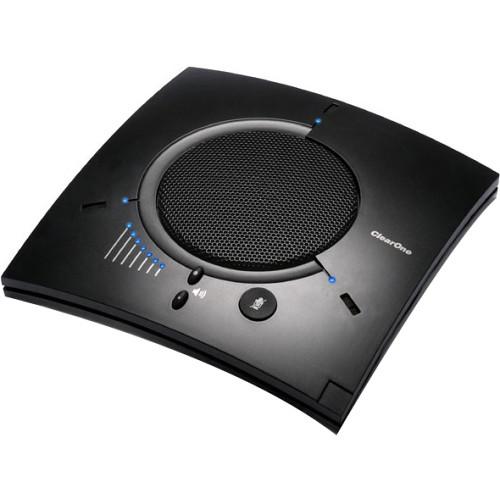

User Manual for ClearOne CHAT 170 Group Speakerphone Click to enlarge the picture
Contents of the user manual for the ClearOne CHAT 170 Group Speakerphone
- Product category: Telephones ClearOne
- Brand: ClearOne
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ClearOne Telephones
|
User manual for the ClearOne CHAT 170 Group Speakerphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ClearOne product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ClearOne user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ClearOne product will considerably shorten its lifespan!
|
Product description Perfect for boardrooms, small conference rooms and offices, the CHAT 170 USB Speakerphone from ClearOne can be used in conjunction with Microsoft Lync Server 2010 for streamlined collaboration with clients. With plug-and-play setup this speakerphone can be configured quickly as it requires no drivers or installation of third party software. Inside the CHAT 170 you will find full duplex functionality providing a smooth transition between talking and listening, enhanced noise cancellation, and advanced audio level management. Once installed you can take advantage of three built-in microphones covering a distance of up to 8 feet in all directions. Additionally, volume up, volume down, and microphone mute buttons make it easy to adjust call volume while on a call. - A Speakerphone for Your PC or Laptop
- • Connect the CHAT 170 to PCs and laptops via USB for hands-free, full-duplex audio with Lync Server
• Incoming calls ring on the CHAT 170
• True plug-and-play operation
- Requires no drivers or software to be installed
• Also provides crystal-clear audio for video conferencing and streamed multimedia content
• Eliminates the need for large, expensive tabletop conference phones in executive offices
• Replaces the PC's speakers and microphone with a high-quality, hands-free audio solution
• Sleek industrial design complements the professional environment of boardrooms and executive offices - Crisp, Clear Audio
- • Advanced ClearOne audio processing technologies deliver remarkably rich, full audio for natural, effortless conversations:
- True full-duplex performance allows users to listen and speak at the same time without audio cutting in and out
- Distributed Echo Cancellation eliminates acoustic echo
- Noise cancellation identifies and removes ambient room noise
- Advanced automatic level management automatically adjusts microphone levels
• Three built-in microphones provide full 360-degree coverage up to 8 feet from device
- Easily manage 1-6 call participants
- Provides rich audio from the far side participants
• Full bandwidth frequency response delivers better audio UPC: 671010003284 In the Box ClearOne CHAT 170 Group Speakerphone Connecting Cable Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ClearOne CHAT 170 Group Speakerphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersClearOne CHAT 170 Specs | Operating System Support | Windows XP
Windows Vista
Windows 7 | | Connections | USB 2 compatible
USB Connector: Mini type B female | | Controls | Volume up
Volume down
Microphone mute | | Audio | Speaker
Bandwidth: 190 Hz - 20 kHz
Max Output Level: 85 dB SPL @ 3.2 ft / 1 m | | Microphone | Bandwidth: 50 Hz - 7.75 kHz | | Temperature | Operating: 41 to 104°F / 5 to 40°C | | Processing | Full Duplex
Distributed Echo Cancellation (D.E.C.)
Noise Cancellation (NC)
Automatic Level Control (ALC)
First Mic Priority | | Power | USB
5 VDC @ 500 mA maximum
External
Input: 100 - 240 VAC
Output: 9 VDC @ 560 mA
Tip: Power
Ring: Ground | | Compliance | RoHS
REACH
FCC Class A Part 15
ICES-003
CE Listed
UL Listed | | Dimensions | 7.4 x 7.4 x 1.8" / 18.8 x 18.8 x 4.6 cm | | Weight | 1.17 lb / 0.53 kg | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 8.8 x 8.4 x 3.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 45 owners. Add your rating and experience with the product.
