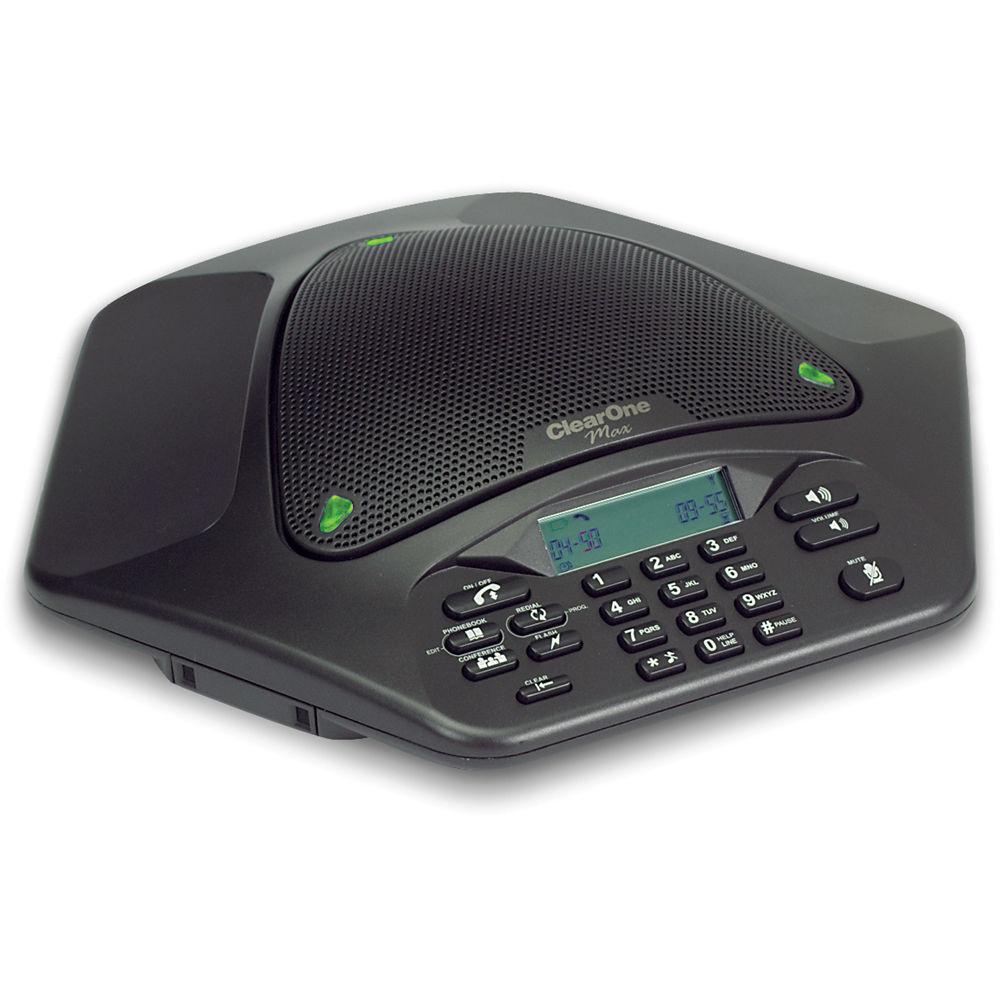

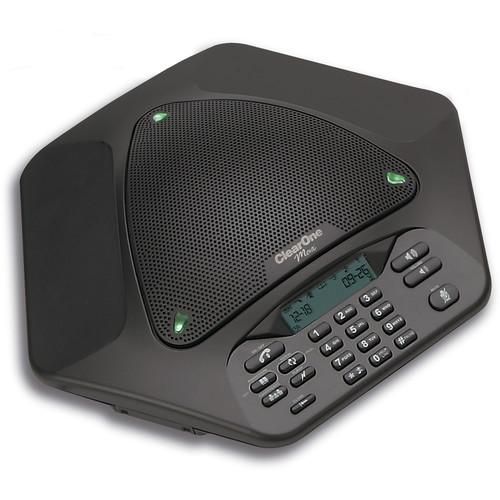

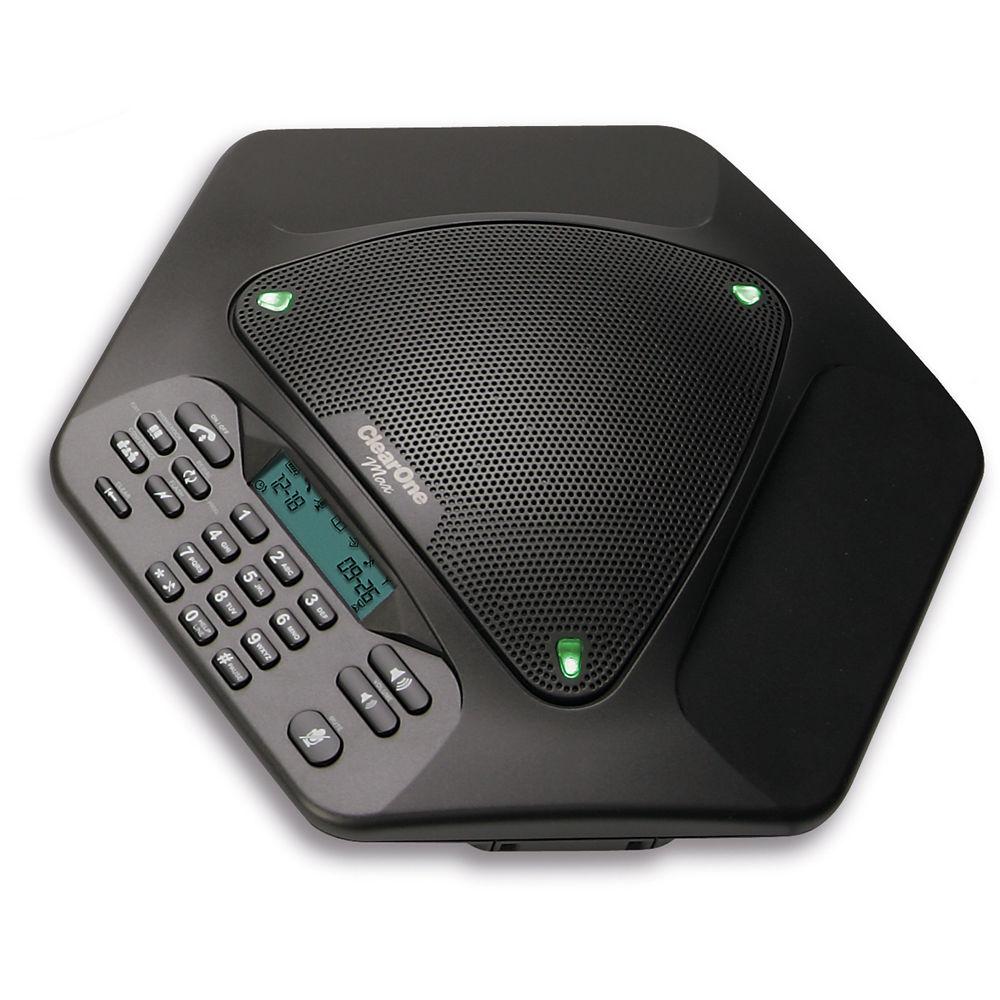

Product description With the MAXAttach Wireless Pods Wireless Tabletop Conference Phone System from ClearOne it is possible to take conference calls from nearly any room, even rooms without a phone line. This conference phone system is designed for medium size conference rooms and supports full duplex audio for seamless transmit and receive audio streams along with support for a DECT Standard cipher with 64-bit encryption for enhanced security. Users also benefit from enhanced noise cancellation functionality to reduce background noise when on a call. The MAXAttach even comes equipped with three microphones for 360° audio pickup. With 12 hours of talk time and up to 36 hours standby time this conference phone can support long phone calls without needing to be recharged. When the time comes to recharge the MAXAttach Conference Phone, the dual function power supply/charger allows the phone to be used even while charging. - Enhanced Audio Performance
- • Distributed Echo Cancellation effectively eliminates echo
• Noise cancellation removes background noises from fans or HVAC systems
• Full-duplex sound enables participants to speak and listen at the same time without cutting in and out
• Automatic level controls keep participants' audio balanced and consistent
• First-mic priority eliminates hollow "tunnel" sound by activating only the microphone closest to the person speaking
• Three microphones provide 360° audio pickup
• ClearEffect provides natural, full-sounding audio without requiring wideband on both ends - Wireless Capabilities
- • Turn any room into a conference room, even one without a phone line
• Wireless signal range allows use in multiple rooms without moving the base unit
• Wireless design provides a clean look with no wires on the table or floor
• 12 hours of talk time allows for lengthy conferences without recharging; 36 hours of standby time reduces recharging frequency; automatic power-save mode conserves battery life
• Dual-function power supply/charger enables conferencing while charging
• DECT Standard cipher with 64-bit encryption ensures secure conferencing
• Audible warnings sound when phone is out of range
• Phone paging button allows easy identification of phone's location - Ease of Use & Control
- • Simply plug base unit into power and phone line, charge phone, then dial and talk
• Features user-friendly telephone style controls
• Speed dial stores 10 frequently dialed numbers
• Recording output on base unit connects to a recording device to capture both sides of the conversation
• Both phones can be operated using the dial pad of either phone - dialing, mute, volume controls, etc. UPC: 671010007701 In the Box ClearOne MAXAttach Pods Wireless Tabletop Conference Phone System with 2 Pods Base Pod 2 x Battery Pack 2 x Power Supply / Charger 2 x Power Supply Retainer Telephone Cable Limited 2-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ClearOne MAXAttach Pods Wireless Tabletop Conference Phone System with 2 Pods in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersClearOne 910-158-600-00 Specs | Echo Cancellation | Tail Time: 60 ms x 3 | | Noise Cancellation | Dynamic noise cancellation | | Connections | Analog PBX or PSTN line RJ-11C, -12 dBm nominal | | Radio | Standard DECT/DECT 6.0
ETSI EN 300 175 1-9 | | Keypad | Alphanumeric standard keypad | | Loudspeaker | Volume: 90 dB spl A weighted @ 1 ft
Bandwidth: 200 Hz-3.3 kHz | | Certifications | FCC part 15/ICES-003 Class A
FCC part 15 Subpart C/RSS-210
FCC part 68/IC CS-03
CE
UL Certified | | Power | Phone Unit
Custom battery pack with nickel metal hydride batteries, 7.2 V 2200 mAh
12 hours continuous talk time (typical)
36 hours standby
Base Unit
Auto-adjusting power module; 100-240 VAC; 50/60Hz | | Wireless Range | 300 - 400 ft (91m - 121m)
Note: Range depends on environmental factors and may vary. | | Temperature & Humidity | Operating Temperature: 32 to 118°F / 0 to 48°C
Storage Temperature: 41 to 158°F / 5 to 70°C
Operating Humidity: 15 to 80%
Storage Humidity: 10 to 90% | | Dimensions | Phone Unit: 10.5 x 10.5 x 3.0" / 26.7 x 26.7 x 7.6 cm
Base Unit: 4.25 x 5.50 x 2.50" / 10.80 x 14.00 x 6.40 cm | | Weight | Phone Unit: 2.7 lb / 1.2 kg
Base Unit: 0.60 lb / 0.27 kg | | | | Package Weight | 10.5 lb | | Box Dimensions (LxWxH) | 18.9 x 12.8 x 10.4" |
