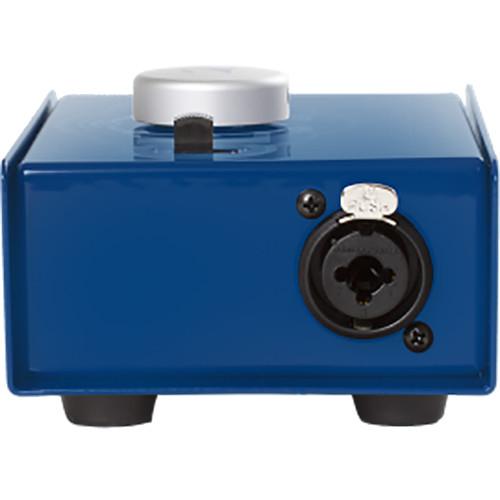

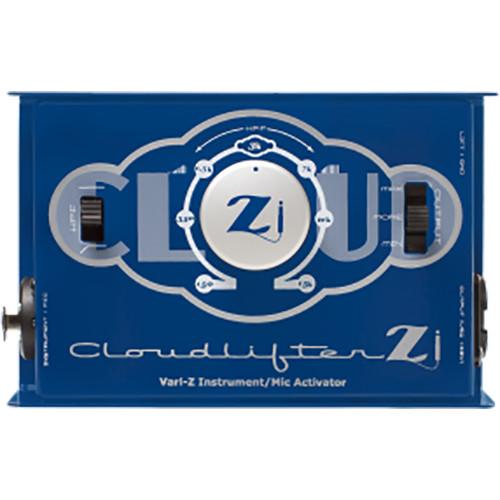

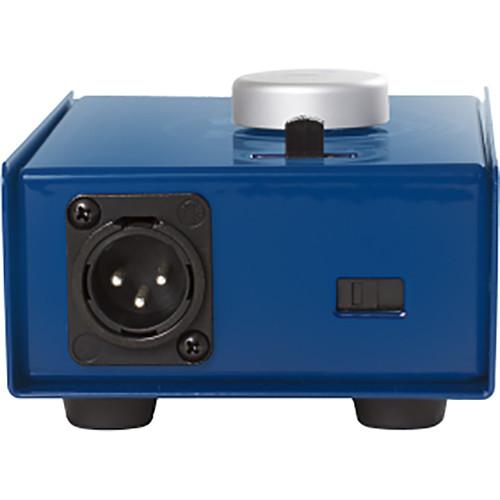

Product description The Cloudlifter CL-Zi Instrument/Mic Activator from Cloud Microphones features a variable-impedance "Z" knob and high-pass filter that work in tandem to create tone control through the manipulation of impedance loading. Powered via phantom power, the CL-Zi enables you to customize your tone before the gain stage of your signal path, and it is well suited for guitar and bass players, keyboardists, microphones, and many studio or stage applications. The CL-Zi has a three-position gain switch, which allows for minimum gain, more gain, or the maximum gain available—approximately up to +12 dB for instruments and +25 dB for microphones. This ability to change gain settings allows you to access clean gain and a lower noise floor for your applications. Additionally, the unit uses Class-A, discrete JFET circuitry and is compatible with 1/4" Hi-Z instrument inputs and XLR Lo-Z microphones. It is designed and built for the rigors of the road. - Fully sweepable, variable impedance loading from 150 Ohms to 15 kOhms
- High-Pass filter frequency variable from below 20 Hz to over 4 kHz
- Three gain settings yield up to +25 , +12, or +6 dB with mics and up to +12, +6, or +3 dB with instruments
- Compatible with 1/4" Hi-Z instrument inputs and XLR Lo-Z microphones
- Hi-Z input of >1 MOhm primary impedance (prior to secondary loading via the Cloudlifter's Vari-Z interface)
- Improves microphone gain before feedback ratio in live & public address applications
- Easy-to-use, self-contained design requires only phantom power
- Compatible with dynamic, ribbon, tube, battery- or power-supply-driven microphones
- Uses patented Class-A, discrete JFET circuitry and patented Vari-Z user interface
- Rugged, road-ready, and portable for studio, stage, and broadcasting
UPC: 040232481048 In the Box Cloud Microphones Cloudlifter CL-Zi Instrument/Mic Activator Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cloud Microphones Cloudlifter CL-Zi Instrument Mic Activator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCloud Microphones Cloudlifter CL-Zi Specs | Input | 3-pin XLR and 1/4" (6.3 mm) combo jacks
Compatible with 1/4" Hi-Z inputs and Lo-Z microphones | | Output | 3-pin XLR | | Phantom Power Requirement | 48 V | | Compatible with | Dynamic, ribbon, tube, battery- or power-supply-driven microphones | | Knobs | Variable-impedance "Z" knob and high-pass filter | | Other Features | Class-A, discrete JFET circuitry | | Switches | Minimum gain
More gain
Maximum gain (up to +12 dB for instruments and +25 dB for microphones) | | RoHS Compliant | RoHS directive and RoHS II | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 6.7 x 4.3 x 3.3" |
