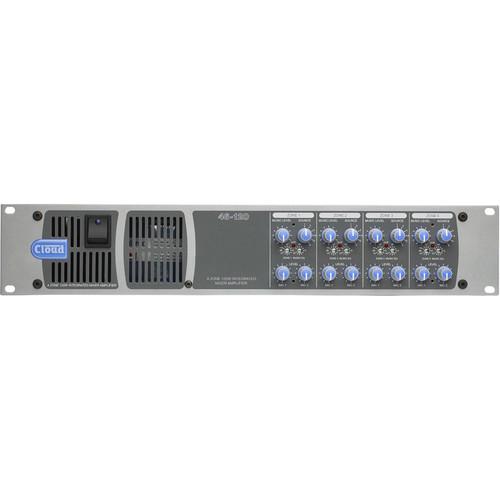

User Manual for Cloud USA 46-120T Four-Zone Mixer Amplifier with 70 100V Transformers Click to enlarge the picture
Contents of the user manual for the Cloud USA 46-120T Four-Zone Mixer Amplifier
- Product category: Mixer/Amplifiers Cloud USA
- Brand: Cloud USA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cloud USA Mixer/Amplifiers
|
User manual for the Cloud USA 46-120T Four-Zone Mixer Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cloud USA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cloud USA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cloud USA product will considerably shorten its lifespan!
|
Product description The 46-120T from Cloud USA is a four-zone integrated mixer and amplifier well suited for supermarkets, retail stores, restaurants, bars, and other retail or industrial applications. The unit provides with individual source selection and volume control of up to six audio sources and two microphone inputs across four zones. Each zone provides 120W (4 Ohm) output or 120W (70/100V) output with the internal transformer modules pre-installed.
Each zone offers music level and source selection knobs, as well as level knobs for the two microphone inputs. Additionally, there are LF and HF controls for each zone, allowing for a customized sound for each zone. There are several options for remote source selection, volume control, and paging systems making the system a feature-packed single-box solution. The 46-120T ships with a power cord, a set of mating connectors for all real panel multi-pin screw-terminals, a set of four plastic feet, and a front panel security cover with mounting hardware. -
- Eight input (6 line + 2 mic) mixer amplifier for four zones
- Provides versatile music, paging and announcement facilities in each zone
- Front panel user controls for music source, music level and level of each microphone, for each zone
- Six (unbalanced) stereo line inputs with individual gain trim controls
- Selectable LINE 6 priority in Zone 1, with choice of release times
- Two balanced mic inputs; 15 V phantom power selectable on either or both
- MIC 1 input can be configured as telephone system interface
- Contact closure access port for paging zone selection – most OEM paging systems supported
- Selectable VOX-triggered mic-over-music priority
- Sensitivity and HF/LF EQ adjustment for mic inputs (rear panel)
- Front panel preset controls for HF/LF EQ for each zone output
- 4 x 120 W power output (4 ohms)
- Includes CXL-46T 70/100V transformers factory-installed in all channels
- Dynamic clip limiting in power amplifier stage
- Zones 1 & 2 auxiliary line level outputs (pre-power amplifier), for connection of additional external amplifiers
- Transformer-isolated auxiliary output with independent mic and music level control - for use with telephone MOH systems
- Aux output source selection (internal jumper) – fixed source or mix of Mic 1 and Zone 1 music source
- Zone 1 Facility Port (RJ45) for connection of optional LM-2 Series mic/line remote input/control modules via screened Cat 5
- Selectable 65 Hz high-pass filter per-output (for use with 70/100 V-line systems)
- Music Mute control input (N/O or N/C) for interface to emergency system
- Compatible with standard Cloud remote control plates: RL Series (music level) and RSL Series (music level and source selection), per-zone
- Optional CDI-46 digital interface card with Cloud Digital Paging System port for direct interface to PM Series paging microphones, RS-232 serial port and RJ45 Ethernet port
- Optional EQ cards available to suit various popular installation loudspeakers may be fitted in any or all outputs
- Energy-saving auto power-down function, Ethernet-controllable (when CDI-46 is fitted)
- Remote standby mode control by contact closure
- Variable–speed fan cooling
- 2U 19” rack-mounting unit
In the Box Cloud USA 46-120T Four-Zone Mixer / Amplifier with 70/100V Transformers IEC Power Cord Set of Mating Connectors for All Rear Panel Multi-Pin Screw-Terminal Connectors 4 x Plastic Feet with Fixings Front Panel Security Cover 4 x M3 x 6 Hex-Head Screws for Security Cover Hex Key (2mm) for Security Cover Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cloud USA 46-120T Four-Zone Mixer Amplifier with 70 100V Transformers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCloud USA 46-120T Specs | | | Frequency Response | 20 Hz to 20 kHz +0/-0.5 dB | | THD+N | 0.04% @ 1 kHz, 22 kHz bandwidth | | Sensitivity | 195 mV (-12 dBu) to 2.0 V (+8 dBu) | | Input Gain Control | 20 dB range | | Input Impedance | 47 kOhms | | Headroom | 17 dB | | Noise | -90 dB RMS, 22 kHz bandwidth | | Equalization | HF: ±10 dB @ 10 kHz
LF: ±10 dB @ 50 Hz | | | | Frequency Range | 100 Hz -3 dB (fixed filter) to 20 kHz ±1 dB | | Distortion | <0.03% @ 1 kHz, 80 kHz bandwidth | | Gain Range | 10 to 50 dB | | Common Mode Rejection | 70 dB typical | | Input Impedance | 3.3 kOhms (balanced) | | Headroom | 17 dB | | Noise | -127 dB EIN 22 Hz - 22 kHz (Rs = 150 Ohms) | | Equalization | HF: ±10 dB @ 5 kHz
LF: ±10 dB @100 Hz | | | | Low Impedance | 4 Ohm Load: 120 W (170 W one channel driven) @ 1 kHz & 0.1% THD+N
8 Ohm Load: 85 W (100 W one channel driven) @ 1 kHz & 0.1% THD+N
Frequency Response: -1 dB @ 20 kHz, -0.5 dB @ 20 kHz
Distortion: <0.04% @ 1 kHz, 80 kHz bandwidth | | 70 - 100 V Input | 70/100 V-Line Output (with optional CXL-46T transformers)
Minimum Load: 70 V balanced - 42 Ohm min. load, 100 V balanced - 83 Ohm
Frequency Response: -3 dB @ 65 Hz (filter), -2.5 dB @ 20 kHz
Distortion: <0.06% @ 1 kHz, 80 kHz bandwidth | | Amplifier Protection | Dynamic Clip Protection, VI Limiting, DC Offset, thermal & switch-on delay | | Cooling | Variable speed DC fan (stationary in Idle Mode) | | | | Power Input | 230 V ±5% (115 V ±5% by internal connection) | | Fuse | Fuse Rating: 230 V: T4A, 100/115 V: T8A
Fuse type: 20 mm x 5 mm HBC | | Power Consumption | External Remote Power-Down: 4.7 W, 7.75 VA
Idle - 4 chs APD: 13.4 W, 16.75 VA
Idle - 3 chs APD: 16.3 W, 20.5 VA
Idle - 2 chs APD: 19.2 W, 24.9 VA
Idle - 1 ch APD: 22.2 W, 29.4 VA
Idle, all chs active: 25.2 W, 33.6 VA
Noise Input, 1/3 Rated Power, 4 Ohms: 440 W, 560 VA
Noise Input, 1/3 Rated Power, 8 Ohms: 275 W, 362 VA
Noise Input, 1/8 Rated Power, 4 Ohms: 280 W, 370 VA
Noise Input, 1/8 Rated Power, 8 Ohms: 175 W, 240 VA | | Dimensions (W x H x D) | 19.0 x 3.5 x 16.0" / 482.6 x 88.9 x 406.4 mm | | Weight | 35.3 lb / 16.0 kg |
