Product description The MA60T 2 U Rackmountable Single-Zone Mixer Amplifier from Cloud USA is a reliable, compact, and self-contained source of background music, ideally suitable for installation in retail premises, bars, hotels, restaurants, licensed premises, and many other entertainment locations. It features four stereo line inputs for music sources on phono (RCA) sockets and a balanced microphone input. Any one of the music sources may be user-selected, and mixed with the microphone input to provide paging. Line 2 input is duplicated on a 3.5mm stereo jack socket to permit simple connection of a laptop, portable MP3 player, or similar. An isolating transformer is fitted (selected by internal jumpers) to reconfigure the mic input for use with an analog telephone system, permitting paging announcements to be made from any phone extension.
The MA60T has a 60W power amplifier, which is suitable for low-impedance loads; a transformer (Model CXL-50T) is pre-fitted, and configured for 70V-line operation. A balanced pre-amp output is fitted, the signal being taken from post the level control; this may be used to feed additional power amplifiers. A transformer-isolated auxiliary output is also provided which may be used as an interface for telephone MOH systems, or as a utility output to drive a local rack monitor or an induction loop amplifier. This output may be selected by internal jumper to either follow the main output, or be permanently fed with any one of the music sources.

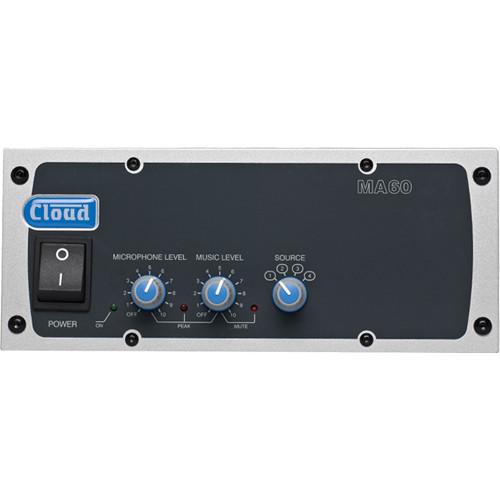

The front panel controls are provided for music source selection, and music and microphone levels. Rear panel controls include gain adjustment for each music source and the microphone input, output HF/LF EQ adjustment, and independent music and mic level controls for the MOH/Utility output.
The MA60T is compatible with Cloud PM Series paging microphones. Alternatively, the Mic input may be configured to suit most short-to-ground OEM paging systems with VOX or access-triggered mic-over-music priority. One line input may be set to have priority over any other selected to facilitate connection of a digital sound storage or similar device. Furthermore, the mixer amplifier features an external Music Mute control input (selectable N/C or N/O) to allow the unit to be interfaced to an external emergency system. Compatibility - With Standard Cloud Remote Control Panels: RL-1 (music level) and RSL-4 (music level and source selection)
General - 2 U half-width (9.5") rack mounting unit
- Four-input mixer amplifier with integral 60W mono power amplifier
- Electronically-balanced mic input
- Mic input may be configured as telephone interface (transformer isolated, enabled by internal jumper)
- Front panel control of music source/level and mic level
- 3.5mm jack input (LINE 2) for MP3 player, laptop, and more
- Overall HF & LF EQ adjustment
- Paging may be VOX-triggered or via short-to-ground access connector
- Selectable Line 4 priority over other music inputs
- Music Mute control input (N/O or N/C) for interface to emergency system
- Electronically-balanced pre-amp output
- Transformer-isolated auxiliary output with independent mic and music level control - for use with telephone MOH systems
- Aux output source selection (internal jumper) fixed source or follow main output
- Remote Standby control input
In the Box Cloud USA MA60T 2 U Rackmountable Single-Zone Mixer Amplifier Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cloud USA MA60T 2 U Rackmountable Single-Zone Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCloud USA MA60T Specs | | | Frequency Response | Low-Z Output: +0/-1 dB, 20 Hz to 20 kHz (65 Hz filter out)
70 V-line Output with CXL-50T Transformer Pre-Fitted: +0/-3 dB, 20 Hz to 20 kHz (65 Hz filter out) | | Distortion | Low-Z Output: <0.05% @ 1 kHz, 1 dB below full power (80 kHz bandwidth)
High Voltage Output: <0.05% @ 1 kHz, 1 dB below full power (80 kHz bandwidth) | | Sensitivity | 195 mV (-12 dBu) to 2.0 V (+8 dBu) | | Input Gain Control | 20 dB range | | Input Impedance | 47 kOhms | | Headroom | >20 dB | | Noise | -93 dB, 22 Hz to 22 kHz, measured at speaker output, relative to full power | | | | Frequency Response | Low-Z Output: -3 dB @ 100 Hz (3rd. order filter), -1 dB @ 20 kHz
High Voltage Output: -3 dB @ 100 Hz (3rd. order filter), -2 dB @ 20 kHz | | Distortion | <0.05% @ 1 kHz, 1 dB below full power (80 kHz bandwidth) | | Gain | 40 dB range | | Input Impedance | >2 kOhms (balanced) | | Phantom Power | 15 V, switchable per-input by jumpers | | Headroom | >20 dB | | Noise | -127 dB EIN, 22 Hz to 22 kHz (150 Ohms) | | | | Output Power | Low Impedance Output: 60 W @ 1 kHz & <0.07% THD+N
70 V-line output: 50 W @ 1 kHz & <0.07% THD+N | | Equalization | HF: +/-10 dB @ 5 kHz
LF: +/-10 dB @ 100 Hz | | Protection | Dynamic level signal limiter max gain reduction of 20 dB, Thermal protection, IV limiting & short circuit protection, Switch on delay | | | | Power Input | 120 V | | Fuse Rating | 120 V, T2A H | | Fuse | Type: 0.7 x 0.2" (20 x 5 mm) | | Cooling | Convection cooled, vents top and bottom | | Dimensions (W x H x D) | 8.4 x 3.5 (2 U) x 10.9" (21 x 8.9 x 28 cm) plus connectors and knobs | | Weight | 10.3 lb (4.6 kg) |
