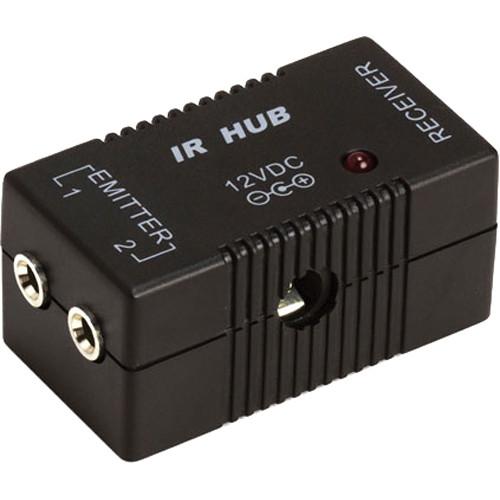

Product description The Cmple IR Repeater/Extender Kit is a wired system for relaying IR remote signals to overcome the normal line-of-sight limitation of infrared. It features a connecting block that an IR receiver pugs into at one end and has outputs for up to two emitters at the other. With this system you can control up to six devices in your home theater setup, allowing you to keep your home theater components hidden from view, or even operate them from another room in your house.

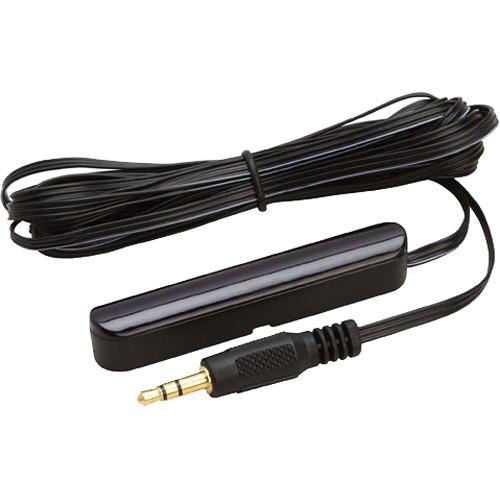

A dual-band IR receiver or eye plugs into to 3.5mm mini jack connector on the input side of the Repeater/Extender box. The IR receiver features double sided adhesive allowing it to mount to most surfaces and has a 10' cable. In addition, it features LEDs that provide feedback so you can be sure that it is successfully picking up your remote.

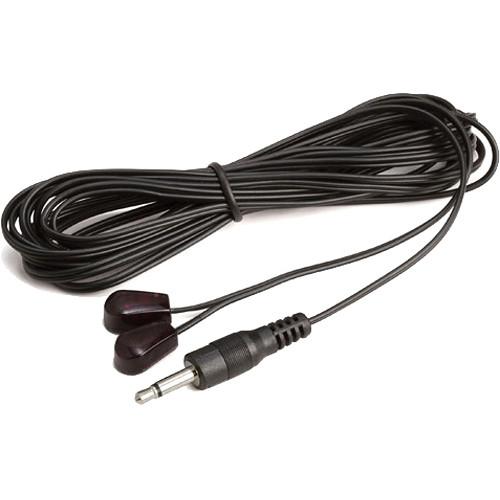

On the output side of the connecting block are two 3.5mm mini jack connectors for the IR emitters. The IR emitters are double-headed, and one is included in the kit. As with the IR receiver, the emitters have adhesive allowing them to attach to a variety of surfaces, and feature 10' cables. The emitter head can be mounted directly in front of the IR receiver on the devices you want to control, or can be arranged to create a "flood" pattern allowing you to control multiple devices stored in one area. - For cable-boxes, audio receivers, Blu-ray players, VCRs, DVRs, satellite receivers, media players, VOD streaming boxes, and more
- Add an additional emitter to increase coverage area
- Optional IR receiver wall plates, sold separately, available for permanent, in-wall installs
UPC: 850417002025 In the Box Cmple IR Remote Repeater/Extender Kit Dual Band IR Receiver Double-Headed IR Emitter Power Supply Table of Contents
|
Upload User Manual
Have you got an user manual for the Cmple IR Remote Repeater Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCmple 1216-N Specs | Operating Frequencies | 38 kHz and 56 kHz | | Input / Output Connectors | 1x 3.5 mm mini jack for IR receiver
2x 3.5 mm mini jack for IR emitter | | Power Requirements | 12 VDC, 200mA - AC adapter included | | Dimensions | Connecting Block: 1.9 x 1 x 0.9" (47 x 26 x 22 mm)
IR Emitter: 0.5 x 0.2 x 0.3" (14 x 6 x 8 mm)
IR Receiver: 2.7 x 0.5 x 0.5" (68 x 13 x 12 mm) | | Weight | Not specified by manufacturer | | | | Package Weight | 0.575 lb | | Box Dimensions (LxWxH) | 6.8 x 4.9 x 2.25" |
