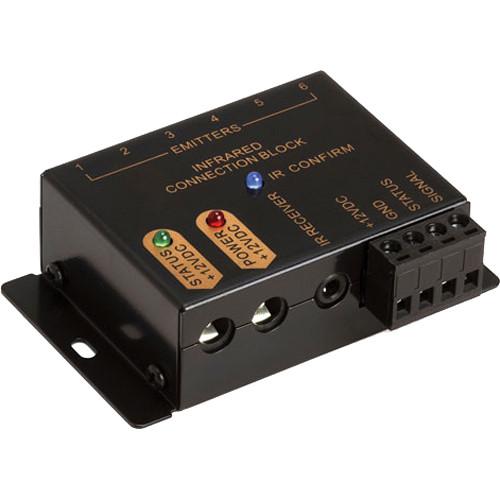

Product description The Cmple Premium IR Remote Extender/Repeater Kit is a wired system for relaying IR remote signals to overcome the normal line-of-sight limitation of infrared. It features a Connecting Block with one IR receiver input and six IR emitter outputs. With this system is is possible to control up to 18 devices in your home theater or A/V setup, allowing you to keep your components hidden from view or even operate them from another room.

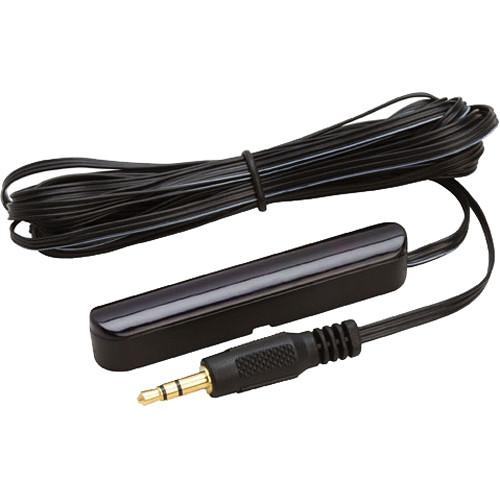

A dual-band IR receiver or eye plugs into to 3.5mm mini jack connector on the input side of the Connecting Block. The IR receiver features adhesive allowing it to mount to most surfaces and has a 10' cable. In addition, it features LEDs that provide feedback so you can be sure it is successfully picking up your remote.

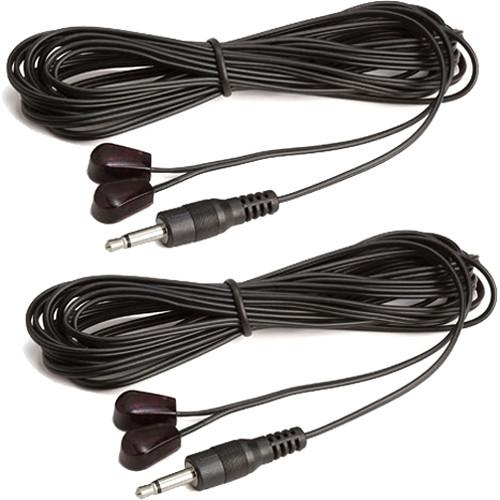

On the output side of the Connecting Block are six 3.5mm mini jack connectors for the IR emitters. The IR emitters are double-headed, and two are included in the kit. As with the IR receiver, the emitters have adhesive allowing them to attach to a variety of surfaces, and feature 10' cables. Each of the emitter heads can be mounted directly over of the IR receiver of the devices you want to control, or they can be arranged to create a "flood" pattern allowing you to control multiple devices stored in one area.
The Connecting Block also features an Ethernet (CAT5 or higher) input on a terminal block connector for applications where the IR receiver needs to be further than 10' away. To use Ethernet extension, a transmitter balun, sold separately, will also be required that the IR receiver will then plug in to. - For cable-boxes, audio receivers, Blu-ray players, VCRs, DVRs, satellite receivers, media players, VOD streaming boxes, and more
- Add additional emitters to increase coverage area and control up to 18 devices
- Connecting Block features screws for in-wall and other fixed installations
- Optional IR receiver wall plates, sold separately, available for permanent, in-wall installs
UPC: 850417002018 In the Box Cmple Premium IR Remote Extender/Repeater Kit Dual Band IR Receiver 2 x Double-Headed IR Emitter 2 x Mounting Screw for Connecting Block Power Supply Table of Contents
|
Upload User Manual
Have you got an user manual for the Cmple Premium IR Remote Extender Repeater Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCmple 1183-N Specs | Operating Frequencies | 38 kHz and 56 kHz | | Input / Output Connectors | 1x 3.5 mm mini jack connector for IR receiver
6x 3.5 mm mini jack connector for IR emitter
1x Ethernet on terminal block connector for IR receiver
1x 12 VDC status input jack with LED indicator | | Power Requirements | 12 VDC, 200mA - AC adapter included | | Dimensions | Connecting Block: 3.2 x 2.4 x 1.1" (82 x 60 x 27 mm)
IR Receiver: 0.5 x 0.2 x 0.3" (14 x 6 x 8 mm)
IR Emitter: 2.7 x 0.5 x 0.5" (68 x 13 x 12 mm)
Both receiver and emitters feature 10' (3 m) cables | | Weight | Not specified by manufacturer | | | | Package Weight | 0.665 lb | | Box Dimensions (LxWxH) | 6.85 x 4.25 x 2.3" |
