User Manual for COAST FL75R Dual-Color Pure Beam Focusing Rechargeable LED Headlamp Click to enlarge the picture
Contents of the user manual for the COAST FL75R Dual-Color Pure Beam Focusing
- Product category: Headlamps COAST
- Brand: COAST
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COAST Headlamps
|
User manual for the COAST FL75R Dual-Color Pure Beam Focusing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COAST product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COAST user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COAST product will considerably shorten its lifespan!
|

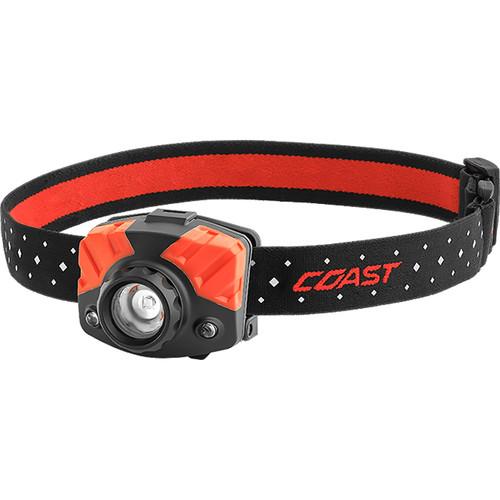

Product description Rechargeable or alkaline batteries, flood or spot beam, red or white light—the black and red COAST FL75R Dual-Color Pure Beam Focusing Rechargeable LED Headlamp offers options for hands-free lighting. Up to 530 lumens of white light will illuminate your after-dark activities, but you can switch to red if you need to preserve night-acclimated vision.With a simple twist of the head, the versatile Pure Beam system allows you to switch from the wide Ultra View Flood Beam, which lights large areas close to you with a smooth and consistent beam from one edge to the other, to a focused spotlight that is optimized for a long throw. In the spot mode, the light has COAST's "Bull's-Eye" Beam, which has a bright center circle that smoothly transitions to a dimmer "halo" around it, providing maximum illumination precisely where you need it with plenty of spill to keep you aware of your surroundings. The angle of the light head can be adjusted down for precise beam placement to fully illuminate where you're working.The FL75R is capable of running on multiple battery chemistries, and COAST provides both to get you started. First, you have a lithium-ion rechargeable battery pack that provides the low 65-lumen output and high 530-lumen output. You can choose to use three AAA batteries—the medium and high outputs will be lower, but runtimes are extended so you have the option of maximum power or maximum runtimes depending on the job you need to do.Weighing just 3.7 ounces, the light won't cause neck strain or discomfort while wearing it, and it comes with an adjustable headband accented with reflective details to improve your visibility to others if you're walking the dog on the roadside. To withstand inclement weather, the housing is IPX4-rated to be water resistant against splashing water or rain. The FL75R comes complete and ready to use with three AAA batteries and a set of hard hat clips. - White-Light Output and Runtimes
- Rechargeable lithium-ion battery:
- Low: 65 lumens, 11-hour runtime
- Medium: 260 lumens, 5.25-hour runtime
- High: 530 lumens, 2.25-hour runtime
AAA batteries:- Low: 65 lumens, 23-hour runtime
- Medium: 245 lumens, 7.5-hour runtime
- High: 480 lumens, 3.25-hour runtime
- Red Light
-
- Illuminates without affecting night-adjusted vision
- Ideal for moving around a tent or room without disturbing others, or for astronomy sessions
UPC: 015286215314 In the Box COAST FL75R Dual-Color Pure Beam Focusing Rechargeable LED Headlamp (Black/Red) Hard Hat Clip Set Reflective Headband Rechargeable Battery Pack 3 x AAA Batteries Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COAST FL75R Dual-Color Pure Beam Focusing Rechargeable LED Headlamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOAST FL75R Specs | | | Lumen Output | Proprietary Lithium-Ion:
Low (White): 65 Lumens
Medium (White): 260 Lumens
High (White): 530 Lumens
AAA Alkaline:
Low (White): 65 Lumens
Medium (White): 245 Lumens
High (White): 480 Lumens | | Illumination Source | 1 x White LED
1 x Red LED | | Estimated Runtime | Proprietary Lithium-Ion
Low: 11 Hours
Medium: 5.25 Hours
High: 2.25 Hours
AAA Alkaline
Low: 23 Hours
Medium: 7.5 Hours
High: 3.25 Hours | | Battery Type | 1 x Rechargeable Pack Lithium-Ion or
3 x AAA Alkaline | | | | Material of Construction | Plastic | | Water Resistance | Water Resistant, IPX4 | | Impact Resistance | No | | Weight | 3.7 oz / 105 g (Without Batteries) |
