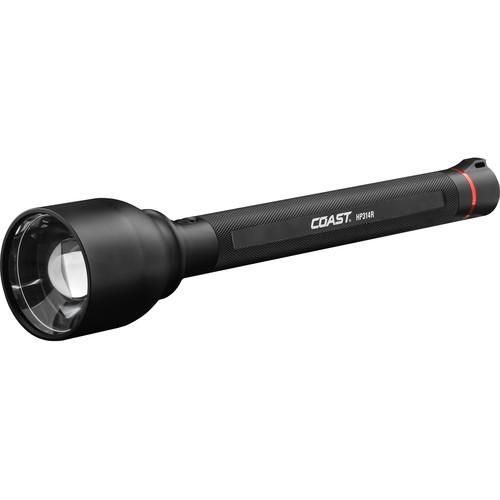

User Manual for COAST HP314R Long Range Focusing Rechargeable LED Flashlight Click to enlarge the picture
Contents of the user manual for the COAST HP314R Long Range Focusing Rechargeable
- Product category: Handheld Flashlights COAST
- Brand: COAST
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COAST Handheld Flashlights
|
User manual for the COAST HP314R Long Range Focusing Rechargeable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COAST product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COAST user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COAST product will considerably shorten its lifespan!
|
Product description Optimized for power and throw while being extremely versatile, the COAST HP314R Long Range Focusing Rechargeable LED Flashlight is designed with a focusable beam with two outputs and is capable of running on both rechargeable and disposable batteries to ensure you are never without light when you need it.Using four alkaline disposable batteries, the light outputs 165 lumens on low and emits a darkness-obliterating high output of 1200 lumens. A third output produces a disorienting strobe, which will come in handy to ward off potential threats. With one-handed operation, the head slides forward and back to use the versatile Long-Range Focusing system, which allows you to change the beam from a wide flood that lights large areas close to you to a focused spotlight that is optimized for a long-distance throw.The HP314R is capable of running on two different battery chemistries, and COAST provides both to get you started. First, you have four easy-to-find D-cell batteries that provide the maximum output intensity on both low and high settings. A lithium-ion (Li-ion) rechargeable battery pack is included that can be charged in or out of the light using the charging kit accessories. The Li-ion pack produces somewhat lower outputs, and runtimes will be a bit different, but at least you won't be left in the dark.With a solid feel in the hand and powerful high-lumen output, the light is up to any daily task you give it—from lighting a room, basecamp, or other large areas to showing the way far ahead. The light comes complete with batteries, a removable shoulder strap, and protective rubber bezel ring and tailcap cup that all fit in the included carrying case. - Light Performance
-
- Single white-light LED emitter
- Internal reflector lens helps to direct and focus beam
- Head slides forward and back to focus beam; twist head to lock beam
- Slide Focus system allows the beam to be adjusted from a wide flood to a tight spotlight
- In Broad View Flood mode, the beam is optimized to cover a wide area with consistent intensity from edge to edge without a center hotspot of brighter light
- X-Range Spot Beam uses the interior reflector lens to focus the beam into a tight circle of light without a hotspot or spill and is maximized for a long throw
- Strobe mode can be used to signal to a partner or disorient potential threats
Output, Alkaline batteries:- Low: 165 lumens, 94-hour runtime
- High: 1200 lumens, 3.25-hour runtime
Output, Li-ion battery pack:- Low: 105 lumens, 85-hour runtime
- High: 1000 lumens, 10-hour runtime
- Switching
-
- Type: Push button
- Location: Body, behind the head
- Constant-on activation
- Slip-resistant rubber boot on switch
- Construction Details
-
- Durable and corrosion-resistant aluminum body
- Scratch-resistant anodized aluminum finish
- Textured handle helps to provide a slip-resistant grip
- IPX4-rated to be water resistant to splashing water and rain
- Integrated lanyard loop near tailcap
- Removable shoulder strap installs on handle for easier carrying
- Rubber bezel ring and cup protect the head and tailcap, respectively, from damage from drops and other impacts
- Semi-rigid EVA carrying case with custom-cut foam lining for the light, strap, and bezel ring
- Power Details
-
- Dual chemistry compatibility enables it to operate with rechargeable lithium-ion or disposable alkaline batteries
- Rechargeable Li-ion battery pack and four D-cell batteries included
- Li-ion battery pack recharges in or outside the light via micro-USB port
- Li-ion battery can be used to power/charge small electronics such as phones or cameras using its integrated standard USB 2.0 output port
- Charging kit with micro-USB cable, 110 VAC wall outlet adapter, 12 VDC car/vehicle plug adapter
UPC: 015286205278 In the Box COAST HP314R Long Range Focusing Rechargeable LED Flashlight Bezel Ring Tailcap Cup Battery Pack USB Charging Cable 110 VAC USB Wall Outlet Adapter 12 VDC USB Car/Vehicle Adapter Shoulder Strap Hard Carrying Case 4 x D-Cell Batteries Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COAST HP314R Long Range Focusing Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOAST HP314R Specs | | | Lumen Output | D Alkaline:
Low: 165 Lumens
High: 1200 Lumens
Proprietary Lithium-Ion:
105 Lumens
1000 Lumens | | Illumination Source | 1 x White LED | | | | Estimated Runtime | D Alkaline
Low: 94 Hours
High: 3.25 Hours
Proprietary Lithium-Ion
Low: 85 Hours
High: 10 Hours | | Battery Type | 4 x D Alkaline
1 x Rechargeable Pack Lithium-Ion | | | | Material of Construction | Aluminum | | Water Resistance | Water Resistant, IPX4 | | Impact Resistance | No | | Dimensions | L: 17.1" / L: 43.5 cm | | Weight | 49.60 oz / 1406 g | | | | Package Weight | 7.195 lb | | Box Dimensions (LxWxH) | 19.5 x 10.0 x 4.5" |
