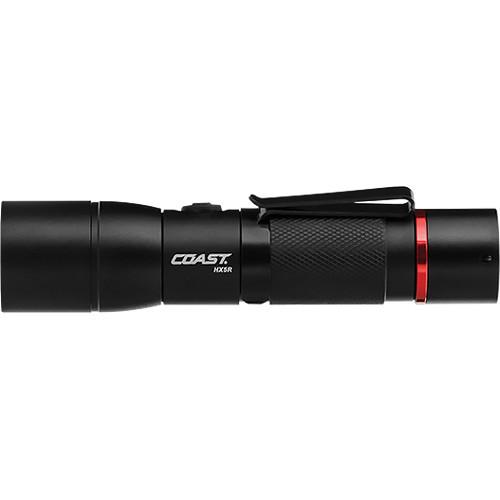

User Manual for COAST HX5R Rechargeable Pure Beam Focusing LED Flashlight

Click to enlarge the picture
COAST HX5R Rechargeable Pure Beam Focusing LED Flashlight Contents of the user manual for the COAST HX5R Rechargeable Pure Beam Focusing
  • Product category: Handheld Flashlights COAST
  • Brand: COAST
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for COAST Handheld Flashlights

COAST HX5R Rechargeable Pure Beam Focusing LED Flashlight COAST HX5R Rechargeable Pure Beam Focusing LED Flashlight
User manual for the COAST HX5R Rechargeable Pure Beam Focusing contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any COAST product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official COAST user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a COAST product will considerably shorten its lifespan!

Product description

  • Focus Beam Demonstration
Suitable for professional, recreational, and home use, the COAST HX5R Rechargeable Pure Beam Focusing LED Flashlight is a highly versatile torch. Featuring a substantial maximum output of 340 lumens, it offers two brightness levels plus a strobe, can use its rechargeable battery or a CR123, and adjusts easily between spot and flood beams.

The light's Pure Beam Focusing system works by sliding the head forward and back, changing the beam from a wide flood that lights large areas close to you into a focused spotlight that is optimized for a long throw. Runtime ranges from 1.5 hours on high to 4.3 hours on low.

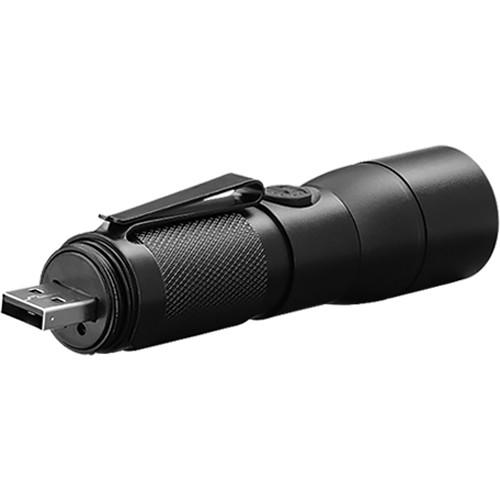

The on/off and settings switch is on the side of the light, not the tailcap, because the tailcap can be removed to reveal a clever feature—a male USB-Type A plug, so you can just plug the whole light into an adapter, computer, cable box, or anyplace else with a USB jack. Should a charge be unavailable, you can remove the lithium-ion battery pack and drop in a non-rechargeable CR123 battery.

A two-way clip provides ample carry and positioning options (clip the light in your pocket or onto the brim of a cap, for example). Rated IPX4 water resistant, the light can be used in wet weather. It measures 4" long and weighs 3.4 ounces.
    Light Performance
    • High: 340 lumens
    • Low: 75 lumens
    • Strobe for signaling or self-defense
    • Pure Beam slide focus for spot-flood beam adjustment
    • Runtime: 1.5 hours on high, 4.3 hours on low
    • Type: Push button
    • Location: Side
    Construction Details
    • Lightweight and durable aluminum-alloy housing
    • IPX4-rated weather resistant against splashing water, rain, and snow
    • Textured slip-resistant handle for sure handling in cold and wet conditions
    • Built-in male USB plug
    • Runs on included lithium-ion rechargeable battery or CR123
    • Two-way clip
UPC: 015286215932 In the Box COAST HX5R Rechargeable Pure Beam Focusing LED Flashlight
  • Li-Ion Battery Pack
  • USB Charging Cable
  • Lanyard
  • Limited Lifetime Warranty
  • Table of Contents

    Upload User Manual

    Have you got an user manual for the COAST HX5R Rechargeable Pure Beam Focusing LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: pdf, docx, jpg)


    Technical parameters

    COAST HX5R Specs

    Lumen Output Proprietary Lithium-Ion:
    Low: 75 Lumens
    High: 340 Lumens
    Illumination Source 1 x White LED
    Estimated Runtime Proprietary Lithium-Ion
    Low: 4.3 Hours
    High: 1.5 Hours
    Battery Type 1 x Rechargeable Pack Lithium-Ion or
    1 x CR123A Lithium
    Material of Construction Aluminum
    Water Resistance Water Resistant, IPX4
    Impact Resistance Yes
    Bezel Diameter 1.1" / 2.8 cm
    Dimensions W: 1.0 x L: 4.9" / W: 2.5 x L: 12.4 cm
    Weight 3.88 oz / 110 g
    Package Weight 0.535 lb
    Box Dimensions (LxWxH) 8.75 x 4.5 x 1.8"
